Toyota Hilux
2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe
Supported model
Data version 2016-06

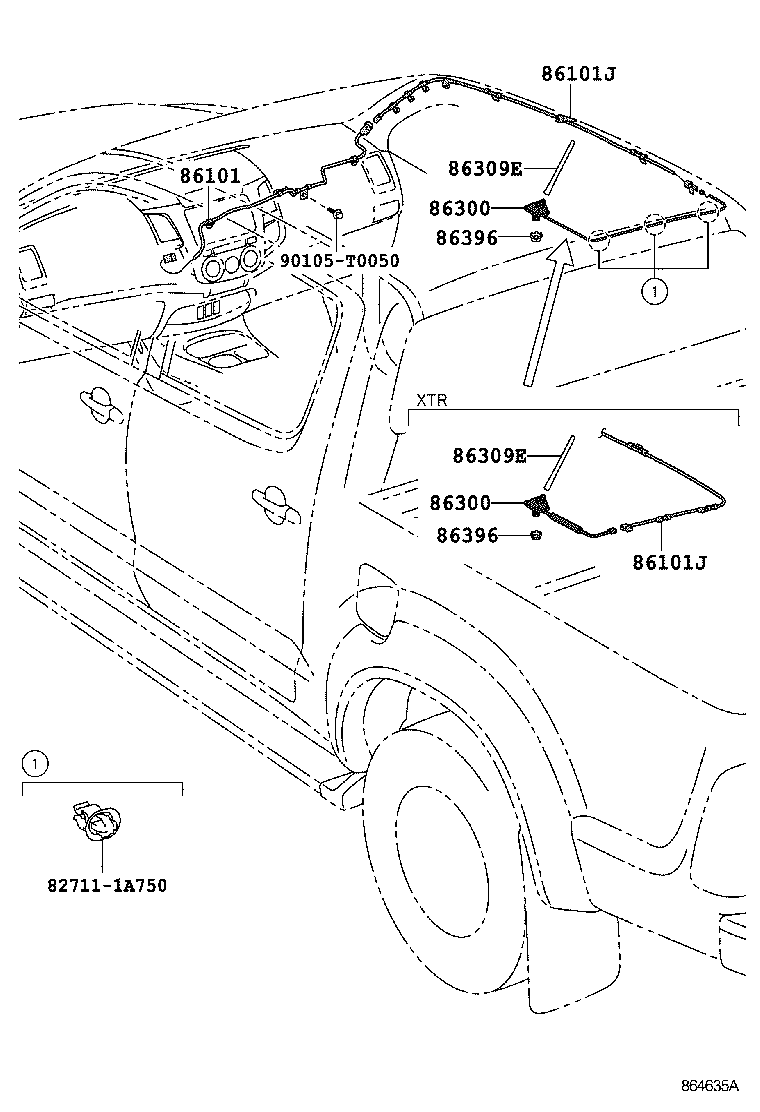

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-0K270 |
Cord Sub-assy, Antenna
2011-07 → 2015-04
ended
|
KUN2#,35 LHD (THDCB,XTR) | — | |
| 86101-0K320 |
Cord Sub-assy, Antenna
2011-07 → 2015-04
ended
|
KUN25 RHD XTR | — | |
| 86101-0K340 |
Cord Sub-assy, Antenna
2011-08 → 2015-12
ended
|
KUN2# RHD DCB | — | |
| 86101-0K450 |
Cord Sub-assy, Antenna
2011-08 → 2015-12
ended
|
KUN2#,35 LHD DCB | — | |
| 86101-0K550 |
Cord Sub-assy, Antenna
2011-08 → 2012-10
ended
|
KUN25,35 LHD SCB | — | |
| 86101-0K550 |
Cord Sub-assy, Antenna
2011-08 → 2015-12
ended
|
KUN25 RHD SCB | — | |
| 86101-0K560 |
Cord Sub-assy, Antenna
2011-07 → 2012-08
ended
|
KUN25,35 THSCB | — | |
| 86101-0K600 |
Cord Sub-assy, Antenna
2012-10 → 2015-12
ended
|
KUN25,35 LHD SCB | — | |
| 86101-0K610 |
Cord Sub-assy, Antenna
2012-08 → 2015-04
ended
|
KUN25,35 THSCB | — | |
| 86101J — Cord Sub-assy, Antenna, NO.2 | ||||
| 86101-0K260 |
Cord Sub-assy, Antenna, NO.2
2011-07 → 2013-07
ended
|
KUN25,35 LHD XTR | — | |
| 86101-0K260 |
Cord Sub-assy, Antenna, NO.2
2011-07 → 2013-08
ended
|
KUN25 RHD XTR | — | |
| 86101-0K420 |
Cord Sub-assy, Antenna, NO.2
2011-07 → 2013-07
ended
|
KUN2#,35 THDCB | — | |
| 86101-0K500 |
Cord Sub-assy, Antenna, NO.2
2011-08 → 2013-09
ended
|
KUN2#,35 DCB | — | |
| 86101-0KD10 |
Cord Sub-assy, Antenna, NO.2
2013-08 → 2015-04
ended
|
KUN25,35 XTR | — | |
| 86101-0KD40 |
Cord Sub-assy, Antenna, NO.2
2013-08 → 2015-04
ended
|
KUN2#,35 THDCB | — | |
| 86101-0KD60 |
Cord Sub-assy, Antenna, NO.2
2013-10 → 2015-12
ended
|
KUN2#,35 DCB | — | |
| 86300 — Antenna Assy, W/Holder | ||||
| 86300-0K010 |
Antenna Assy, W/Holder
2011-08 → 2015-12
ended
|
KUN25,35 SCB | — | |
| 86300-0K050 |
Antenna Assy, W/Holder
2011-07 → 2015-04
ended
|
KUN25,35 THSCB | — | |
| 86300-71030 |
Antenna Assy, W/Holder
2011-07 → 2012-07
ended
|
KUN25,35 XTR | — | |
| 86300-71050 |
Antenna Assy, W/Holder
2011-07 → 2012-07
ended
|
KUN2#,35 DCB,THDCB | — | |
| 86300-71080 |
Antenna Assy, W/Holder
2012-08 → 2015-04
ended
|
KUN25,35 XTR | — | |
| 86300-71090 |
Antenna Assy, W/Holder
2012-08 → 2015-12
ended
|
KUN2#,35 DCB,THDCB | — | |
| 86309E — Pole Sub-assy, Roof Antenna | ||||
| 86309-68020 |
Pole Sub-assy, Roof Antenna
2011-07 → 2015-12
ended
|
KUN2#,35 DCB,THDCB,XTR | — | |
| 86396 — Nut, Antenna | ||||
| 86396-20040 |
Nut, Antenna
2011-07 → 2015-12
ended
|
KUN2#,35 DCB,THDCB,XTR | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
