Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 4 illustrations

Illustrations

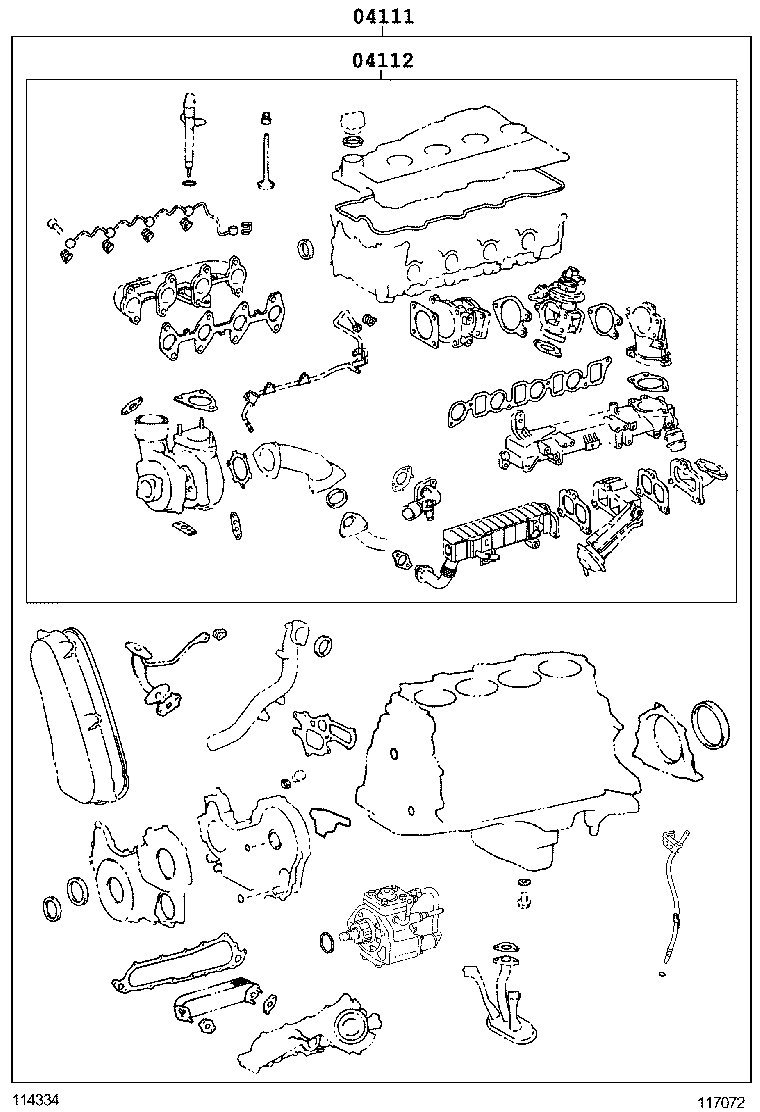

Figure 117074 117074 2011-07 → — Figure 117072 117072 2011-07 → — Figure 117072 117072 2012-10 → 2013-08 Figure 117072 117072 2012-10 → 2013-10

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
