Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

83 part groups · 13 illustrations

Illustrations

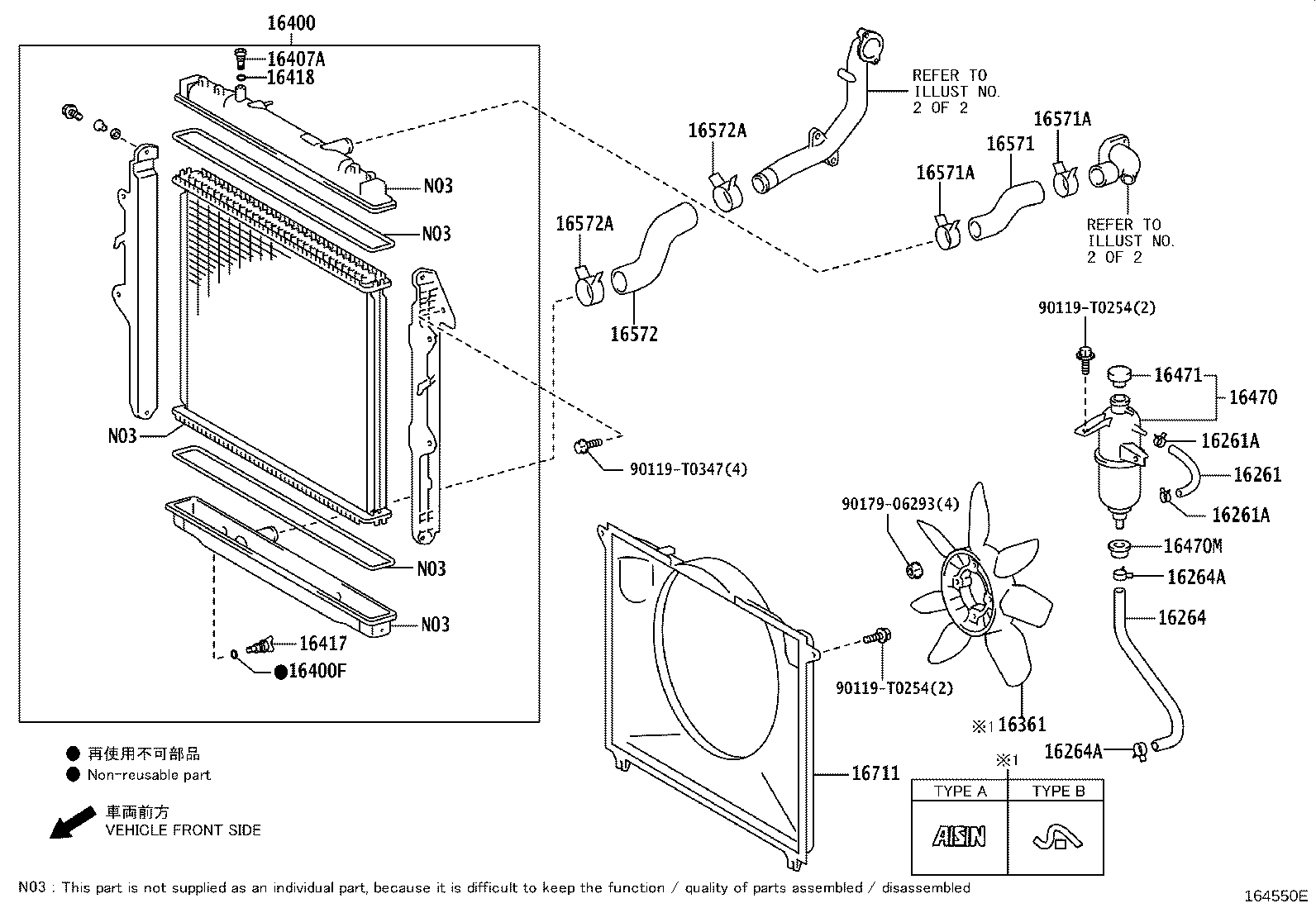

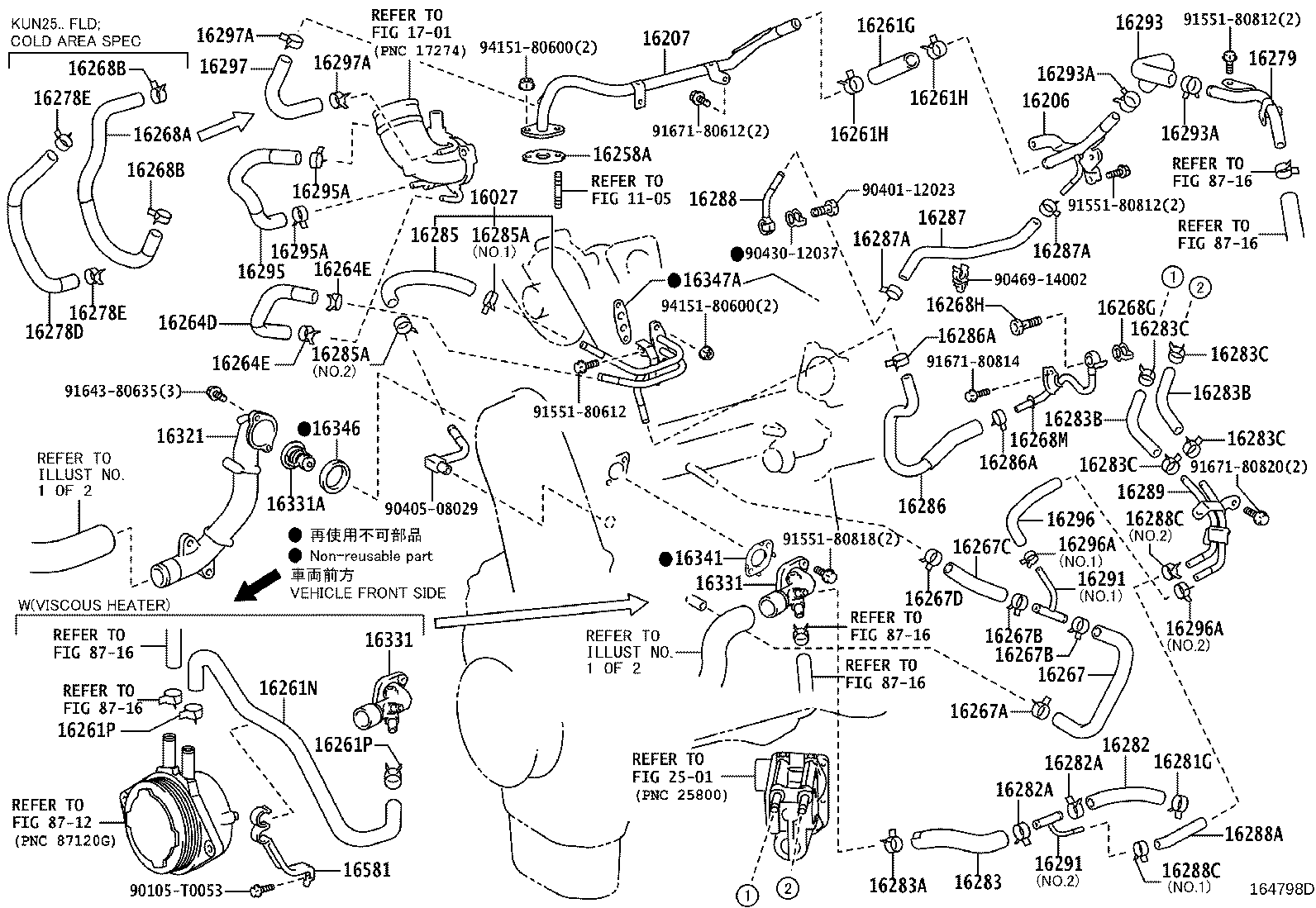

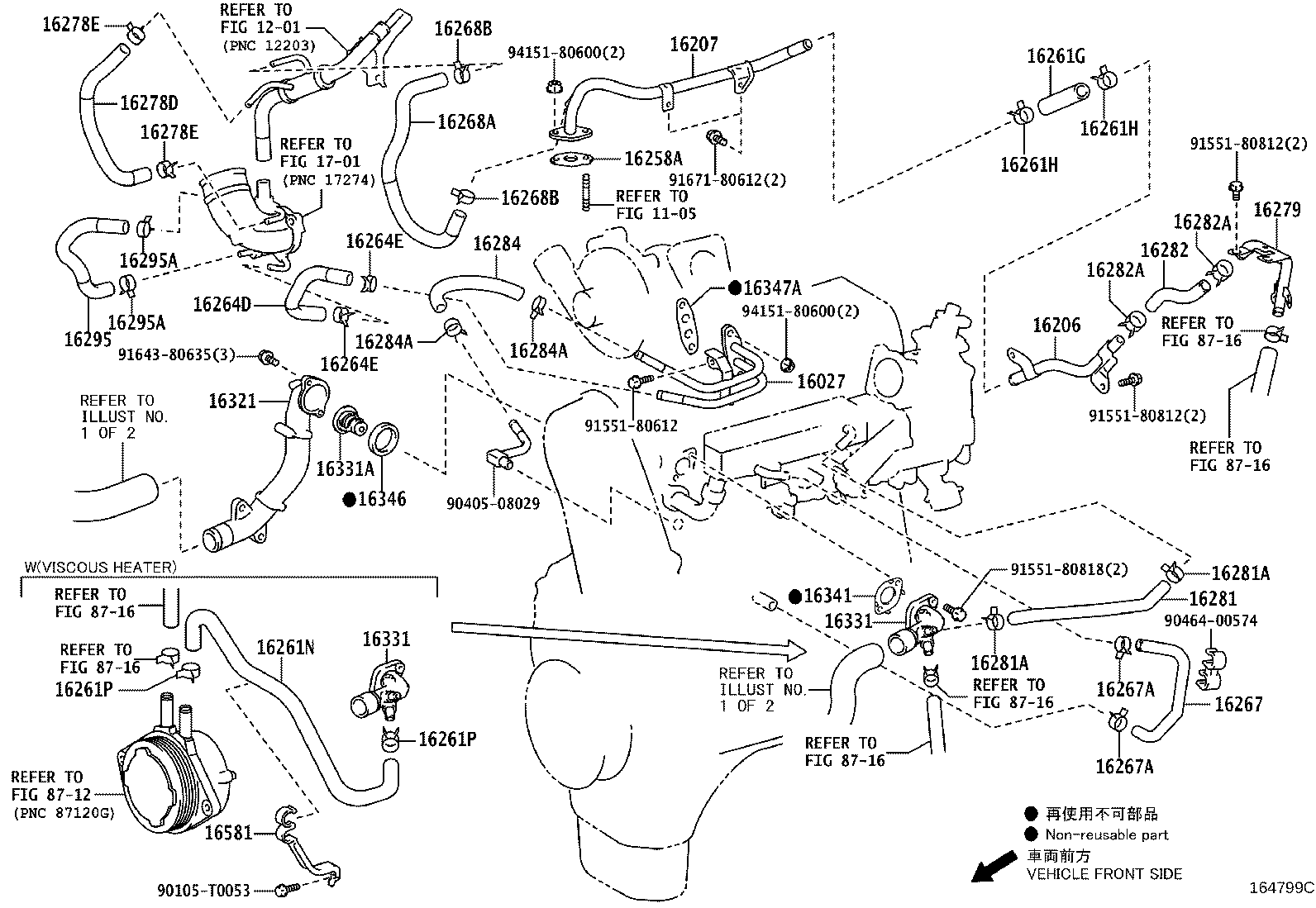

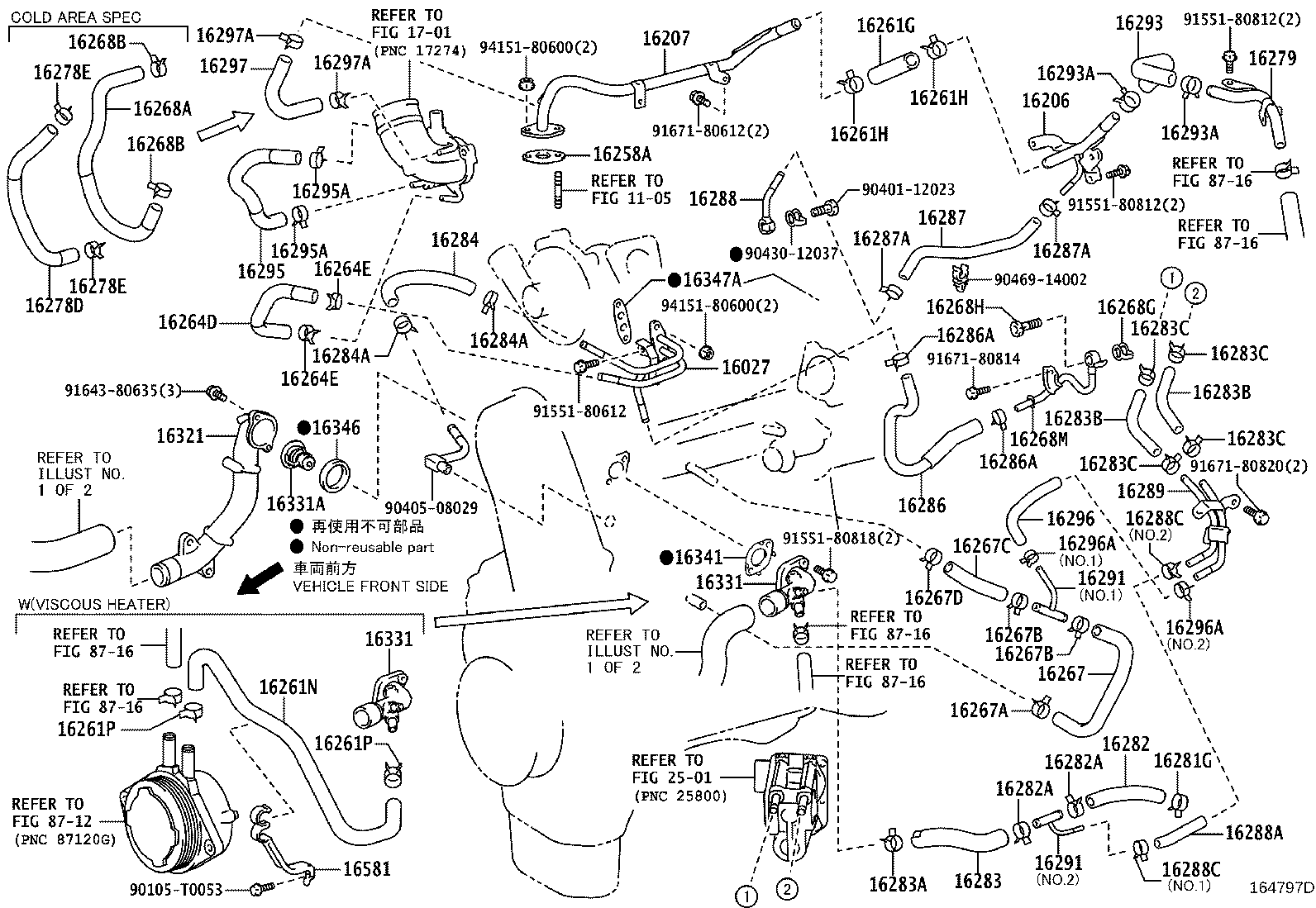

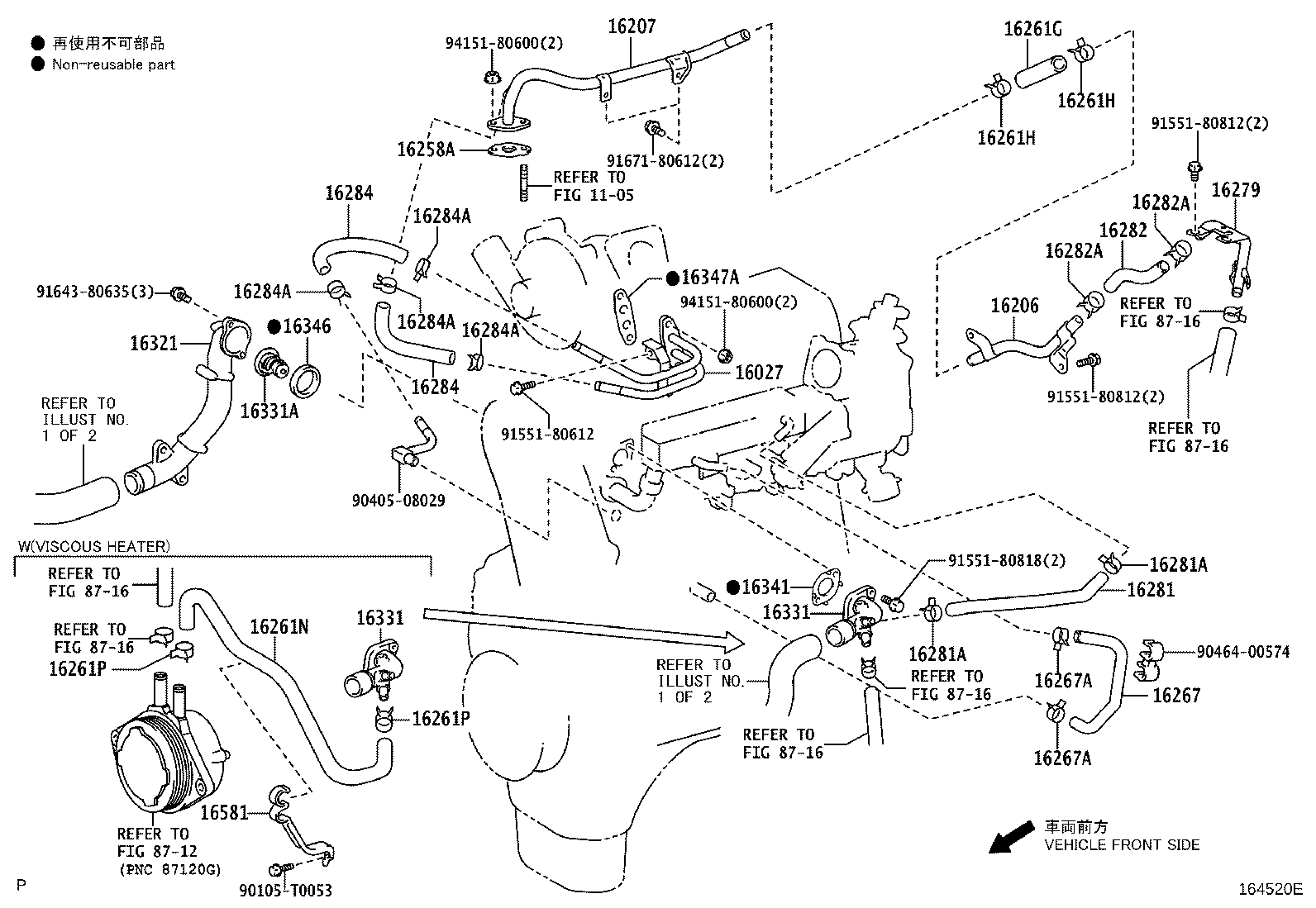

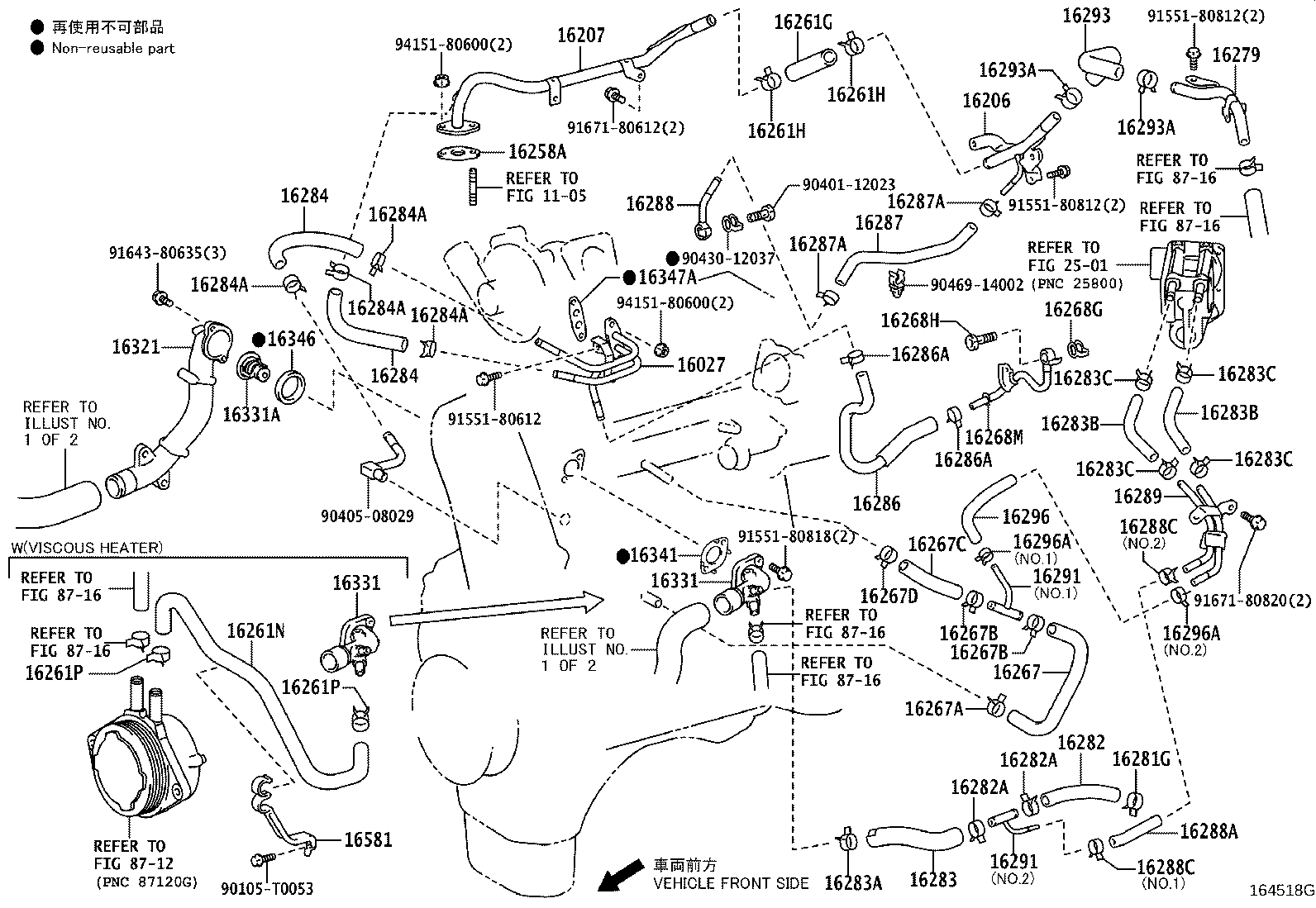

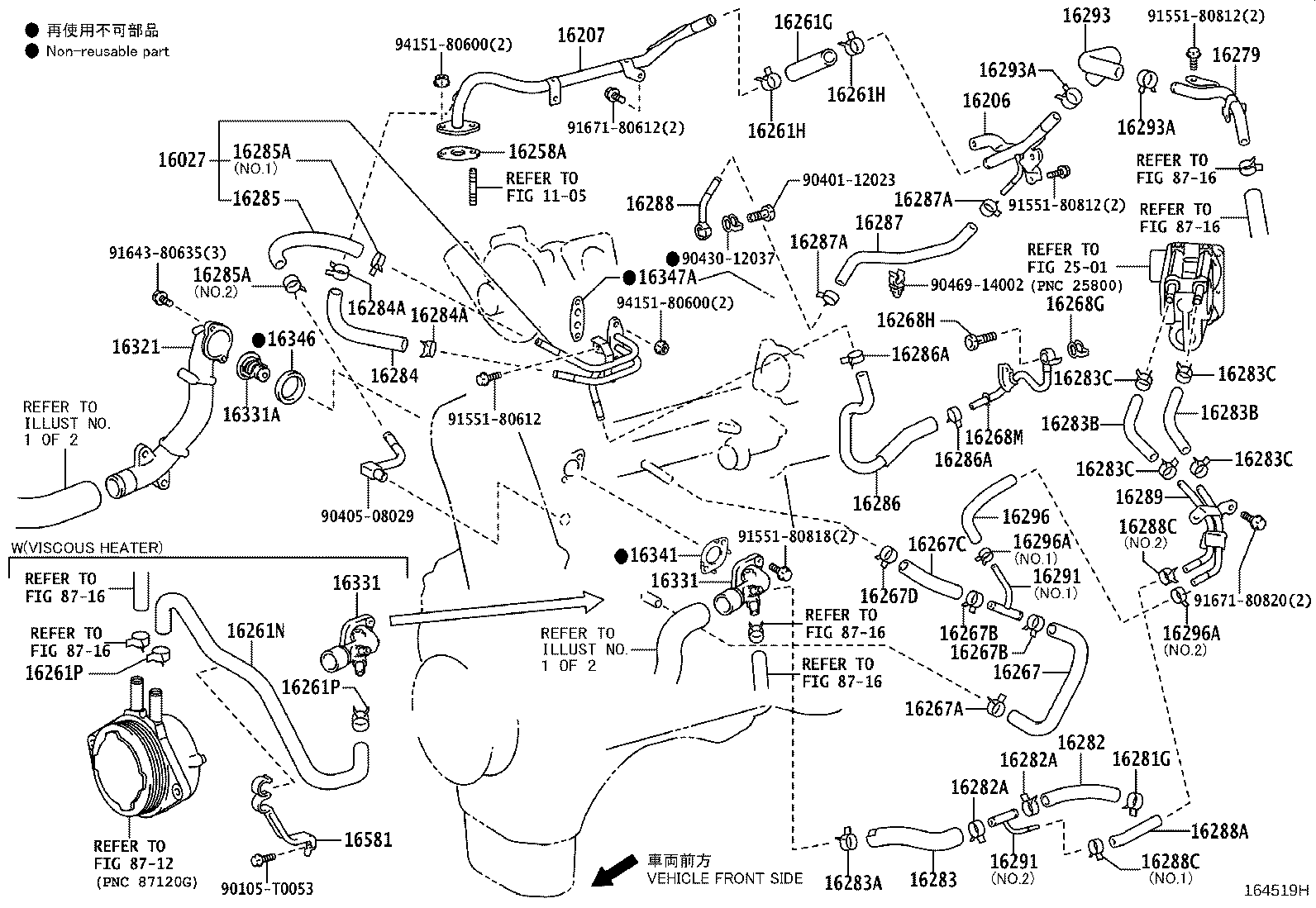

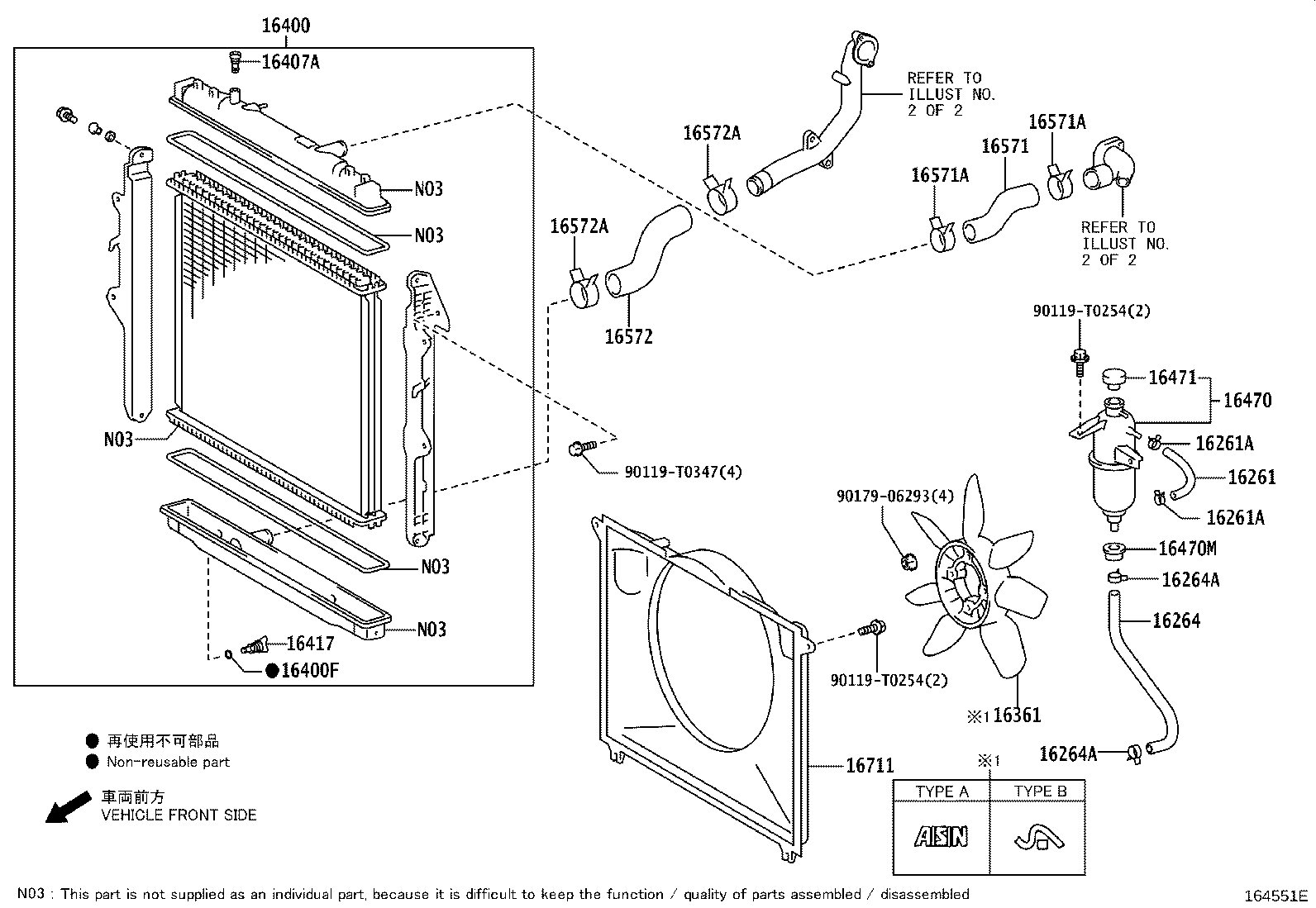

Figure 164517G 164517G 2011-07 → — Figure 164550E 164550E 2011-08 → — Figure 164551E 164551E 2011-07 → — Figure 164551E 164551E 2011-08 → — Figure 164518G 164518G 2011-07 → 2012-03 Figure 164519H 164519H 2011-07 → 2012-03 Figure 164520E 164520E 2011-07 → 2012-03 Figure 164520E 164520E 2011-08 → 2012-03 Figure 164797D 164797D 2012-03 → — Figure 164798D 164798D 2012-03 → — Figure 164799C 164799C 2012-03 → — Figure 164799C 164799C 2012-10 → 2013-08 Figure 164799C 164799C 2012-10 → 2013-10

Part groups

PNCDescription
16027 Pipe Sub-assy, Turbo Water, NO.1
16206 Pipe Sub-assy, Water By-pass
16207 Pipe Sub-assy, Water By-pass, NO.2
16258A Gasket(FOR HEATER RETURN)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261N Hose, Water By-pass, NO.2
16261P Clip(FOR WATER BY-PASS HOSE NO.2)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267C Hose, Water By-pass, NO.4
16267D Clip(FOR WATER BY-PASS HOSE NO.4)
16268A Hose(FOR WATER BY-PASS PIPE)
16268B Clamp OR Clip, Hose(FOR WATER BY-PASS PIPE)
16268G Gasket(FOR WATER BY-PASS PIPE)
16268H Bolt, Union(FOR WATER BY-PASS PIPE)
16268M Pipe, Water By-pass, NO.3
16278D Hose, Water By-pass
16278E Clip(FOR WATER BY-PASS HOSE)
16279 Pipe, Water By-pass, NO.3
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16281G Clip(FOR WATER BY-PASS HOSE NO.5)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16283B Hose, Water By-pass
16283C Clamp OR Clip(FOR WATER BY-PASS HOSE)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16288A Hose(FOR WATER BY-PASS PIPE NO.4)
16288C Clip(FOR WATER BY-PASS PIPE NO.4)
16289 Pipe, Water By-pass, NO.5
16291 Joint, Water Hose
16293 Hose, Water By-pass, NO.10
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16321 Inlet, Water
16331 Outlet, Water
16331A Thermostat
16341 Gasket, Water Outlet
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16361 Fan
16400 Radiator Assy
16400F Packing(FOR RADIATOR DRAIN COCK)
16400R Bushing(FOR RADIATOR)
16400S Collar(FOR RADIATOR)
16407A Cock Sub-assy, Radiator Drain
16417 Cock
16418 Packing
16453 Plate, Radiator Side
16454 Plate, Radiator Side
16455 Bolt, Radiator Side Support Plate
16470 Tank Assy, Radiator Reserve
16470M Grommet
16471 Cap Sub-assy, Reserve Tank
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16581 Clamp, Hose(FOR WATER HOSE)
16711 Shroud, Fan
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
