Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

31 part groups · 12 illustrations

Illustrations

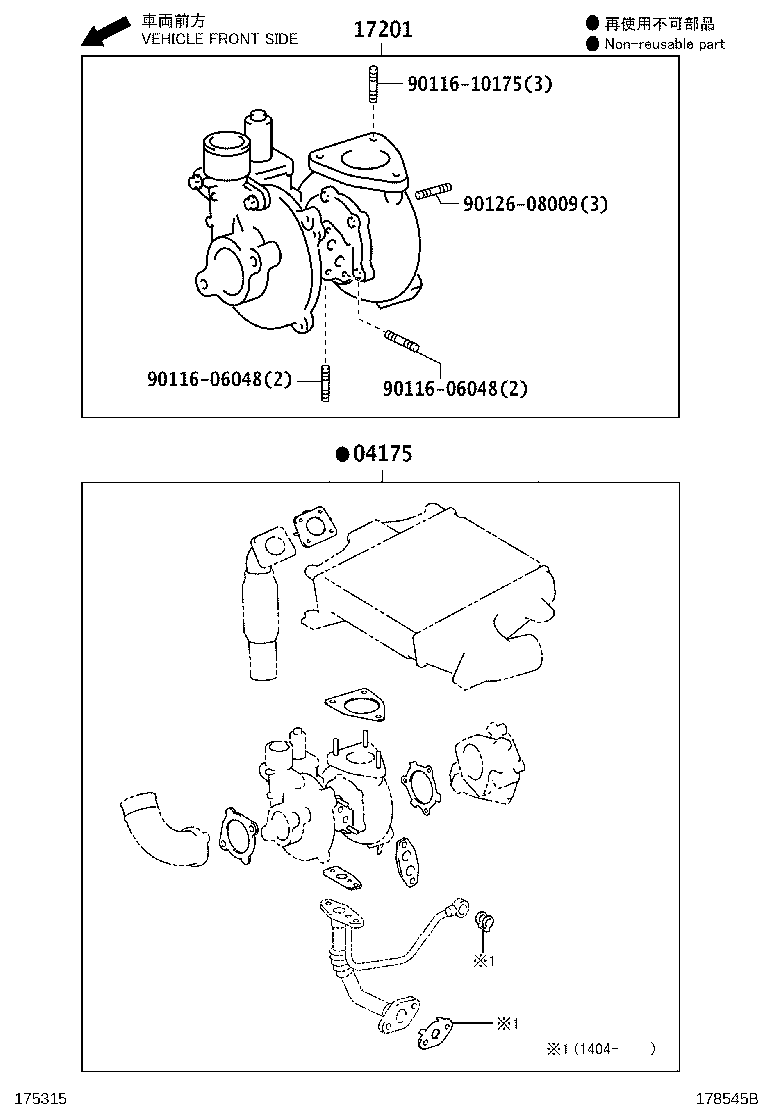

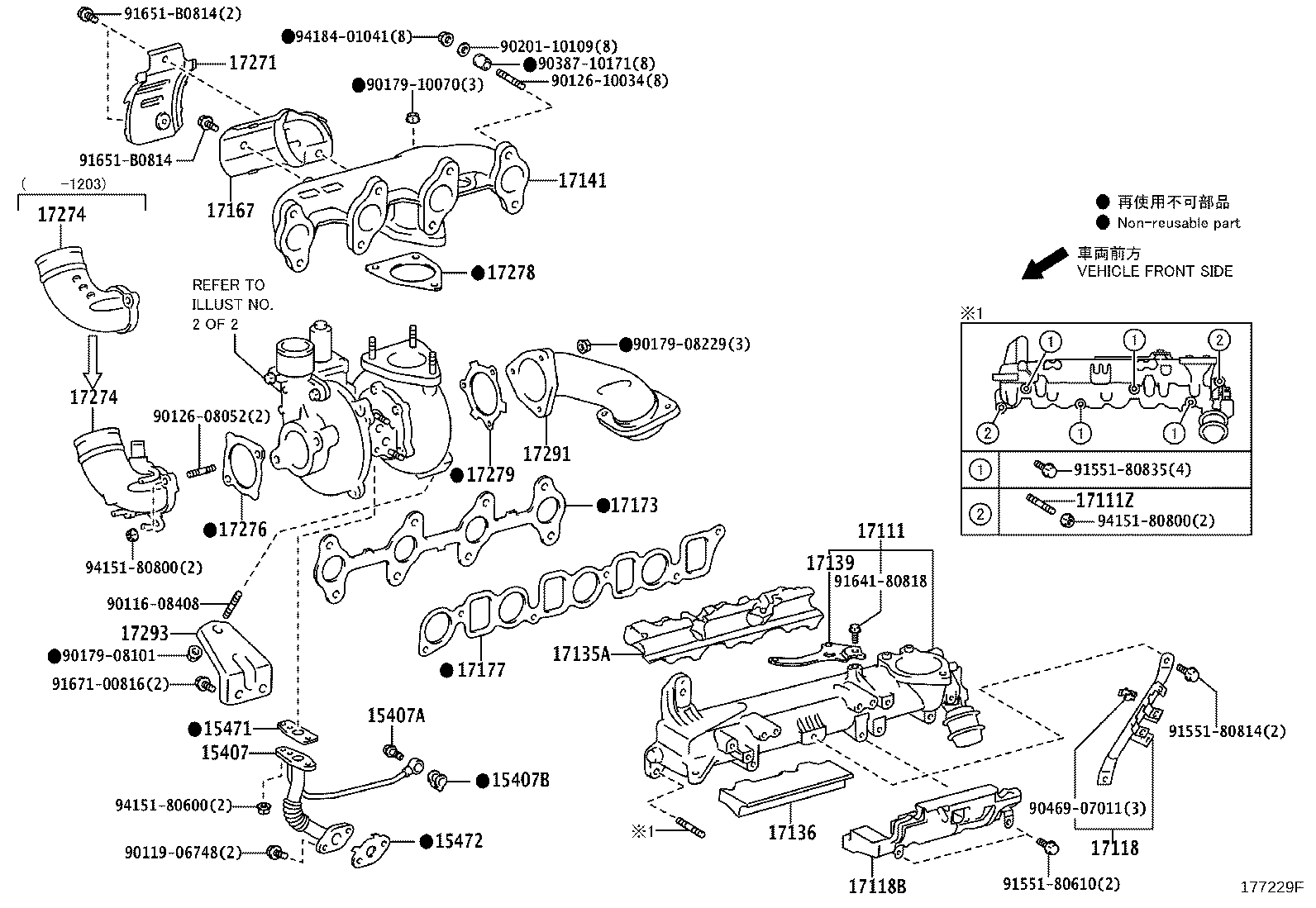

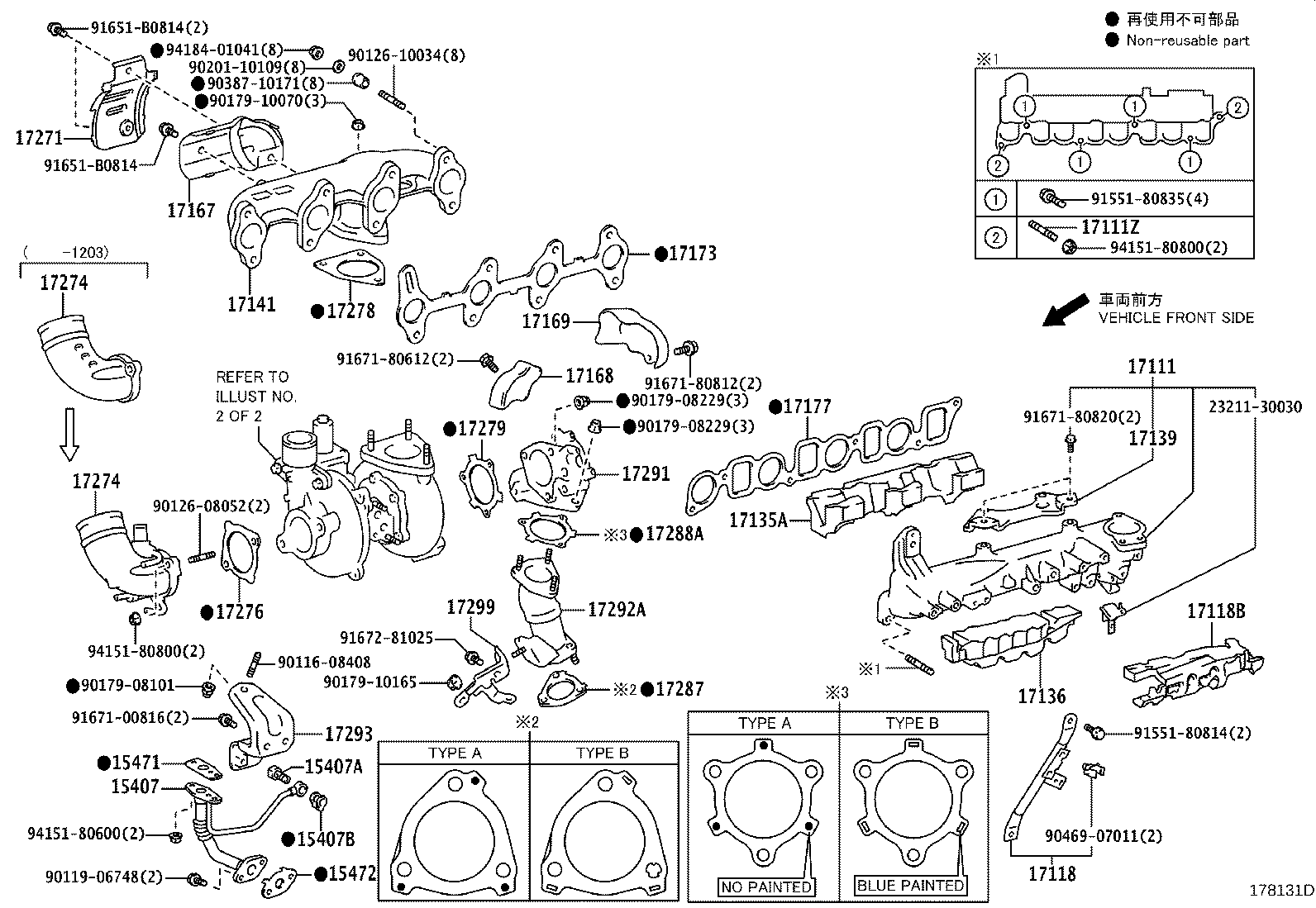

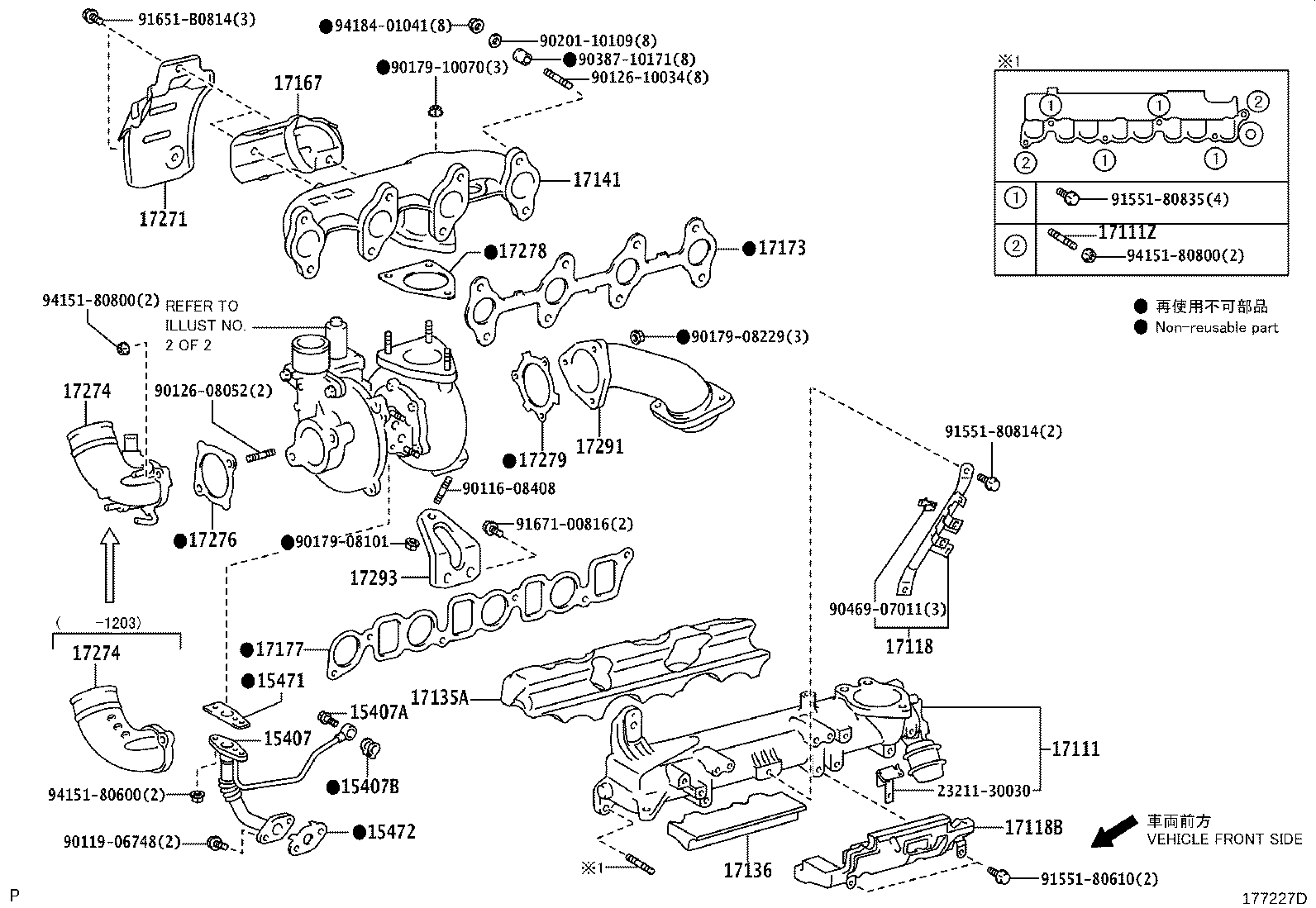

Figure 178130C 178130C 2011-07 → — Figure 178545B 178545B 2011-07 → — Figure 178131D 178131D 2011-07 → — Figure 178547B 178547B 2011-07 → — Figure 177227D 177227D 2011-08 → — Figure 177228B 177228B 2011-08 → — Figure 177229F 177229F 2011-07 → — Figure 177229F 177229F 2012-10 → 2013-08 Figure 177229F 177229F 2012-10 → 2013-10 Figure 178548B 178548B 2011-07 → — Figure 178548B 178548B 2012-10 → 2013-08 Figure 178548B 178548B 2012-10 → 2013-10

Part groups

PNCDescription
04175 Gasket Kit, Turbocharger
15407 Pipe Sub-assy, Turbo Oil Inlet
15407A Bolt, Union(FOR TURBO OIL INLET PIPE)
15407B Gasket(FOR TURBO OIL INLET PIPE)
15471 Gasket, Turbo Oil Inlet
15472 Gasket, Turbo Oil Outlet, NO.1
17111 Manifold, Intake
17111Z Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
17118 Stay, Manifold
17118B Insulator, Intake Manifold
17135A Insulator, Intake Manifold, NO.1
17136 Insulator, Intake Manifold, NO.2
17139 Stay, Manifold, NO.2
17141 Manifold, Exhaust
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17169 Insulator, Exhaust Manifold Heat, NO.3
17173 Gasket, Exhaust Manifold TO Head
17177 Gasket, Intake Manifold TO Head, NO.1
17201 Turbocharger Sub-assy
17271 Insulator, Turbo, NO.1
17274 Elbow, Compressor Inlet
17276 Gasket, Compressor Inlet
17278 Gasket, Turbo TO Exhaust Manifold
17279 Gasket, Turbine Outlet Elbow
17287 Gasket, Turbine Outlet Elbow, NO.2
17288A Gasket, Turbine Outlet Elbow, NO.3
17291 Elbow, Turbine Outlet
17292A Elbow, Turbine Outlet, NO.2
17293 Stay, Turbocharger
17299 Stay, Turbine Outlet Elbow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
