Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

20 part groups · 6 illustrations

Illustrations

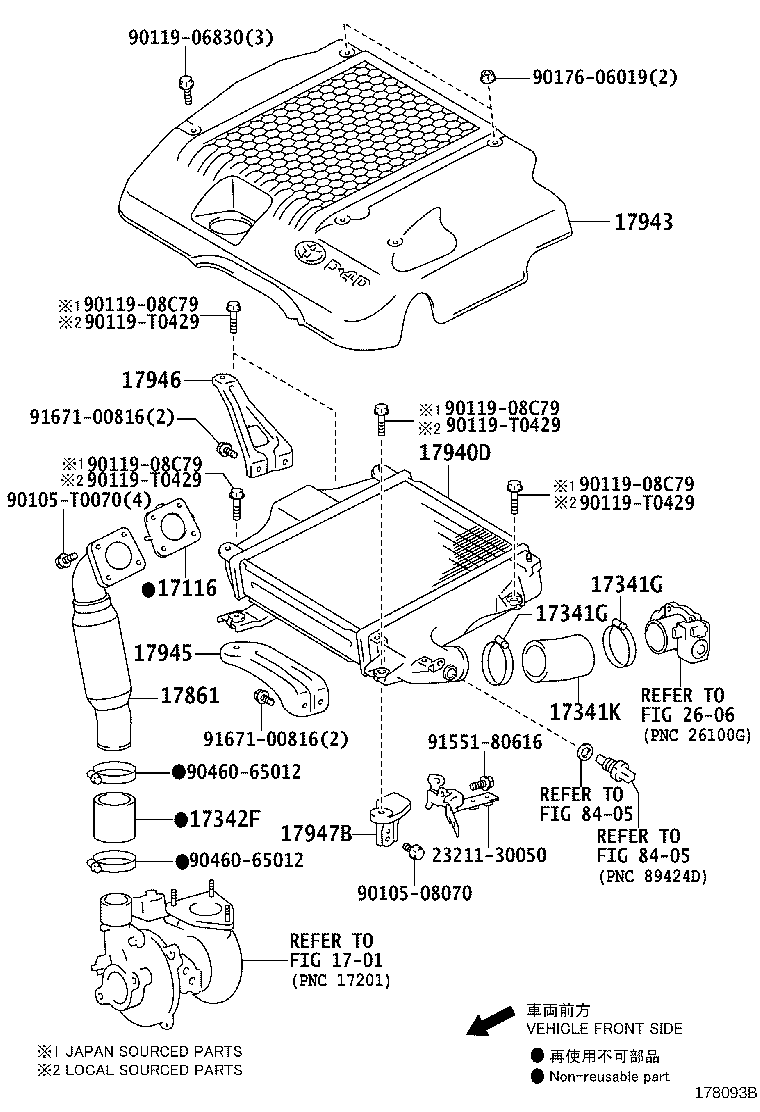

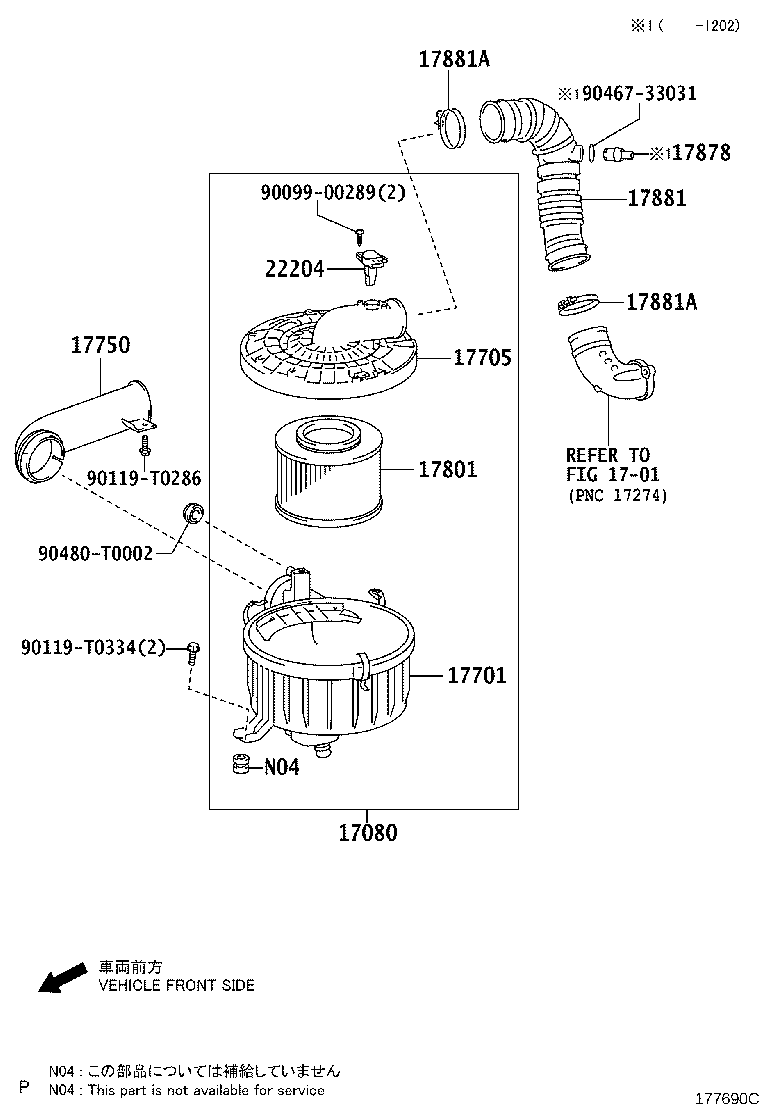

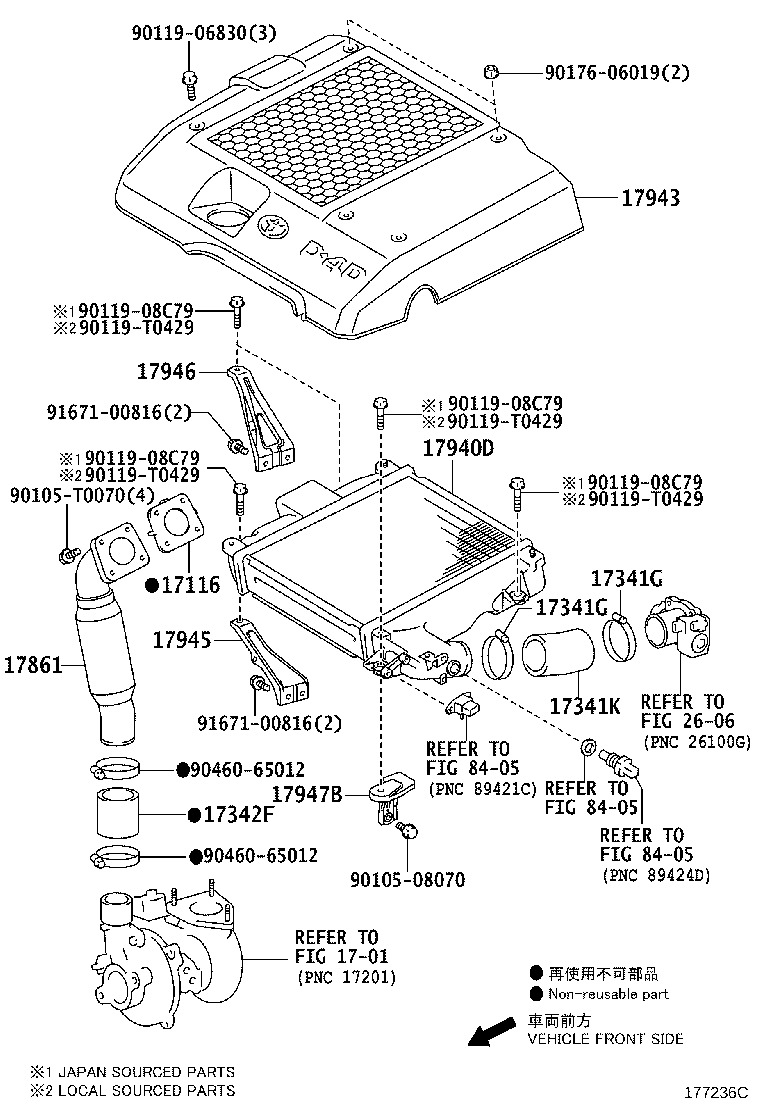

Figure 177237E 177237E 2011-07 → — Figure 177690C 177690C 2011-07 → — Figure 178093B 178093B 2011-07 → — Figure 177236C 177236C 2011-07 → — Figure 177236C 177236C 2012-10 → 2013-08 Figure 177236C 177236C 2012-10 → 2013-10

Part groups

PNCDescription
17080 Cleaner Assy, Air W/Air Flow Meter
17116 Gasket, Intake Flange
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341K Hose, Air, NO.1(FOR INTERCOOLER)
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17700 Cleaner Assy, Air
17701 Case Sub-assy, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17750 Cover Assy, Air Cleaner Inlet, Seal
17801 Element Sub-assy, Air Cleaner Filter
17861 Connector, Intake Air
17878 Pipe, Intake Air Connector, NO.3
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17940D Intercooler Assy
17943 Protector, Intercooler
17945 Bracket, Intercooler Support
17946 Bracket, Intercooler Support, NO.2
17947B Bracket, Intercooler Support, NO.3
22204 Meter Sub-assy, Intake Air Flow
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
