Injection Pump Assembly

18 part groups · 4 illustrations

Illustrations

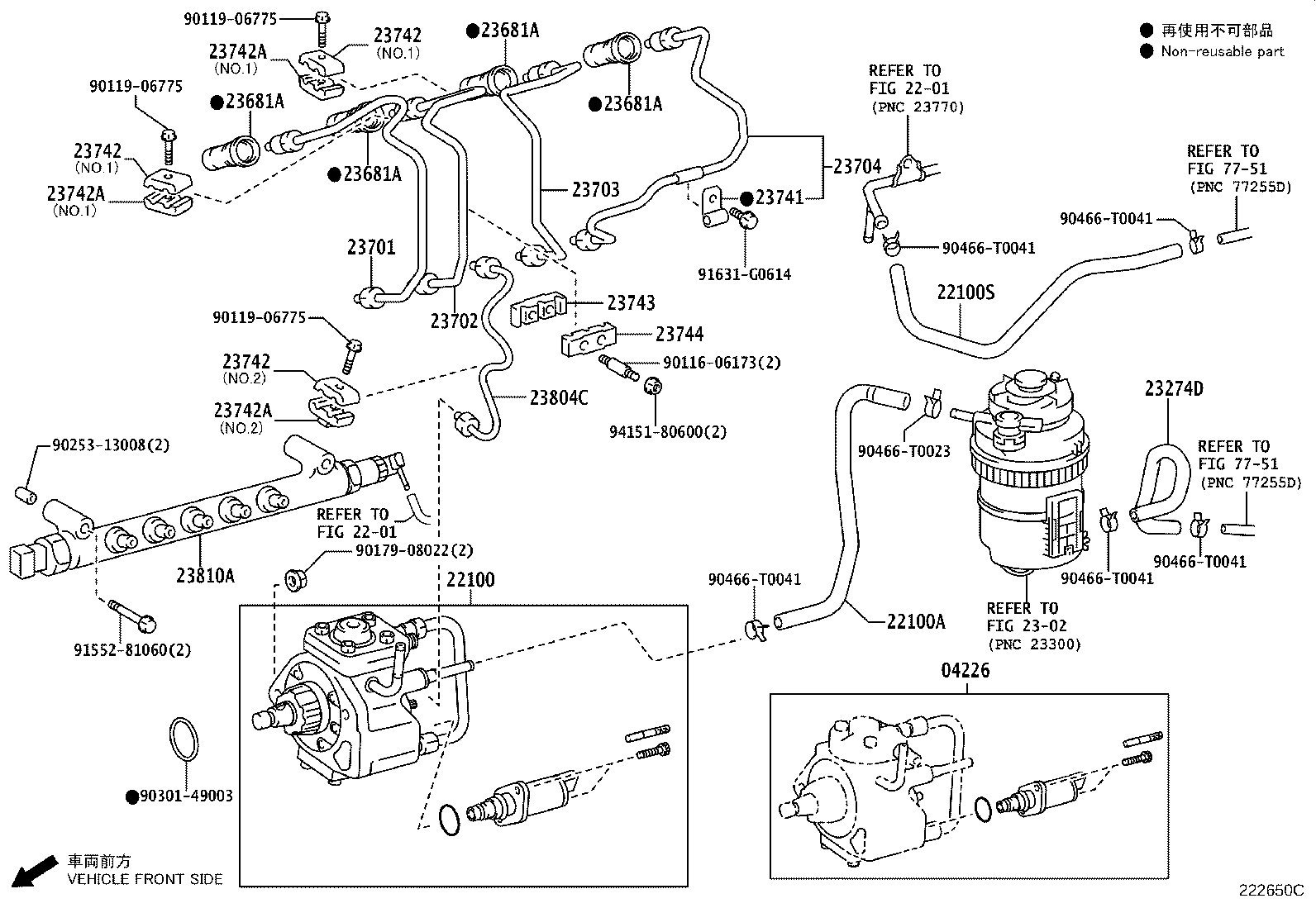

Figure 222651D 222651D 2011-07 → — Figure 222650C 222650C 2011-07 → — Figure 222650C 222650C 2012-10 → 2013-08 Figure 222650C 222650C 2012-10 → 2013-10

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100A Hose OR Pipe, Fuel(FOR INJECTION PUMP TO FUEL FILTER)
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22160B Screw
23274D Hose, Fuel, NO.3
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23744 Clamp, Injection Pipe, NO.4
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
