Toyota Hilux
2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe
Supported model
Data version 2016-06

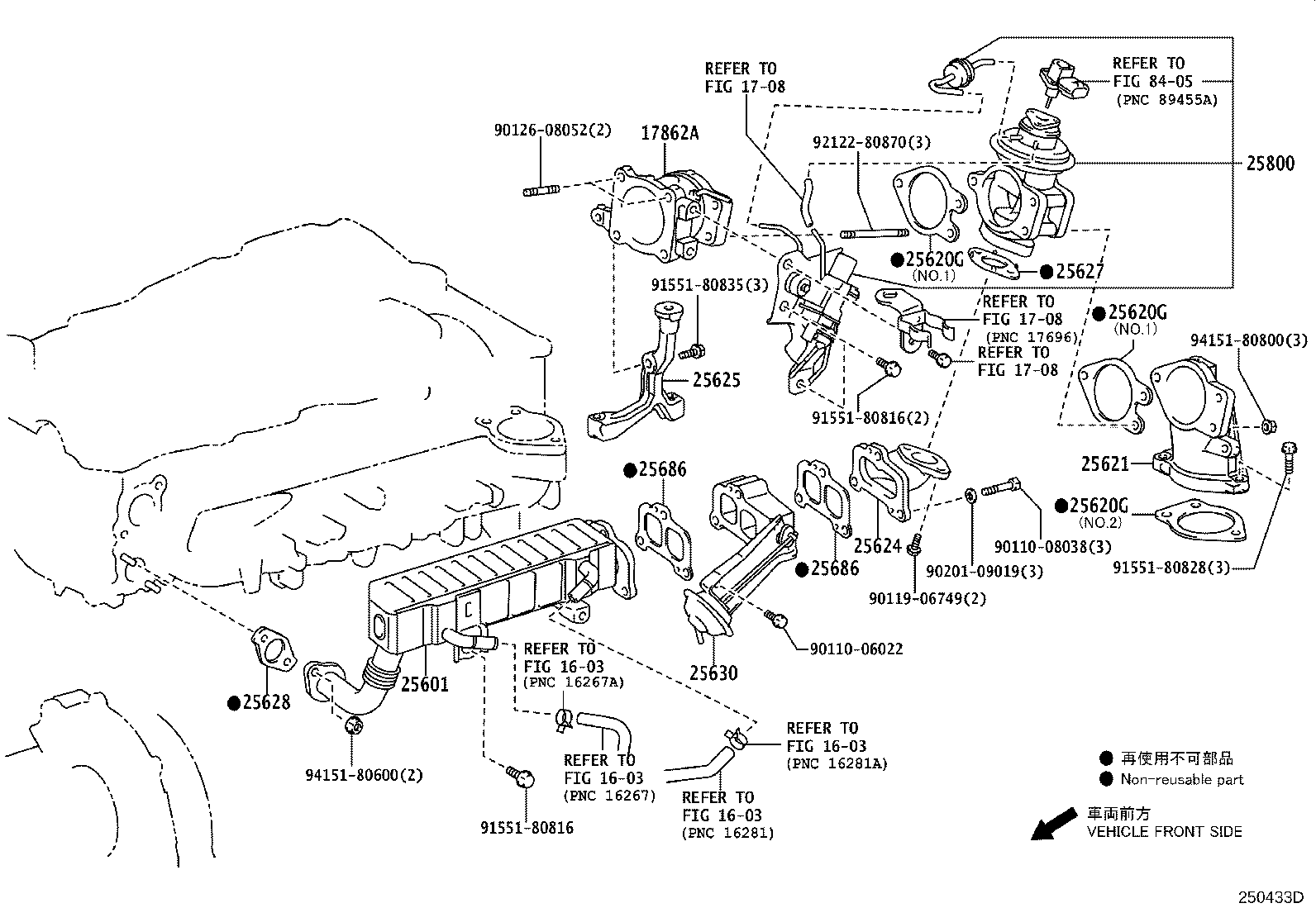

Exhaust Gas Recirculation System
14 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 17862A | Connector, Intake Air, NO.2 |
| 22267C | Bracket, Throttle Body |
| 25601 | Pipe Sub-assy, Egr, NO.1 |
| 25620G | Gasket, Diesel Throttle |
| 25621 | Connector, Intake Air(FOR GASKET) |
| 25624 | Adapter, Egr Valve |
| 25625 | Bracket, Egr Valve |
| 25627 | Gasket, Egr Valve |
| 25628 | Gasket, Egr Inlet |
| 25630 | Valve Assy, Egr, NO.2 |
| 25633 | Gasket, Egr Valve |
| 25686 | Gasket, Egr Cooler, NO.2 |
| 25689 | Insulator, Egr Cooler |
| 25800 | Valve Assy, Electric Egr Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
