Toyota Hilux
2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe
Supported model
Data version 2016-06

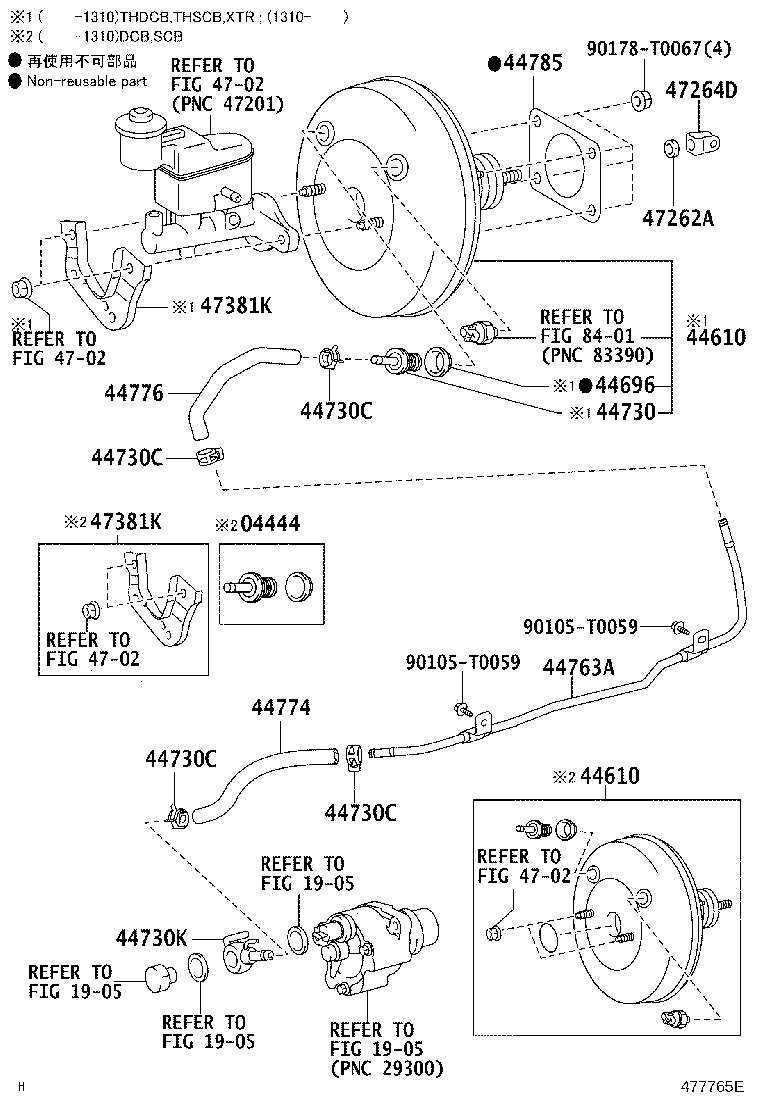

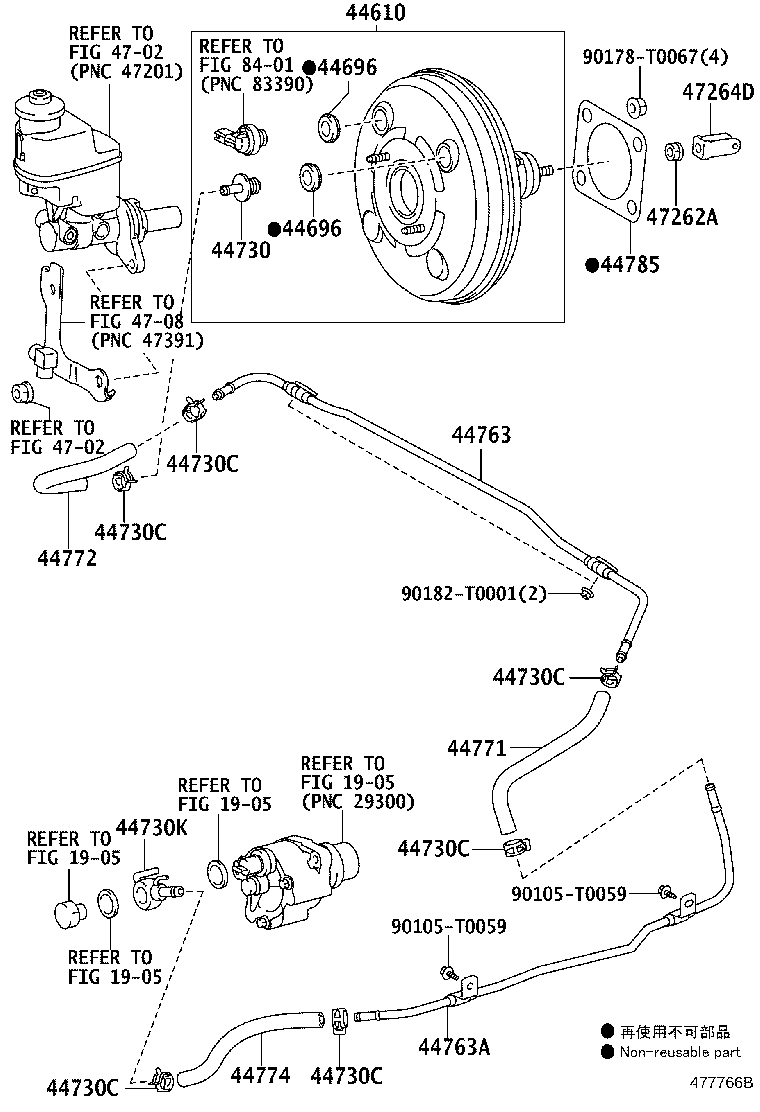

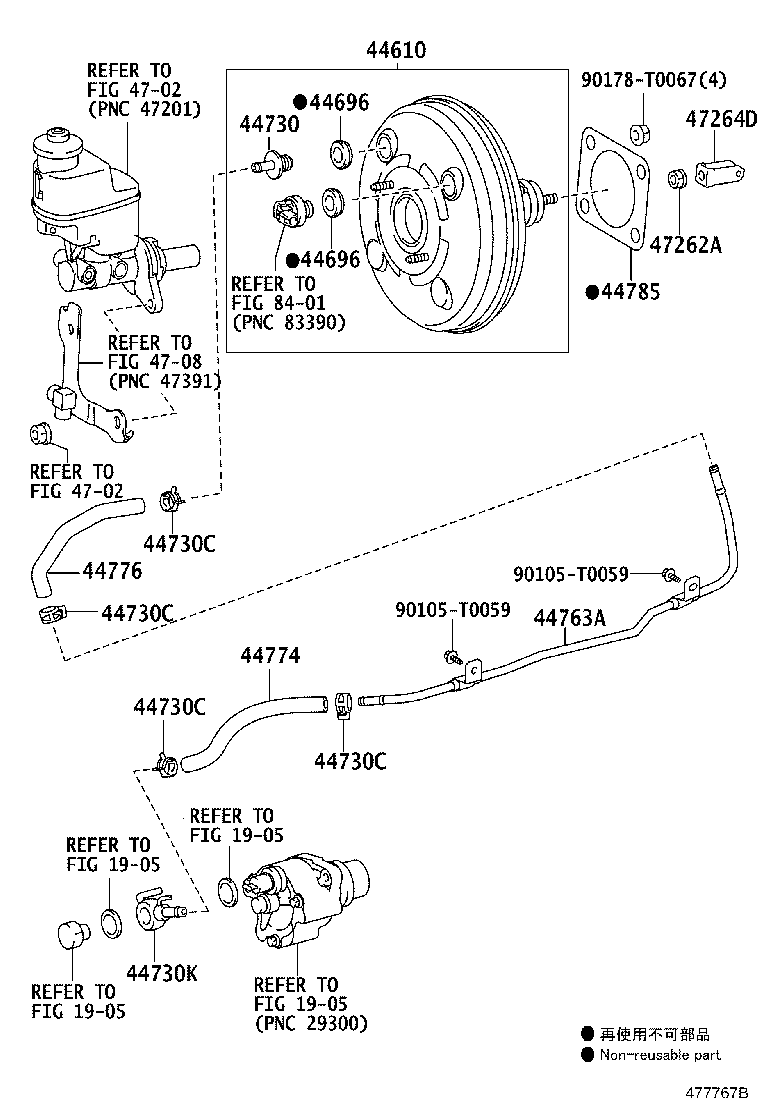

Brake Booster & Vacuum Tube
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04444 | Valve Kit, Booster Control |
| 44610 | Booster Assy, Brake |
| 44696 | Grommet, Check Valve |
| 44730 | Valve Assy, Vacuum Check(FOR BRAKE) |
| 44730C | Clip(FOR VACUUM HOSE) |
| 44730K | Union, Vacuum Hose(FOR VACUUM PUMP) |
| 44763 | Tube, Booster Vacuum |
| 44763A | Tube, Hose TO Hose, NO.1 |
| 44771 | Hose, Vacuum Tube Connector |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44774 | Hose, Union TO Connector Tube |
| 44776 | Hose, Brake Booster |
| 44785 | Gasket, Brake Booster |
| 47262A | Nut, Master Cylinder Push Rod Clevis Lock |
| 47264D | Clevis, Brake Master Cylinder Push Rod |
| 47381K | Bracket, Brake Booster Tube Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
