Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

18 part groups · 11 illustrations

Illustrations

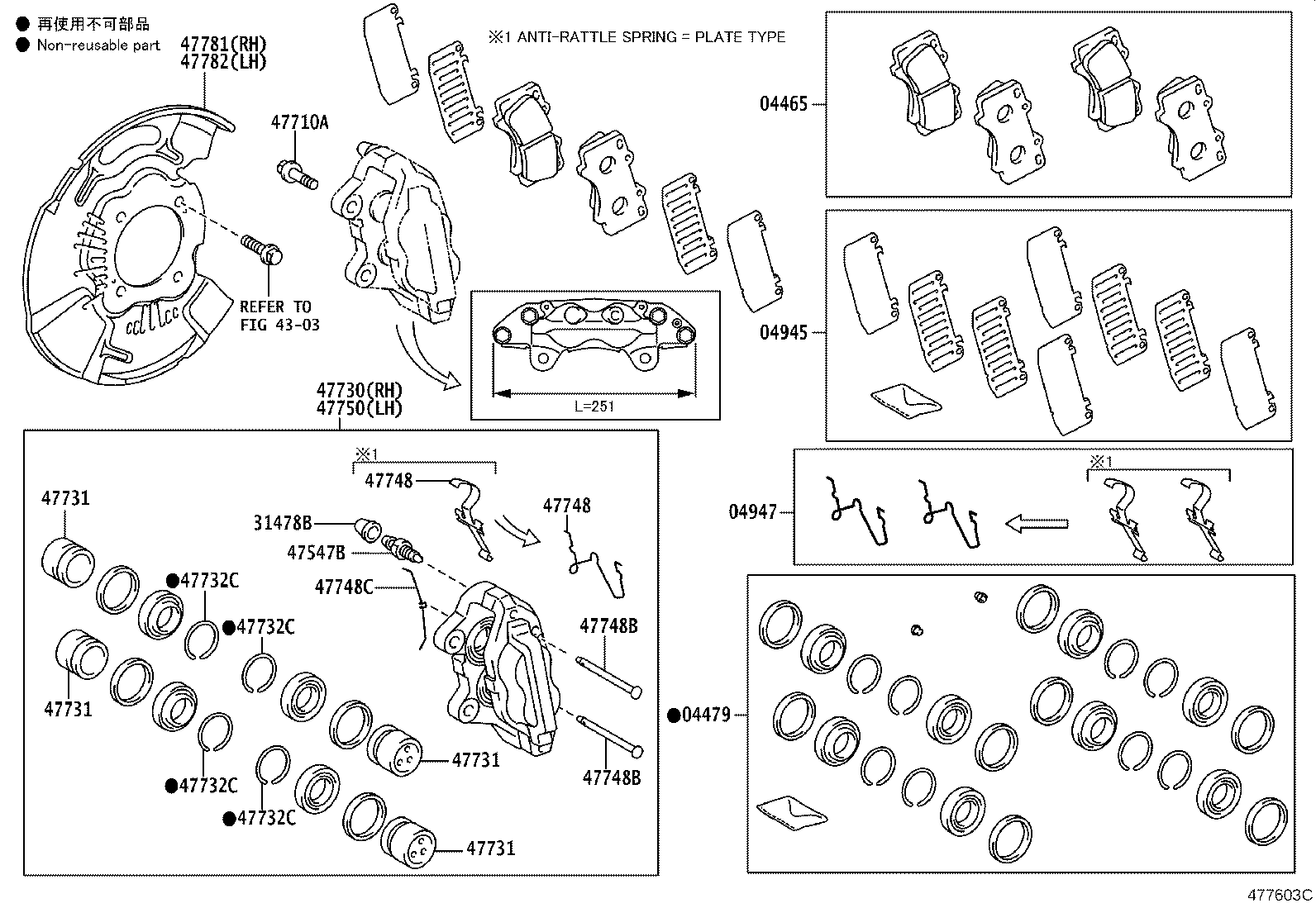

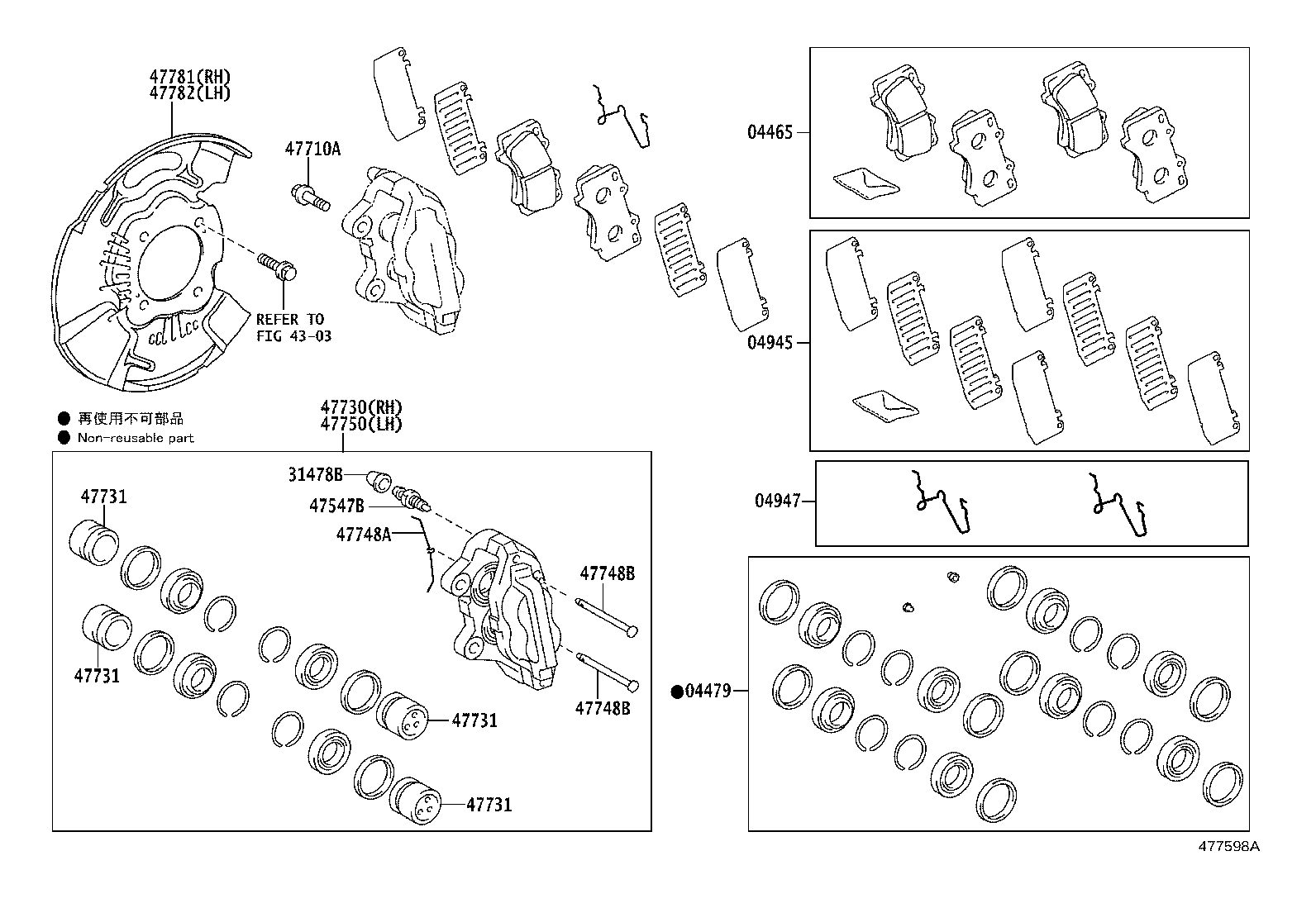

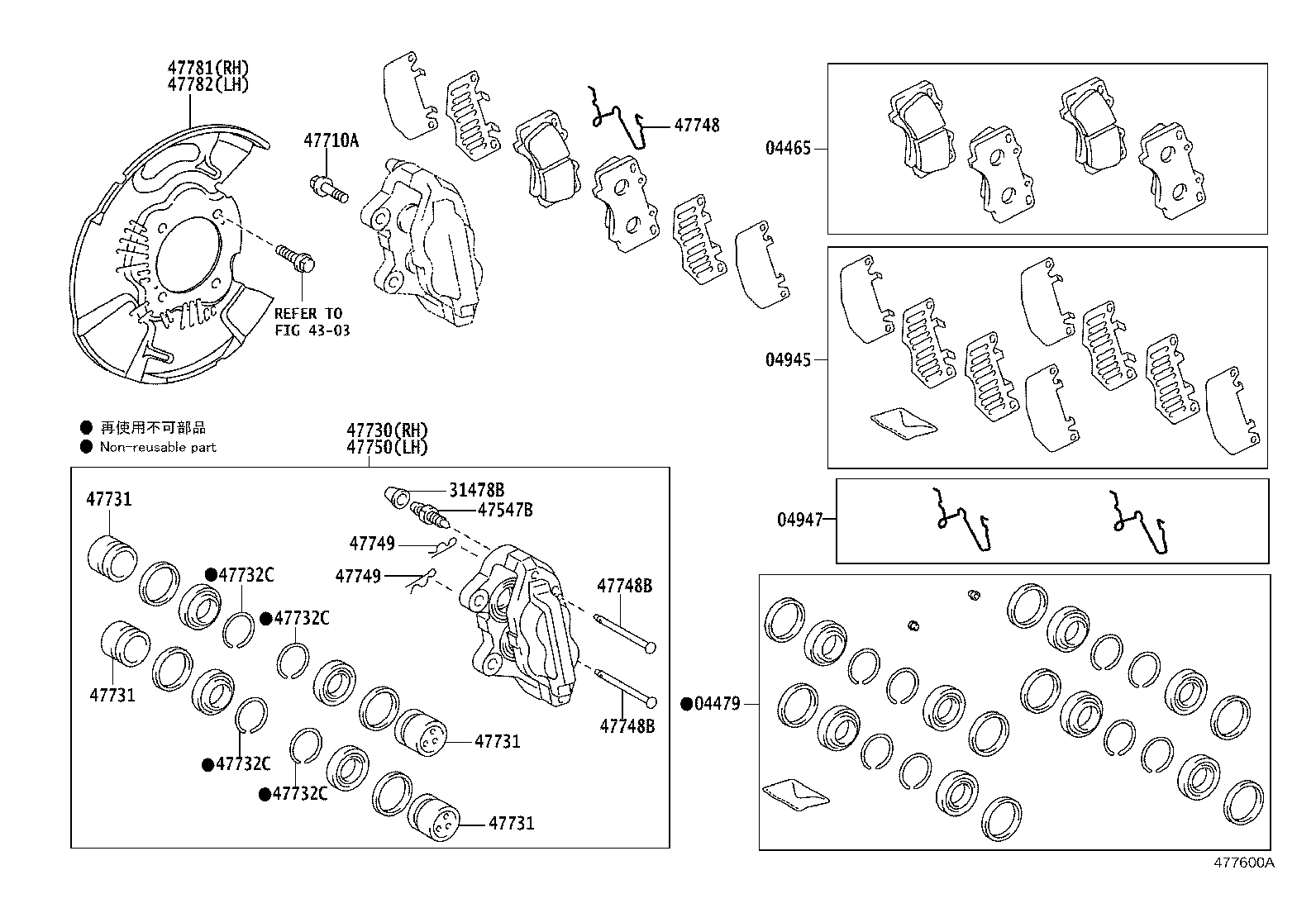

Figure 477599B 477599B 2011-07 → 2012-03 Figure 477600A 477600A 2011-07 → — Figure 477600A 477600A 2011-08 → — Figure 477600A 477600A 2013-08 → — Figure 477600A 477600A 2013-08 → — Figure 477600A 477600A 2013-10 → — Figure 477600A 477600A 2013-10 → — Figure 477598A 477598A 2011-08 → 2013-10 Figure 477603C 477603C 2011-11 → — Figure 477603C 477603C 2012-01 → — Figure 477603C 477603C 2013-10 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47732C Ring, Set, NO.2(FOR FRONT DISC BRAKE)
47748 Spring, Anti-rattle, NO.1(FOR FRONT DISC BRAKE)
47748A Clip(FOR FRONT DISC BRAKE ANTI-RATTLE)
47748B Pin, W/Hole(FOR FRONT DISC BRAKE ANTI-RATTLE)
47748C Spring, Anti-rattle, NO.2(FOR FRONT DISC BRAKE)
47749 Clip, Pin Hold
47750 Cylinder Assy, Disc Brake, LH
47781 Cover, Disc Brake Dust, Front RH
47782 Cover, Disc Brake Dust, Front LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
