Toyota Hilux
2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe
Supported model
Data version 2016-06
Hood & Front Fender
19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53384A | Bumper, Fender TO Hood |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |

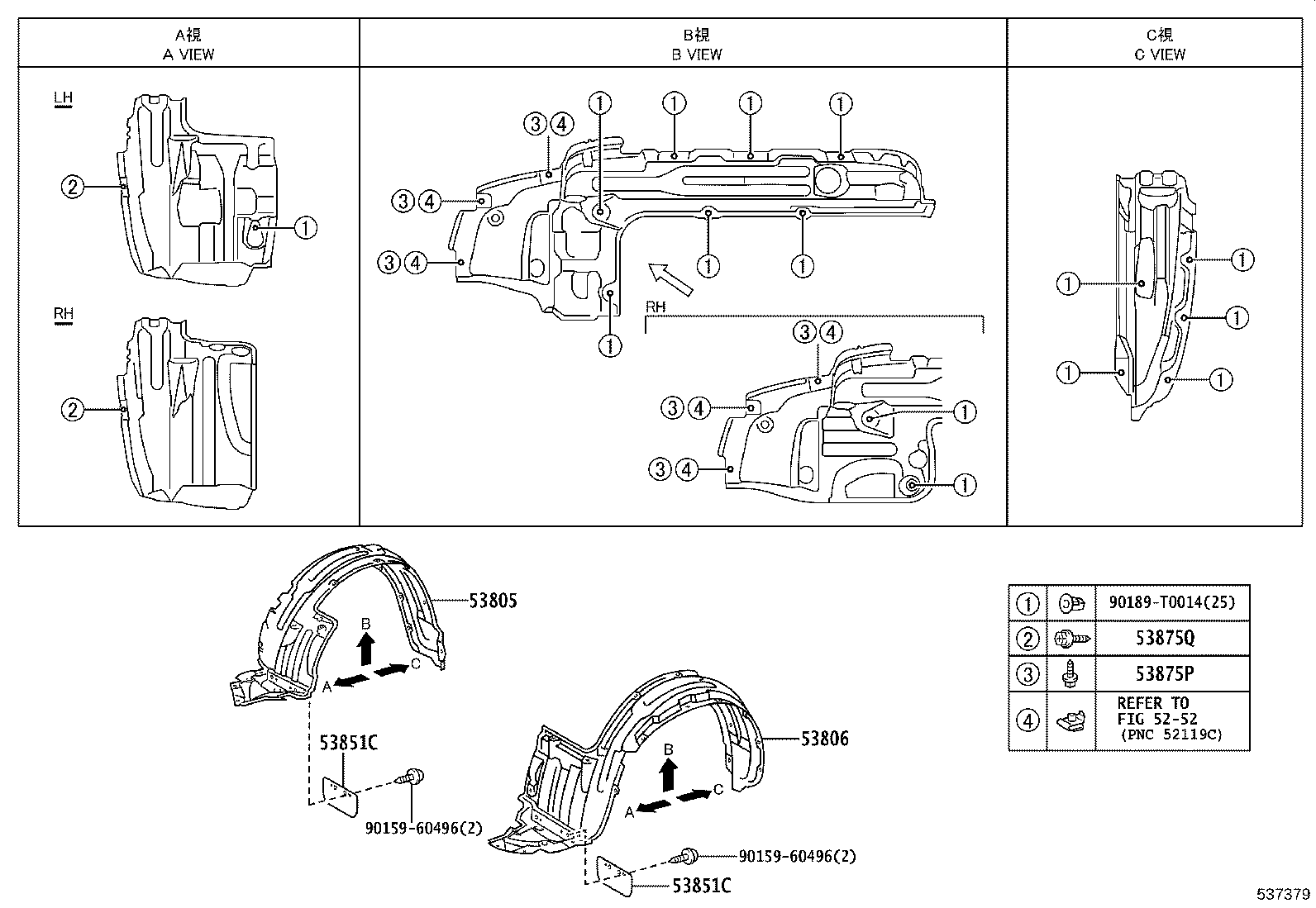

| 53805 | Shield Sub-assy, Front Fender Splash, RH |
| 53806 | Shield Sub-assy, Front Fender Splash, LH |
| 53851C | Pad, Front Wheel Opening Extension, NO.1 |
| 53875P | Screw, NO.1 |
| 53875Q | Screw, NO.2 |
| 53882K | Seal, Front Fender |
| 76180 | Bulge Assy, Hood |
| 76181 | Bulge, Hood |
| 76183 | Protector, Hood Bulge, NO.1 |
| 76186 | Seal, Hood Air Intake |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
