Toyota Hilux
2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe
Supported model
Data version 2016-06

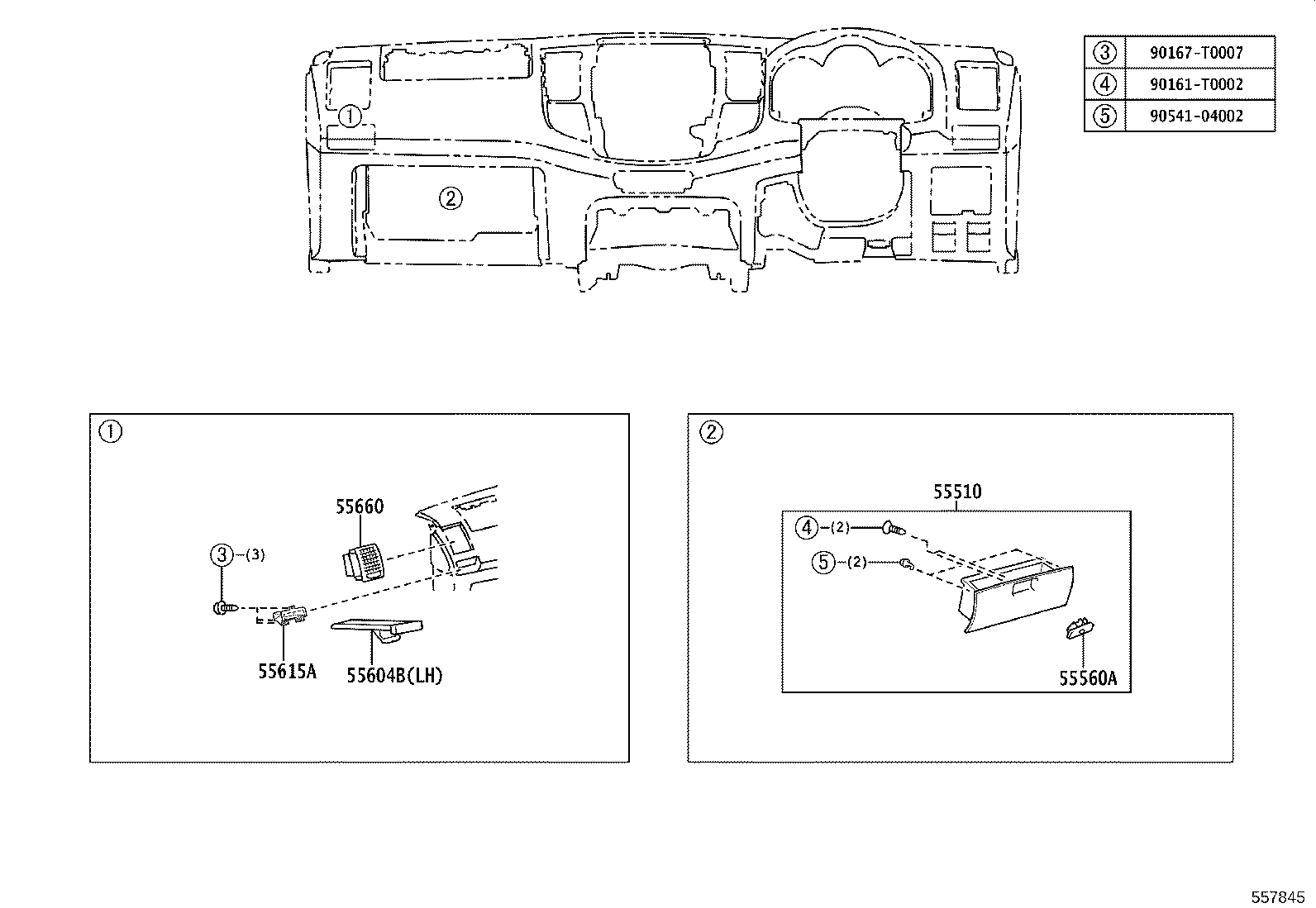

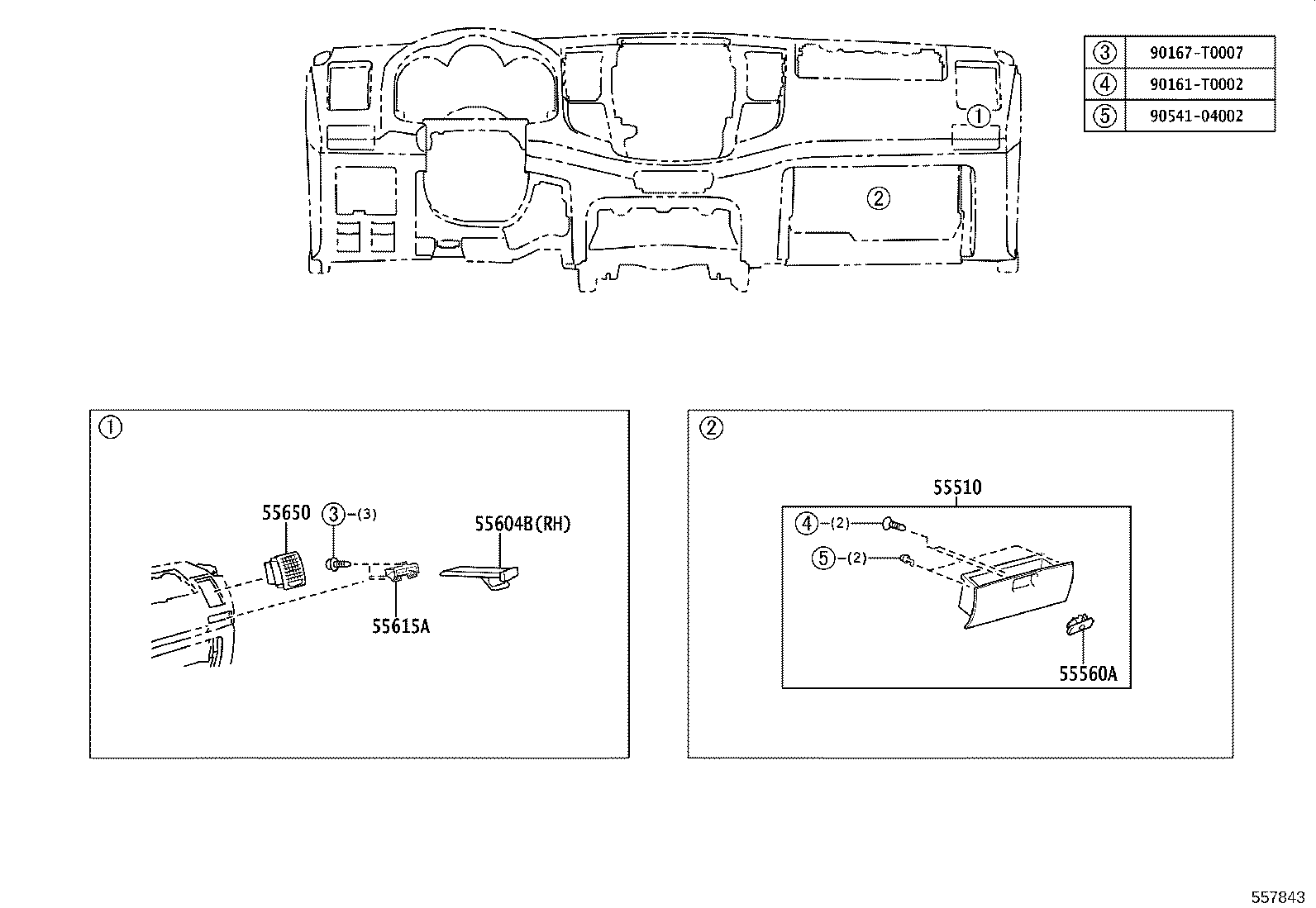

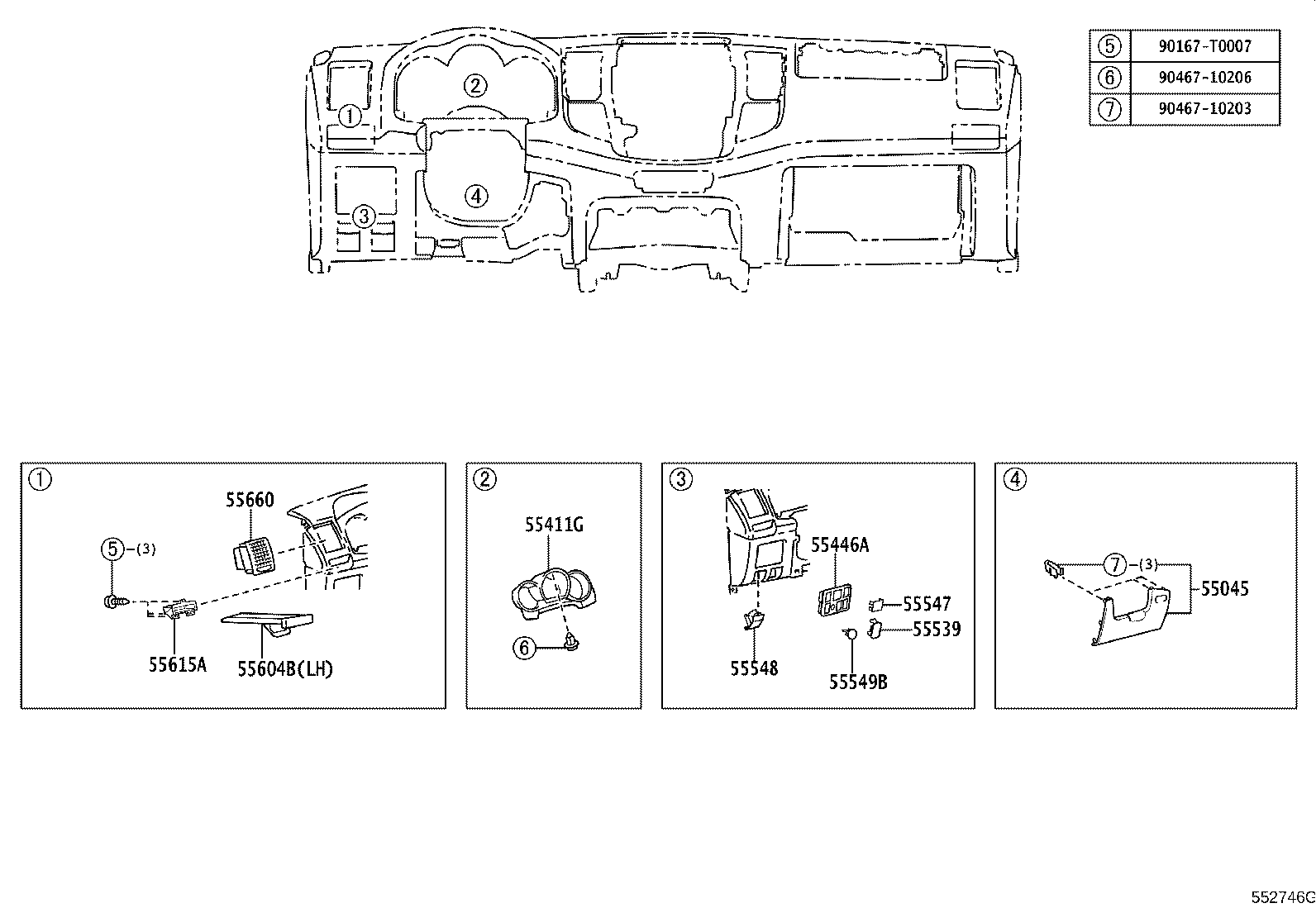

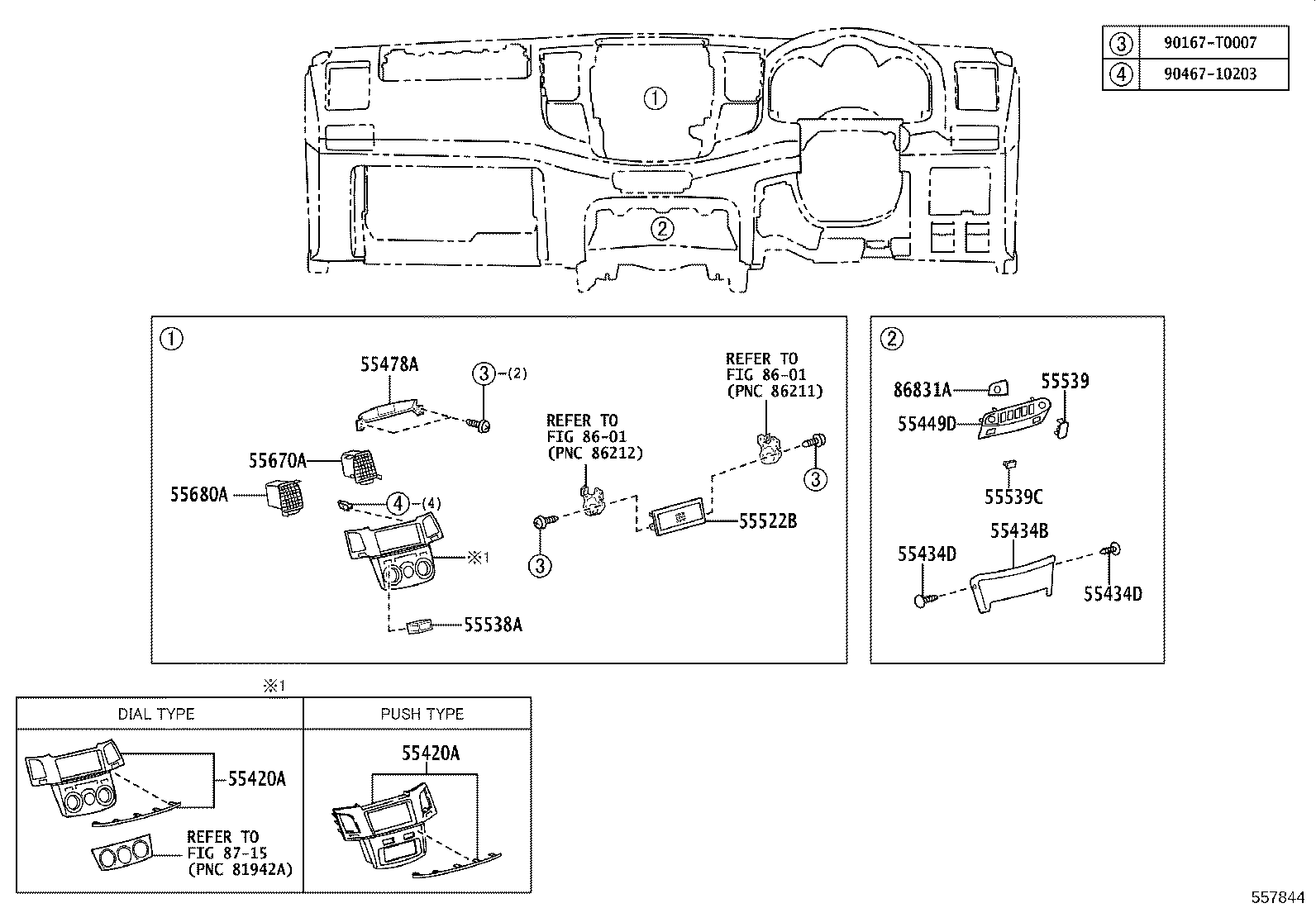

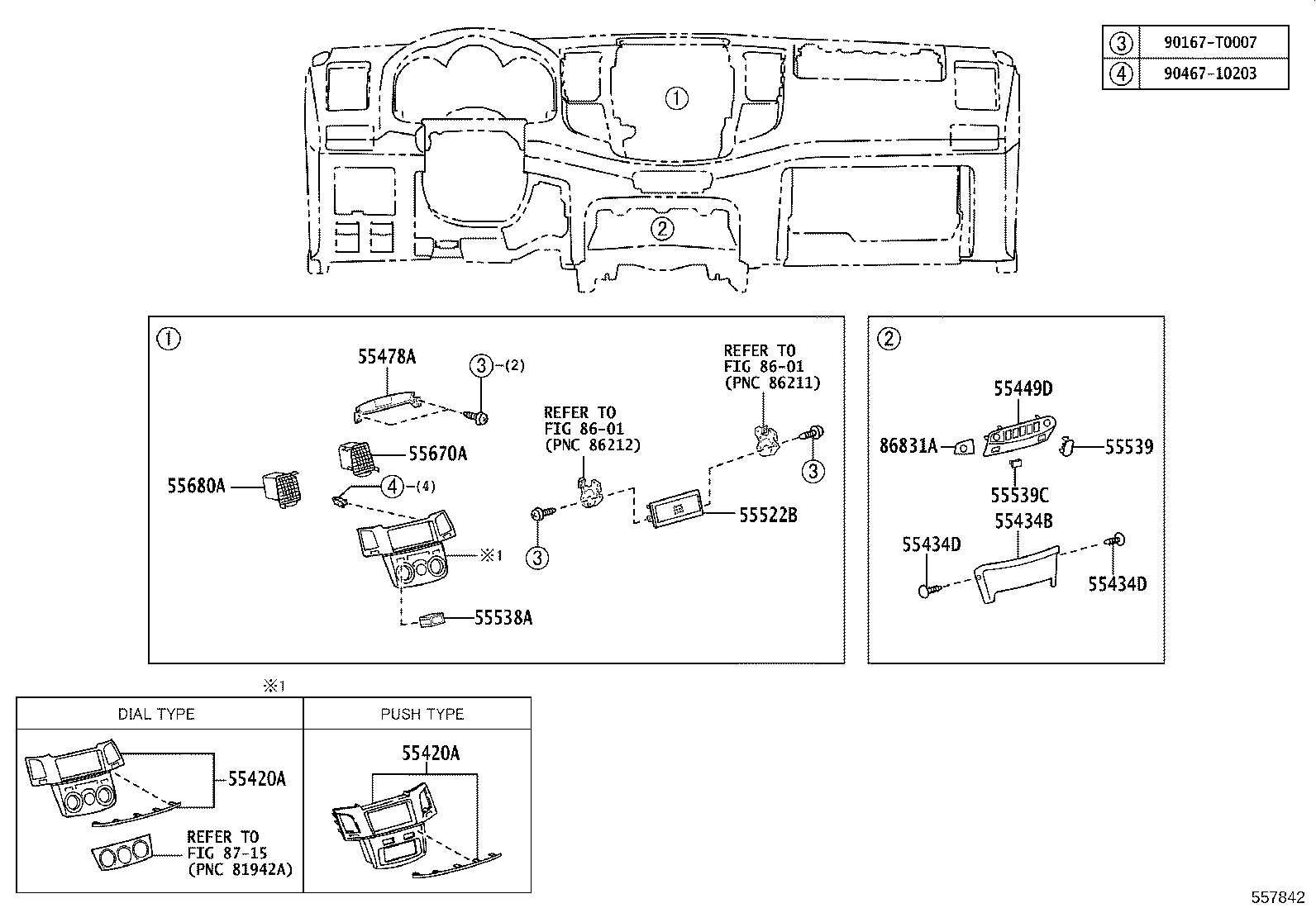

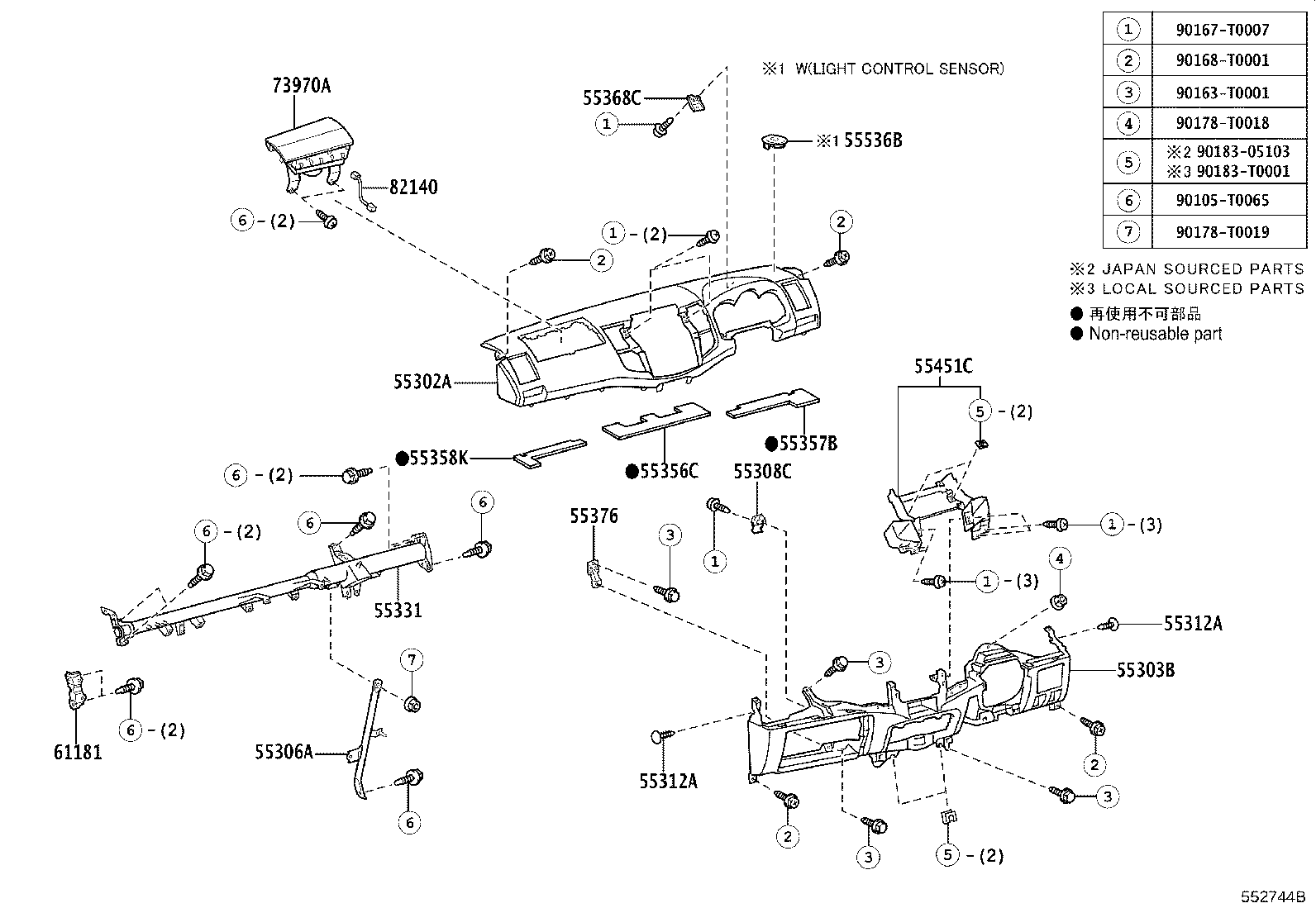

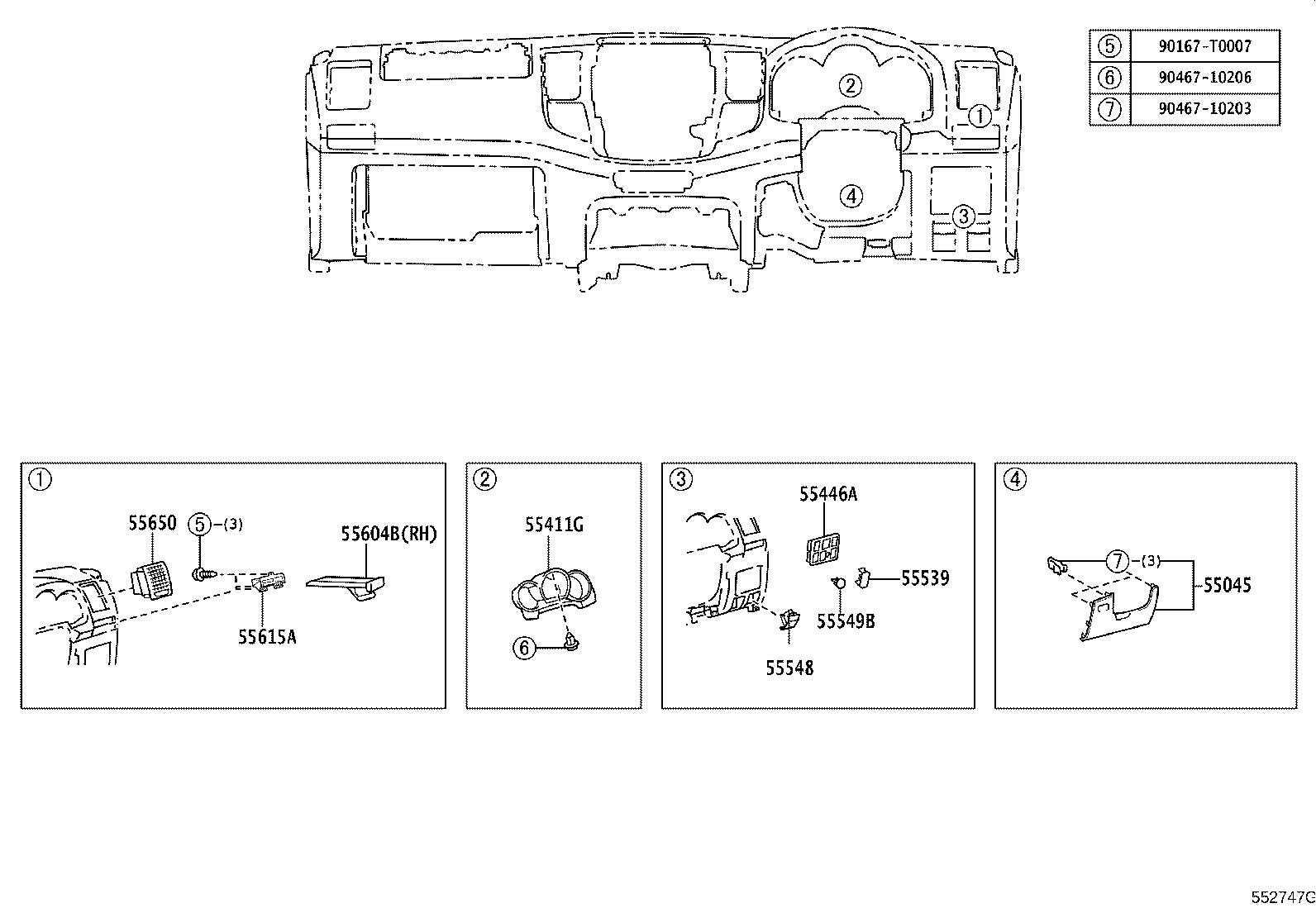

Instrument Panel & Glove Compartment
40 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045 | Panel Sub-assy, Instrument Panel Finish, Lower |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55308C | Bracket Sub-assy, Instrument Panel, Center |
| 55312A | Clip, Instrument Panel |
| 55331 | Reinforcement, Instrument Panel |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55357B | Cushion, Instrument Panel, NO.3 |
| 55358K | Cushion, Instrument Panel, NO.4 |
| 55368C | Bracket, Meter Mounting |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55411G | Panel, Instrument Cluster Finish, NO.1 |
| 55420A | Panel Assy, Instrument Cluster Finish, Center |
| 55434B | Panel, Instrument Panel Finish, Lower Center |
| 55434D | Clip, Instrument Panel Finish, Lower Center |
| 55446A | Base, Switch Hole, NO.1 |
| 55449D | Base, Switch |
| 55451C | Box, Instrument Panel, NO.1 |
| 55478A | Bezel, Auto Clock Hole |
| 55510 | Door Assy, Glove Compartment |
| 55522B | Cover, Radio Tuner Opening |
| 55536B | Cover, Light Control Switch Hole |
| 55538A | Cover, Cooler Switch Hole |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55547 | Cover, Remote Control Mirror Hole |
| 55548 | Cover, Fuel Lid Opener Opening |
| 55549B | Cover, Instrument Panel Hole, NO.2 |
| 55560A | Lock Assy, Glove Compartment Door |
| 55604B | Holder Sub-assy, Instrument Panel Cup |
| 55615A | Case, Instrument Panel Cup Holder, Outer |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55680A | Register Assy, Instrument Panel, NO.4 |
| 61181 | Bracket, Instrument Panel Side |
| 73970A | Airbag Assy, Instrument Panel Passenger |
| 82140 | Wire Assy, Instrument Panel |
| 86831A | Cover, Accessory Socket |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
