Toyota Hilux
2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe
Supported model
Data version 2016-06

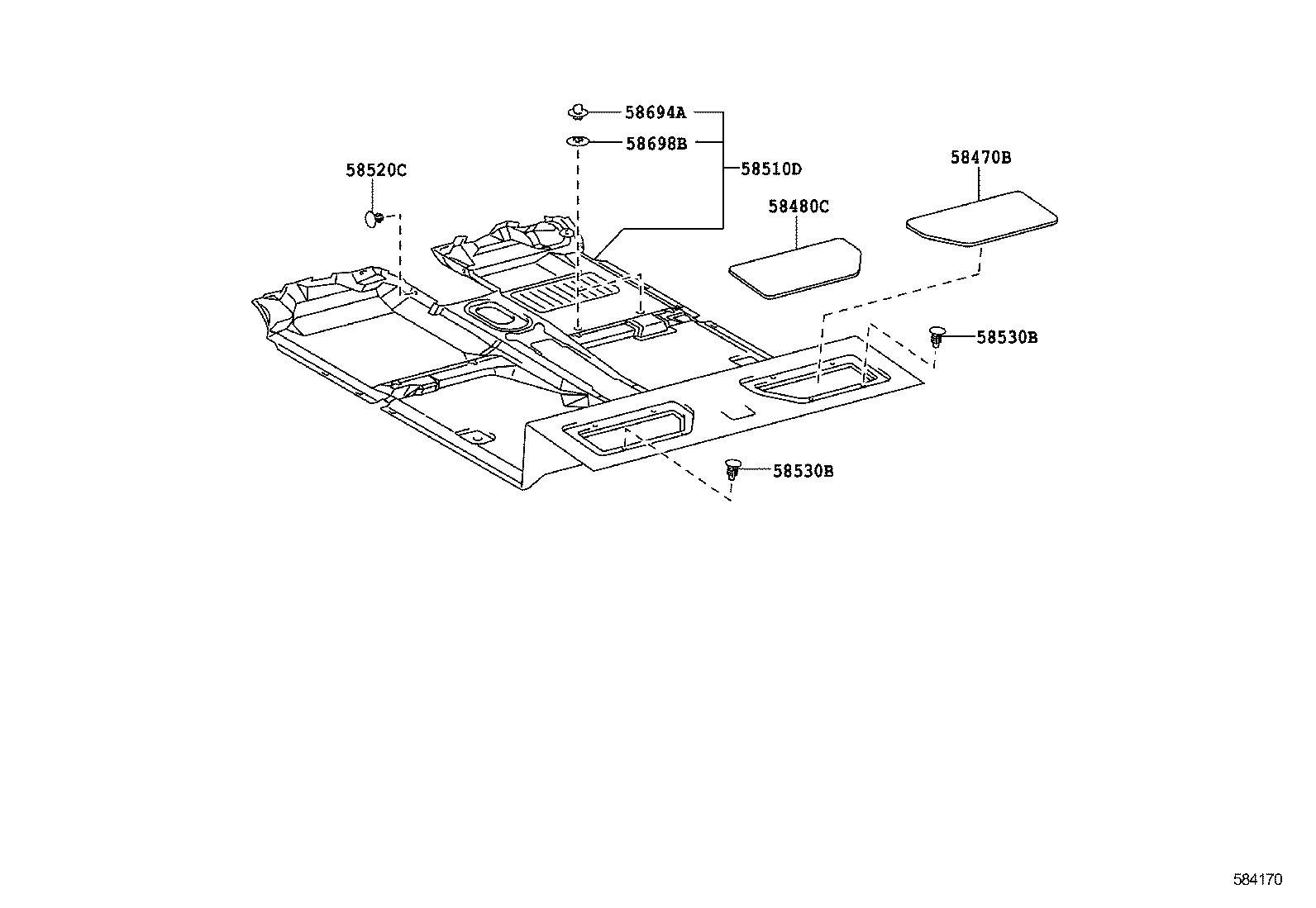

Floor Mat & Silencer Pad
8 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 58470B | Cover Assy, Seat Floor Service Hole, RH |
| 58480C | Cover Assy, Seat Floor Service Hole, LH |
| 58510D | Carpet Assy, Floor, Front |
| 58520C | Clip(FOR FRONT FLOOR CARPET) |
| 58530B | Clip(FOR FRONT FLOOR CARPET) |
| 58591 | Cover, Floor Carpet |
| 58694A | Plate, Mat Set, Upper |
| 58698B | Plate, Mat Set, Lower |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
