Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

17 part groups · 3 illustrations

Illustrations

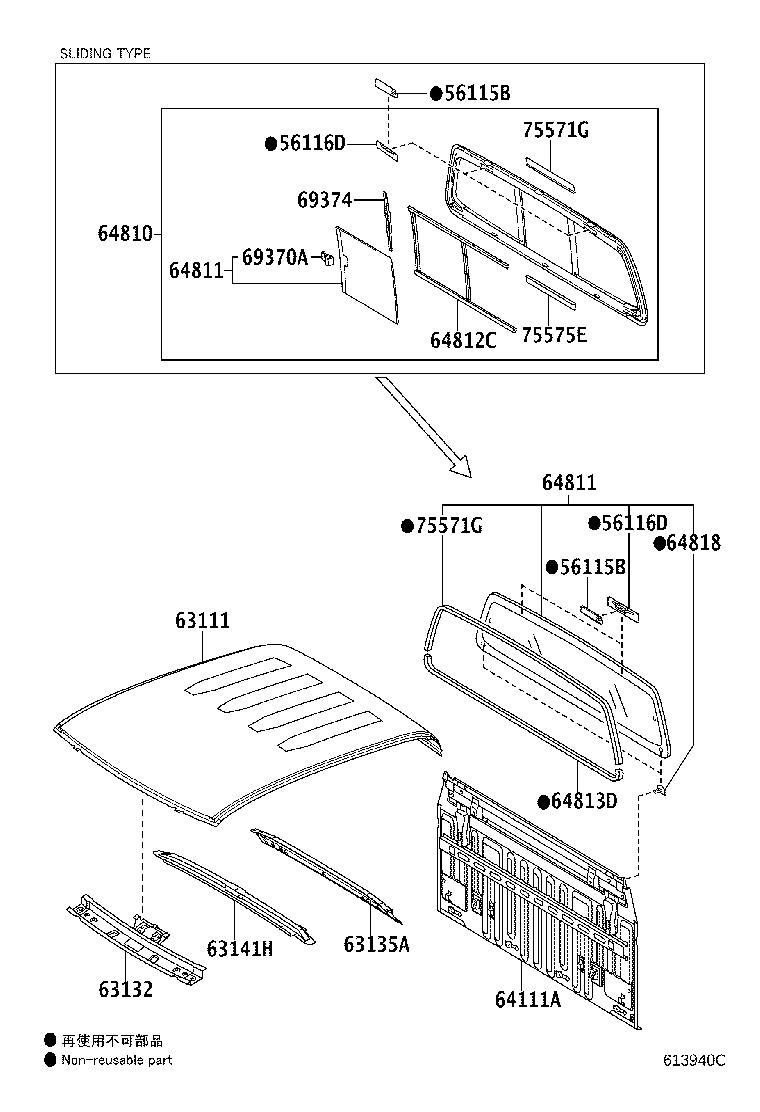

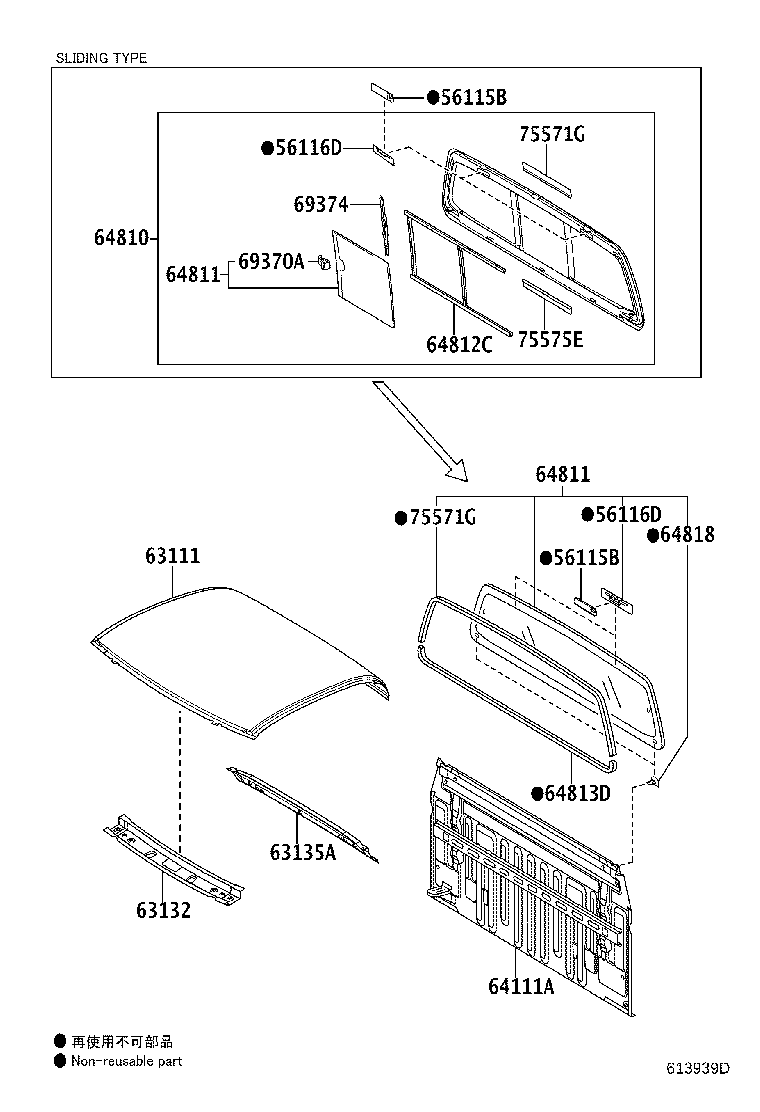

Figure 613938D 613938D 2011-07 → — Figure 613939D 613939D 2011-07 → — Figure 613940C 613940C 2011-07 → —

Part groups

PNCDescription
56115B Stopper, Back Window Glass, NO.1
56116D Stopper, Back Window Glass, NO.2
63111 Panel, Roof
63132 Panel, Windshield Header, Inner
63135A Frame, Back Door Opening, Lower
63141H Reinforcement, Roof Panel, Center
63142 Reinforcement, Roof Panel, NO.2
64111A Panel, Back
64810 Window Assy, Back
64811 Glass, Back Window
64812C Weatherstrip, Back Window Glass
64813D Dam, Back Window Glass Adhesive
64818 Spacer, Back Window Glass
69370A Lock Assy, Back Window
69374 Catch, Back Window Lock
75571G Moulding, Back Window, Outside Upper, NO.1
75575E Moulding, Back Window, Outside Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
