Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Floor & Fender

15 part groups · 3 illustrations

Illustrations

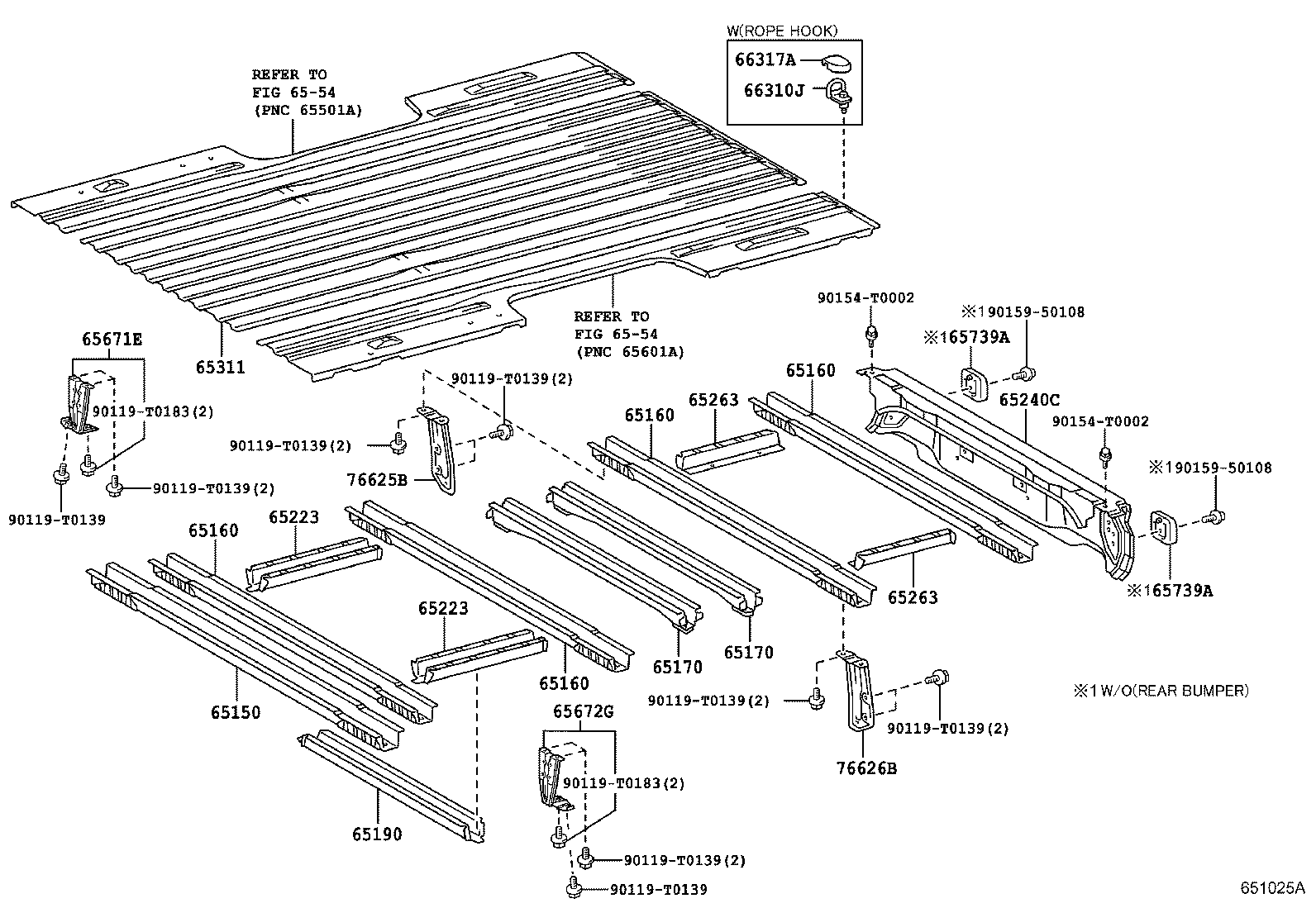

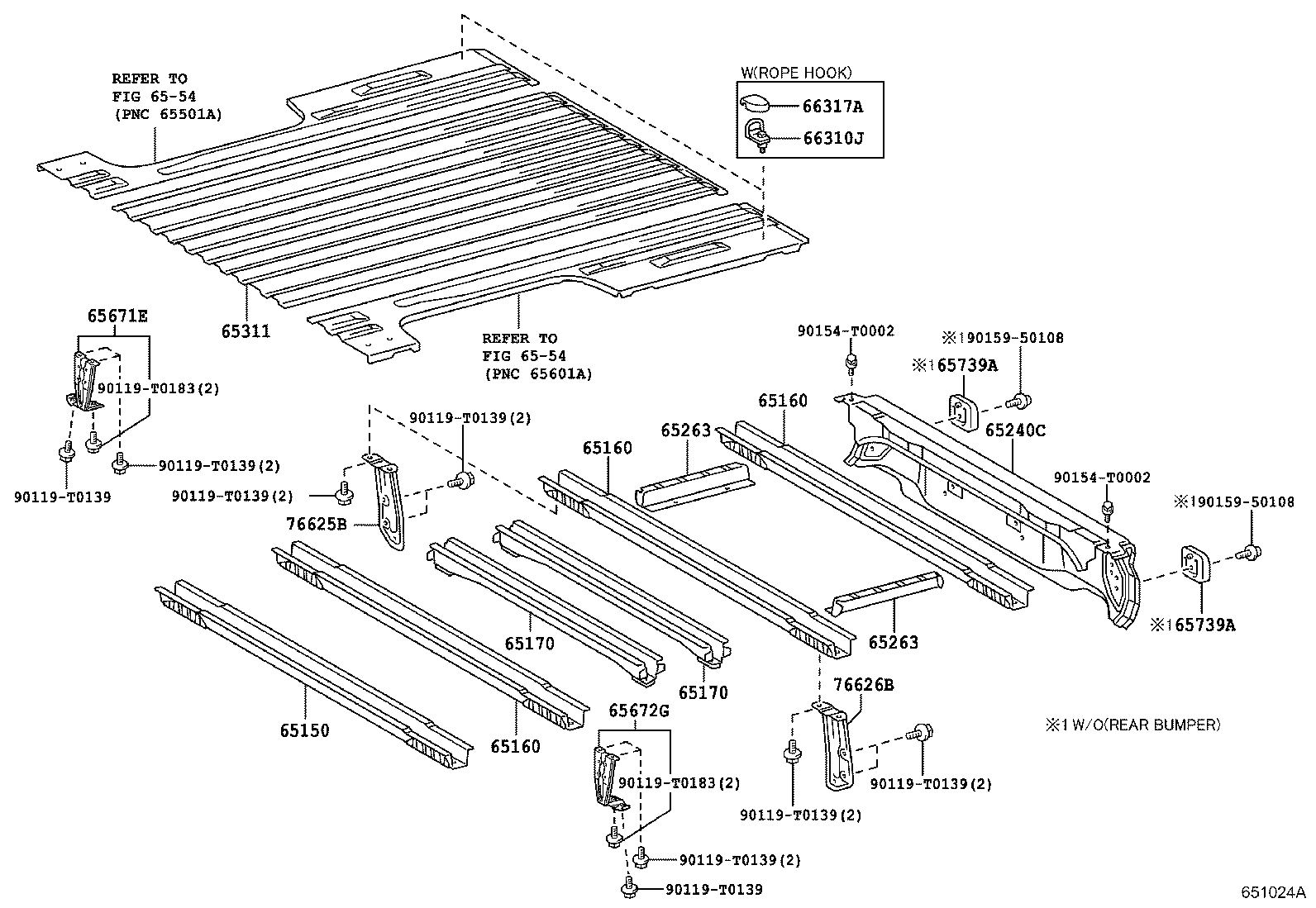

Figure 651023A 651023A 2011-07 → — Figure 651024A 651024A 2011-07 → — Figure 651025A 651025A 2011-07 → —

Part groups

PNCDescription
65150 Sill Assy, Cross, NO.1
65160 Sill Assy, Cross, NO.2
65170 Sill Assy, Cross, NO.2
65190 Sill Assy, Cross, NO.5
65223 Reinforcement, Floor Panel, Front, NO.1 RH
65240C Sill Assy, Cross, NO.9
65263 Reinforcement, Floor Side Frame
65311 Panel, Floor, Center
65671E Brace, Side Panel Skirt, Front RH
65672G Brace, Side Panel Skirt, Front LH
65739A Bumper, Tail Gate
66310J Hook Assy, Rope
66317A Cover, Rope Hook
76625B Mudguard, Rear Body, RH
76626B Mudguard, Rear Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
