Toyota Hilux
2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe
Supported model
Data version 2016-06

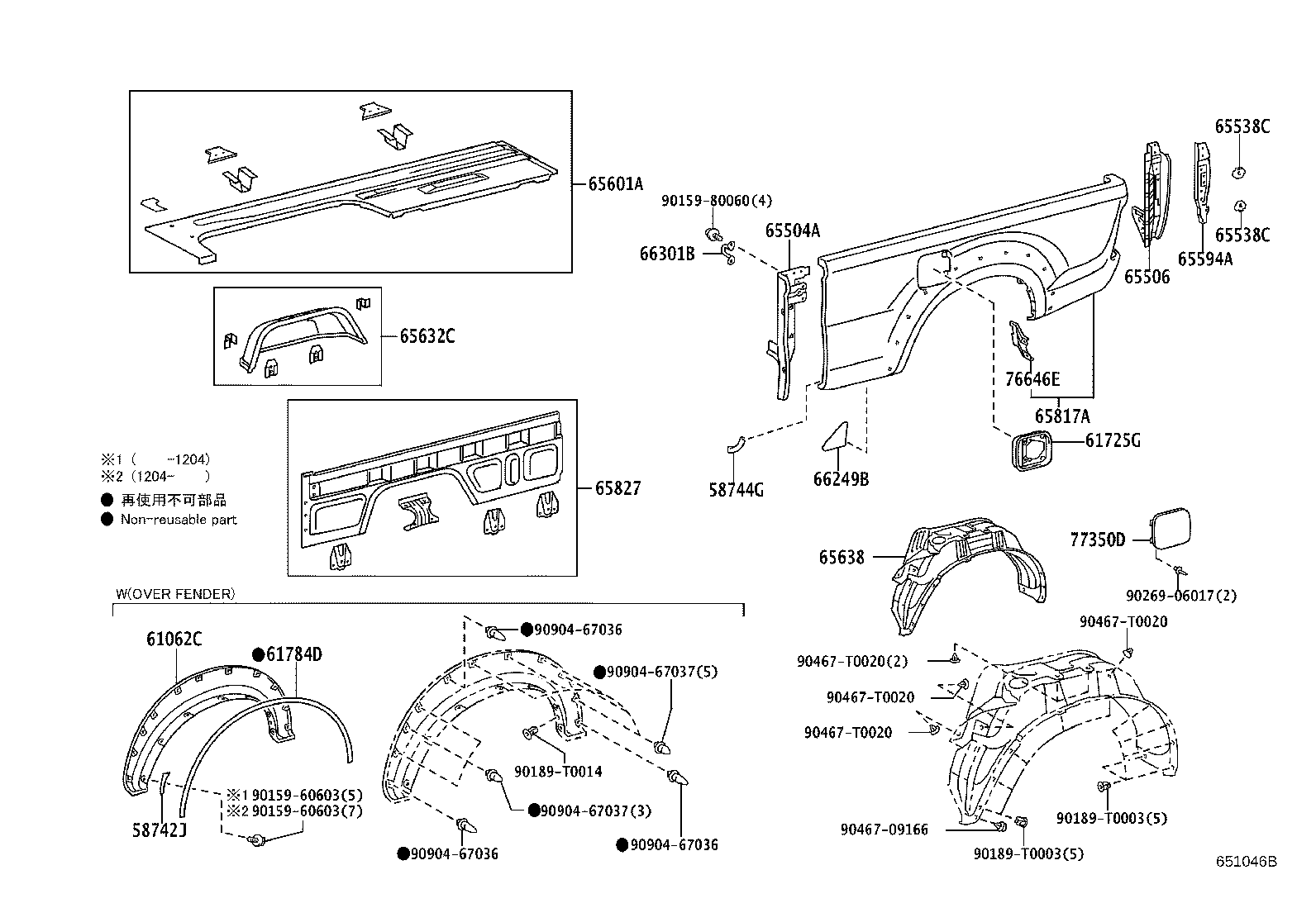

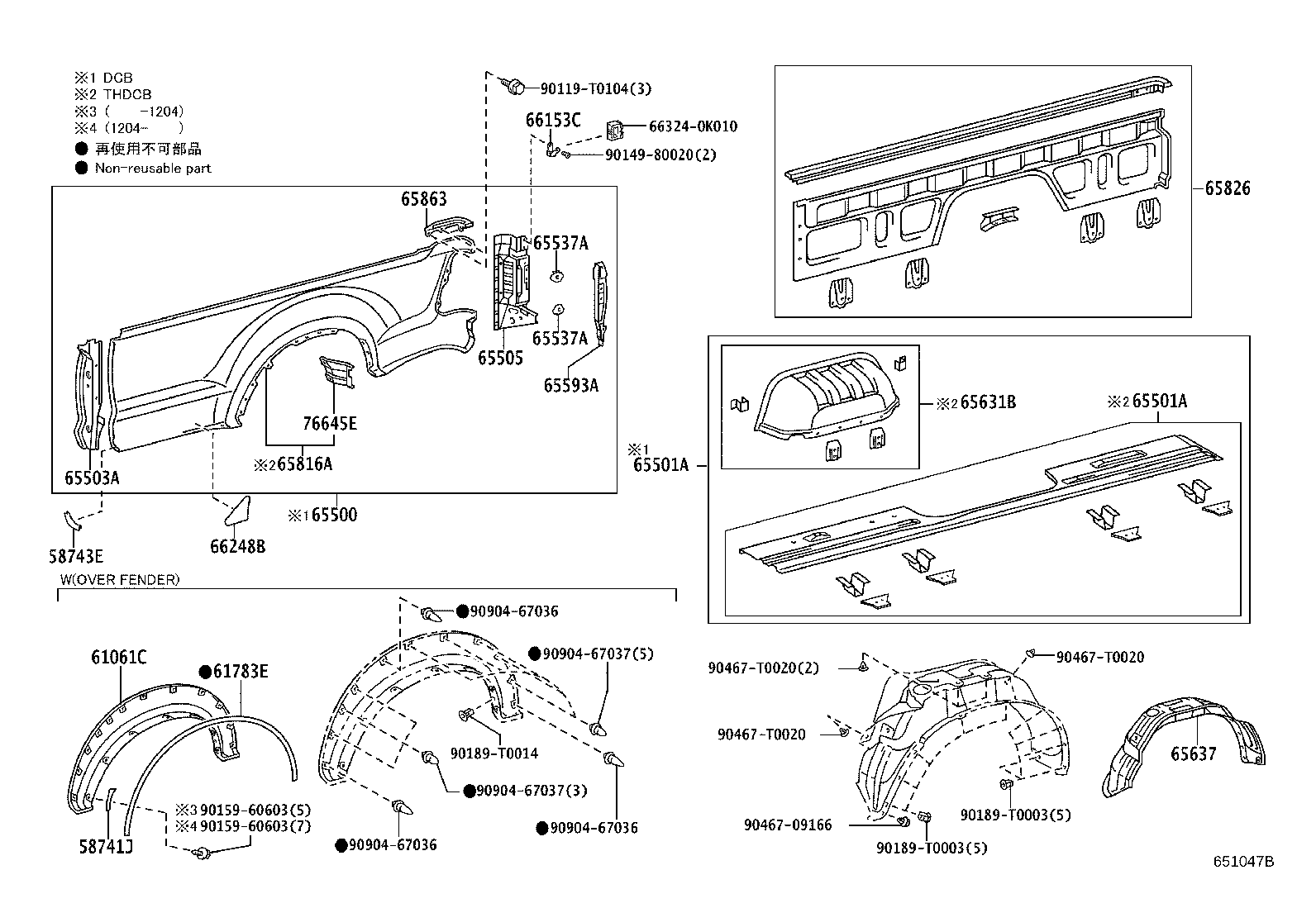

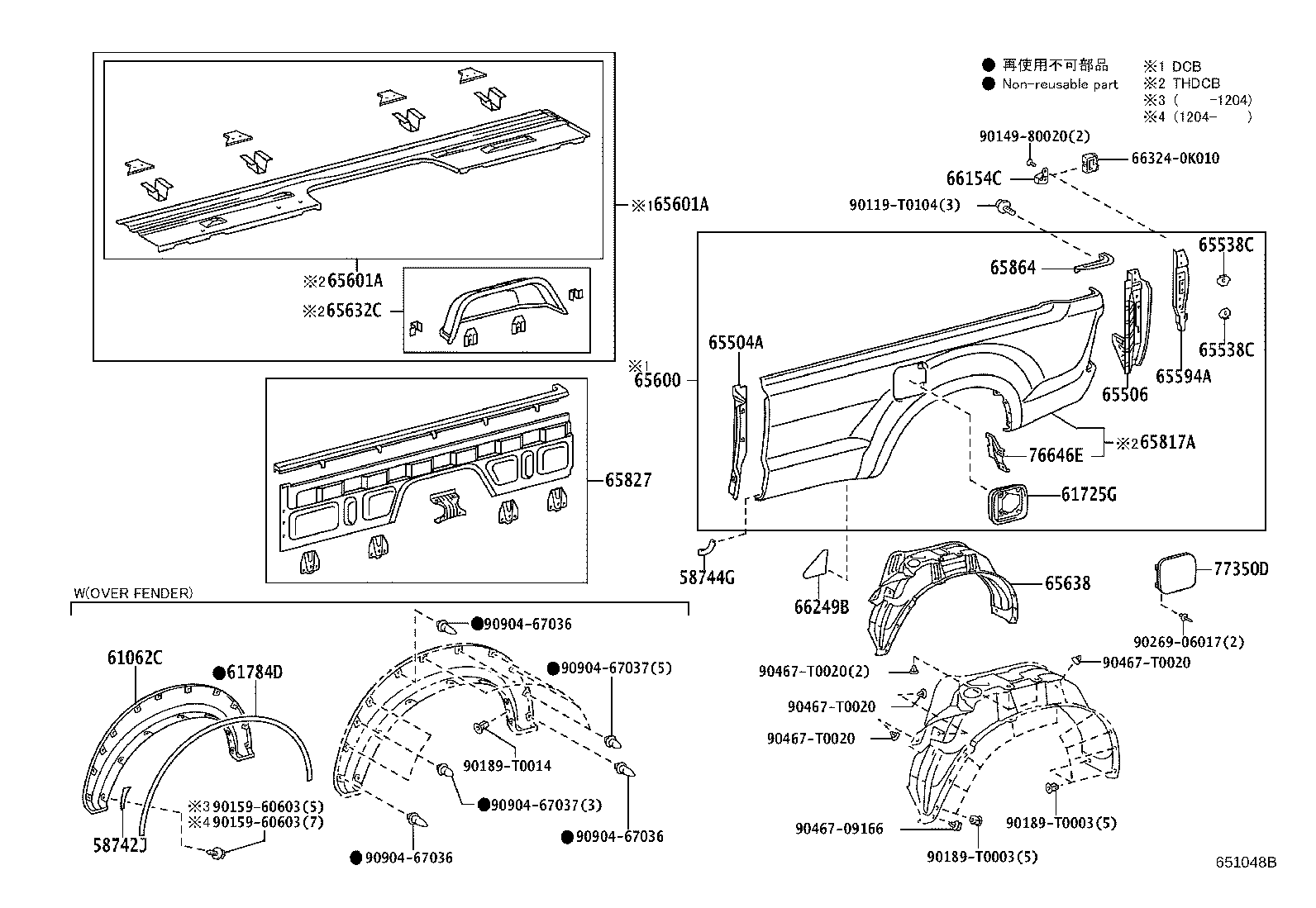

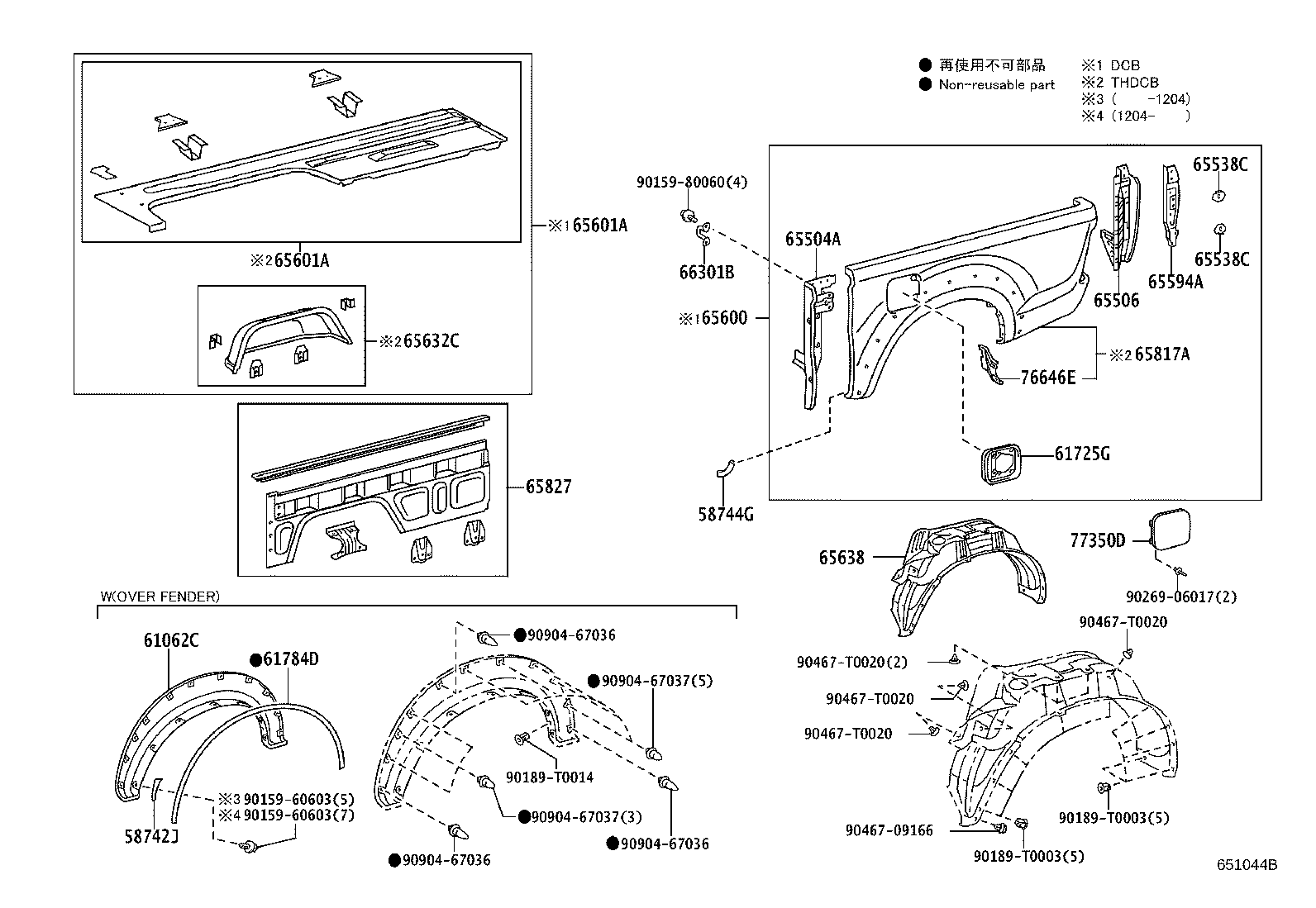

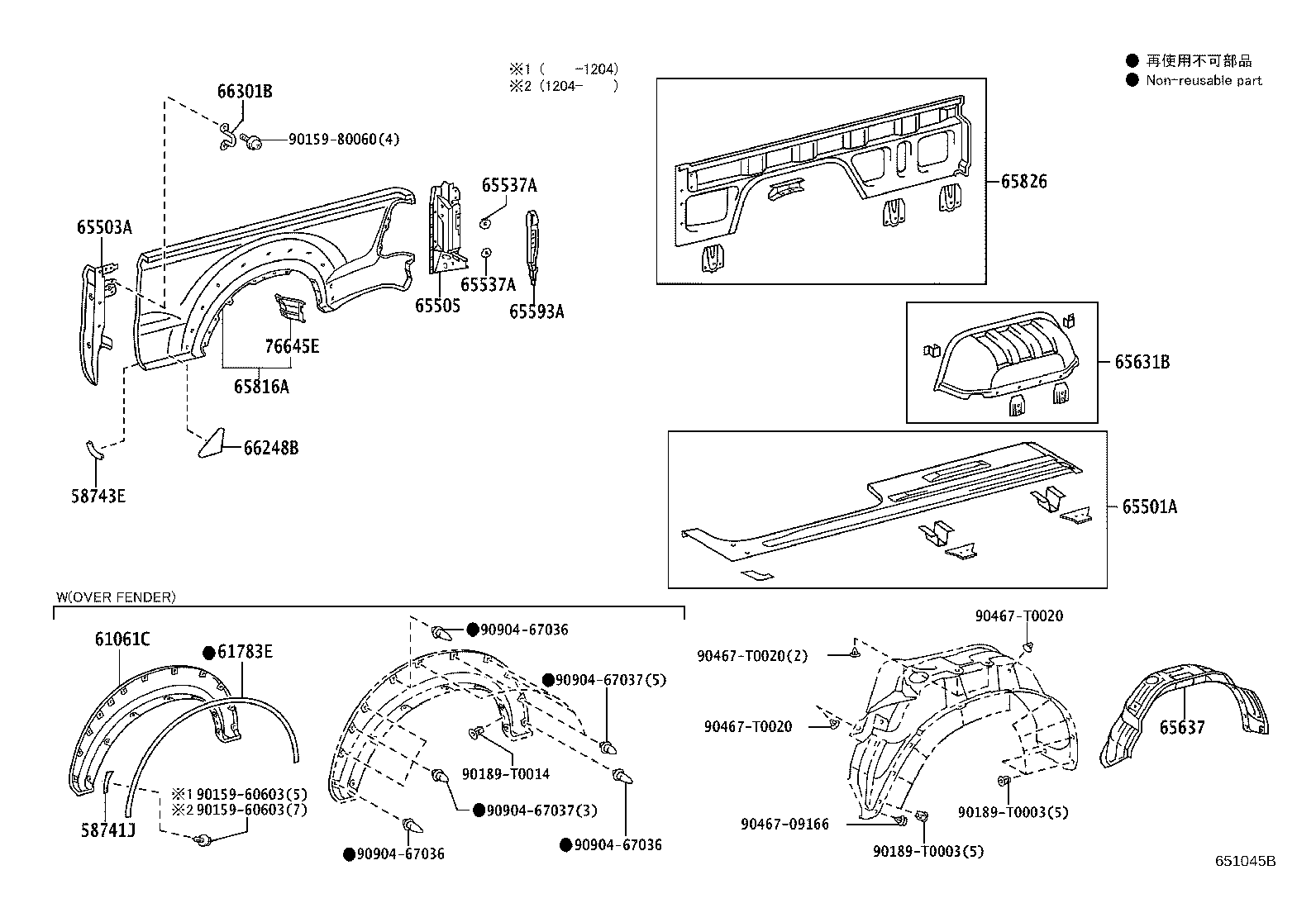

Rear Body Side Panel
39 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 58741J | Protector, Rear Wheel Extension, RH |
| 58742J | Protector, Rear Wheel Extension, LH |
| 58743E | Protector, Rear Wheel Extension, NO.2 RH |
| 58744G | Protector, Rear Wheel Extension, NO.2 LH |
| 61061C | Extension Sub-assy, Rear Wheel Opening, NO.1 RH |
| 61062C | Extension Sub-assy, Rear Wheel Opening, NO.1 LH |
| 61725G | Box, Fuel Inlet, NO.1 |
| 61783E | Pad, Rear Wheel Opening Extension, NO.1 |
| 61784D | Pad, Rear Wheel Opening Extension, NO.2 |
| 65500 | Panel Assy, Rear Body Side, RH |
| 65501A | Panel Sub-assy, Rear Body Side, RH |
| 65503A | Post Sub-assy, Side Panel Front End, RH |
| 65504A | Post Sub-assy, Side Panel Front End, LH |
| 65505 | Post Sub-assy, Side Panel Rear End, RH |
| 65506 | Post Sub-assy, Side Panel Rear End, LH |
| 65537A | Patch, Side Panel Reinforcement, RH |
| 65538C | Patch, Side Panel Reinforcement, LH |
| 65593A | Plate, Side Panel Rear End Post Inside, RH |
| 65594A | Plate, Side Panel Rear End Post Inside, LH |
| 65600 | Panel Assy, Rear Body Side, LH |
| 65601A | Panel Sub-assy, Rear Body Side, LH |
| 65631B | Panel, Wheel House, RH |
| 65632C | Panel, Wheel House, LH |
| 65637 | Liner, Rear Wheel House, RH |
| 65638 | Liner, Rear Wheel House, LH |
| 65816A | Panel, Rear Body Side, RH |
| 65817A | Panel, Rear Body Side, LH |
| 65826 | Panel, Rear Body Side, Inner RH |
| 65827 | Panel, Rear Body Side, Inner LH |
| 65863 | Panel, Rear Body Side, Upper RH |
| 65864 | Panel, Rear Body Side, Upper LH |
| 66153C | Hook, Tail Gate Latch, NO.1 RH |
| 66154C | Hook, Tail Gate Latch, NO.1 LH |
| 66248B | Protector, Rear Body Side Panel, RH |
| 66249B | Protector, Rear Body Side Panel, LH |
| 66301B | Hook Sub-assy, Rope |
| 76645E | Bracket, RR Body Mudguard, RH |
| 76646E | Bracket, RR Body Mudguard, LH |
| 77350D | Lid Assy, Fuel Filler Opening |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
