Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt

12 part groups · 5 illustrations

Illustrations

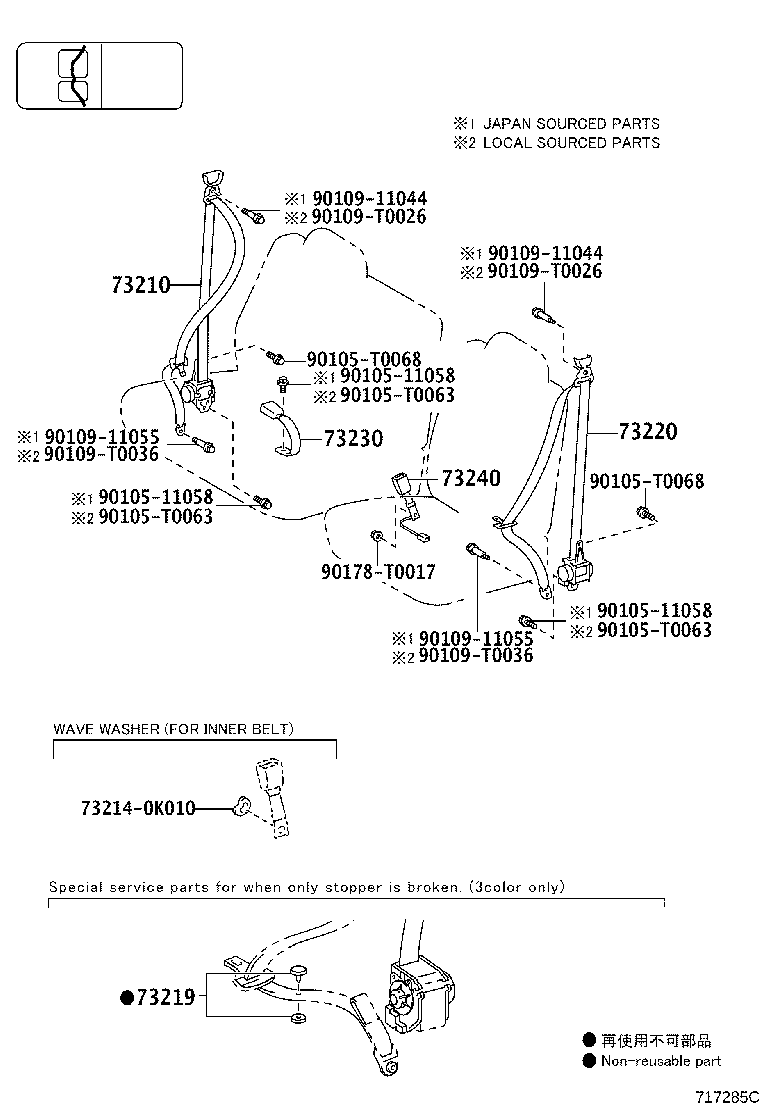

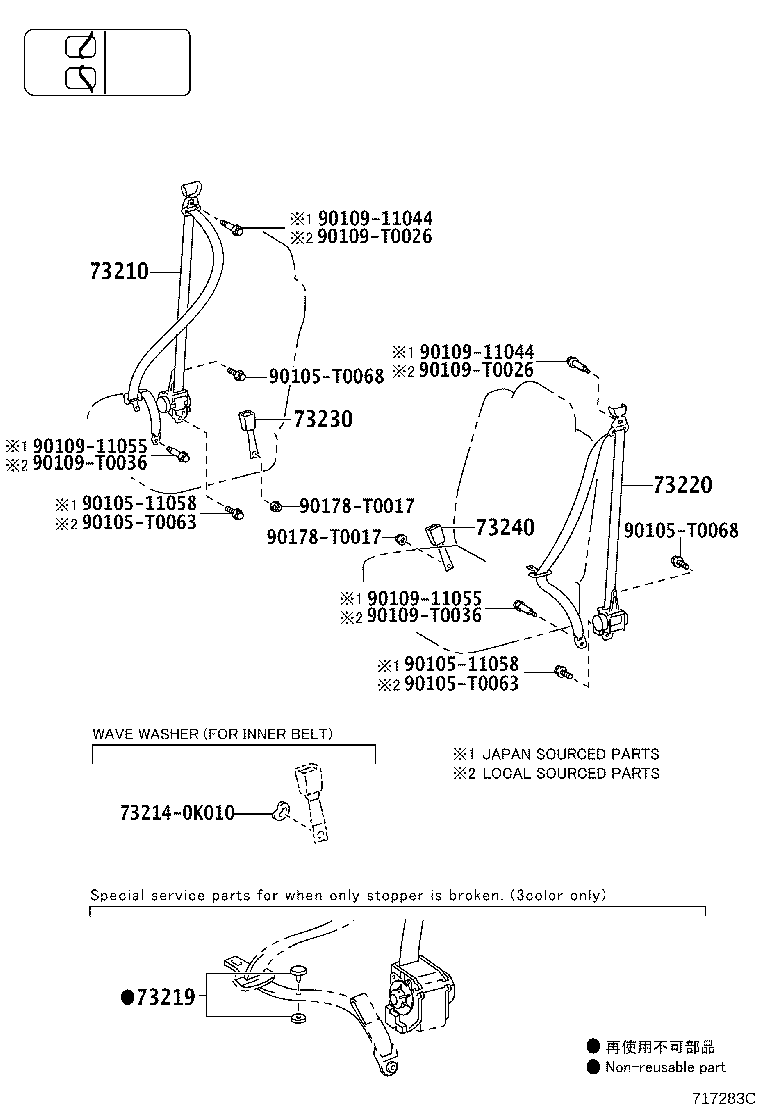

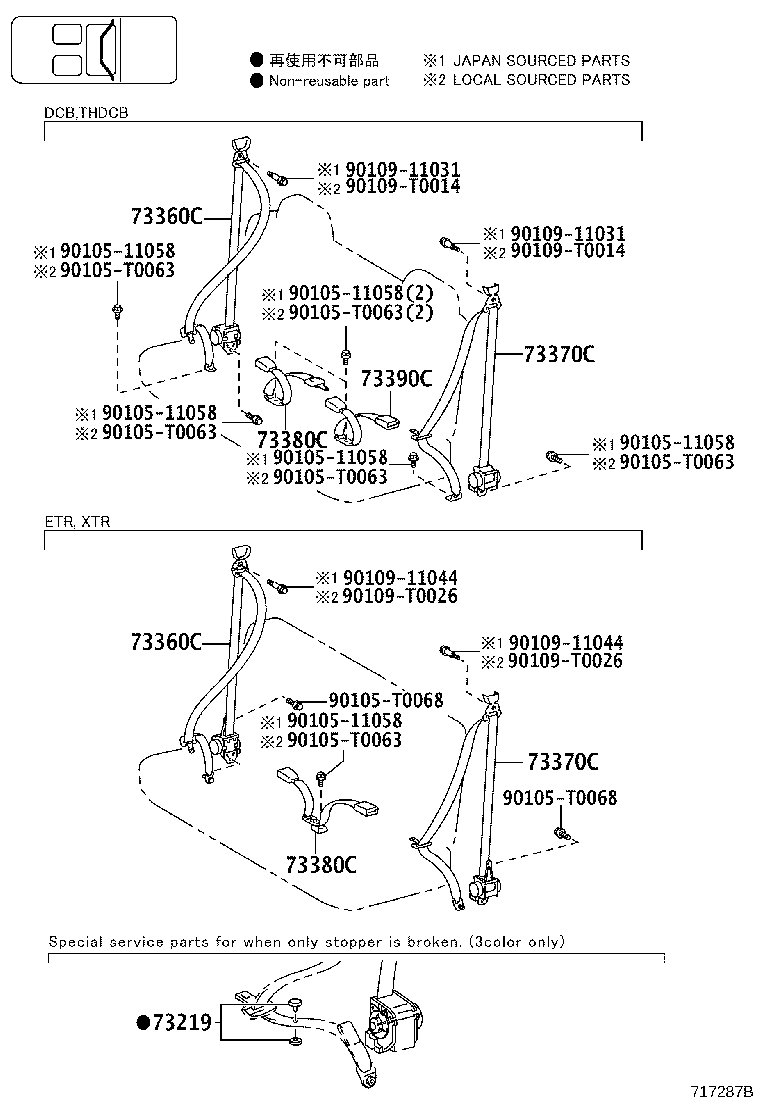

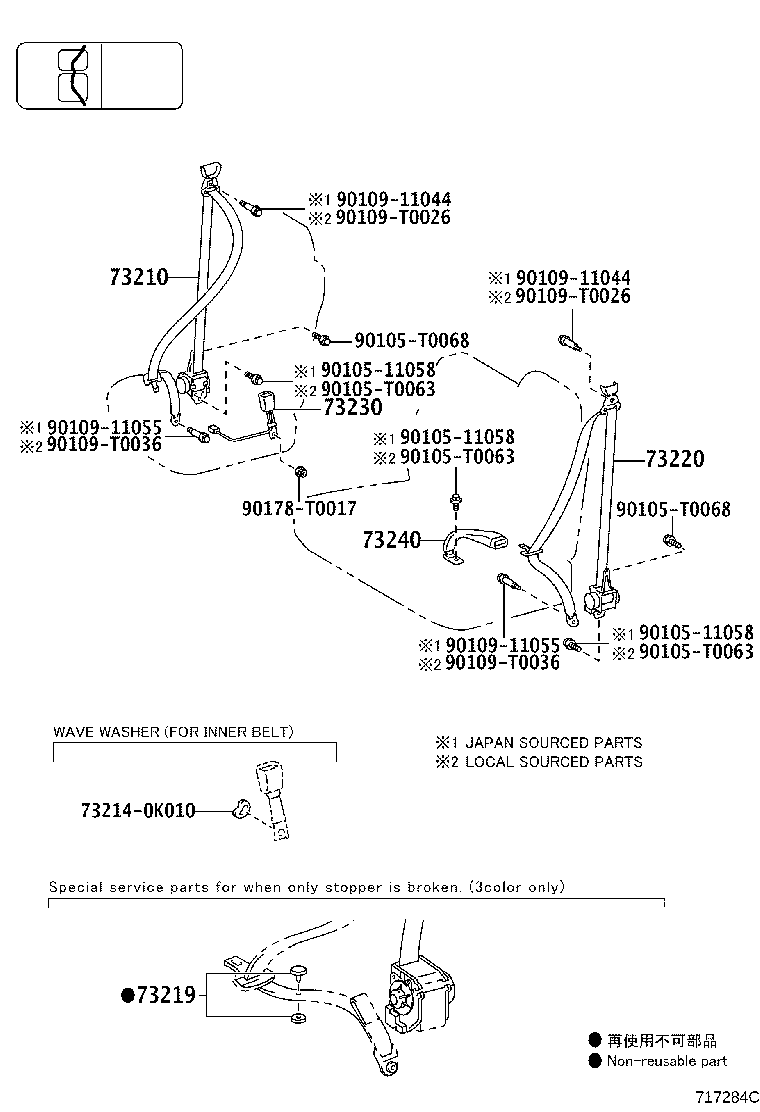

Figure 717286C 717286C 2011-07 → — Figure 717287B 717287B 2011-07 → — Figure 717285C 717285C 2011-07 → — Figure 717284C 717284C 2011-07 → — Figure 717283C 717283C 2011-07 → —

Part groups

PNCDescription
73135 Cover, Shoulder Belt Anchorage Plate
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73360C Belt Assy, Rear NO.1 Seat, Outer RH
73370C Belt Assy, Rear NO.1 Seat, Outer LH
73380C Belt Assy, Rear NO.1 Seat, Inner RH
73390C Belt Assy, Rear NO.1 Seat, Inner LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
