Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

7 part groups · 2 illustrations

Illustrations

Figure 815721F

815721F 2011-07 → 2012-10

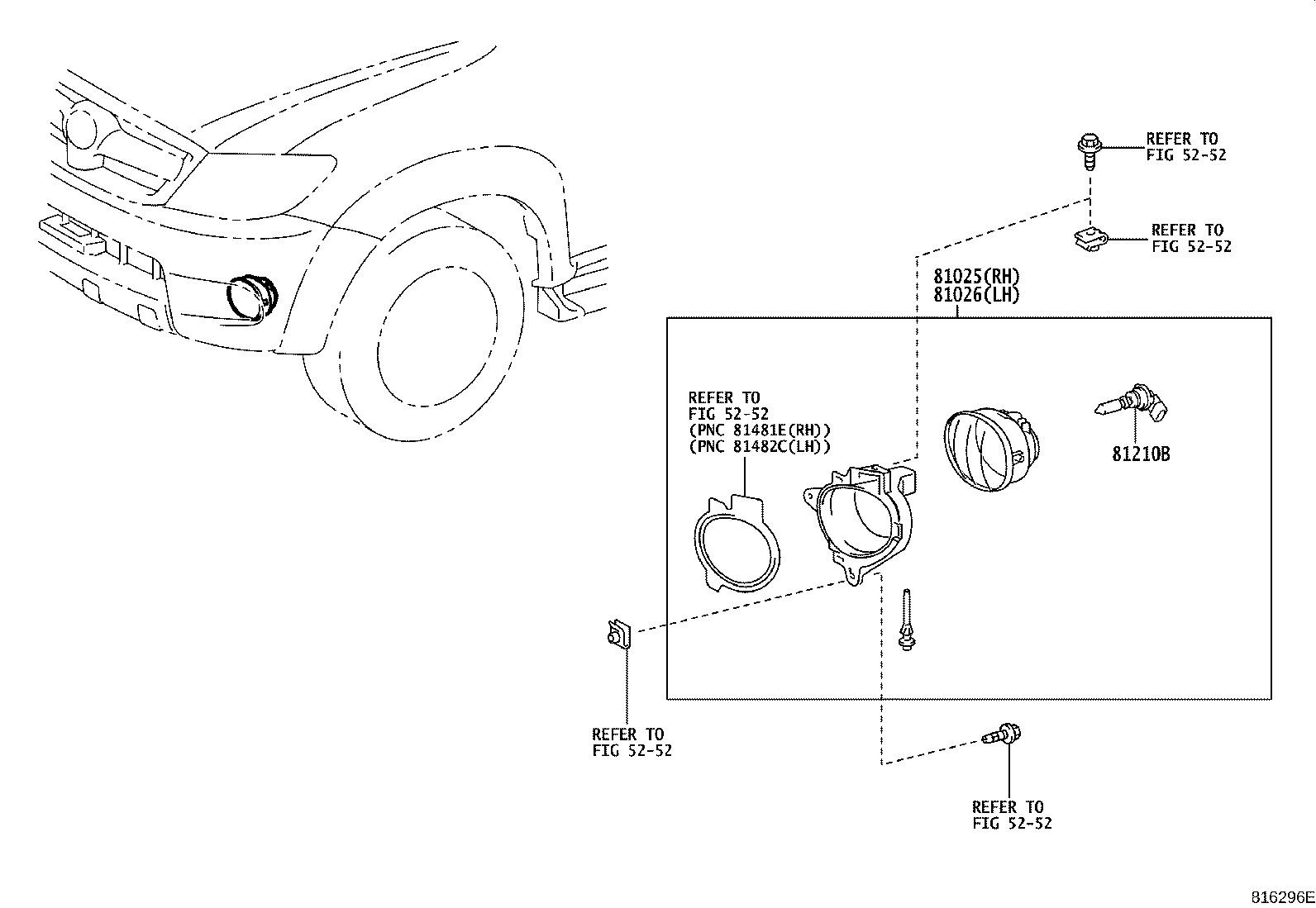

Figure 816296E

816296E 2012-08 → —

Part groups

PNC	Description
81025	Lamp Set, Fog, RH
81026	Lamp Set, Fog, LH
81210	Lamp Assy, Fog
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
