Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

7 part groups · 2 illustrations

Illustrations

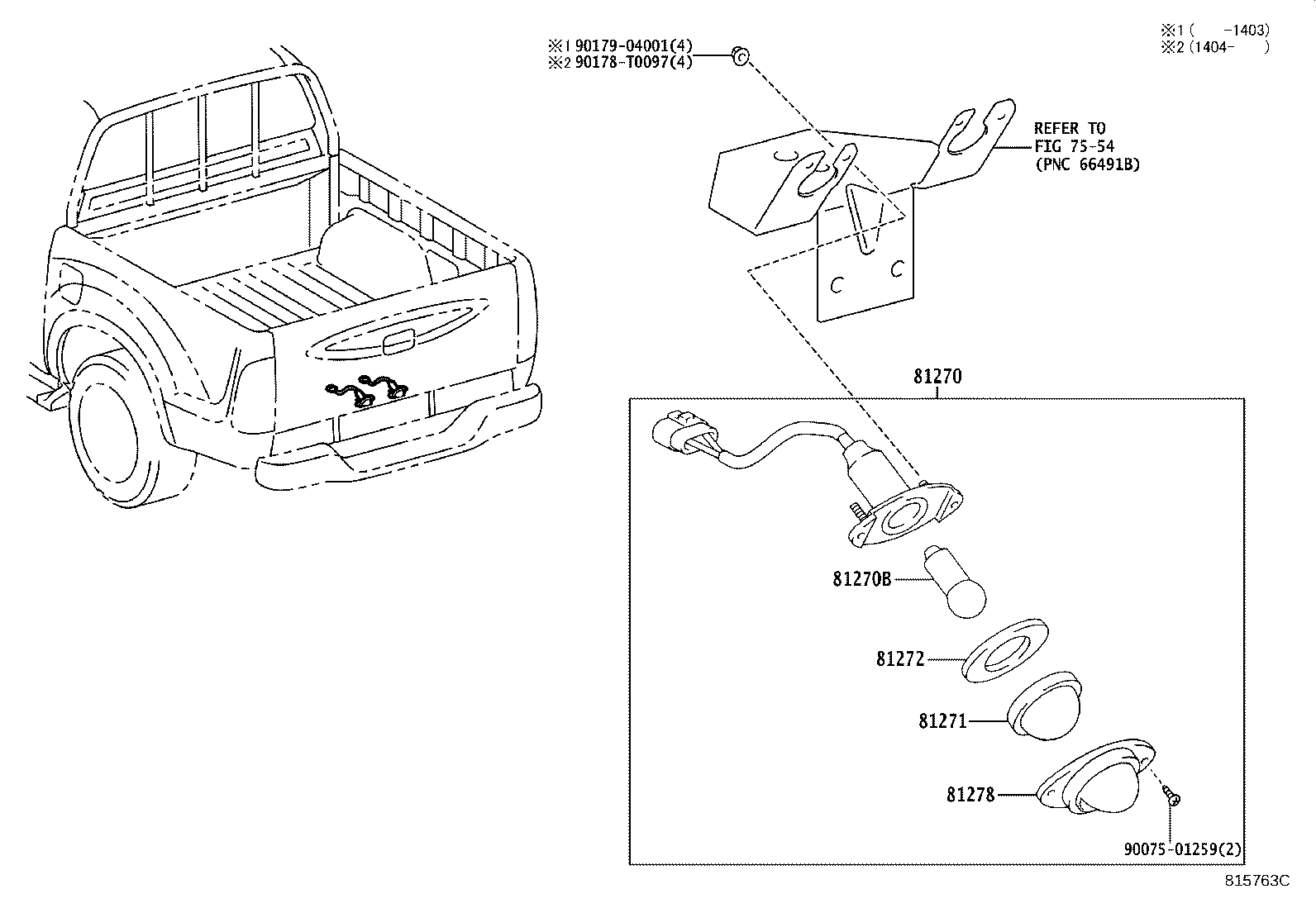

Figure 815762A 815762A 2011-07 → — Figure 815763C 815763C 2011-07 → —

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81275A Cord, License Plate Lamp
81275B Socket Plug, License Plate Lamp
81278 Cover, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
