Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

31 part groups · 14 illustrations

Illustrations

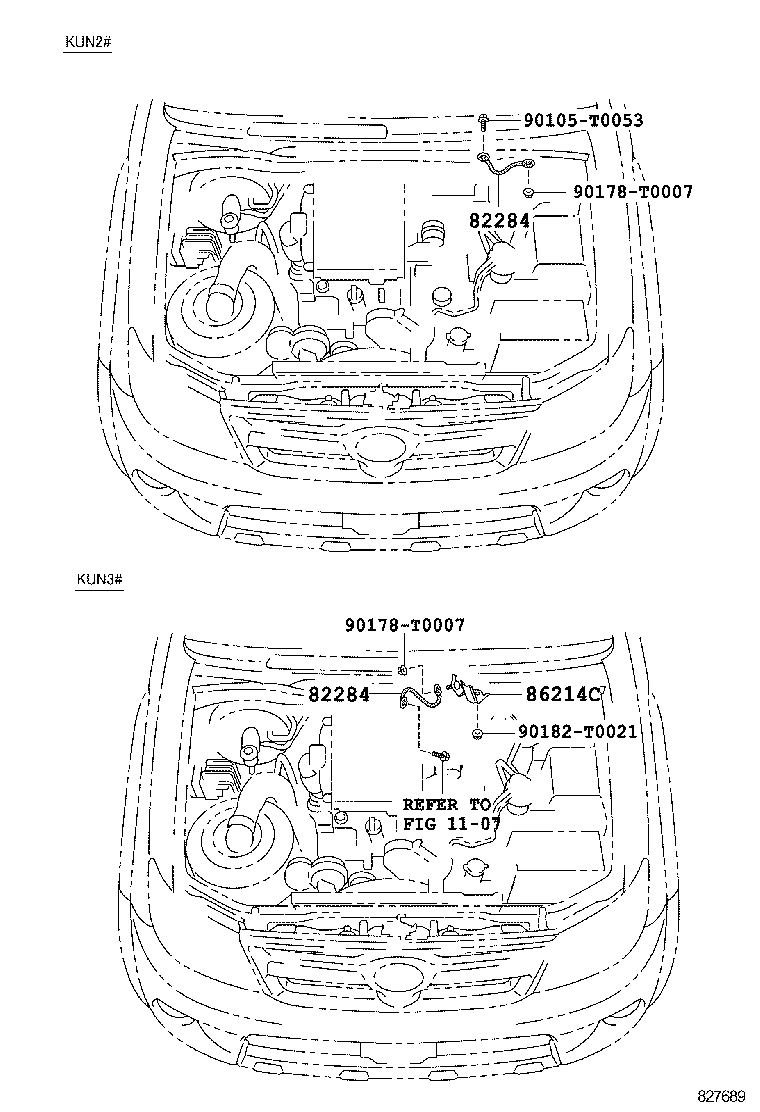

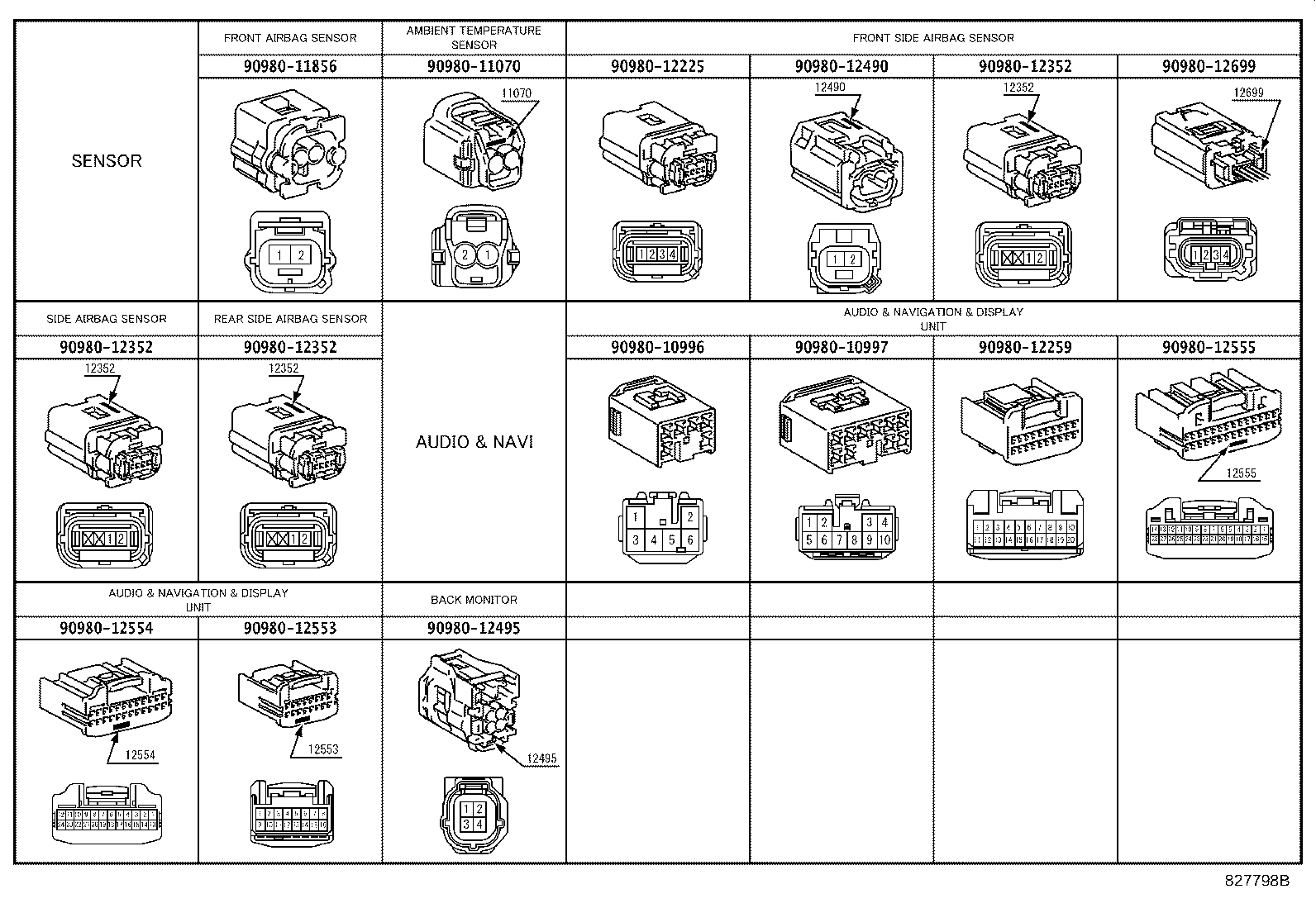

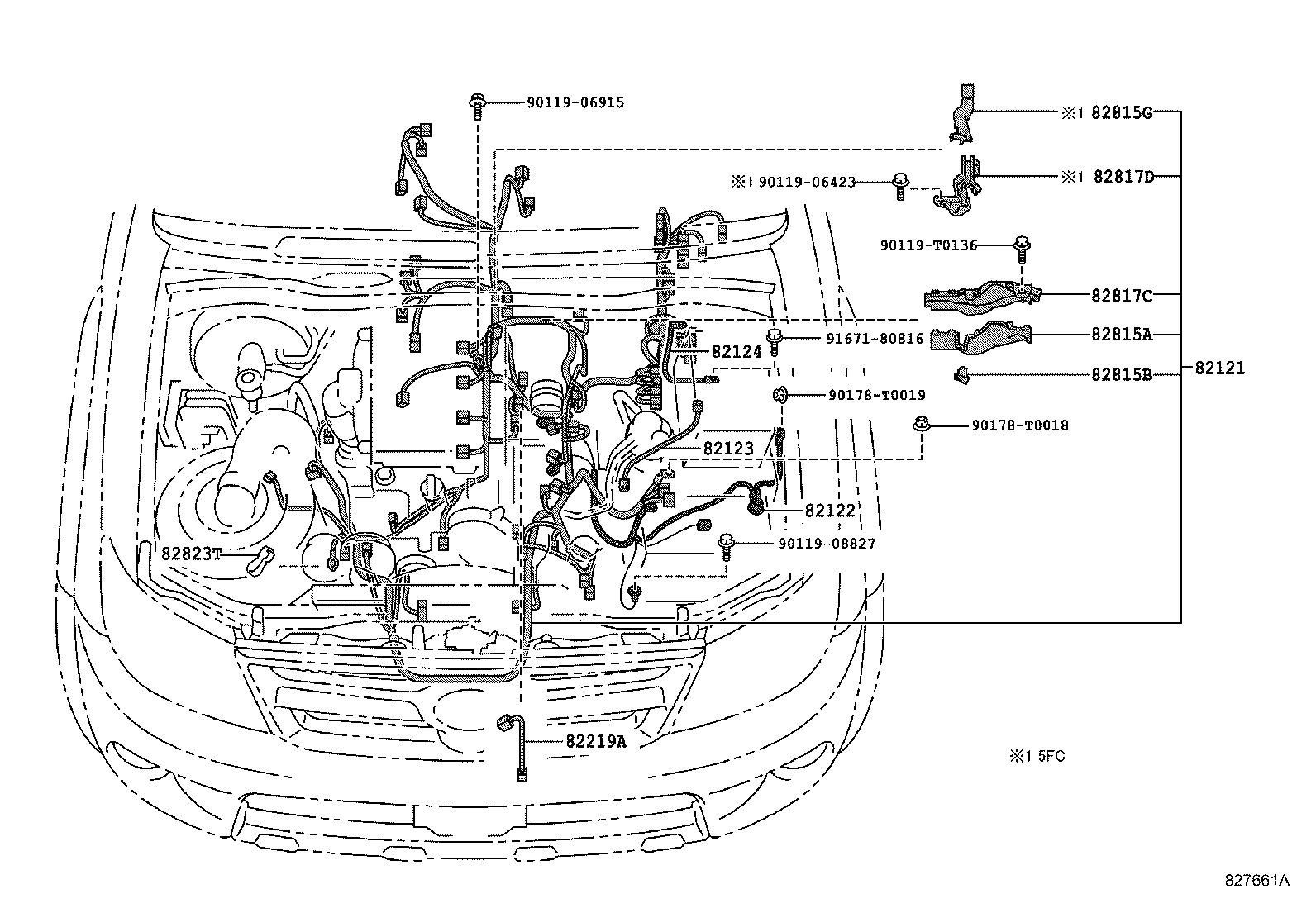

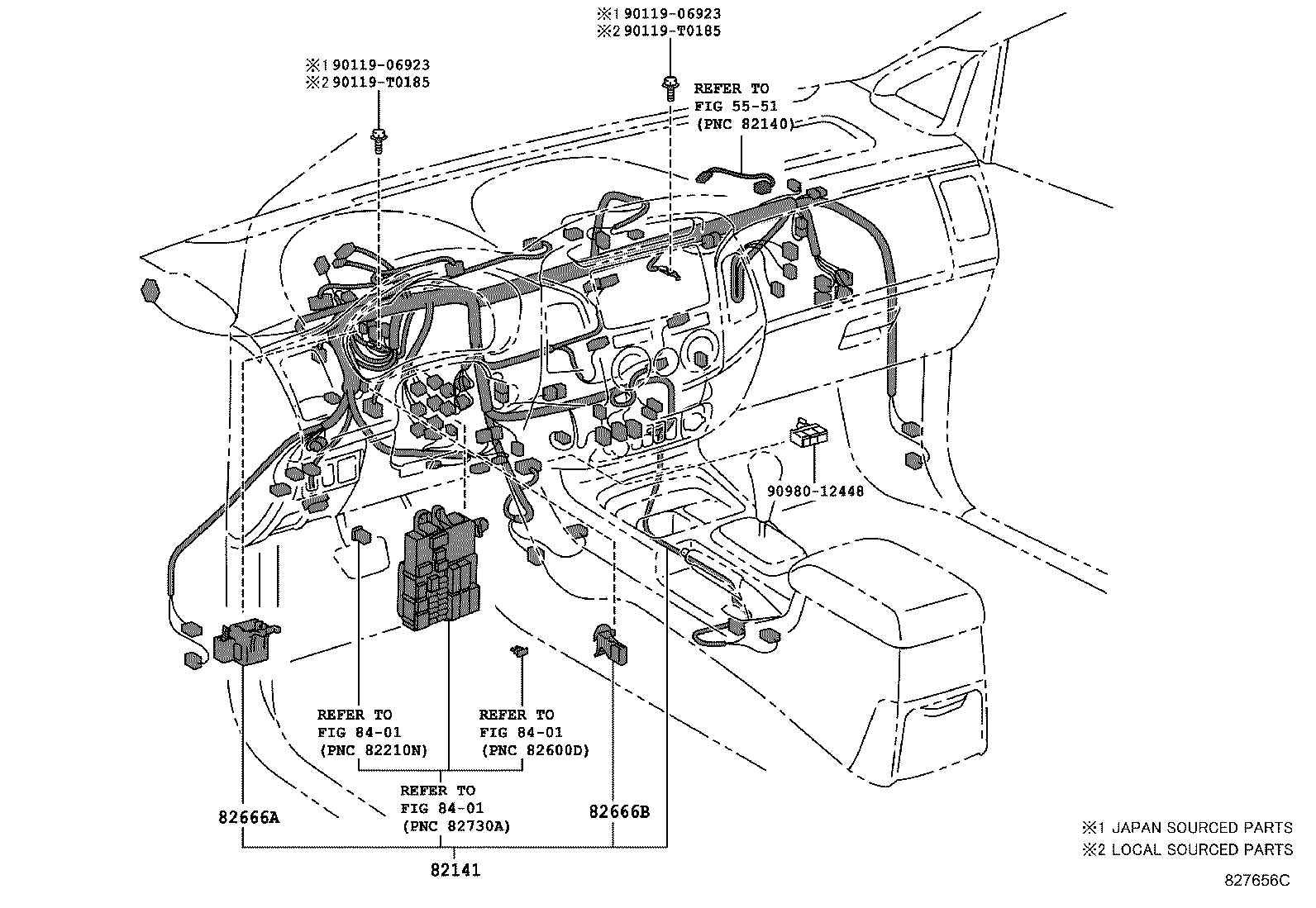

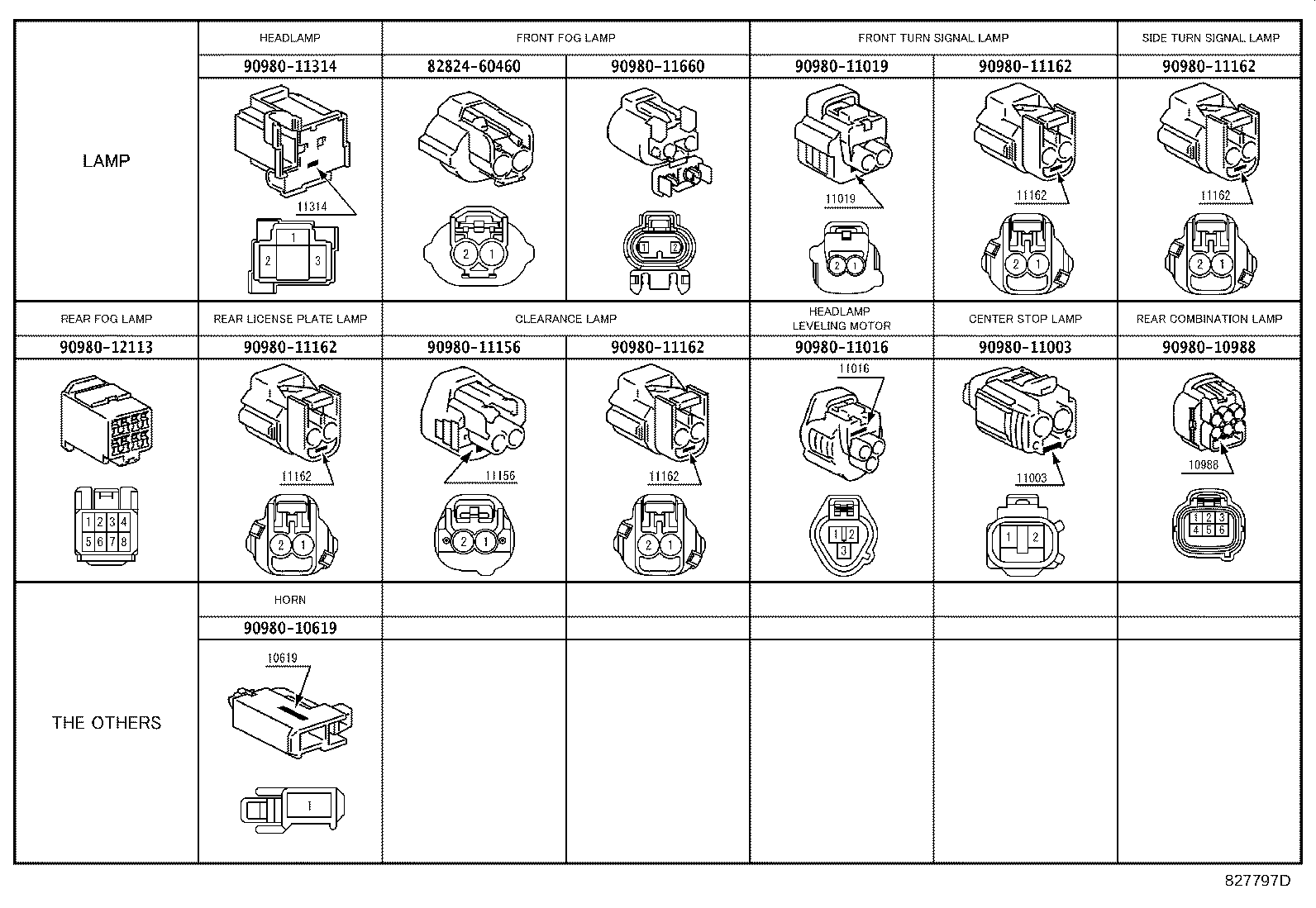

Figure 827687C 827687C 2011-07 → — Figure 827659B 827659B 2011-07 → — Figure 827660A 827660A 2011-07 → — Figure 827661A 827661A 2011-07 → — Figure 827656C 827656C 2011-07 → — Figure 827657C 827657C 2011-08 → — Figure 827688A 827688A 2011-07 → — Figure 827658A 827658A 2011-07 → — Figure 827677 827677 2011-07 → — Figure 827649C 827649C 2011-07 → — Figure 827650A 827650A 2011-07 → — Figure 827689 827689 2011-07 → — Figure 827797D 827797D 2011-07 → — Figure 827798B 827798B 2011-07 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main

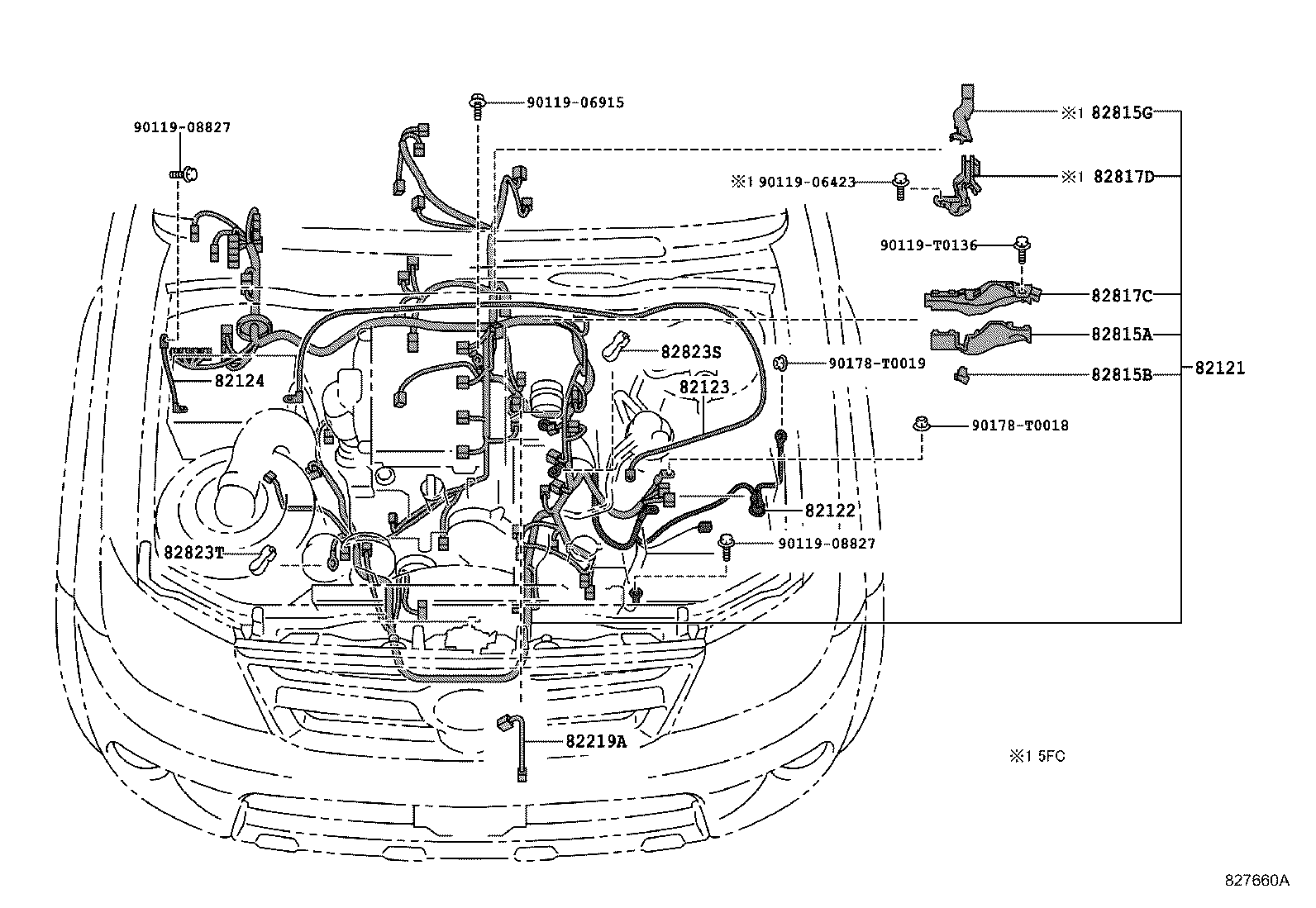

82112 Wire, Engine Room, NO.2

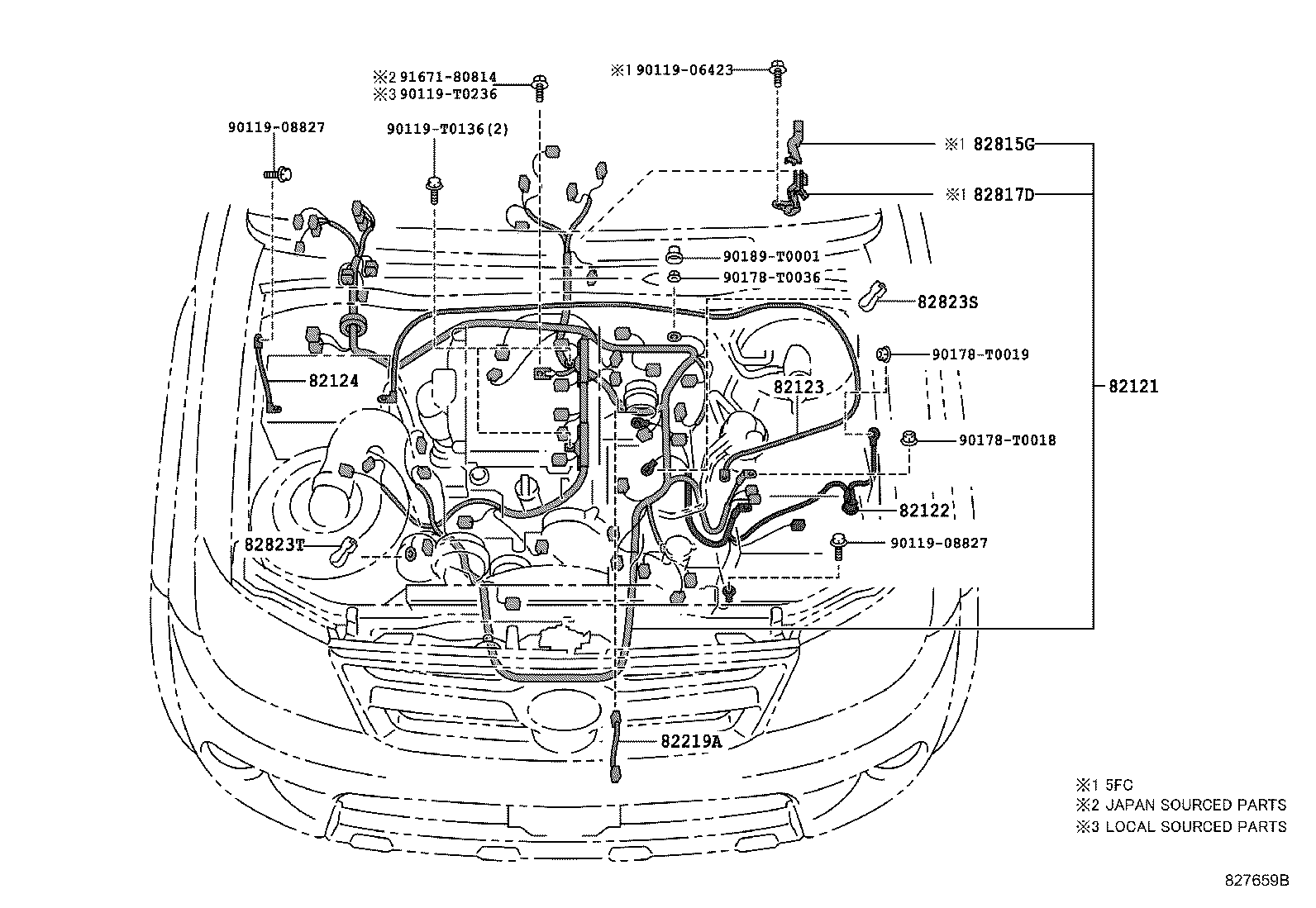

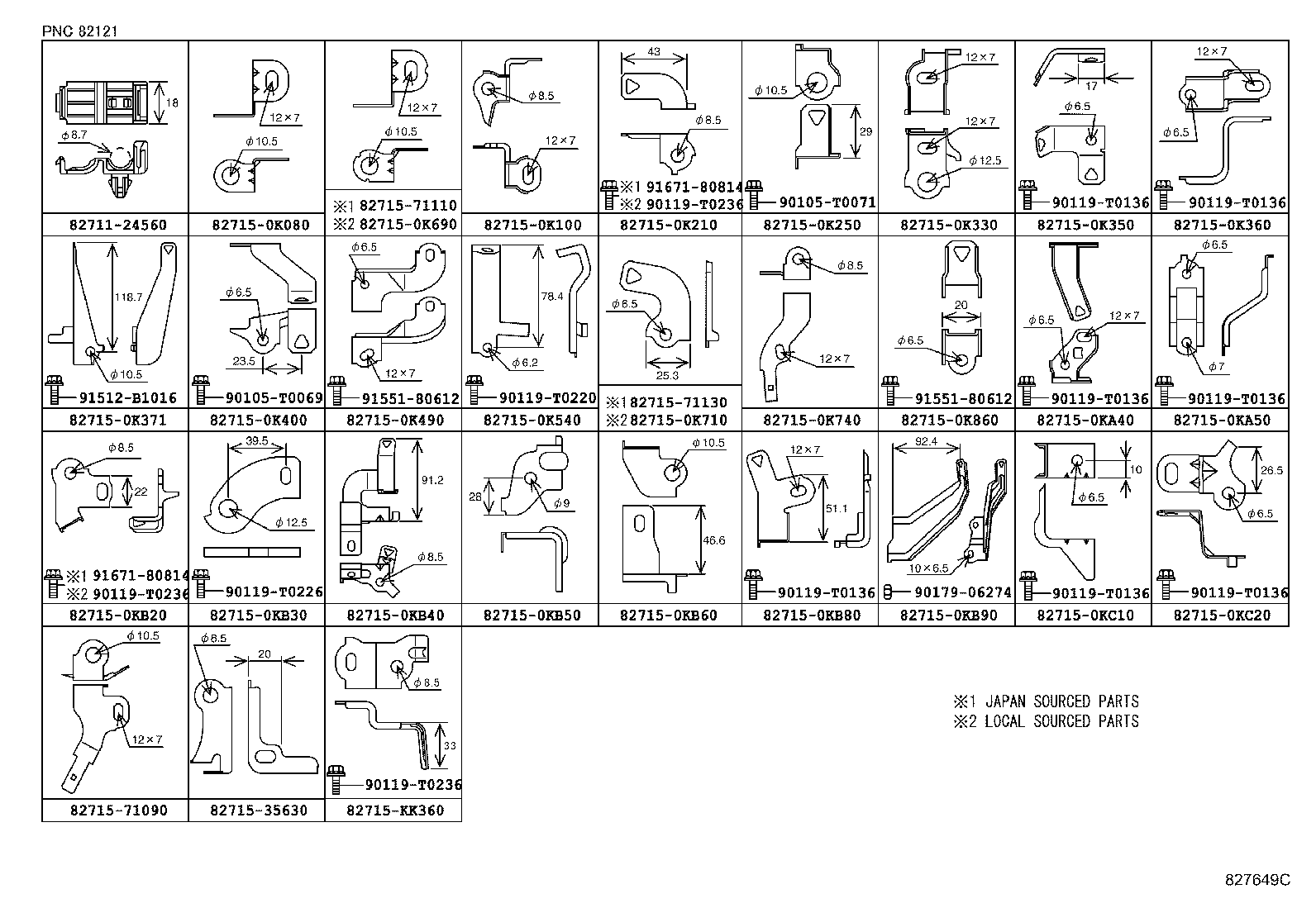

82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4

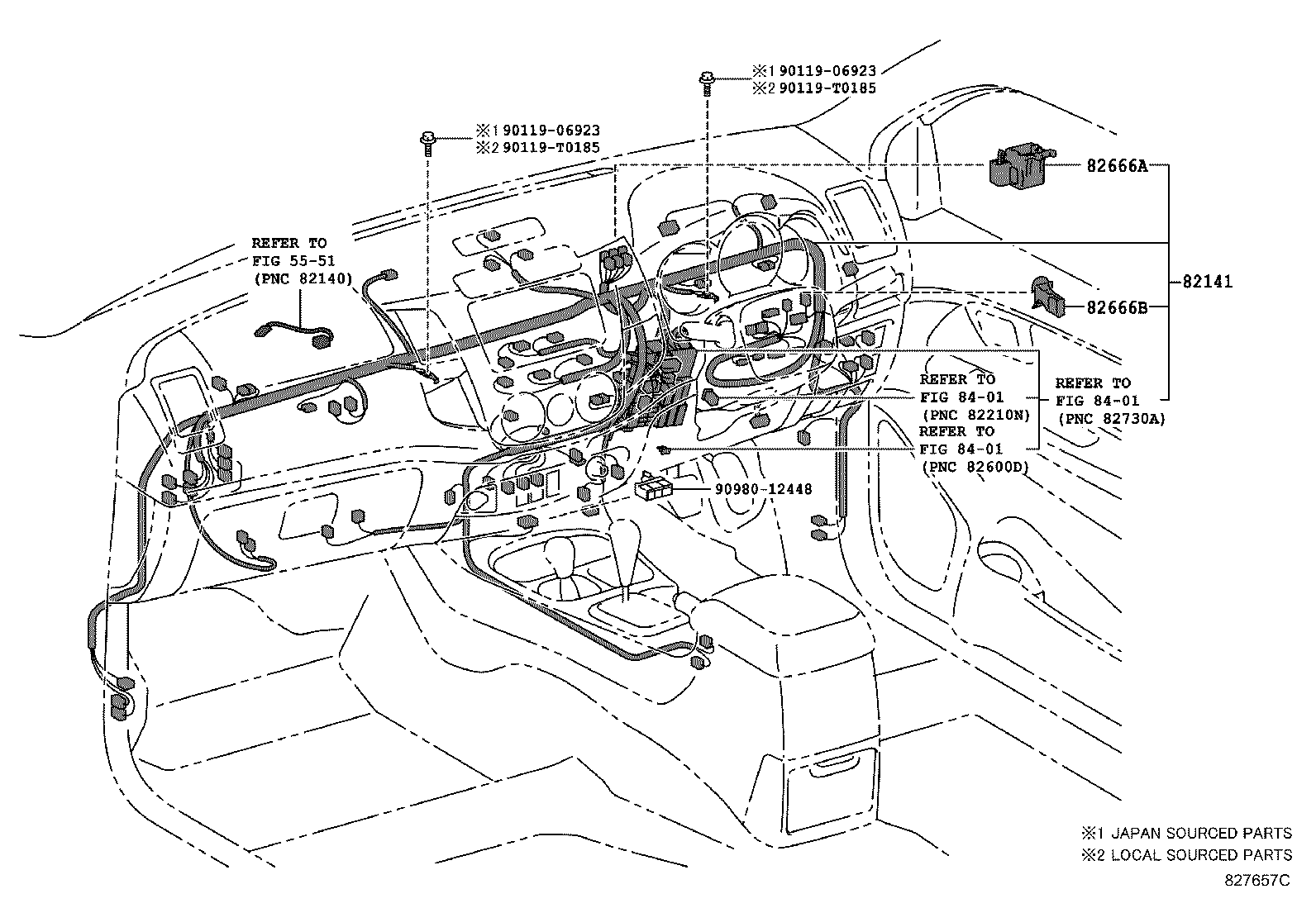

82141 Wire, Instrument Panel

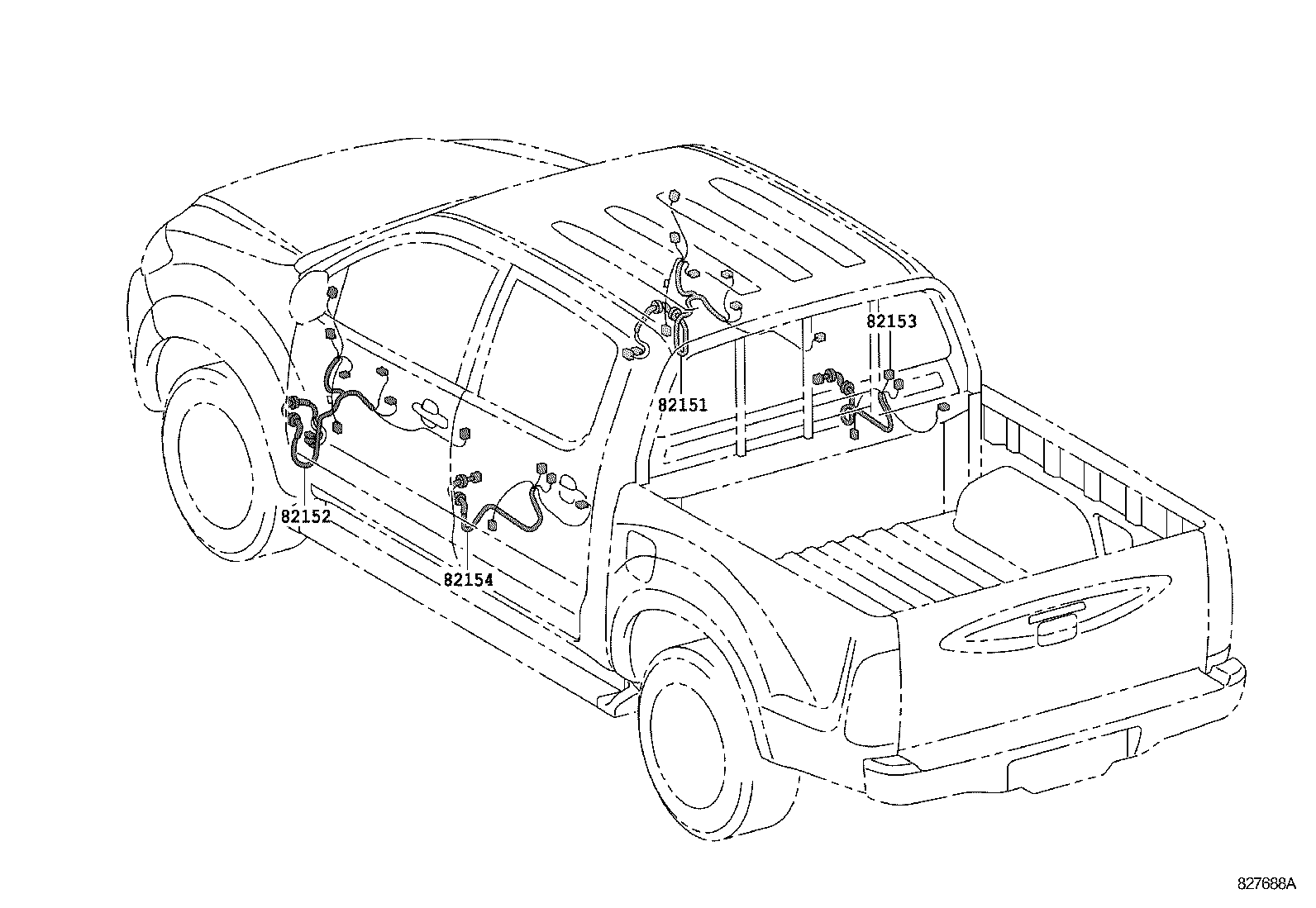

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

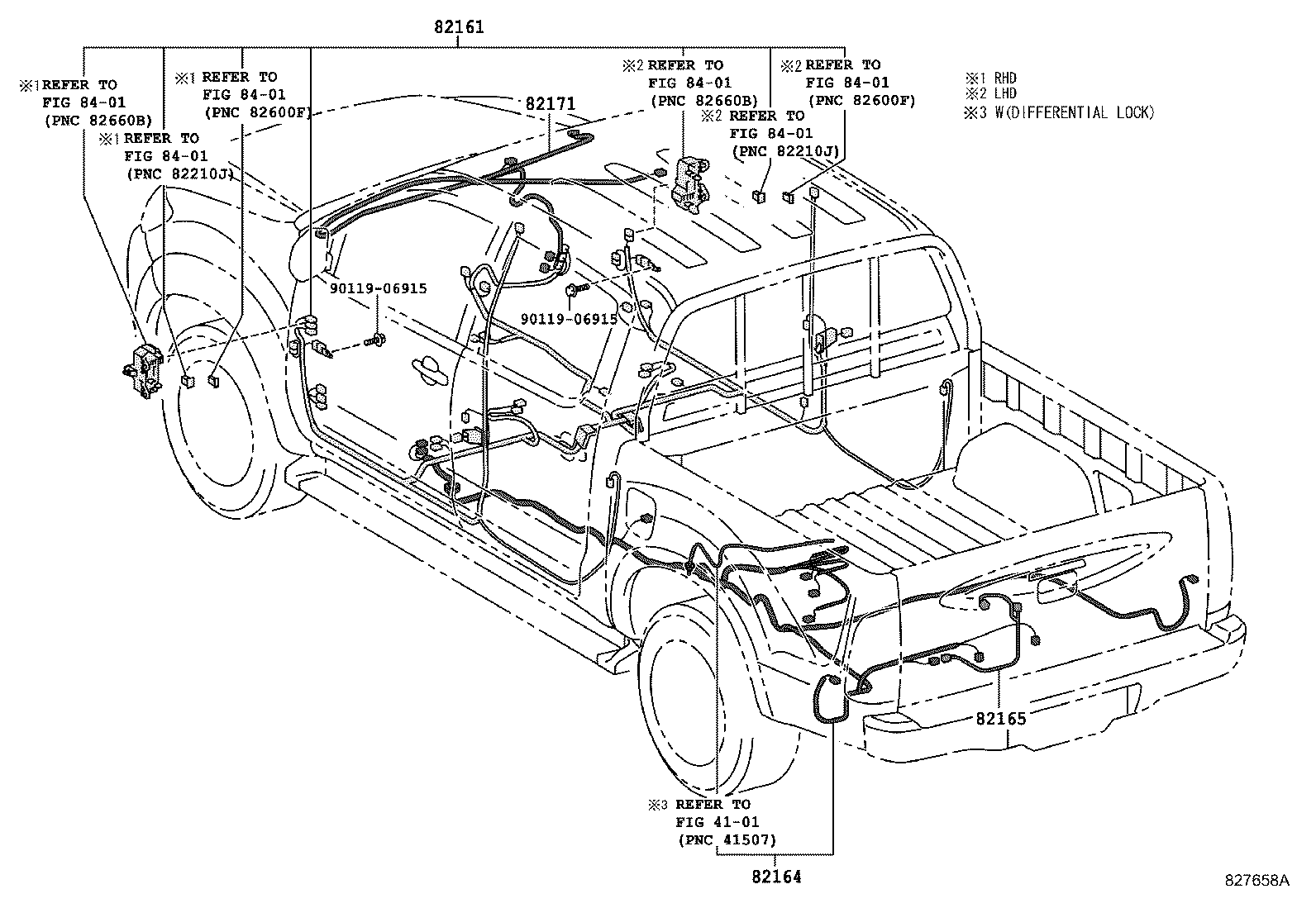

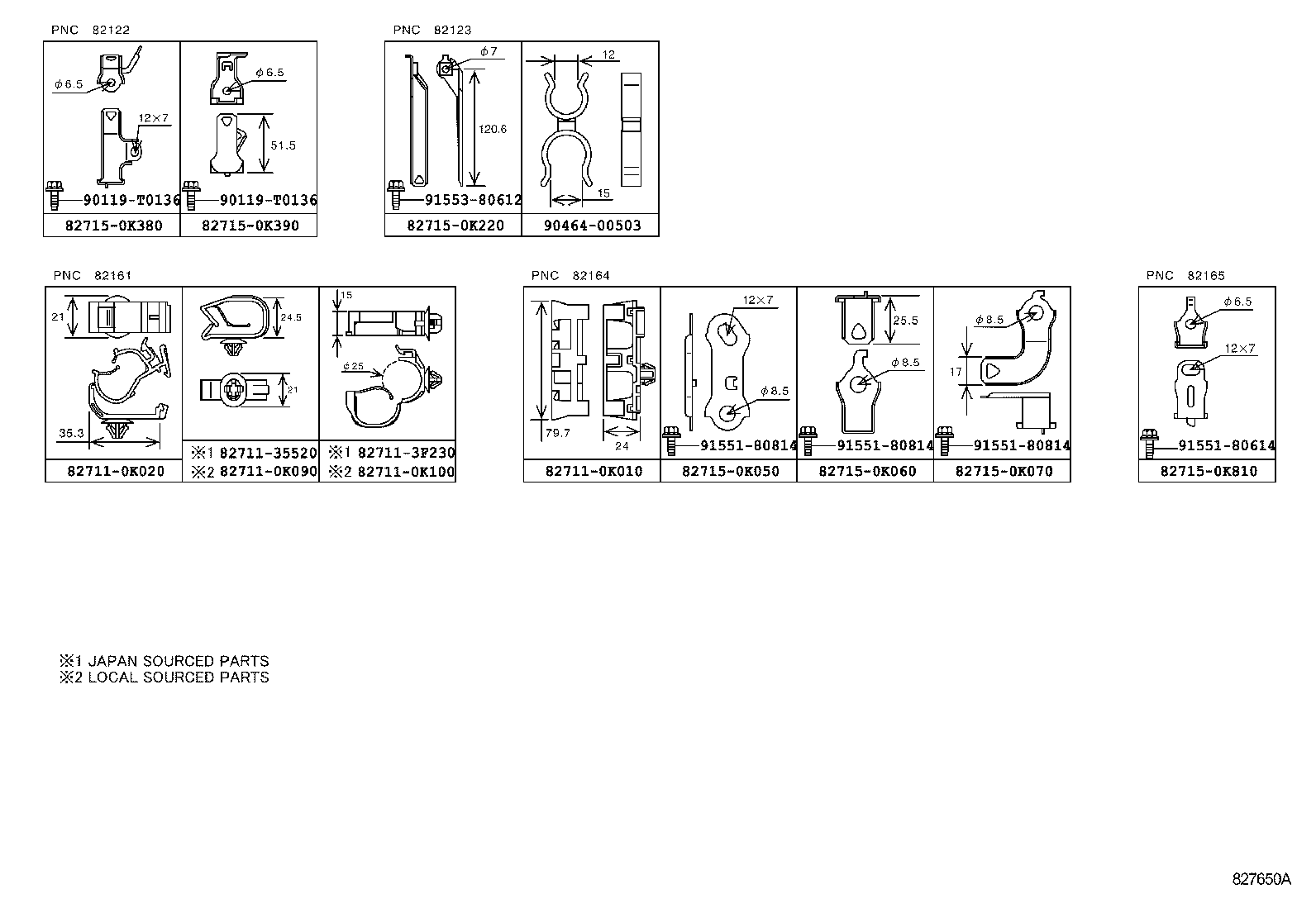

82161 Wire, Floor
82164 Wire, Frame
82165 Wire, Frame, NO.2
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82219A Wire, Sensor
82284 Wire, Earth
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
86214C Bracket, Radio Earth
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
