Toyota Hilux
2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe
Supported model
Data version 2016-06
Switch & Relay & Computer
113 part groups · 10 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |

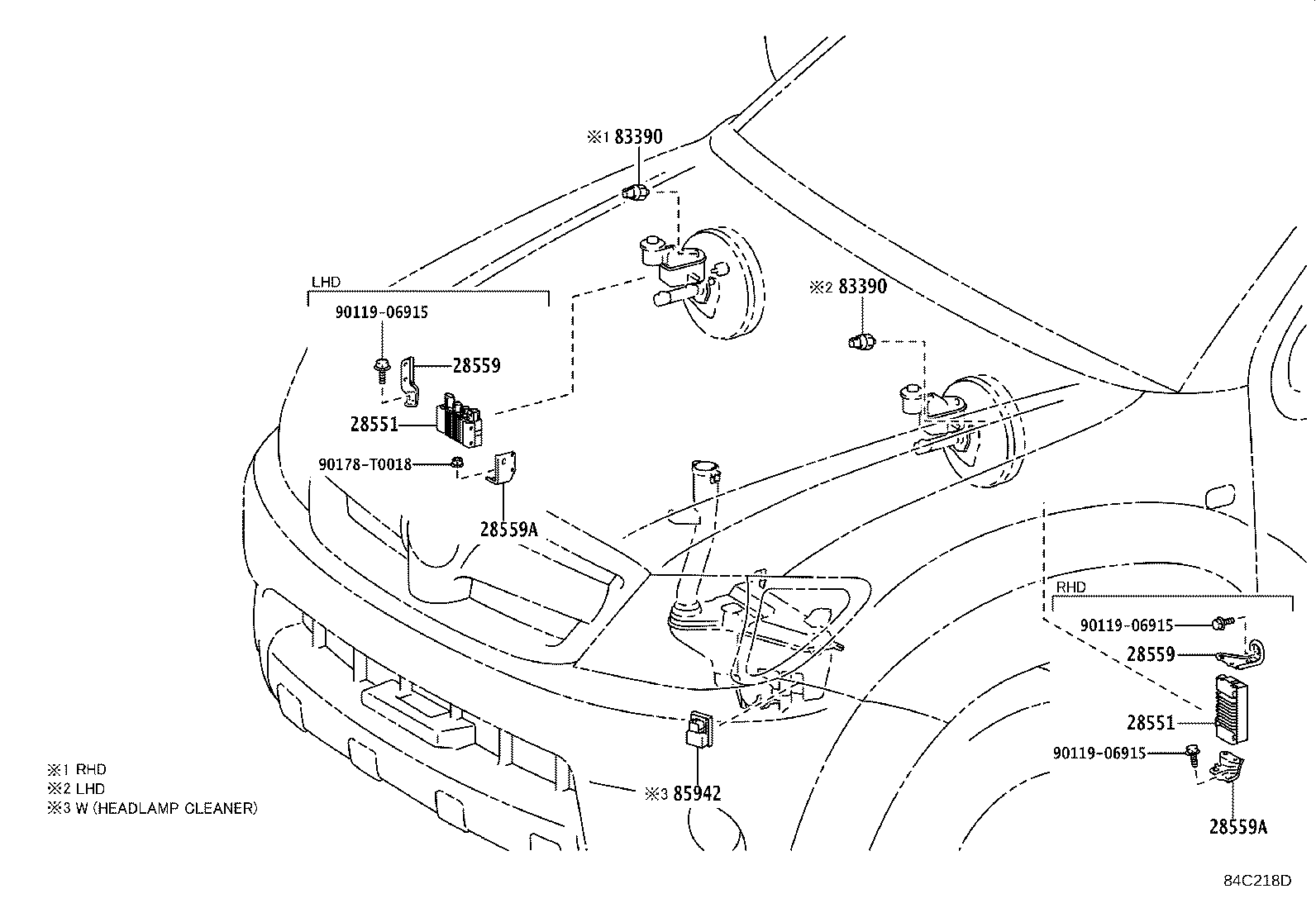

| 28551 | Controller, Glow Plug |
| 28559 | Bracket, Glow Plug Controller, NO.1 |
| 28559A | Bracket, Glow Plug Controller, NO.2 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82210N | Instrument Panel Fusible Link |
| 82223F | Wire, Switch |
| 82600D | Instrument Panel Fuse |
| 82600E | Engine Room Fuse |
| 82600F | Fuse, Fuse Block |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82630 | Holder Assy, Fuse |
| 82641 | Relay, Integration NO.1 |
| 82642A | Relay, Running Light |
| 82660B | Block Assy, Relay |
| 82661 | Cover, Relay Block, NO.1 |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82663 | Cover, Relay Block, Lower |
| 82730A | Block Assy, Driver Side Junction |

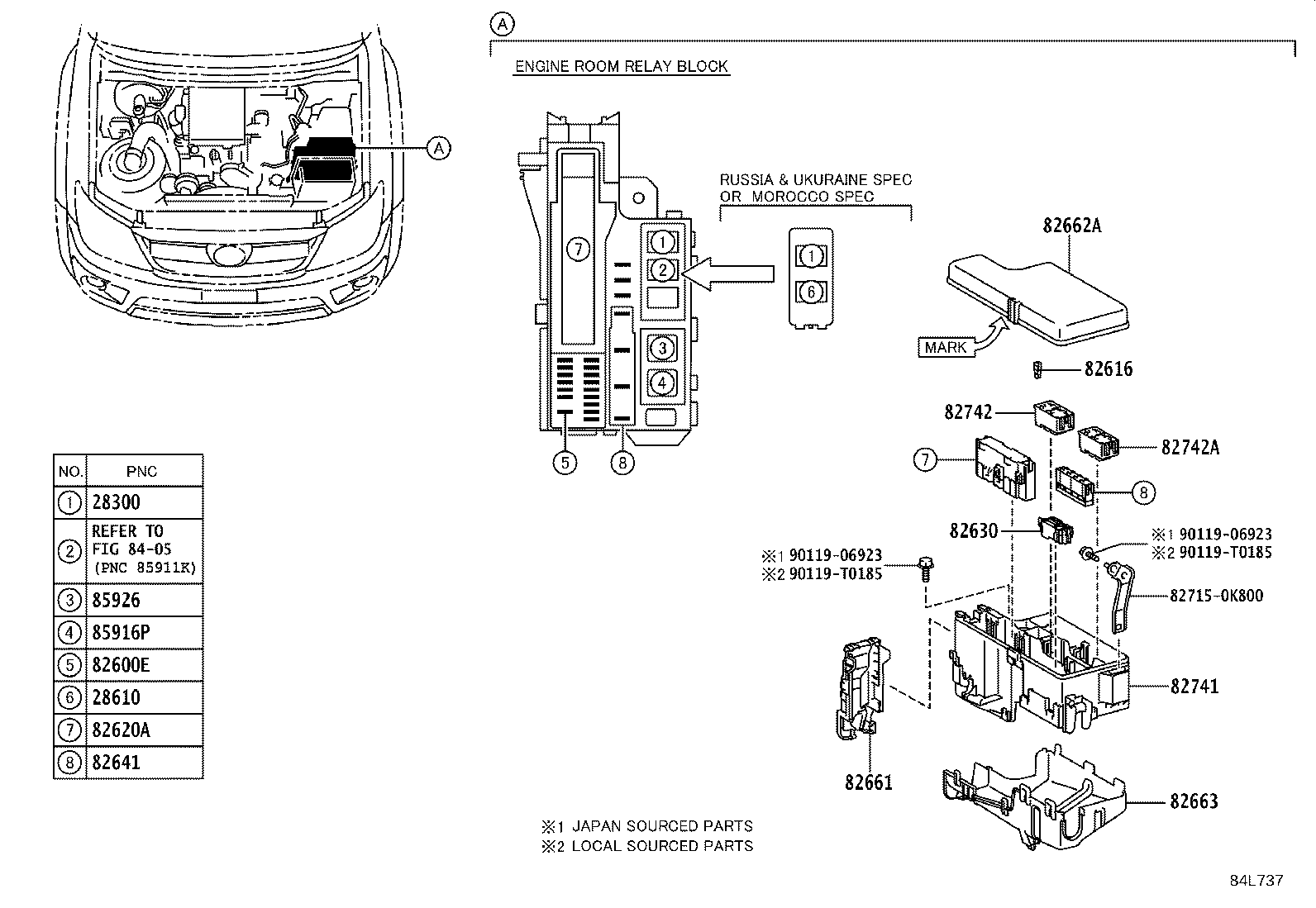

| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82742A | Block, Engine Room Relay, NO.5 |
| 82810 | Relay Assy, Running Light |
| 83181G | Sensor, Speedometer |
| 83181H | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |
| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84150D | Switch Assy, Headlamp Cleaner |
| 84152 | Switch, Headlamp Leveling |
| 84162A | Switch, Rear Fog Lamp |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84210 | Switch Assy, Back-up Lamp |
| 84222 | Switch, Transfer Indicator, NO.1 |
| 84222B | Switch, Transfer Indicator, NO.2 |
| 84222C | Switch, Transfer Indicator, NO.3 |
| 84222D | Switch, Transfer Indicator, NO.4 |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84250A | Switch Assy, Steering Pad |
| 84306 | Cable Sub-assy, Spiral |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84660C | Switch, Cooler |
| 84725A | Switch, Differential Lock |
| 84725B | Blub, Differential Lock Switch |
| 84751 | Switch, Seat Heater |
| 84751E | Bulb, Seat Heater Switch(FRONT) |
| 84751F | Switch, Seat Heater |
| 84751H | Bulb, Seat Heater Switch(FRONT) |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84870D | Switch Assy, Outer Mirror, NO.2 |
| 84871 | Switch Assy, Outer Mirror Heater |

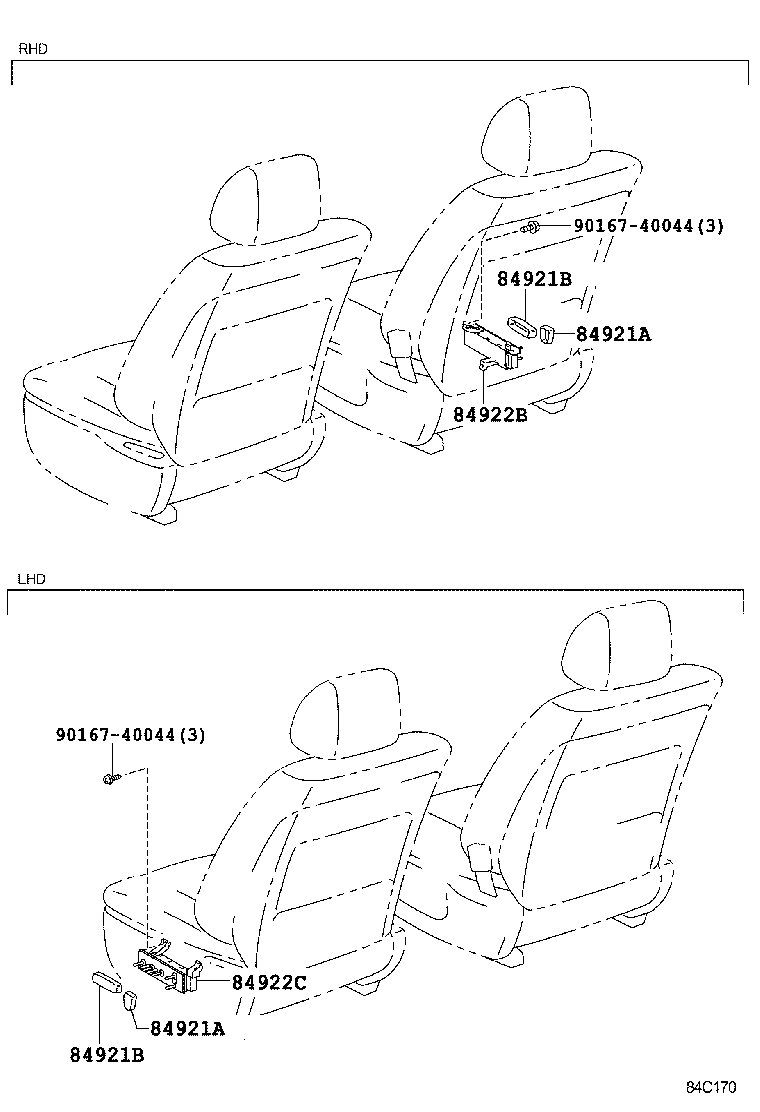

| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922B | Switch, Front Power Seat, RH |
| 84922C | Switch, Front Power Seat, LH |
| 84988L | Switch, Vsc Off |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85500B | Bulb, Cigarette Lighter |
| 85510 | Socket & Retainer Assy, Cigarlighter |
| 85513 | Cover, Cigarette Lighter |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85535B | Cover, Power Outlet Socket, NO.1 |
| 85539 | Label, Power Outlet Notice |
| 85910X | Relay, Heater Mirror |
| 85912 | Relay, Defogger |
| 85913C | Relay, Heater, NO.1 |
| 85916L | Relay, Rear Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85930G | Relay, Acc |
| 85934 | Relay, Magnet-clutch |
| 85942 | Relay, Headlamp Cleaner Control |
| 87290 | Switch Assy, Heater |
| 87290B | Bulb (FOR HEATER SWITCH) |
| 87346K | Relay, Ptc Heater |
| 88280A | Switch Assy, Clutch |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89425B | Sensor, Exhaust Gas Temperature, NO.3 |
| 89439 | Bracket, Sensor |
| 89467B | Sensor, Air Fuel Ratio |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89530C | Computer Assy, Transmission Control |
| 89533 | Computer, 4 Wheel Drive Control |
| 89533A | Computer, 4 Wheel Drive Control, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
