Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

19 part groups · 14 illustrations

Illustrations

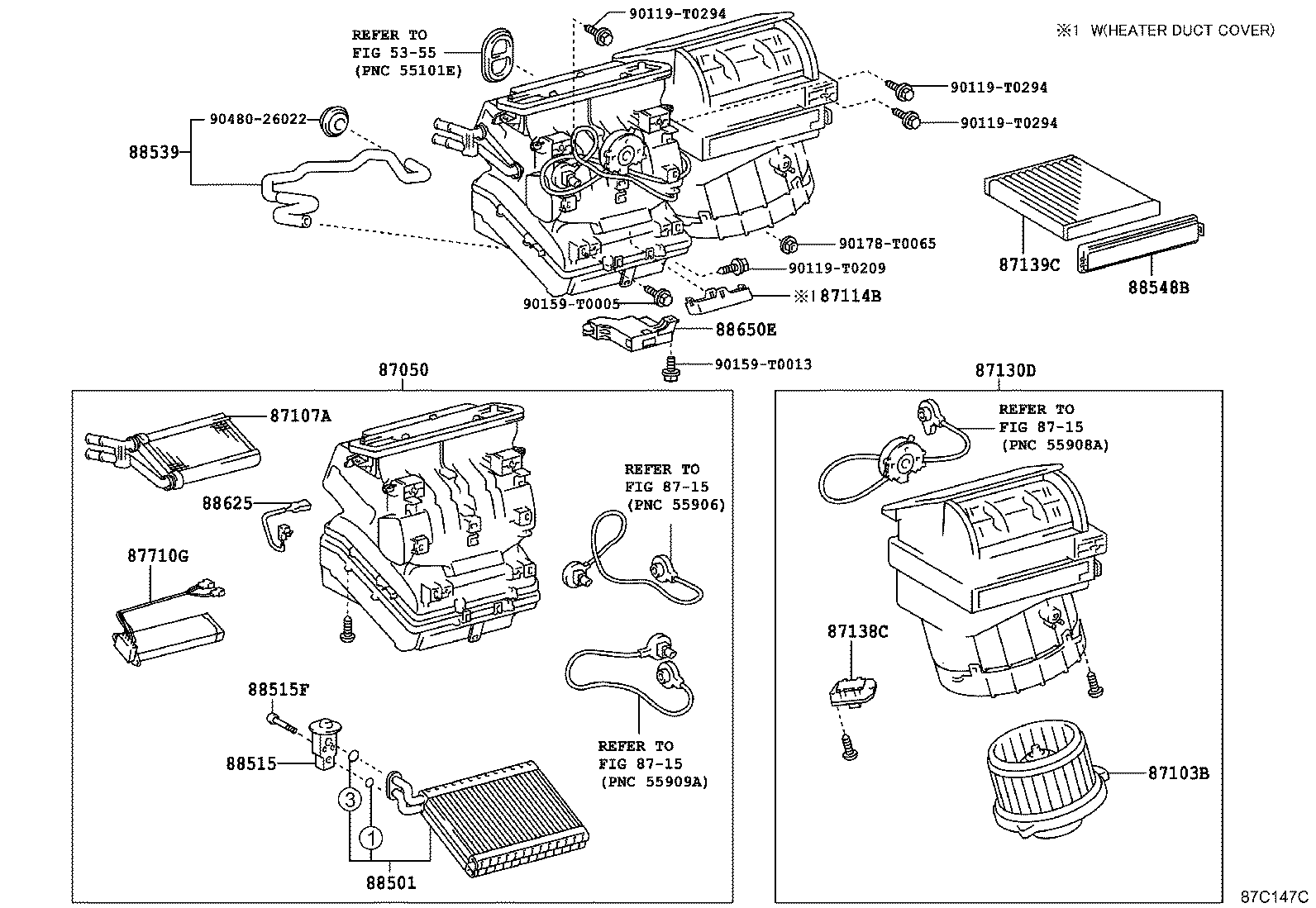

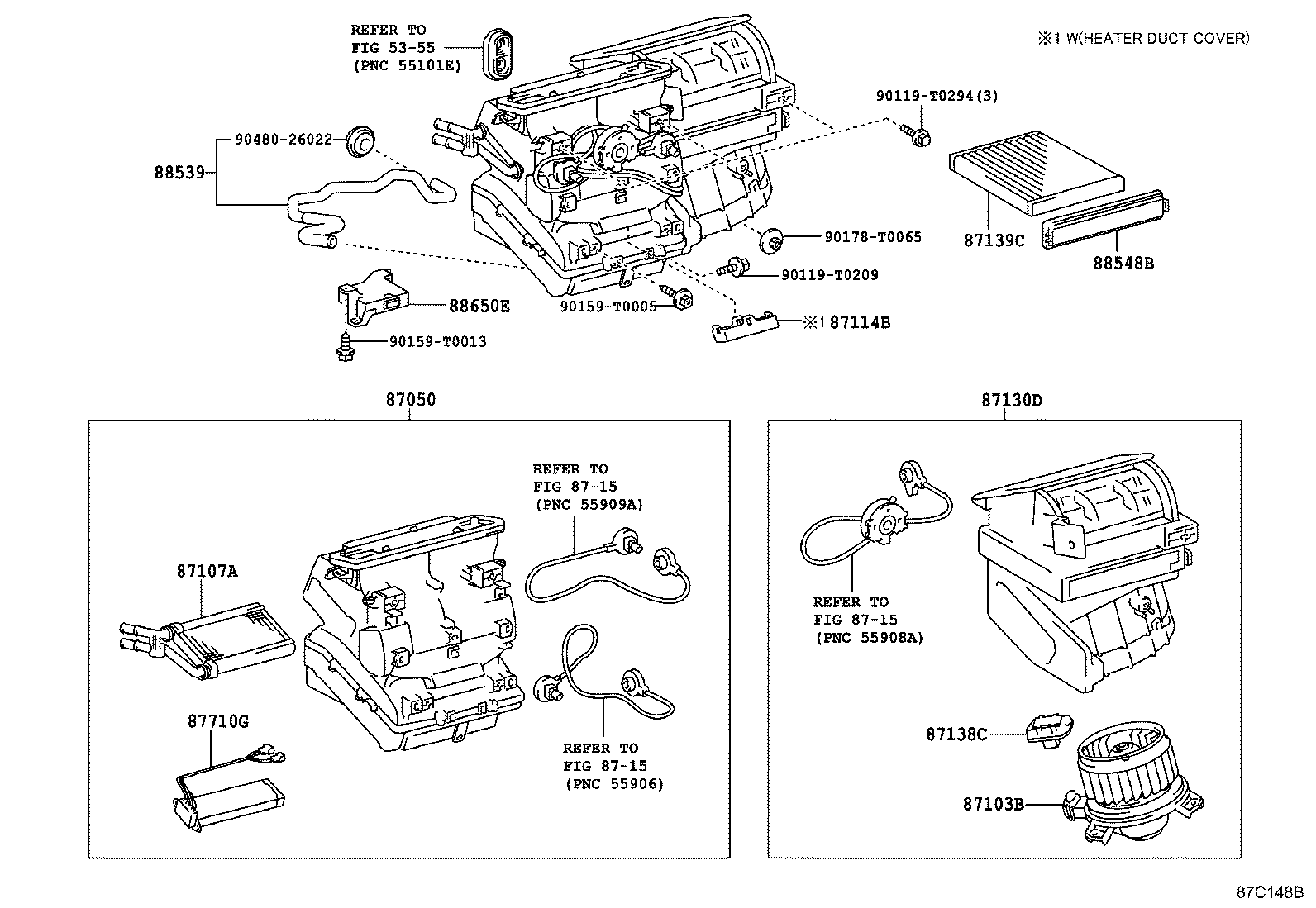

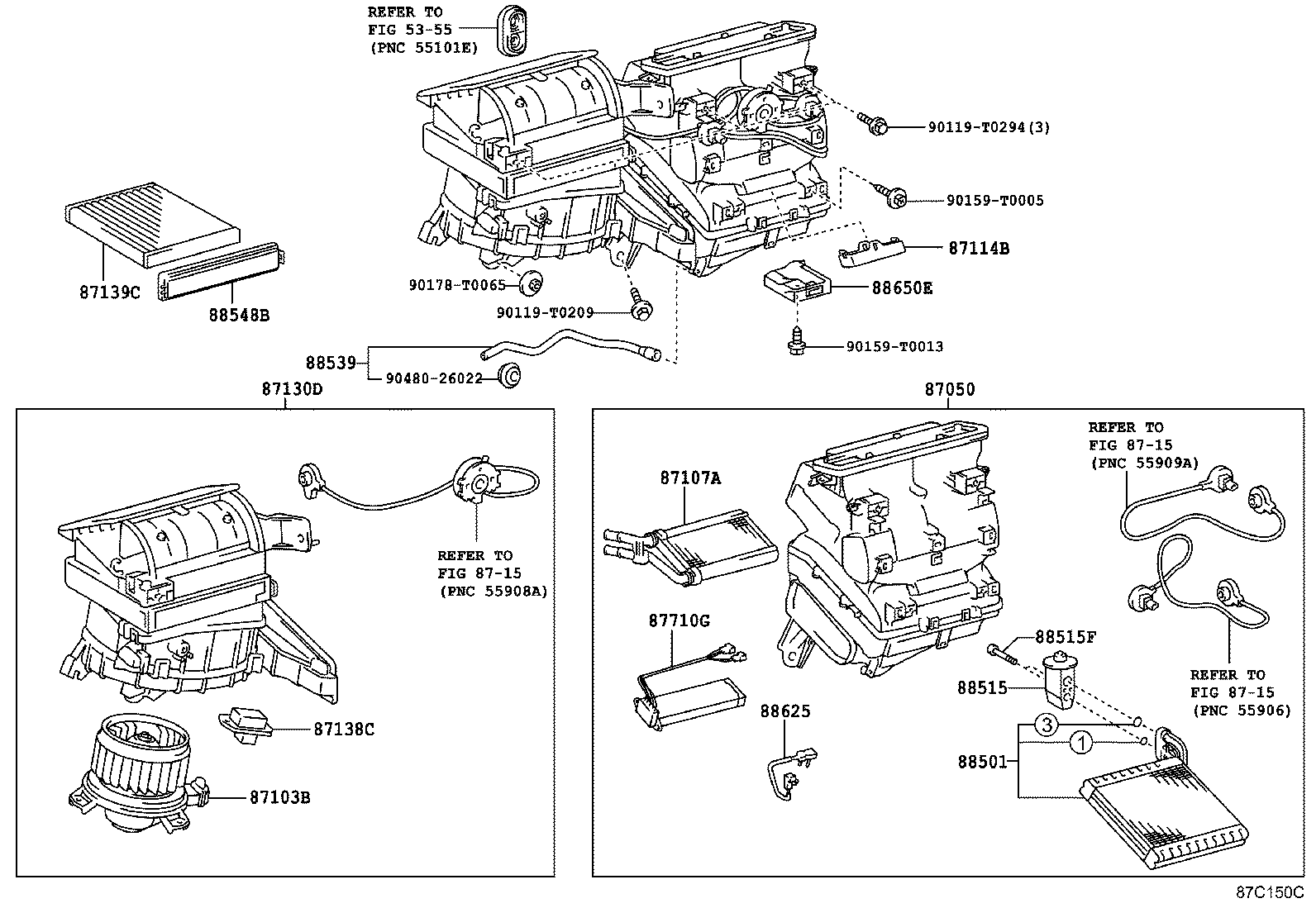

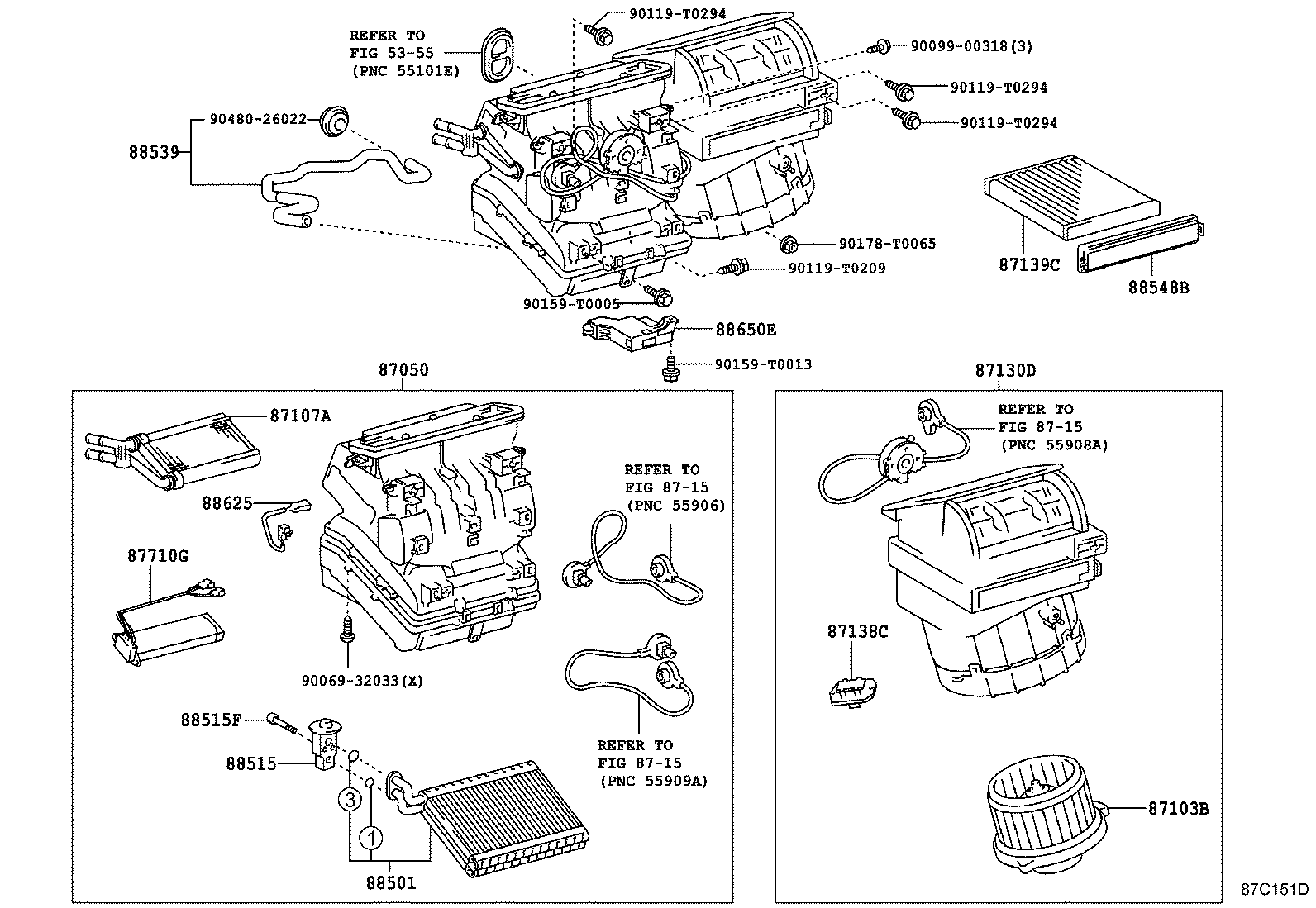

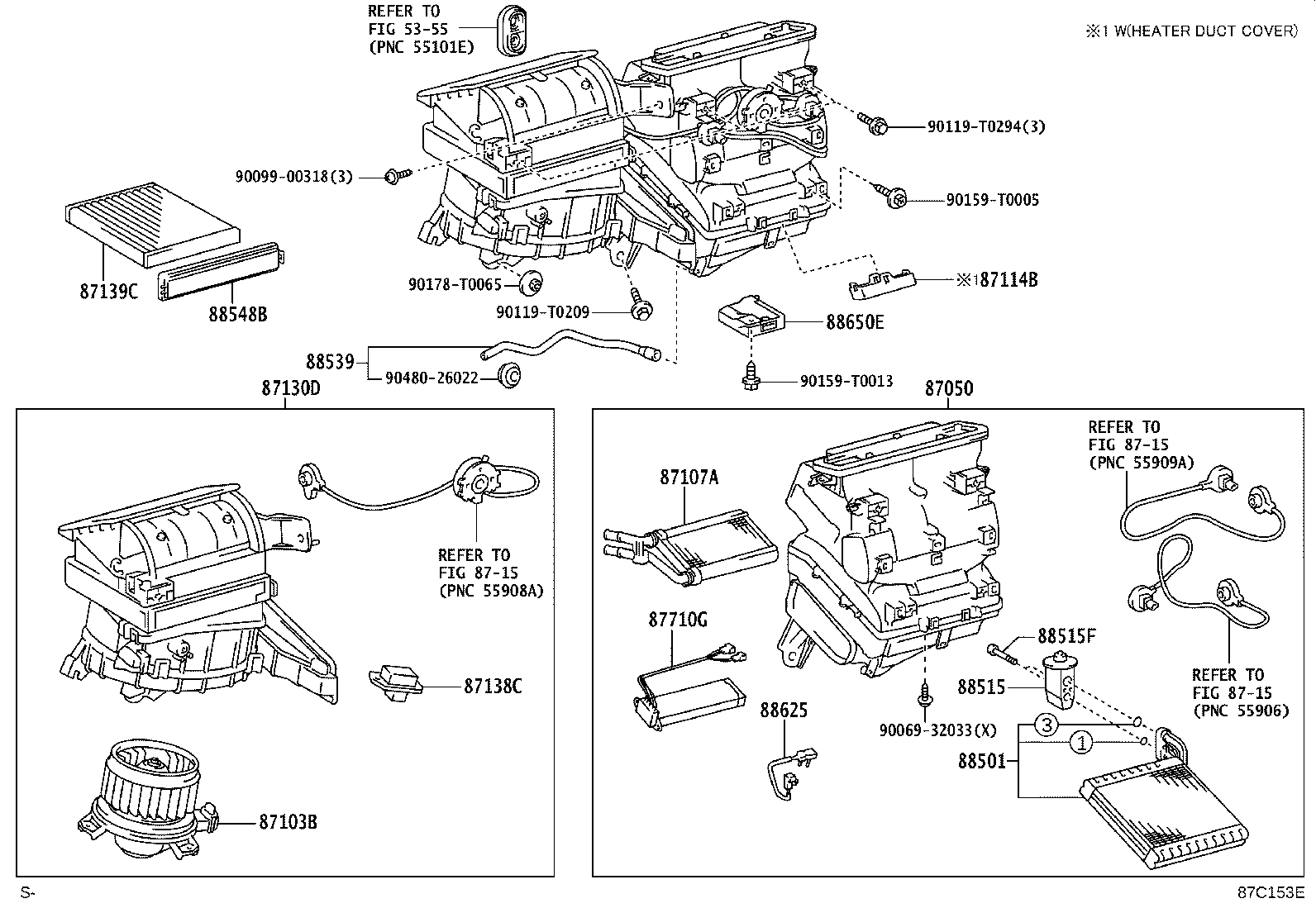

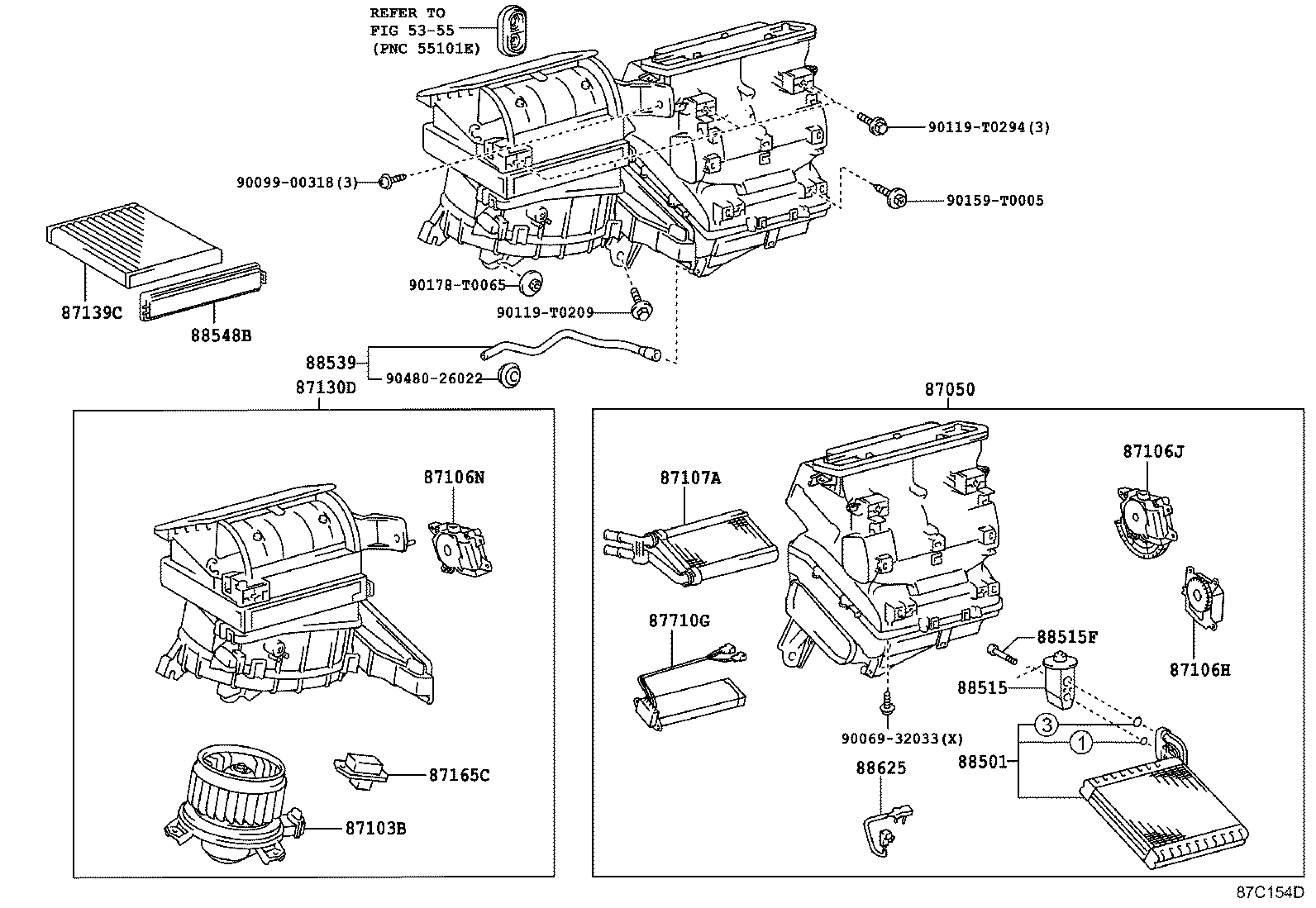

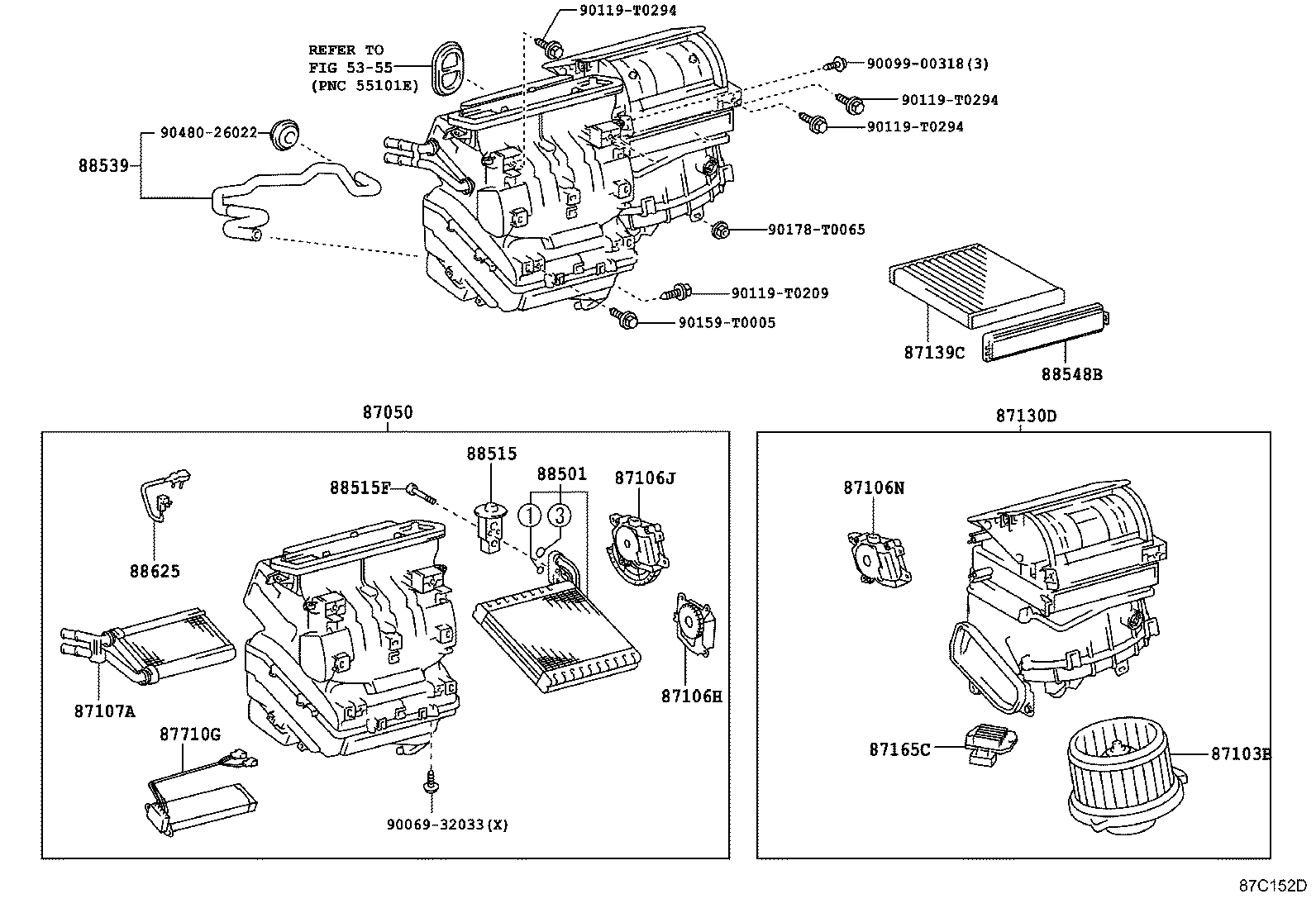

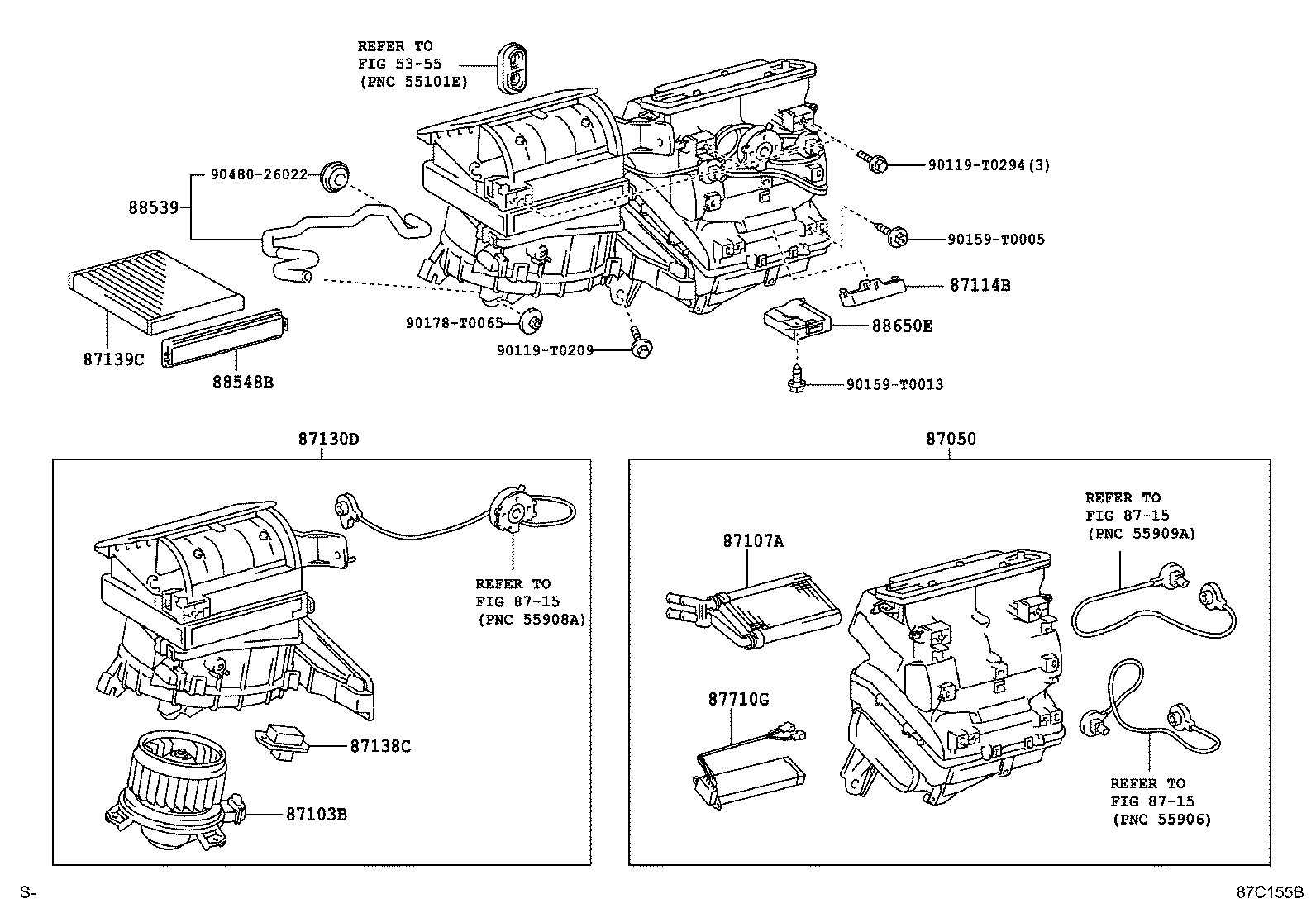

Figure 87C149C 87C149C 2011-07 → — Figure 87C152D 87C152D 2011-08 → — Figure 87C154D 87C154D 2011-08 → — Figure 87C147C 87C147C 2011-07 → — Figure 87C147C 87C147C 2011-11 → — Figure 87C150C 87C150C 2011-07 → — Figure 87C151D 87C151D 2011-08 → — Figure 87C153E 87C153E 2011-08 → — Figure 87C148B 87C148B 2011-07 → — Figure 87C148B 87C148B 2011-08 → — Figure 87C148B 87C148B 2011-08 → — Figure 87C155B 87C155B 2011-08 → — Figure 87C157A 87C157A 2011-08 → — Figure 87C156A 87C156A 2011-07 → —

Part groups

PNCDescription
87050 Radiator Assy, Air Conditioner
87103B Motor Sub-assy, Blower W/Fan
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106N Servo Sub-assy, Damper(FOR RECIRCULATION)
87107A Unit Sub-assy, Heater Radiator
87114B Cover, Heater
87130D Blower Assy
87138C Resistor, Blower
87139C Filter, Clean Air
87165C Control, Blower Motor
87710G Quick Heater Assy
88501 Evaporator Sub-assy, Cooler, NO.1
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539 Hose, Cooler Unit Drain, NO.1
88548B Case, Air Filter
88625 Thermistor, Cooler, NO.1
88650E Amplifier Assy, Air Conditioner, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
