Toyota Hilux

2011-07 → 2015-12 · chassis KUN2#,35 · catalogue 672580 · Europe

Supported model Data version 2016-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

8 part groups · 2 illustrations

Illustrations

Figure 87B993C

87B993C 2011-07 → —

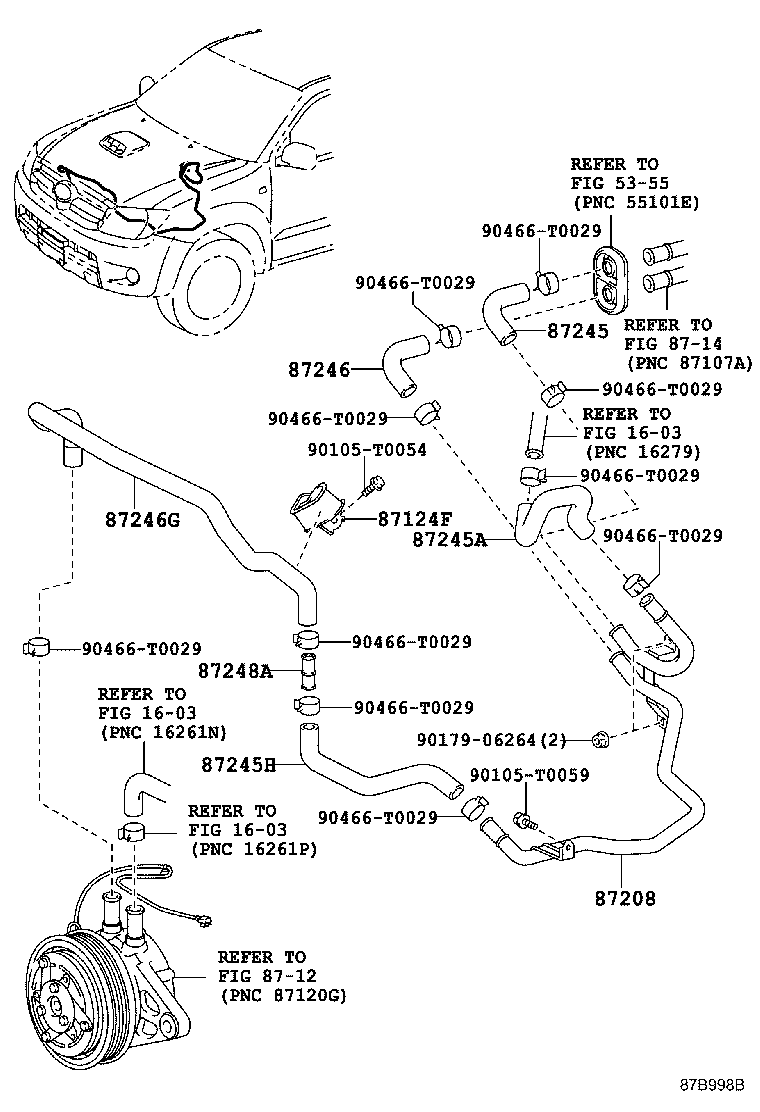

Figure 87B998B

87B998B 2011-07 → —

Part groups

PNC	Description
87124F	Clamp, Heater Hose, NO.1
87208	Pipe Sub-assy, Heater Water
87245	Hose, Heater Water, Inlet
87245A	Hose, Heater Water, Inlet A
87245H	Hose, Heater Water, Inlet H
87246	Hose, Heater Water, Outlet
87246G	Hose, Heater Water, Outlet G
87248A	Pipe, Heater Water Inlet, A

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
