Toyota Hilux

2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe

Supported model Data version 2021-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

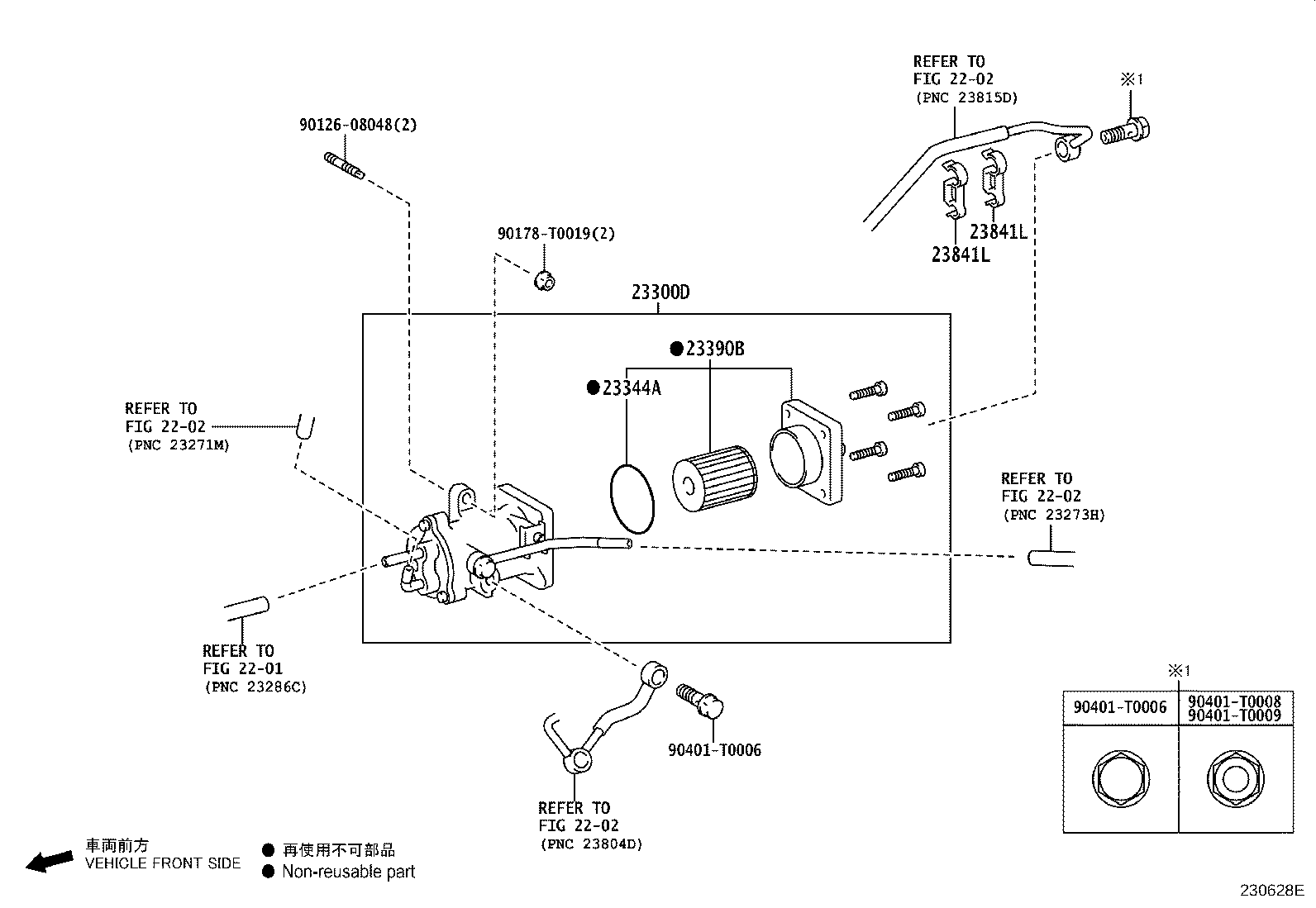

Exploded illustration 230628E 2202 — not listed in this catalogue 2202 — not listed in this catalogue 90401T0009 — not listed in this catalogue 90401T0008 — not listed in this catalogue 2202 — not listed in this catalogue 2202 — not listed in this catalogue 2201 — not listed in this catalogue 90401T0006 — not listed in this catalogue 23841L — CLAMP, FUEL PIPE (4 parts) 90178T0019 — not listed in this catalogue 23841L — CLAMP, FUEL PIPE (4 parts) 90401T0006 — not listed in this catalogue 23300D — FILTER ASSY, FUEL(FOR DIESEL) (4 parts) 23344A — GASKET, FUEL FILTER ELEMENT (4 parts) 23390B — ELEMENT ASSY, FUEL FILTER, NO.2 (4 parts) 9012608048 — not listed in this catalogue
230628E · 5 callouts, 11 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
16 parts on this figure
Part number Description Fitment Price
23300D — Filter Assy, Fuel(FOR DIESEL)
23300-0E010 note Filter Assy, Fuel(FOR DIESEL)
2015-06 → 2018-07 ended
1GDFTV,2GDFTV GUN12#,135 —
23300-0E011 note Filter Assy, Fuel(FOR DIESEL)
2018-07 → 2020-05 ended
1GDFTV GUN126 —
23300-0E011 note Filter Assy, Fuel(FOR DIESEL)
2018-07 → 2020-05 ended
2GDFTV GUN125 THDCB 6F +1 —
23300-0E011 note Filter Assy, Fuel(FOR DIESEL)
2018-07 → 2020-09 ended
1GDFTV,2GDFTV FTV GUN12#;2GDFTV GUN135 +8 —
23344A — Gasket, Fuel Filter Element
23344-0E010 note Gasket, Fuel Filter Element
2015-06 → 2018-07 ended
2GDFTV GUN135 SAXTR X —
23344-0E010 note Gasket, Fuel Filter Element
2018-07 → 2020-05 ended
1GDFTV GUN126 —
23344-0E010 note Gasket, Fuel Filter Element
2018-07 → 2020-05 ended
2GDFTV GUN125 THDCB 6F +1 —
23344-0E010 note Gasket, Fuel Filter Element
2015-06 → 2020-09 ended
1GDFTV,2GDFTV FTV GUN12#;2GDFTV GUN135 +8 —
23390B — Element Assy, Fuel Filter, NO.2
23390-0E010 note Element Assy, Fuel Filter, NO.2
2015-06 → 2018-07 ended
1GDFTV,2GDFTV GUN12#,135 —
23390-0E011 note Element Assy, Fuel Filter, NO.2
2018-07 → 2020-05 ended
1GDFTV GUN126 —
23390-0E011 note Element Assy, Fuel Filter, NO.2
2018-07 → 2020-05 ended
2GDFTV GUN125 THDCB 6F +1 —
23390-0E011 note Element Assy, Fuel Filter, NO.2
2018-07 → 2020-09 ended
1GDFTV,2GDFTV FTV GUN12#;2GDFTV GUN135 +8 —
23841L — Clamp, Fuel Pipe
23841-0E010 note Clamp, Fuel Pipe
2015-06 → 2018-07 ended
2GDFTV GUN135 SAXTR X —
23841-0E010 note Clamp, Fuel Pipe
2018-07 → 2020-05 ended
1GDFTV GUN126 —
23841-0E010 note Clamp, Fuel Pipe
2018-07 → 2020-05 ended
2GDFTV GUN125 THDCB 6F +1 —
23841-0E010 note Clamp, Fuel Pipe
2015-06 → 2020-09 ended
1GDFTV,2GDFTV FTV GUN12#;2GDFTV GUN135 +8 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
