Toyota Hilux
2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe
Supported model
Data version 2021-01

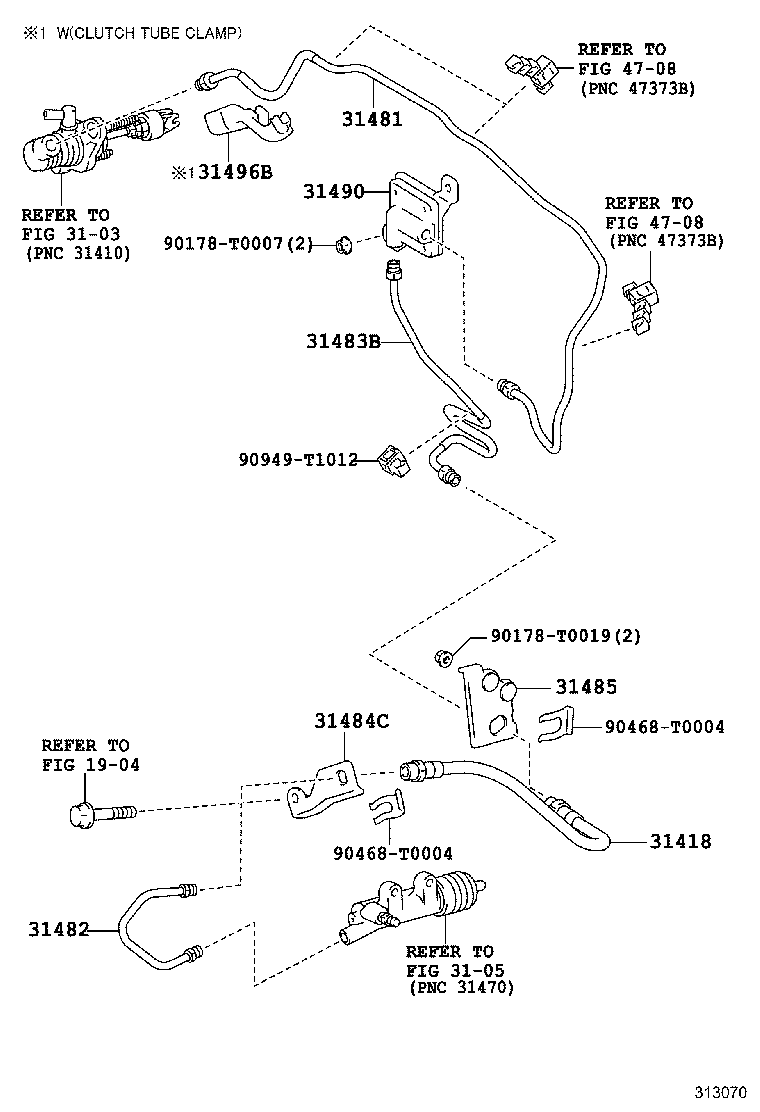

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 31418 — Hose, Clutch | ||||
| 90080-94215 |
Hose, Clutch
2015-06 → 2018-07
ended
|
GUN135 SAXTR X | — | |
| 90080-94215 |
Hose, Clutch
2015-06 → 2020-09
ended
|
GUN125 F 6F;GUN135 SAXTR +6 | — | |
| 31481 — Tube, Clutch Master Cylinder TO Flexible Hose | ||||
| 31481-KK030 |
Tube, Clutch Master Cylinder TO Flexible Hose
2016-04 → 2020-09
ended
|
GUN125 RHD 6F | — | |
| 31481-KK050 |
Tube, Clutch Master Cylinder TO Flexible Hose
2015-06 → 2018-07
ended
|
GUN135 SAXTR X | — | |
| 31481-KK050 |
Tube, Clutch Master Cylinder TO Flexible Hose
2015-06 → 2020-09
ended
|
B) GUN125 LHD 6F +7 | — | |
| 31482 — Tube, Clutch Release Cylinder TO Flexible Hose | ||||
| 31482-KK030 |
Tube, Clutch Release Cylinder TO Flexible Hose
2015-06 → 2018-07
ended
|
GUN135 SAXTR X | — | |
| 31482-KK030 |
Tube, Clutch Release Cylinder TO Flexible Hose
2015-06 → 2020-09
ended
|
GUN125 F 6F;GUN135 SAXTR +6 | — | |
| 31483B — Tube, Accumulator TO Flexible Hose | ||||
| 31483-KK010 |
Tube, Accumulator TO Flexible Hose
2015-06 → 2018-07
ended
|
GUN135 SAXTR X | — | |
| 31483-KK010 |
Tube, Accumulator TO Flexible Hose
2015-06 → 2020-09
ended
|
GUN125 F 6F;GUN135 SAXTR +6 | — | |
| 31484C — Bracket, Clutch Tube, NO.1 | ||||
| 31484-KK010 |
Bracket, Clutch Tube, NO.1
2015-06 → 2018-07
ended
|
GUN135 SAXTR X | — | |
| 31484-KK010 |
Bracket, Clutch Tube, NO.1
2015-06 → 2020-09
ended
|
GUN125 F 6F;GUN135 SAXTR +6 | — | |
| 31485 — Bracket, Flexible Hose, NO.2(FOR CLUTCH) | ||||
| 31485-KK010 |
Bracket, Flexible Hose, NO.2(FOR CLUTCH)
2015-06 → 2018-07
ended
|
GUN135 SAXTR X | — | |
| 31485-KK010 |
Bracket, Flexible Hose, NO.2(FOR CLUTCH)
2015-06 → 2020-09
ended
|
GUN125 F 6F;GUN135 SAXTR +6 | — | |
| 31490 — Accumulator Assy, Clutch | ||||
| 31490-0K030 |
Accumulator Assy, Clutch
2015-06 → 2018-07
ended
|
GUN135 SAXTR X | — | |
| 31490-0K030 |
Accumulator Assy, Clutch
2015-06 → 2020-09
ended
|
GUN125 F 6F;GUN135 SAXTR +6 | — | |
| 31496B — Clamp, Clutch Tube | ||||
| 31496-KK010 |
Clamp, Clutch Tube
2016-04 → 2020-09
ended
|
GUN125 RHD 6F | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
