Toyota Hilux

2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe

Supported model Data version 2021-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

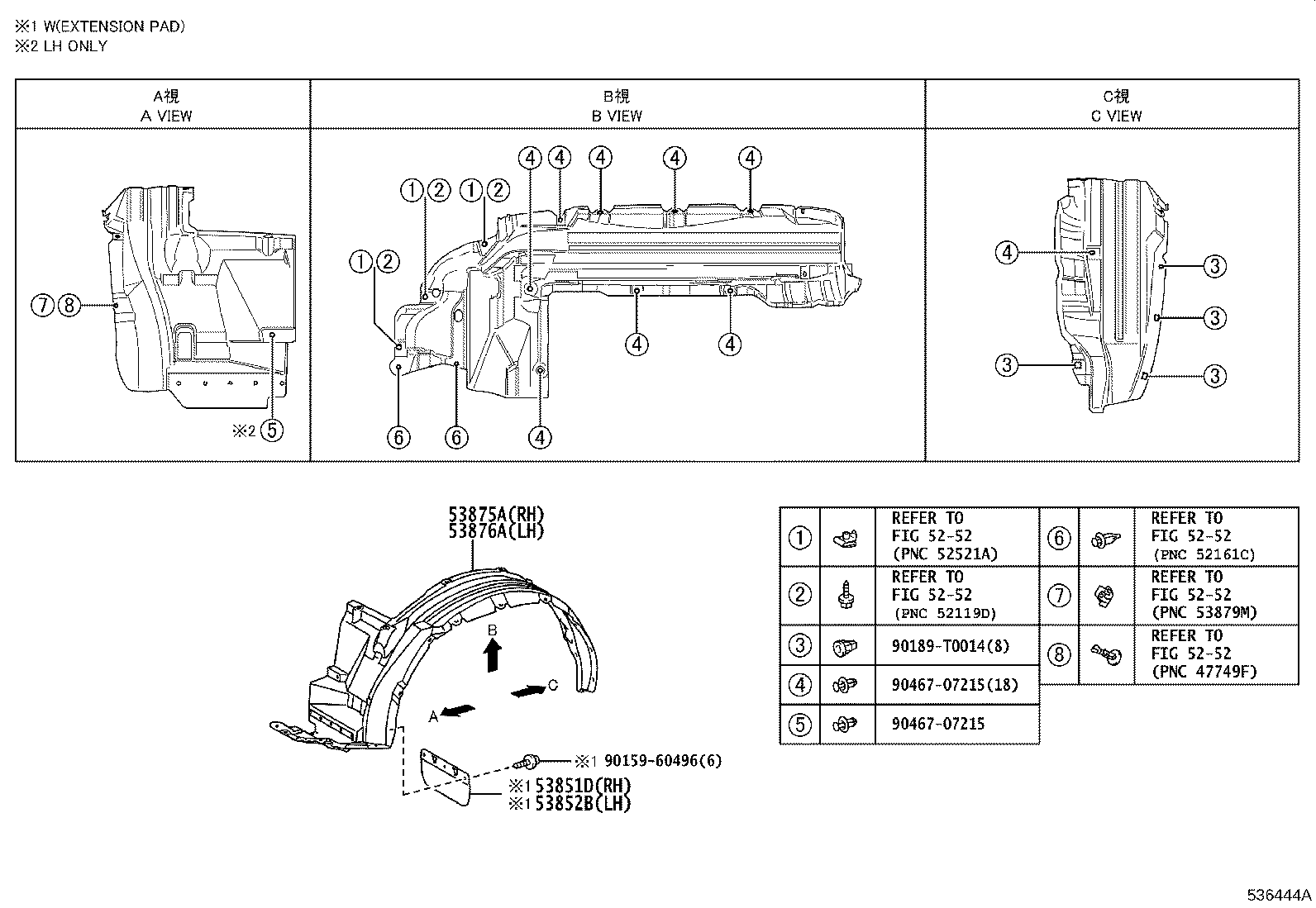

Exploded illustration 536444A 9015960496 — not listed in this catalogue 53875A — LINER, FRONT FENDER, RH (10 parts) 53876A — LINER, FRONT FENDER, LH (10 parts) 53851D — PAD, FRONT WHEEL OPENING EXTENSION, RH (3 parts) 53852B — PAD, FRONT WHEEL OPENING EXTENSION, LH (3 parts) 5252 — not listed in this catalogue 5252 — not listed in this catalogue 5252 — not listed in this catalogue 5252 — not listed in this catalogue 5252 — not listed in this catalogue 90189T0014 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue
536444A · 4 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
26 parts on this figure
Part number Description Fitment Price
53851D — Pad, Front Wheel Opening Extension, RH
53851-0K080 Pad, Front Wheel Opening Extension, RH
2015-06 → 2020-05 ended
GUN12#,135 THDCB —
53851-0K090 Pad, Front Wheel Opening Extension, RH
2016-04 → 2020-09 ended
GUN135 AXTR SAXTR IV3;GUN135 +5 —
53851-0K090 Pad, Front Wheel Opening Extension, RH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
53852B — Pad, Front Wheel Opening Extension, LH
53851-0K080 Pad, Front Wheel Opening Extension, LH
2015-06 → 2020-05 ended
GUN12#,135 THDCB —
53851-0K090 Pad, Front Wheel Opening Extension, LH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
53851-0K090 Pad, Front Wheel Opening Extension, LH
2016-04 → 2020-09 ended
GUN135 AXTR SAXTR IV3;GUN135 +5 —
53875A — Liner, Front Fender, RH
53805-0K150 Liner, Front Fender, RH
2015-06 → 2020-05 ended
GUN12#,135 THDCB —
53805-0K160 Liner, Front Fender, RH
2016-04 → 2020-09 ended
GUN125,135 SASCB —
53805-0K170 Liner, Front Fender, RH
2016-04 → 2020-09 ended
GUN12# SADCB,SAXTR;GUN135 SAXTR DCRE +3 —
53805-0K170 note Liner, Front Fender, RH
2016-04 → 2020-09 ended
GUN125 RHD SASCB —
53805-0K170 Liner, Front Fender, RH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
53805-YP050 note Liner, Front Fender, RH
2019-05 → 2020-05 ended
GUN12#,135 THDCB M —
53805-YP050 note Liner, Front Fender, RH
2019-05 → 2020-05 ended
GUN12# THDCB H —
53805-YP050 note Liner, Front Fender, RH
2017-12 → 2019-05 ended
GUN12# THDCB H —
53805-YP060 note Liner, Front Fender, RH
2018-05 → 2019-05 ended
GUN125 SADCB 6FC H —
53805-YP060 note Liner, Front Fender, RH
2019-06 → 2020-09 ended
GUN125 (SADCB,SAXTR) (H,M) —
53876A — Liner, Front Fender, LH
53806-0K150 Liner, Front Fender, LH
2015-06 → 2020-05 ended
GUN12#,135 THDCB —
53806-0K160 Liner, Front Fender, LH
2016-04 → 2020-09 ended
GUN125,135 SASCB —
53806-0K170 Liner, Front Fender, LH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
53806-0K170 Liner, Front Fender, LH
2016-04 → 2020-09 ended
GUN12# SADCB,SAXTR;GUN135 SAXTR DCRE +3 —
53806-0K170 note Liner, Front Fender, LH
2016-04 → 2020-09 ended
GUN125 RHD SASCB —
53806-YP050 note Liner, Front Fender, LH
2017-12 → 2019-05 ended
GUN12# THDCB H —
53806-YP050 note Liner, Front Fender, LH
2019-05 → 2020-05 ended
GUN12#,135 THDCB M —
53806-YP050 note Liner, Front Fender, LH
2019-05 → 2020-05 ended
GUN12# THDCB H —
53806-YP060 note Liner, Front Fender, LH
2018-05 → 2019-05 ended
GUN125 SADCB 6FC H —
53806-YP060 note Liner, Front Fender, LH
2019-06 → 2020-09 ended
GUN125 (SADCB,SAXTR) (H,M) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
