Toyota Hilux

2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe

Supported model Data version 2021-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

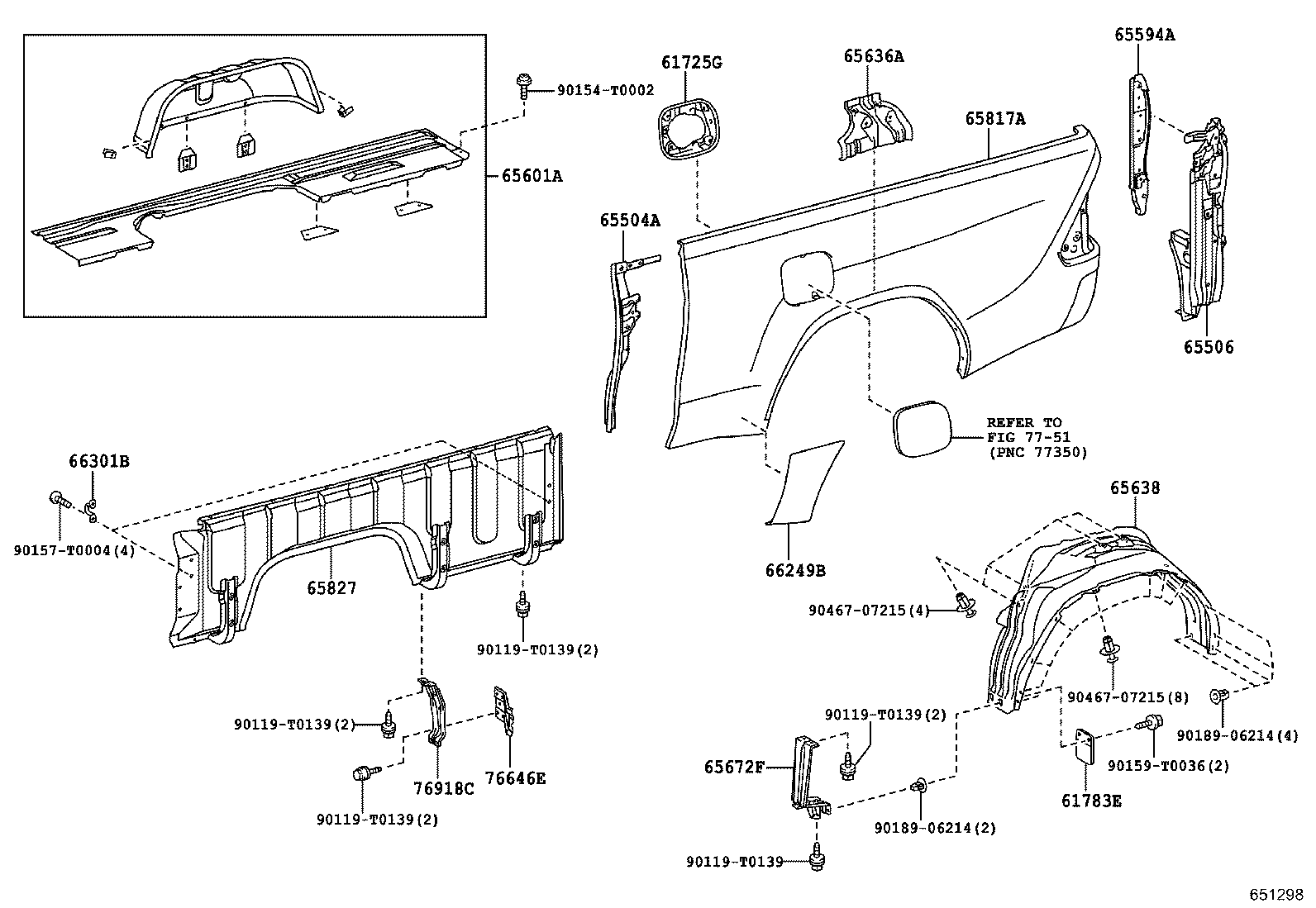

Exploded illustration 651298 61725G — BOX, FUEL INLET, NO.1 (5 parts) 61783E — PAD, REAR WHEEL OPENING EXTENSION, NO.1 (3 parts) 65504A — POST SUB-ASSY, SIDE PANEL FRONT END, LH (4 parts) 65506 — POST SUB-ASSY, SIDE PANEL REAR END, LH (5 parts) 65594A — PLATE, SIDE PANEL REAR END POST INSIDE, LH (3 parts) 65601A — PANEL SUB-ASSY, REAR BODY SIDE, LH (4 parts) 65636A — PANEL, WHEEL HOUSE, REAR LH (5 parts) 65638 — LINER, REAR WHEEL HOUSE, LH (6 parts) 65672F — BRACE, SIDE PANEL SKIRT, FRONT LH (4 parts) 65817A — PANEL, REAR BODY SIDE, LH (6 parts) 65827 — PANEL, REAR BODY SIDE, INNER LH (4 parts) 66249B — PROTECTOR, REAR BODY SIDE PANEL, LH (10 parts) 66301B — HOOK SUB-ASSY, ROPE (2 parts) 76646E — BRACKET, RR BODY MUDGUARD, LH (5 parts) 76918C — MUDGUARD, SIDE, REAR LH (2 parts) 90119T0139 — not listed in this catalogue 90119T0139 — not listed in this catalogue 90119T0139 — not listed in this catalogue 90119T0139 — not listed in this catalogue 90119T0139 — not listed in this catalogue 90154T0002 — not listed in this catalogue 90157T0004 — not listed in this catalogue 90159T0036 — not listed in this catalogue 9018906214 — not listed in this catalogue 9018906214 — not listed in this catalogue 9046707215 — not listed in this catalogue 9046707215 — not listed in this catalogue 7751 — not listed in this catalogue
651298 · 15 callouts, 13 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
68 parts on this figure
Part number Description Fitment Price
61725G — Box, Fuel Inlet, NO.1
61725-KK010 Box, Fuel Inlet, NO.1
2016-04 → 2020-09 ended
GUN125,135 SASCB CBU —
61725-KK020 Box, Fuel Inlet, NO.1
2015-06 → 2018-07 ended
GUN135 SAXTR X —
61725-KK020 note Box, Fuel Inlet, NO.1
2016-04 → 2017-10 ended
GUN125 RHD SASCB —
61725-KK020 note Box, Fuel Inlet, NO.1
2017-10 → 2020-09 ended
GUN125 RHD SASCB CBU —
61725-KK020 Box, Fuel Inlet, NO.1
2015-06 → 2020-09 ended
GUN12# (SADCB,SAXTR,THDCB) CBU;GUN135 (SADCB,SAXTR,THDCB) +2 —
61783E — Pad, Rear Wheel Opening Extension, NO.1
61783-0K160 Pad, Rear Wheel Opening Extension, NO.1
2015-06 → 2020-05 ended
GUN12#,135 THDCB —
61783-0K180 Pad, Rear Wheel Opening Extension, NO.1
2016-04 → 2018-07 ended
GUN135 SAXTR X —
61783-0K180 Pad, Rear Wheel Opening Extension, NO.1
2016-04 → 2020-09 ended
GUN135 SAXTR S CBU;GUN135 +4 —
65504A — Post Sub-assy, Side Panel Front End, LH
65504-KK010 Post Sub-assy, Side Panel Front End, LH
2015-06 → 2020-09 ended
GUN12#,135 (SADCB,THDCB) CBU —
65504-KK050 Post Sub-assy, Side Panel Front End, LH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
65504-KK050 Post Sub-assy, Side Panel Front End, LH
2016-04 → 2020-09 ended
GUN125,135 SAXTR (M,S) CBU —
65552-KK030 Post Sub-assy, Side Panel Front End, LH
2016-04 → 2020-09 ended
GUN125,135 SASCB CBU —
65506 — Post Sub-assy, Side Panel Rear End, LH
65506-KK010 note Post Sub-assy, Side Panel Rear End, LH
2015-06 → 2018-07 ended
GUN135 SAXTR X —
65506-KK010 note Post Sub-assy, Side Panel Rear End, LH
2015-06 → 2020-09 ended
GUN12#,135 (SAXTR,THDCB) (H,M,S) CBU —
65506-KK040 note Post Sub-assy, Side Panel Rear End, LH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
65506-KK040 note Post Sub-assy, Side Panel Rear End, LH
2016-04 → 2020-09 ended
GUN12# (SADCB,SAXTR) CBU;GUN135 (SADCB,SAXTR) +2 —
65506-KK050 note Post Sub-assy, Side Panel Rear End, LH
2016-04 → 2020-09 ended
GUN125,135 SASCB CBU —
65594A — Plate, Side Panel Rear End Post Inside, LH
65594-KK010 Plate, Side Panel Rear End Post Inside, LH
2015-06 → 2018-07 ended
GUN135 SAXTR X —
65594-KK010 Plate, Side Panel Rear End Post Inside, LH
2015-06 → 2020-09 ended
GUN12# (SADCB,SAXTR,THDCB) CBU;GUN135 (SADCB,SAXTR,THDCB) +2 —
65594-KK020 Plate, Side Panel Rear End Post Inside, LH
2016-04 → 2020-09 ended
GUN125,135 SASCB CBU —
65601A — Panel Sub-assy, Rear Body Side, LH
65601-KK900 Panel Sub-assy, Rear Body Side, LH
2015-06 → 2020-09 ended
GUN12#,135 (SADCB,THDCB) CBU —
65601-KK901 Panel Sub-assy, Rear Body Side, LH
2016-04 → 2020-09 ended
GUN125,135 SASCB CBU —
65601-KK902 Panel Sub-assy, Rear Body Side, LH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
65601-KK902 Panel Sub-assy, Rear Body Side, LH
2016-04 → 2020-09 ended
GUN125,135 SAXTR (M,S) CBU —
65636A — Panel, Wheel House, Rear LH
65636-KK010 Panel, Wheel House, Rear LH
2016-04 → 2020-09 ended
GUN125,135 SASCB CBU —
65636-KK020 note Panel, Wheel House, Rear LH
2016-04 → 2017-10 ended
GUN125 RHD SASCB —
65636-KK020 Panel, Wheel House, Rear LH
2015-06 → 2018-07 ended
GUN135 SAXTR X —
65636-KK020 Panel, Wheel House, Rear LH
2015-06 → 2020-09 ended
GUN12# (SADCB,SAXTR,THDCB) CBU;GUN135 (SADCB,SAXTR,THDCB) +2 —
65636-KK020 note Panel, Wheel House, Rear LH
2017-10 → 2020-09 ended
GUN125 RHD SASCB CBU —
65638 — Liner, Rear Wheel House, LH
65638-0K080 Liner, Rear Wheel House, LH
2015-06 → 2020-05 ended
GUN12#,135 THDCB —
65638-0K090 Liner, Rear Wheel House, LH
2016-04 → 2020-09 ended
GUN125,135 SASCB CBU —
65638-0K100 note Liner, Rear Wheel House, LH
2017-10 → 2020-09 ended
GUN125 RHD SASCB CBU —
65638-0K100 Liner, Rear Wheel House, LH
2016-04 → 2020-09 ended
GUN12# (SADCB,SAXTR) CBU;GUN135 (SADCB,SAXTR) +2 —
65638-0K100 note Liner, Rear Wheel House, LH
2016-04 → 2017-10 ended
GUN125 RHD SASCB —
65638-0K100 Liner, Rear Wheel House, LH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
65672F — Brace, Side Panel Skirt, Front LH
65609-KK010 Brace, Side Panel Skirt, Front LH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
65609-KK010 Brace, Side Panel Skirt, Front LH
2016-04 → 2020-09 ended
GUN135 SASCB CBU;GUN135 SAXTR +4 —
65609-KK050 note Brace, Side Panel Skirt, Front LH
2019-03 → 2020-09 ended
GUN125 RHD SASCB CBU —
65672-KK010 Brace, Side Panel Skirt, Front LH
2015-06 → 2020-09 ended
GUN12#,135 (SADCB,THDCB) CBU —
65817A — Panel, Rear Body Side, LH
65817-KK030 Panel, Rear Body Side, LH
2015-06 → 2020-09 ended
GUN12#,135 (SADCB,THDCB) CBU —
65817-KK050 Panel, Rear Body Side, LH
2016-04 → 2020-09 ended
GUN125,135 SASCB CBU —
65817-KK060 note Panel, Rear Body Side, LH
2017-10 → 2020-09 ended
GUN125 RHD SASCB CBU —
65817-KK060 note Panel, Rear Body Side, LH
2016-04 → 2017-10 ended
GUN125 RHD SASCB —
65817-KK090 Panel, Rear Body Side, LH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
65817-KK090 Panel, Rear Body Side, LH
2016-04 → 2020-09 ended
GUN125,135 SAXTR (M,S) CBU —
65827 — Panel, Rear Body Side, Inner LH
65827-KK900 Panel, Rear Body Side, Inner LH
2015-06 → 2020-09 ended
GUN12#,135 (SADCB,THDCB) CBU —
65827-KK902 Panel, Rear Body Side, Inner LH
2016-04 → 2020-09 ended
GUN125,135 SASCB CBU —
65827-KK903 Panel, Rear Body Side, Inner LH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
65827-KK903 Panel, Rear Body Side, Inner LH
2016-04 → 2020-09 ended
GUN125,135 SAXTR (M,S) CBU —
66249B — Protector, Rear Body Side Panel, LH
58746-0K040 note Protector, Rear Body Side Panel, LH
2019-06 → 2020-02 ended
GUN135 SADCB —
58746-0K040 note Protector, Rear Body Side Panel, LH
2016-04 → 2020-09 ended
GUN12# SADCB CBU —
58746-0K040 Protector, Rear Body Side Panel, LH
2016-04 → 2020-09 ended
GUN135 SADCB —
58746-0K060 Protector, Rear Body Side Panel, LH
2016-04 → 2018-07 ended
GUN135 SAXTR X —
58746-0K060 note Protector, Rear Body Side Panel, LH
2017-10 → 2020-09 ended
GUN125 RHD SASCB CBU —
58746-0K060 Protector, Rear Body Side Panel, LH
2016-04 → 2020-09 ended
GUN125,135 SAXTR (M,S) CBU —
58746-0K060 note Protector, Rear Body Side Panel, LH
2016-04 → 2017-10 ended
GUN125 RHD SASCB —
58746-0K130 note Protector, Rear Body Side Panel, LH
2015-06 → 2020-05 ended
GUN12# THDCB —
58746-0K130 Protector, Rear Body Side Panel, LH
2015-06 → 2020-05 ended
GUN135 THDCB —
58746-0K130 note Protector, Rear Body Side Panel, LH
2019-05 → 2020-02 ended
GUN135 THDCB —
66301B — Hook Sub-assy, Rope
66312-0K010 Hook Sub-assy, Rope
2015-06 → 2018-07 ended
GUN135 SAXTR X —
66312-0K010 Hook Sub-assy, Rope
2015-06 → 2020-09 ended
GUN12# (SADCB,SAXTR,THDCB) CBU;GUN135 (SADCB,SAXTR,THDCB) +2 —
76646E — Bracket, RR Body Mudguard, LH
76646-KK010 Bracket, RR Body Mudguard, LH
2016-04 → 2020-09 ended
GUN125,135 SASCB CBU —
76646-KK020 note Bracket, RR Body Mudguard, LH
2016-04 → 2017-10 ended
GUN125 RHD SASCB —
76646-KK020 Bracket, RR Body Mudguard, LH
2015-06 → 2018-07 ended
GUN135 SAXTR X —
76646-KK020 Bracket, RR Body Mudguard, LH
2015-06 → 2020-09 ended
GUN12# (SADCB,SAXTR,THDCB) CBU;GUN135 (SADCB,SAXTR,THDCB) +2 —
76646-KK020 note Bracket, RR Body Mudguard, LH
2017-10 → 2020-09 ended
GUN125 RHD SASCB CBU —
76918C — Mudguard, Side, Rear LH
76607-KK010 Mudguard, Side, Rear LH
2015-06 → 2018-07 ended
GUN135 SAXTR X —
76607-KK010 Mudguard, Side, Rear LH
2015-06 → 2020-09 ended
GUN12# CBU;GUN135 SAXTR S +3 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
