Toyota Hilux

2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe

Supported model Data version 2021-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

6 part groups · 2 illustrations

Illustrations

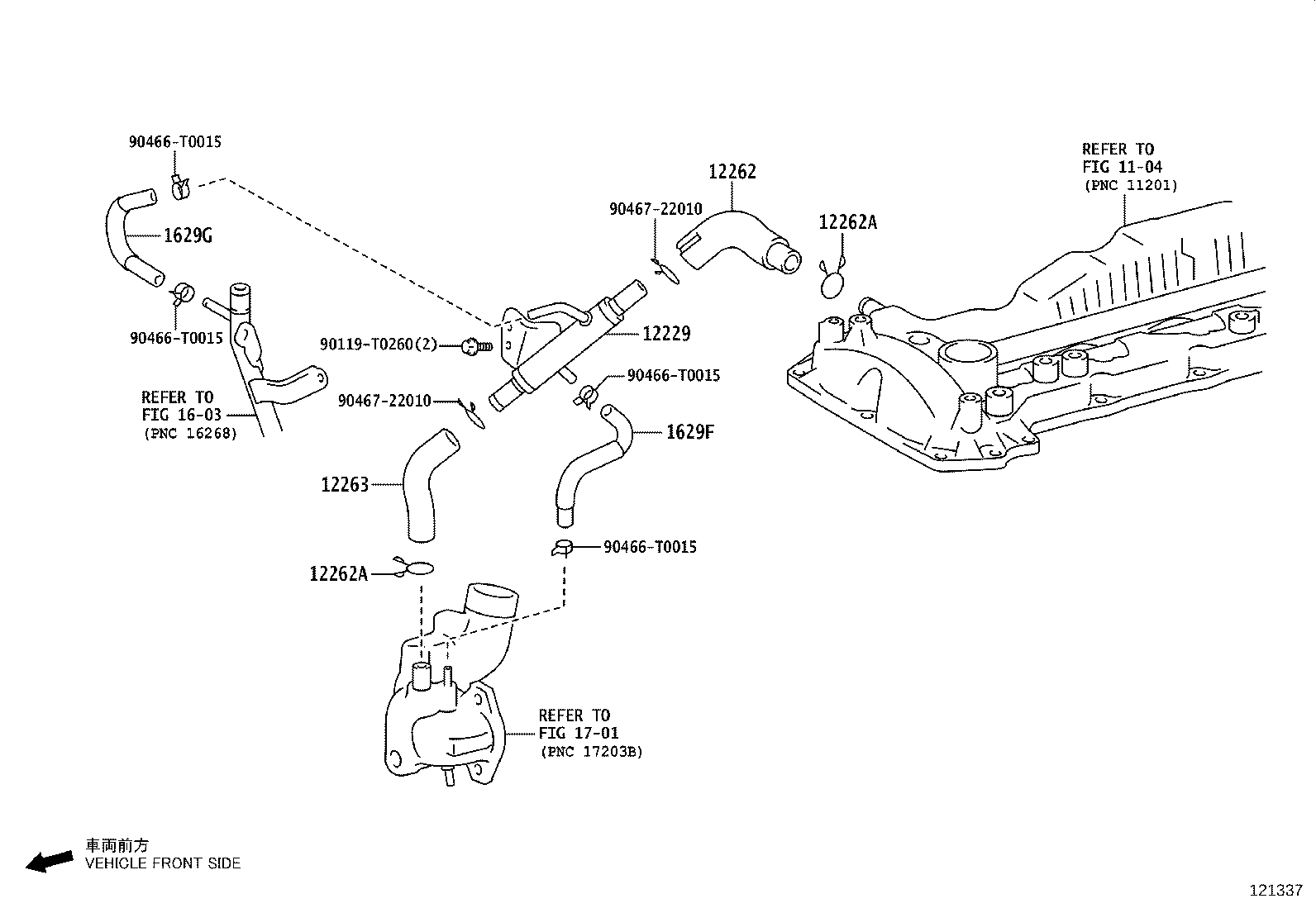

Figure 121400 121400 2015-06 → — Figure 121337 121337 2019-05 → —

Part groups

PNCDescription
12229 Pipe, Ventilation
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
1629F Hose, Water By-pass, NO.19
1629G Hose, Water By-pass, NO.20
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
