Toyota Hilux

2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe

Supported model Data version 2021-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 2 illustrations

Illustrations

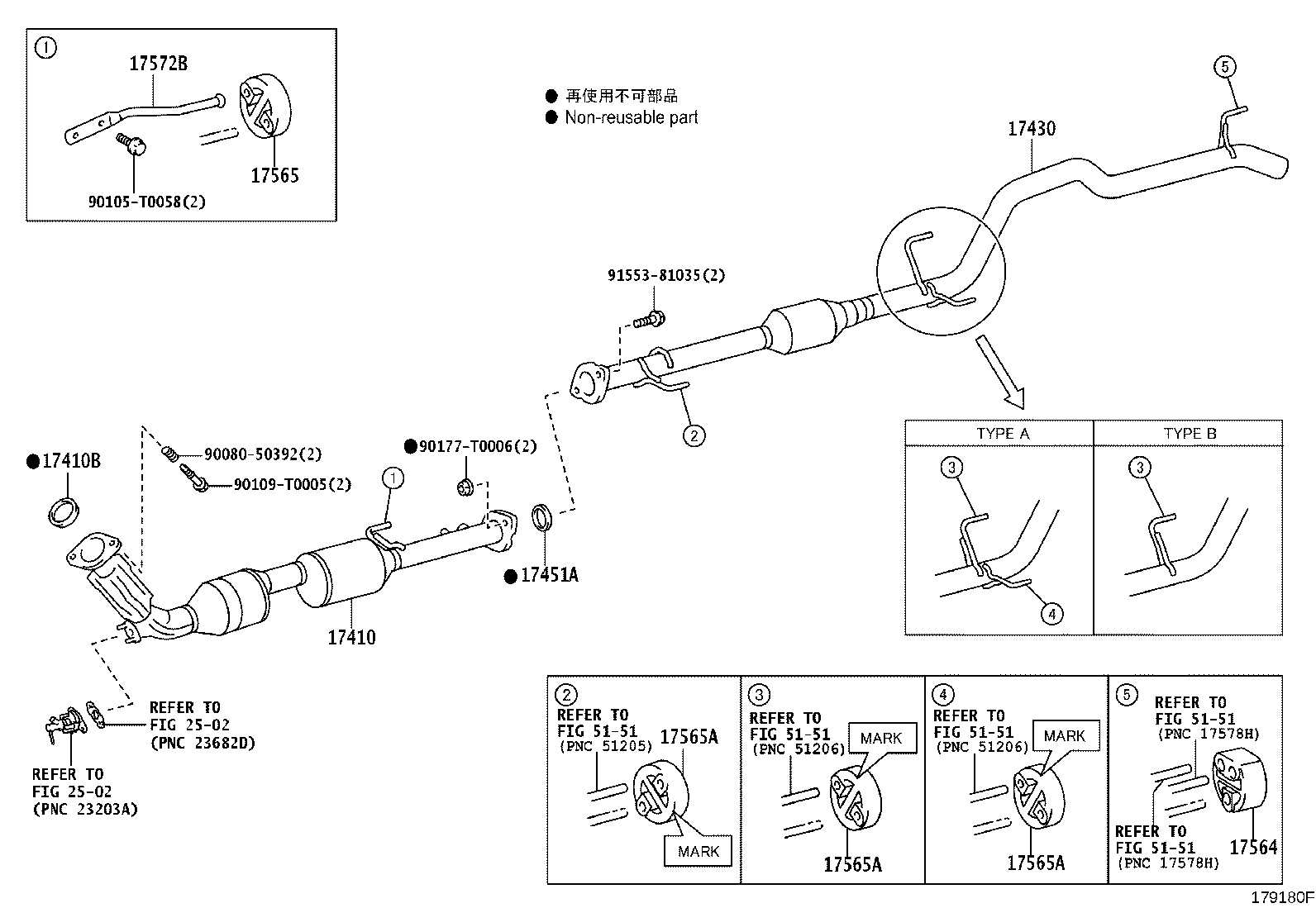

Figure 178862C 178862C 2015-06 → — Figure 179180F 179180F 2016-04 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17430 Pipe Assy, Exhaust, Tail
17451A Gasket, Exhaust Pipe, NO.2
17564 Support,Exhaust Pipe, NO.4
17565 Support, Exhaust Pipe, NO.5
17565A Support, Exhaust Pipe, NO.4
17572B Bracket, Exhaust Pipe Support, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
