Toyota Hilux

2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe

Supported model Data version 2021-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

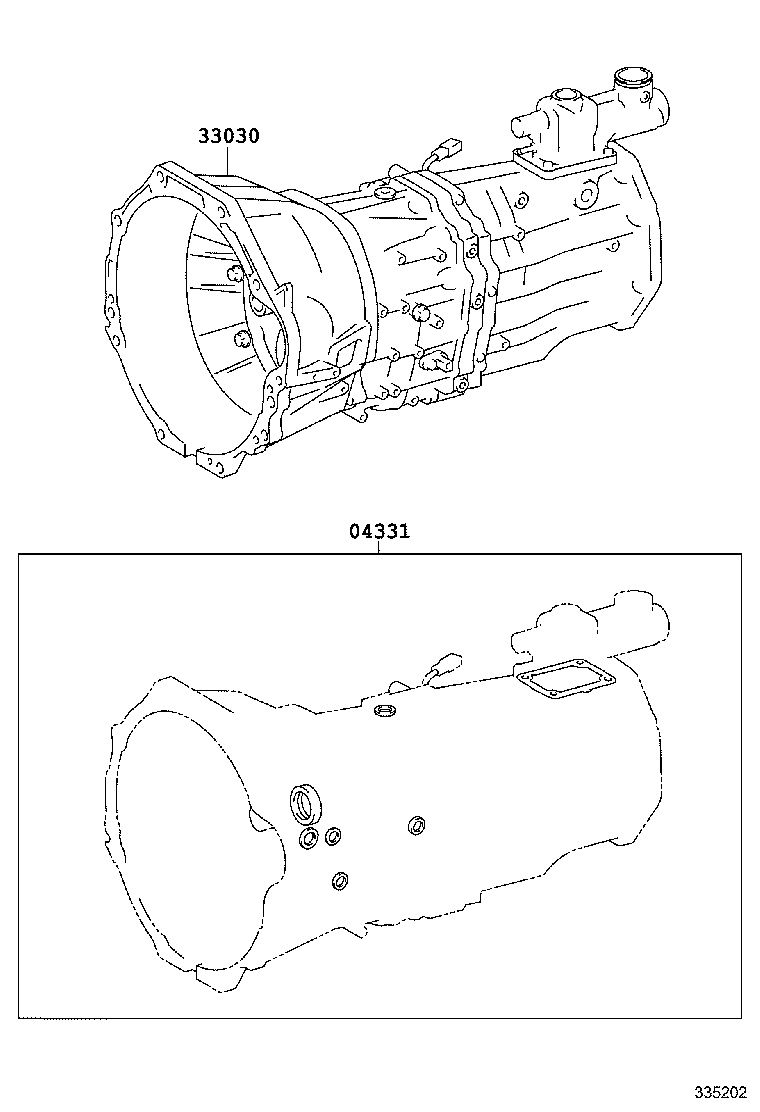

Figure 335201 335201 2015-06 → — Figure 335202 335202 2015-06 → — Figure 335205B 335205B 2015-06 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
