Toyota Hilux
2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe
Supported model
Data version 2021-01

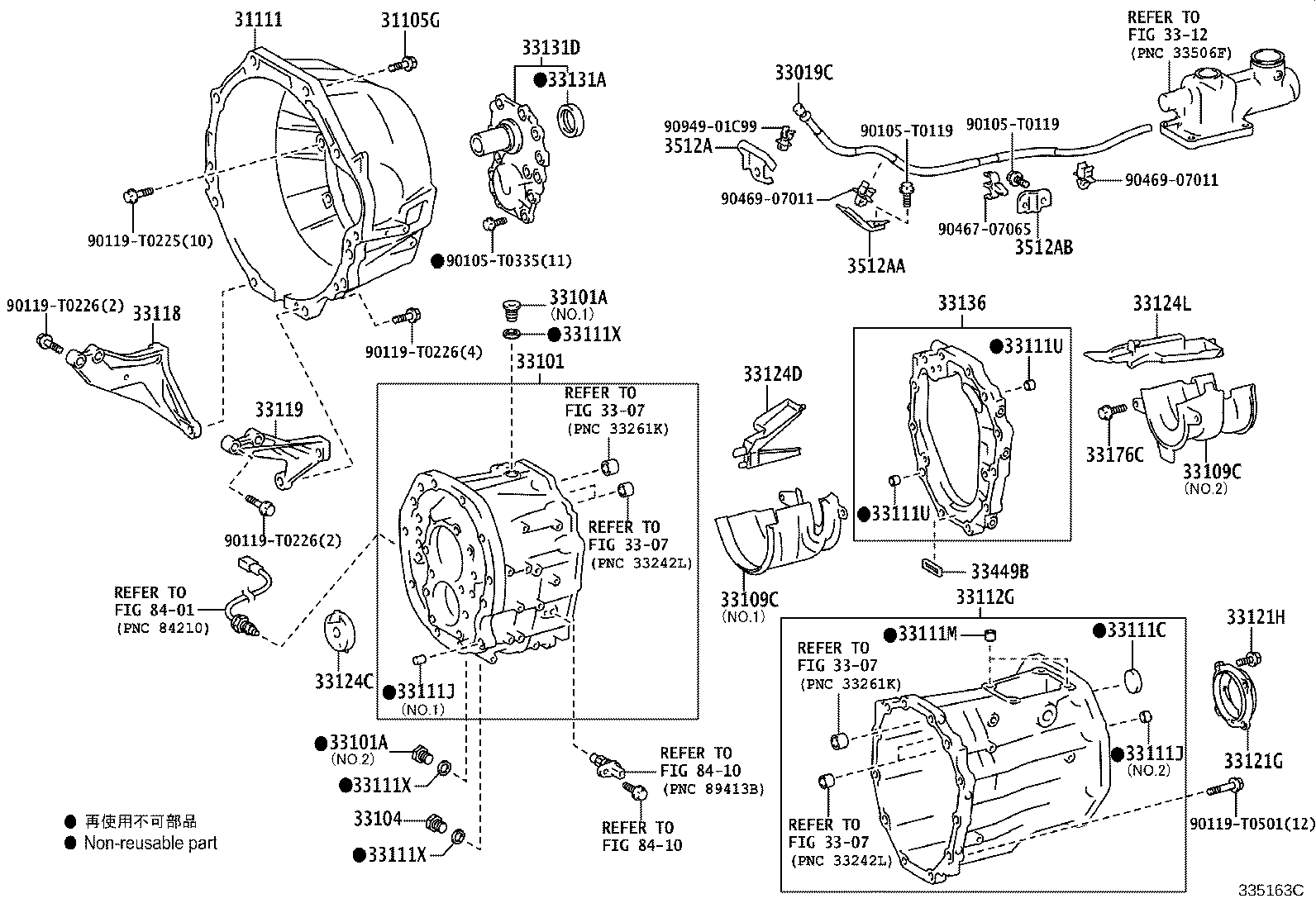

Clutch Housing & Transmission Case (MTM)
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 31105G | Bolt(FOR TRANSAXLE CASE & ENGINE SETTING) |
| 31111 | Housing, Clutch |
| 33019C | Breather Sub-assy, Transmission |
| 33101 | Case Sub-assy, Manual Transmission |
| 33101A | Plug(FOR MANUAL TRANSMISSION FILLER) |
| 33104 | Plug Sub-assy, Drain(MTM) |
| 33109C | Separator Sub-assy, Manual Transmission Oil |
| 33111C | Plug(FOR TRANSMISSION CASE) |
| 33111J | Pin, Straight(FOR MANUAL TRANSMISSION CASE) |
| 33111M | Pin, Ring(FOR TRANSMISSION CASE) |
| 33111U | Pin, Ring(FOR MANUAL TRANSMISSION CASE) |
| 33111X | Gasket, Transmission Case Plug |
| 33112G | Case, Transmission, Rear |
| 33118 | Plate, Stiffener, RH(MTM) |
| 33119 | Plate, Stiffener, LH(MTM) |
| 33121G | Cover, Manual Transmission Case |
| 33121H | Bolt, W/Washer(FOR TRANSMISSION CASE COVER) |
| 33124C | Pipe, Oil Receiver, NO.1(MTM) |
| 33124D | Pipe, Oil Receiver, NO.2(MTM) |
| 33124L | Pipe, Oil Receiver, N0.3(MTM) |
| 33124M | Pipe, Oil Receiver, N0.4(MTM) |
| 33131A | Seal, Oil(FOR TRANSMISSION FRONT BEARING RETAINER) |
| 33131D | Retainer, Bearing, Front |
| 33136 | Plate, Transmission Intermediate |
| 33176B | Separator, Transmission Oil(MTM) |
| 33176C | Bolt(FOR TRANSMISSION OIL SEPARATOR) |
| 33449B | Magnet, Transmission |
| 3512A | Bracket, Transmission Breather, NO.1 |
| 3512AA | Bracket, Transmission Breather, NO.2 |
| 3512AB | Bracket, Transmission Breather, NO.3 |
| 3512AC | Bracket, Transmission Breather, NO.4 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
