Toyota Hilux
2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe
Supported model
Data version 2021-01

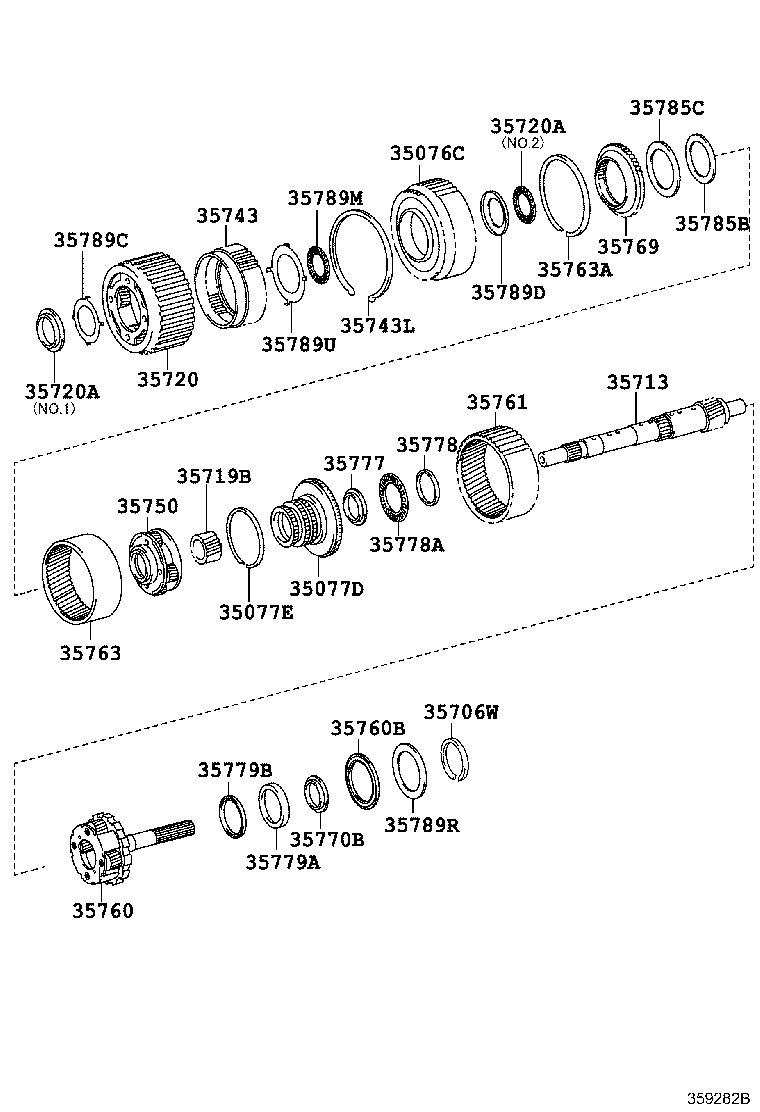

Planetary Gear, Reverse Piston & Counter Gear(ATM)
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 35076C | Flange Sub-assy, Front Planetary Ring Gear |
| 35077D | Flange Sub-assy, RR Planetary Ring Gear |
| 35077E | Ring, Snap (FOR REAR PLANETARY RING GEAR FLANGE) |
| 35706W | Ring, Snap (FOR PLANETARY SUN GEAR) |
| 35713 | Shaft, Intermediate |
| 35719B | Gear, Planetary Sun |
| 35720 | Gear Assy, Front Planetary |
| 35720A | Bearing, Thrust Needle Roller (FOR FRONT PLANETARY GEAR) |
| 35743 | Gear, Front Planetary Ring |
| 35743L | Ring, Snap (FOR PLANETARY RING GEAR) |
| 35750 | Gear Assy, Center Planetary |
| 35760 | Gear Assy, Rear Planetary |
| 35760B | Bearing, Thrust Needle Roller(FOR REAR PLANETRAY SUN GEAR) |
| 35761 | Gear, Rear Planetary Ring |
| 35763 | Gear, Center Planetary Ring |
| 35763A | Ring, Snap(FOR CENTER PLANETARY RING GEAR) |
| 35769 | Flange, Planetary Ring Gear, Ctr |
| 35770B | Race, Thrust Bearing (FOR OUTPUT SHAFT) |
| 35777 | Race, Thrust Bearing, NO.7 |
| 35778 | Race, Thrust Bearing, NO.8 |
| 35778A | Bearing, Thrust Needle Roller |
| 35779A | Race, Thrust Bearing, NO.9 |
| 35779B | Bearing, Thrust Needle Roller |
| 35785B | Race, Thrust Bearing, NO.4 |
| 35785C | Bearing, Thrust Needle Roller |
| 35789C | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR FRONT) |
| 35789D | Race, Thrust Bearing (FOR FRONT PLANETARY GEAR REAR) |
| 35789M | Bearing, Thrust Needle Roller |
| 35789R | Race, Thrust Bearing (FOR REAR OUTPUT SHAFT) |
| 35789U | Race, Thrust Bearing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
