Toyota Hilux
2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe
Supported model
Data version 2021-01

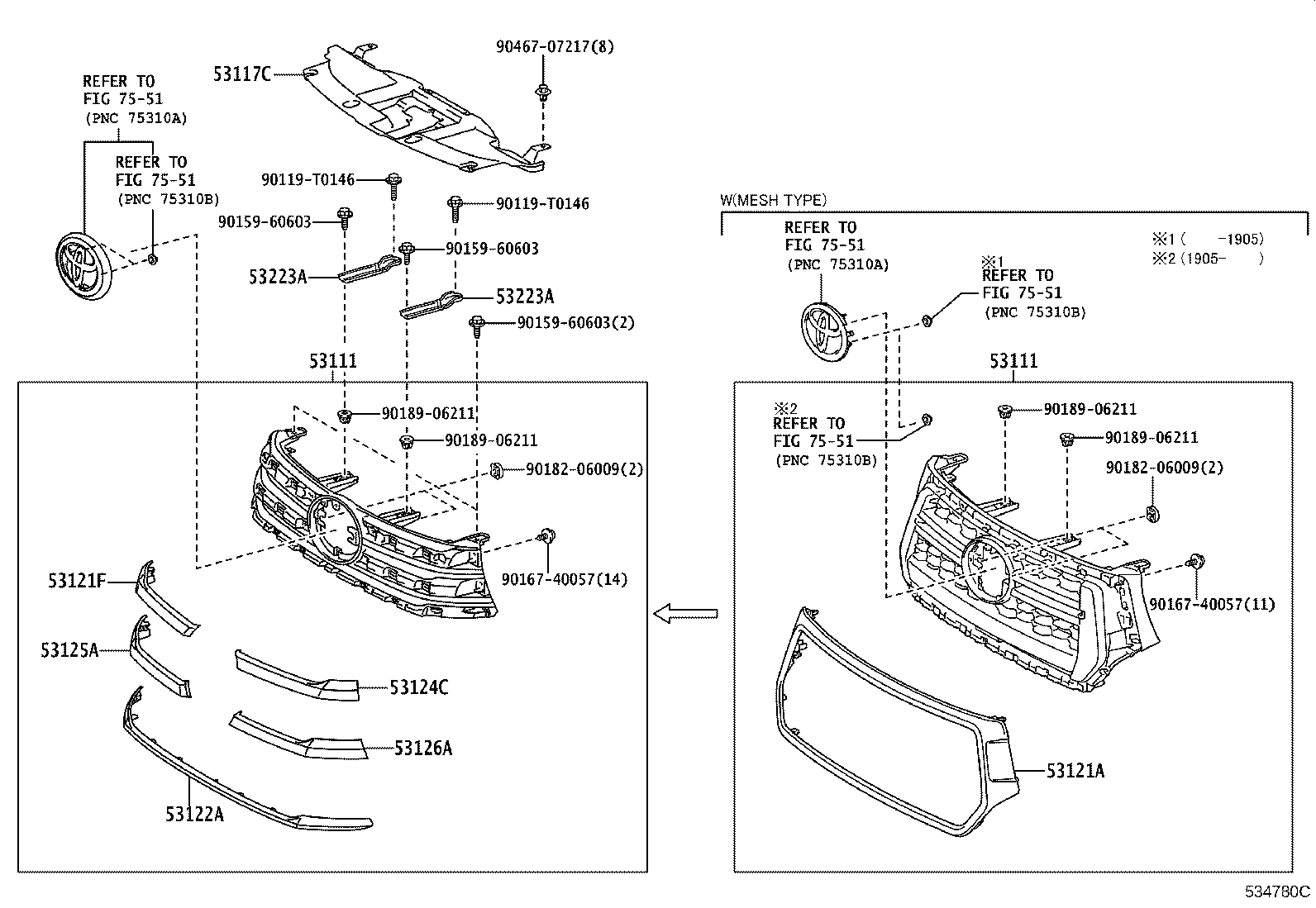

Radiator Grille
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53111 | Grille, Radiator |
| 53117C | Retainer, Radiator Grille, NO.1 |
| 53121A | Moulding, Radiator Grille |
| 53121F | Moulding, Radiator Grille, Upper RH |
| 53122A | Moulding, Radiator Grille, Lower |
| 53124C | Moulding, Radiator Grille, Upper LH |
| 53125A | Moulding, Radiator Grille, Center RH |
| 53126A | Moulding, Radiator Grille, Center LH |
| 53129B | Moulding, Radiator Grille, NO.9 |
| 53223A | Bracket, Radiator Grille Mounting |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
