Toyota Hilux

2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe

Supported model Data version 2021-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

17 part groups · 3 illustrations

Illustrations

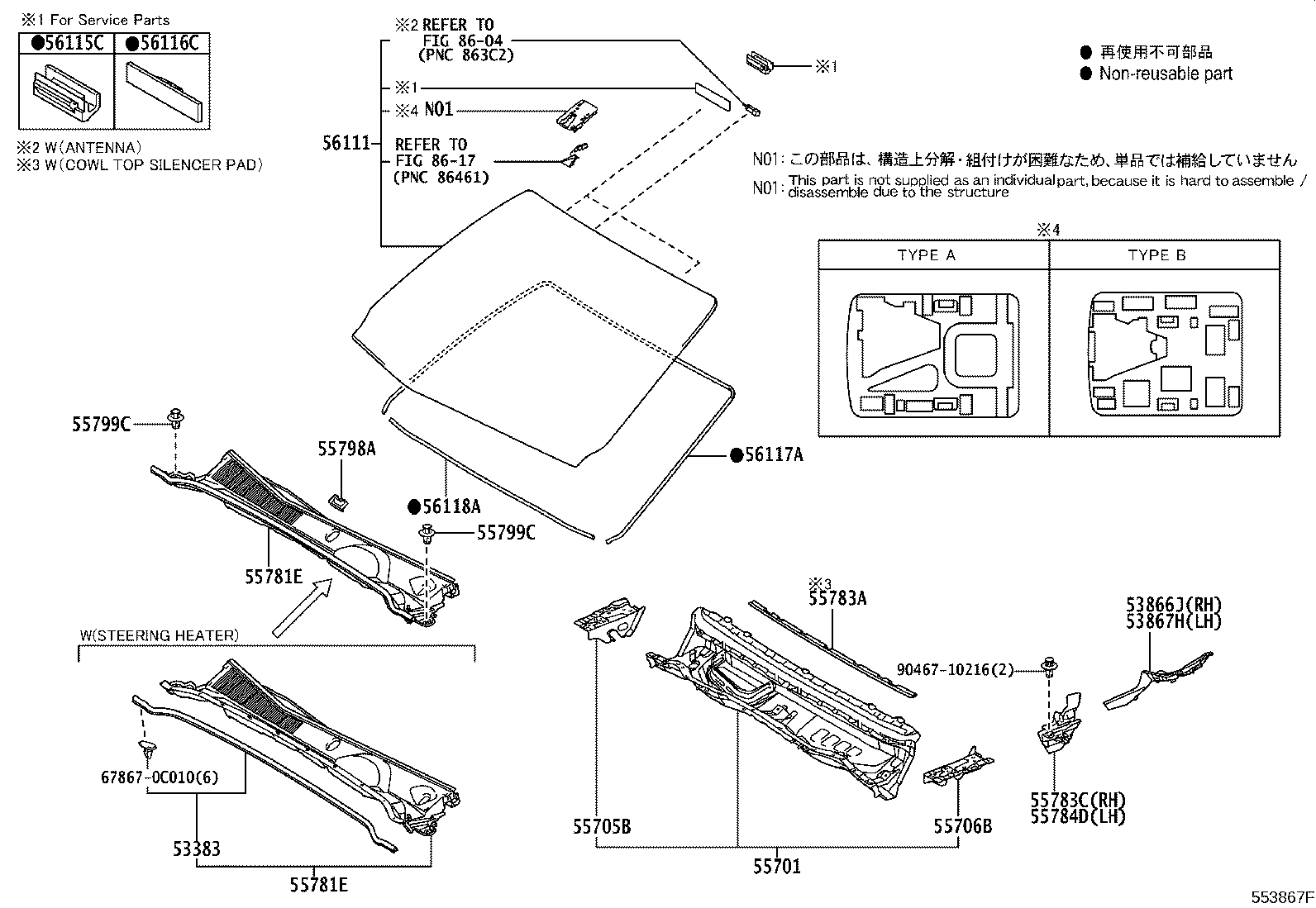

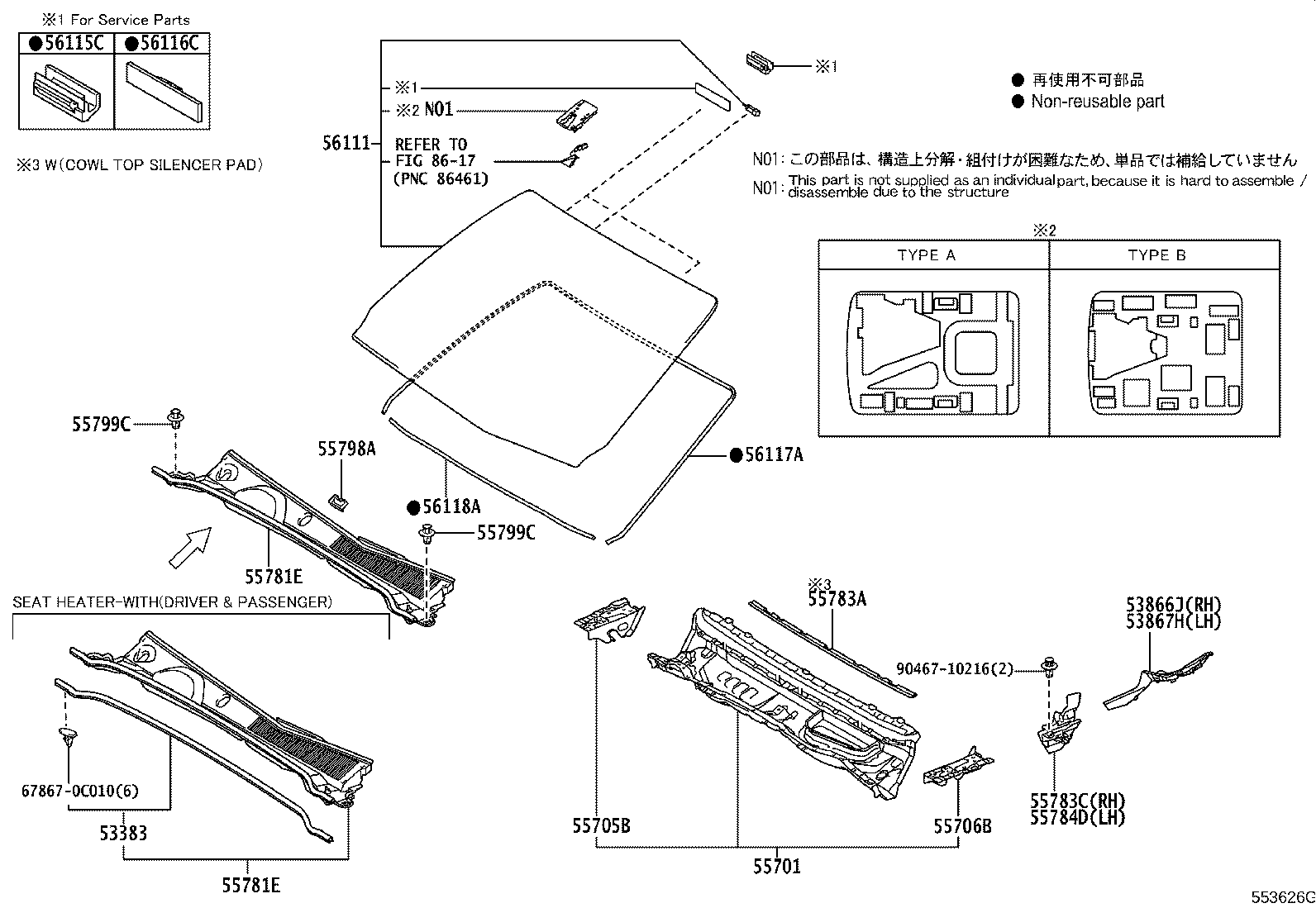

Figure 553471E 553471E 2015-06 → — Figure 553867F 553867F 2016-04 → — Figure 553626G 553626G 2016-01 → —

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55701 Panel Sub-assy, Cowl
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55781E Louver Sub-assy, Cowl Top Ventilator
55783A Pad, Cowl Top Silencer
55783C Bracket, Cowl Top Ventilator Louver, RH
55784D Bracket, Cowl Top Ventilator Louver, LH
55798A Support, Cowl Water Extract Seal
55799C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115C Stopper, Windshield Glass
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56118A Dam, Window Glass Adhesive, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
