Toyota Hilux

2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe

Supported model Data version 2021-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

14 part groups · 3 illustrations

Illustrations

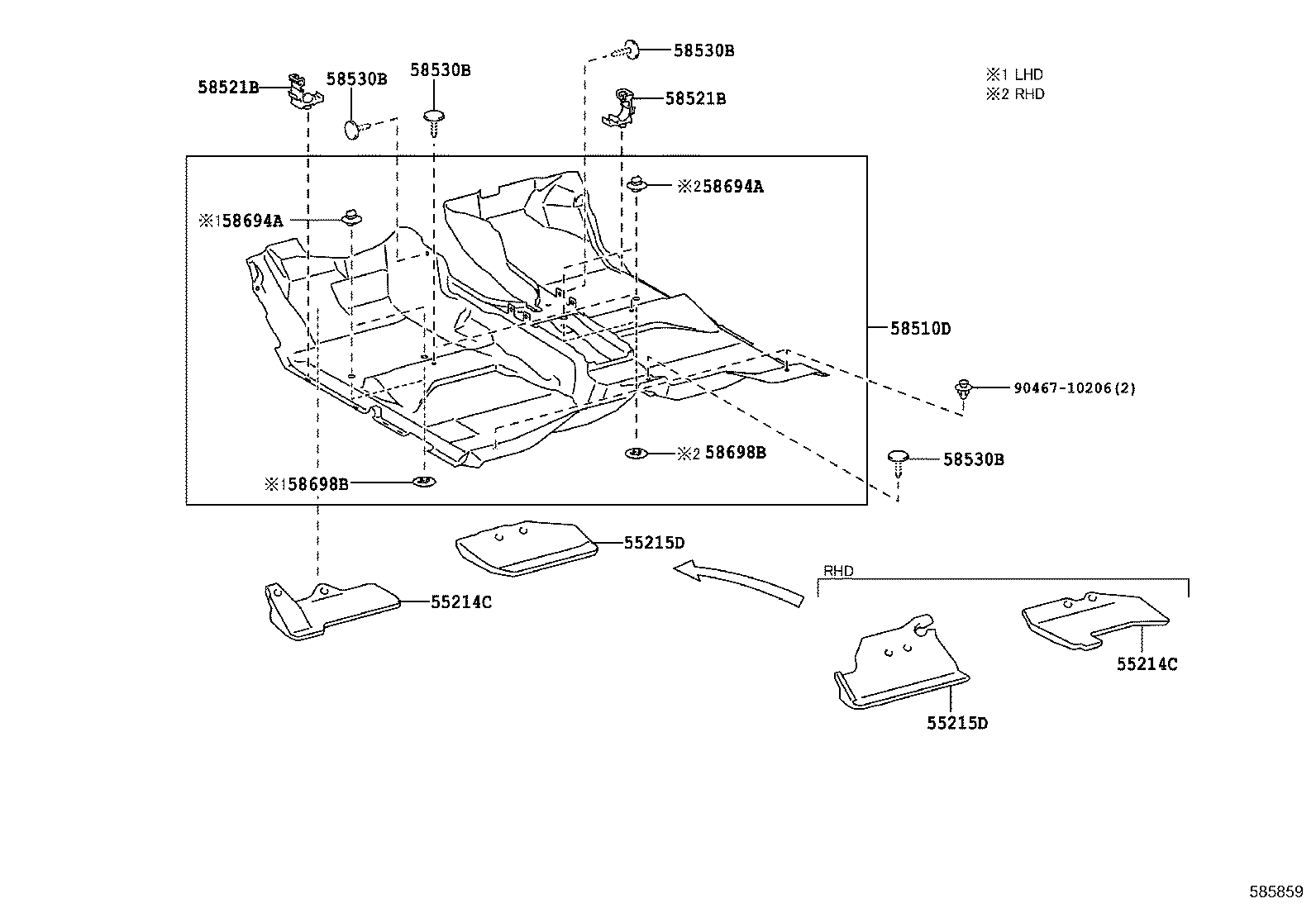

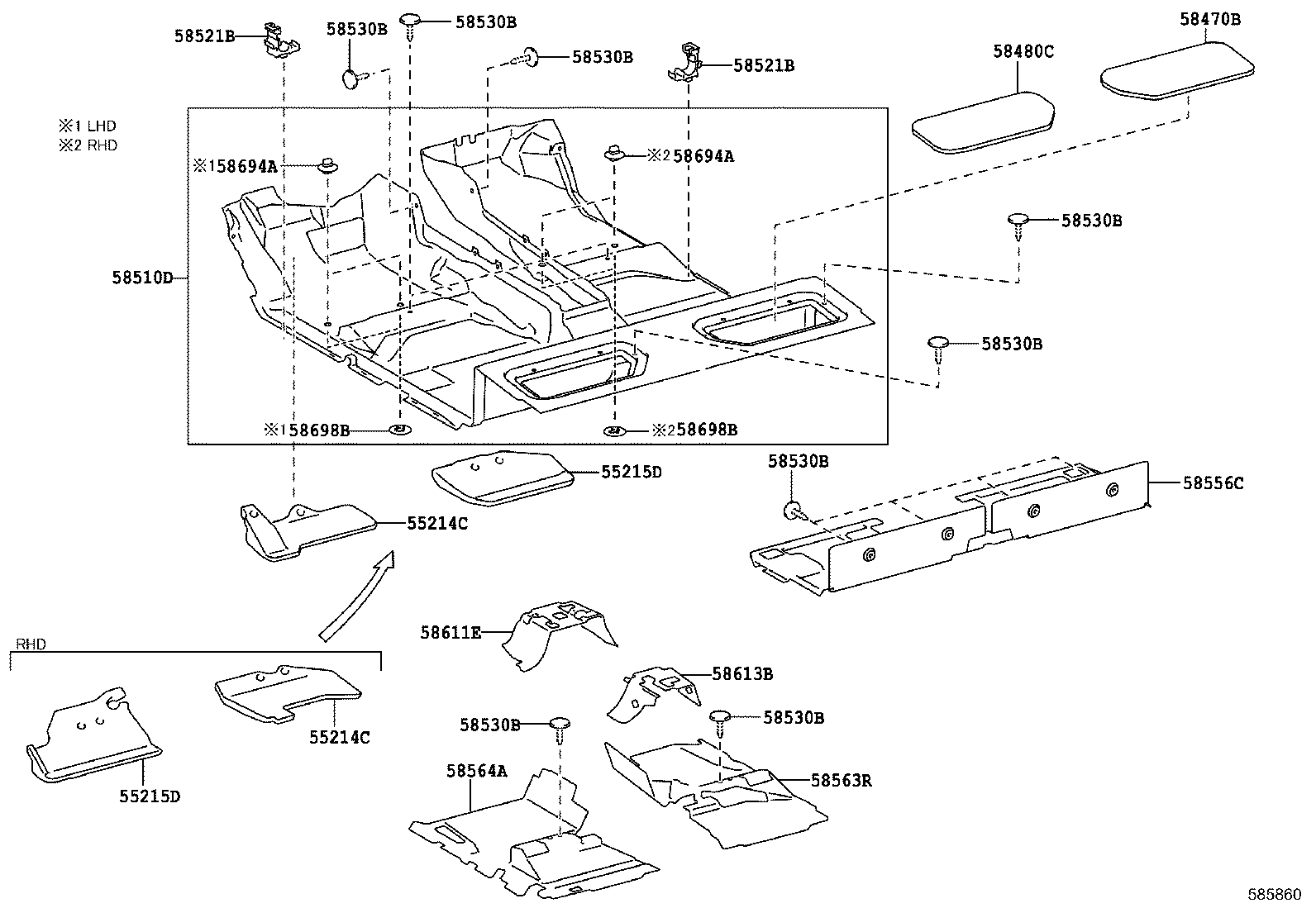

Figure 585566B 585566B 2015-06 → — Figure 585859 585859 2016-04 → — Figure 585860 585860 2016-04 → —

Part groups

PNCDescription
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
58470B Cover Assy, Seat Floor Service Hole, RH
58480C Cover Assy, Seat Floor Service Hole, LH
58510D Carpet Assy, Floor, Front
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58556C Silencer, Rear Floor
58563R Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58611E Sheet, Front Floor Silencer
58613B Sheet, Front Floor Silencer, Center
58694A Plate, Mat Set, Upper
58698B Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
