Toyota Hilux

2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe

Supported model Data version 2021-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

14 part groups · 2 illustrations

Illustrations

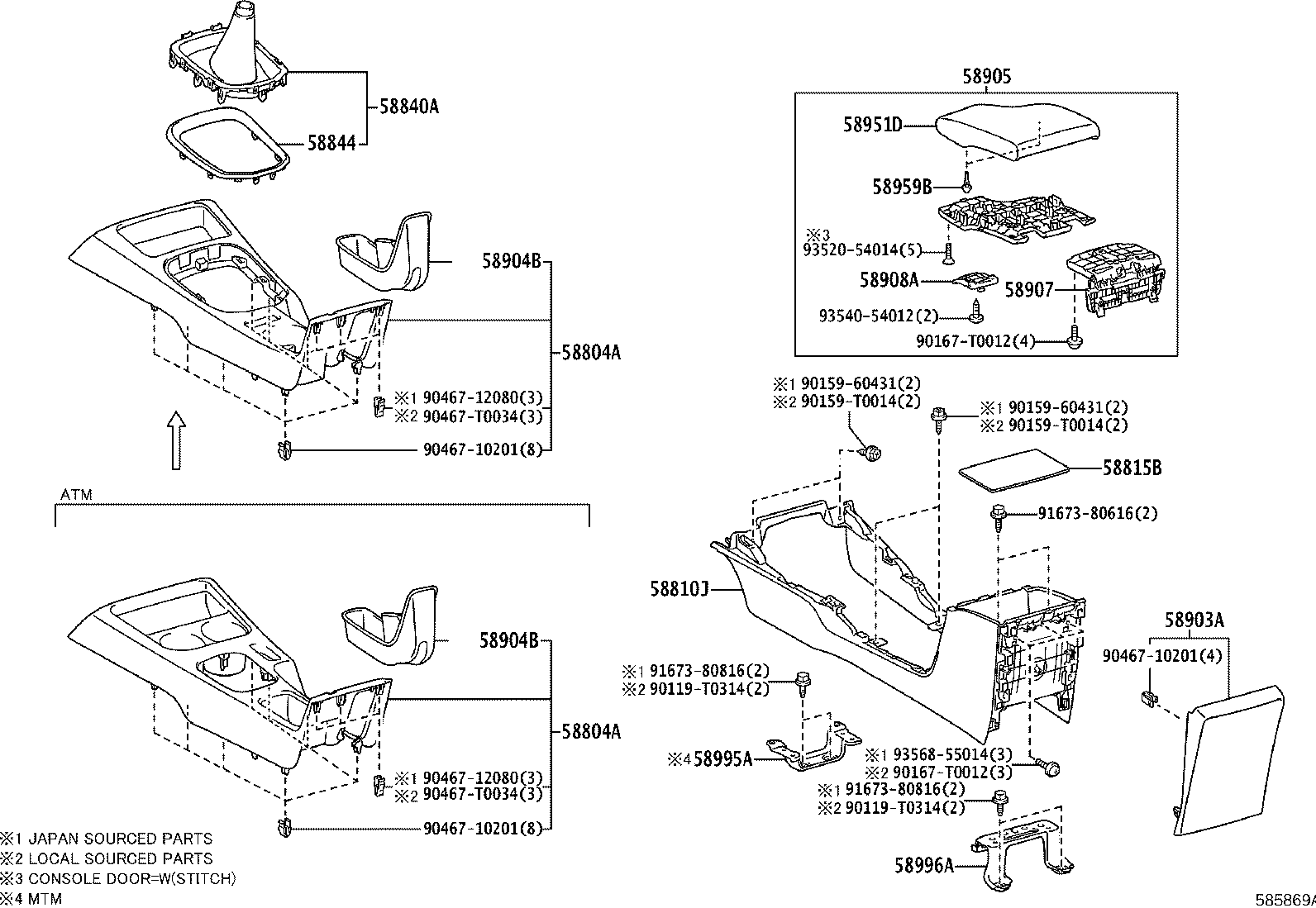

Figure 585602A 585602A 2015-06 → — Figure 585869A 585869A 2016-01 → —

Part groups

PNCDescription
58804A Panel Sub-assy, Console, Upper
58810J Box Assy, Console
58815B Carpet, Console Box
58840A Cover Assy, Shifting Hole
58844 Bezel, Console Box
58903A Panel Sub-assy, Console Rear End
58904B Cover Sub-assy, Parking Brake Hole
58905 Door Sub-assy, Console Compartment
58907 Hinge Sub-assy, Console Compartment Door
58908A Lock Sub-assy, Console Compartment Door
58951D Door, Console Compartment, Outer
58959B Cushion, Console Compartment Door
58995A Bracket, Console Box Mounting, NO.1
58996A Bracket, Console Box Mounting, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
