Toyota Hilux

2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe

Supported model Data version 2021-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

14 part groups · 3 illustrations

Illustrations

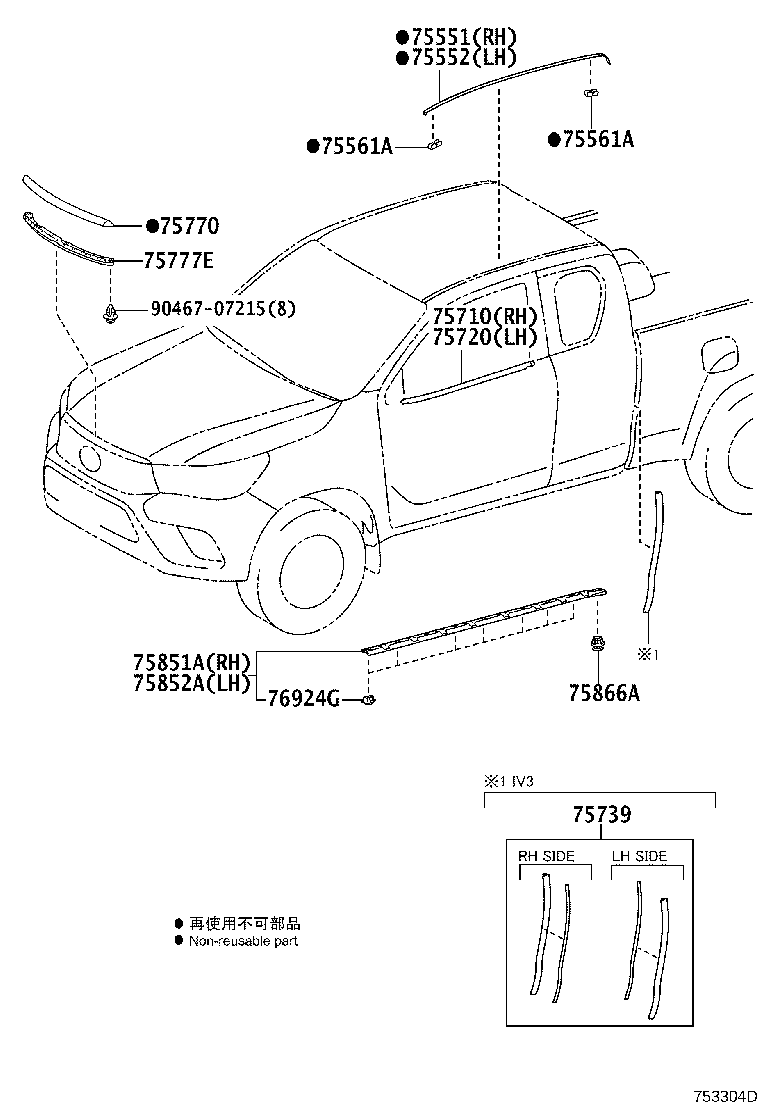

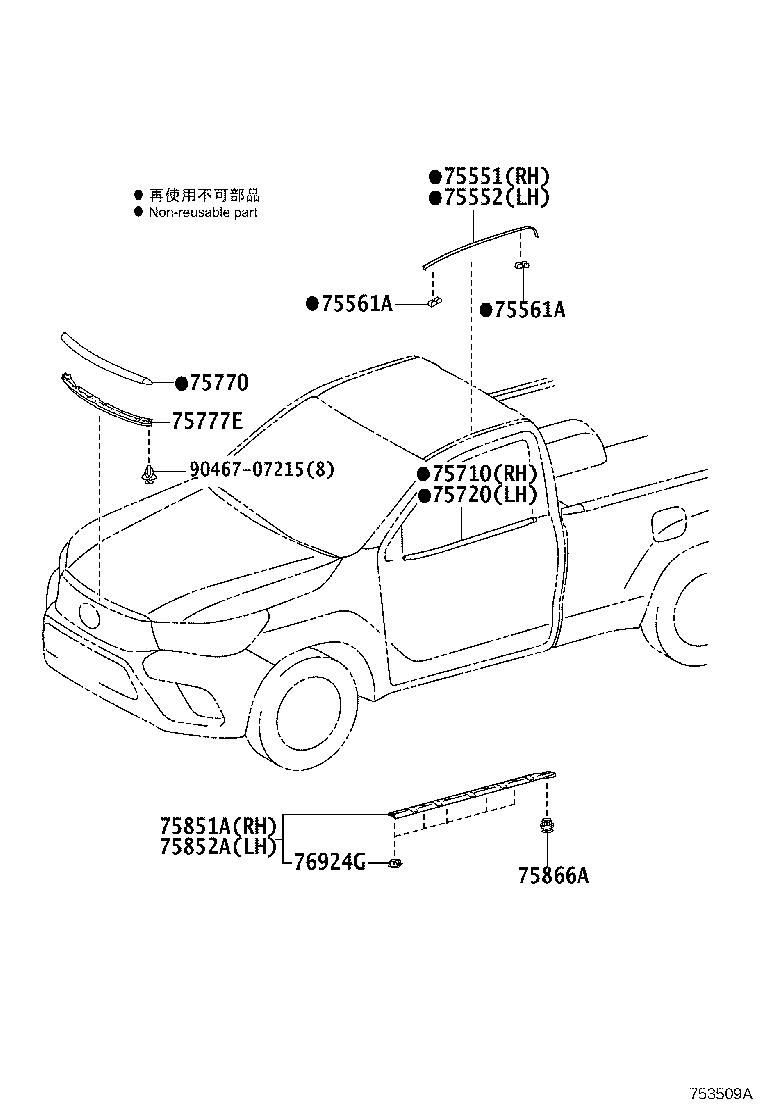

Figure 753508A 753508A 2015-06 → — Figure 753509A 753509A 2016-04 → — Figure 753304D 753304D 2016-04 → —

Part groups

PNCDescription
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75561A Clip, Roof Drip Side Finish Moulding
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75739 Moulding, Door Edge Protection
75740 Moulding Assy, Rear Door Belt, LH
75770 Moulding Assy, Hood, Front
75777E Pad, Hood Front Moulding
75851A Moulding, Rocker Panel, Front RH
75852A Moulding, Rocker Panel, Front LH
75866A Retainer, Rocker Panel Moulding
76924G Retainer, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
