Toyota Hilux
2015-06 → 2020-09 · chassis GUN12#,135 · catalogue 672590 · Europe
Supported model
Data version 2021-01

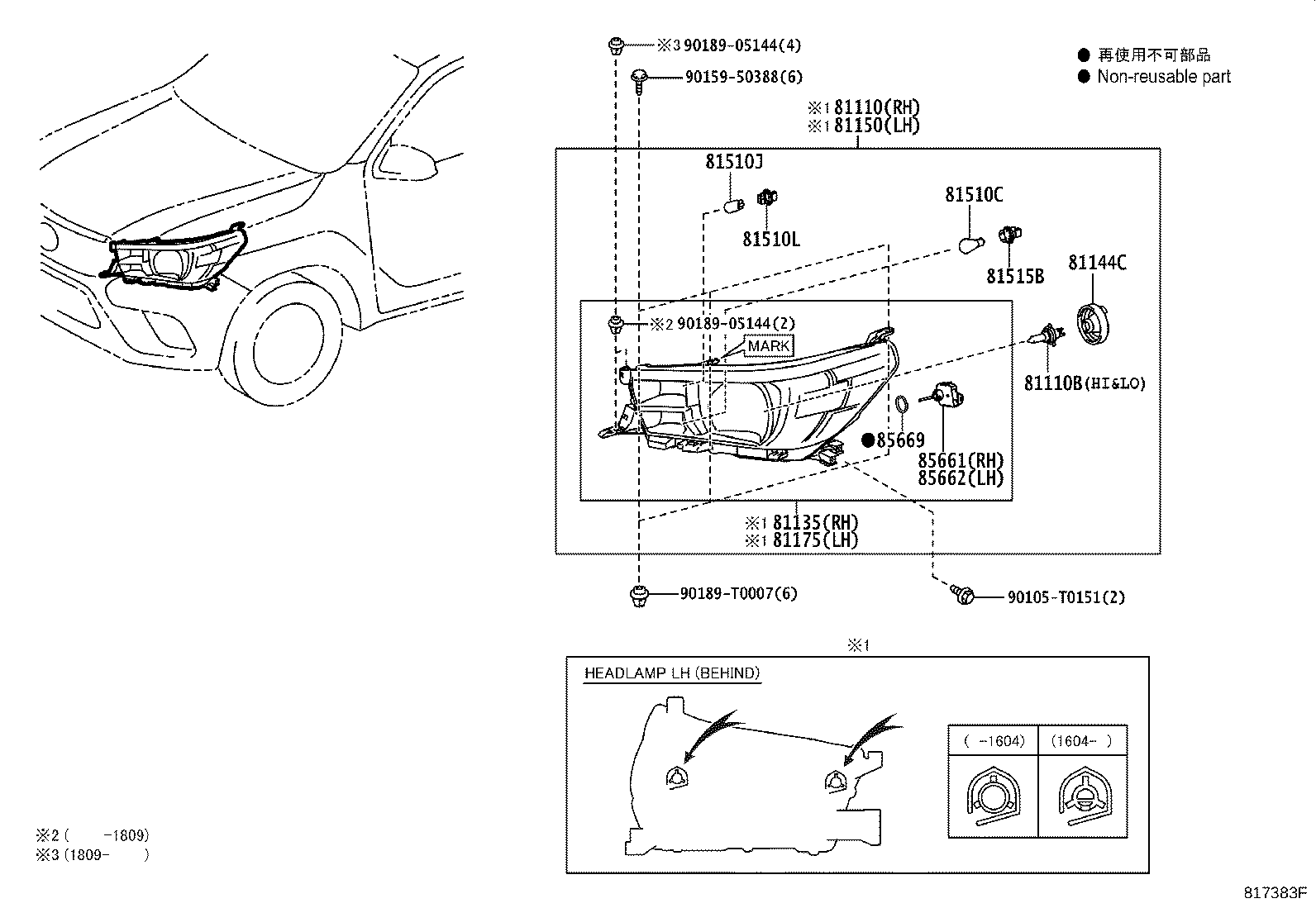

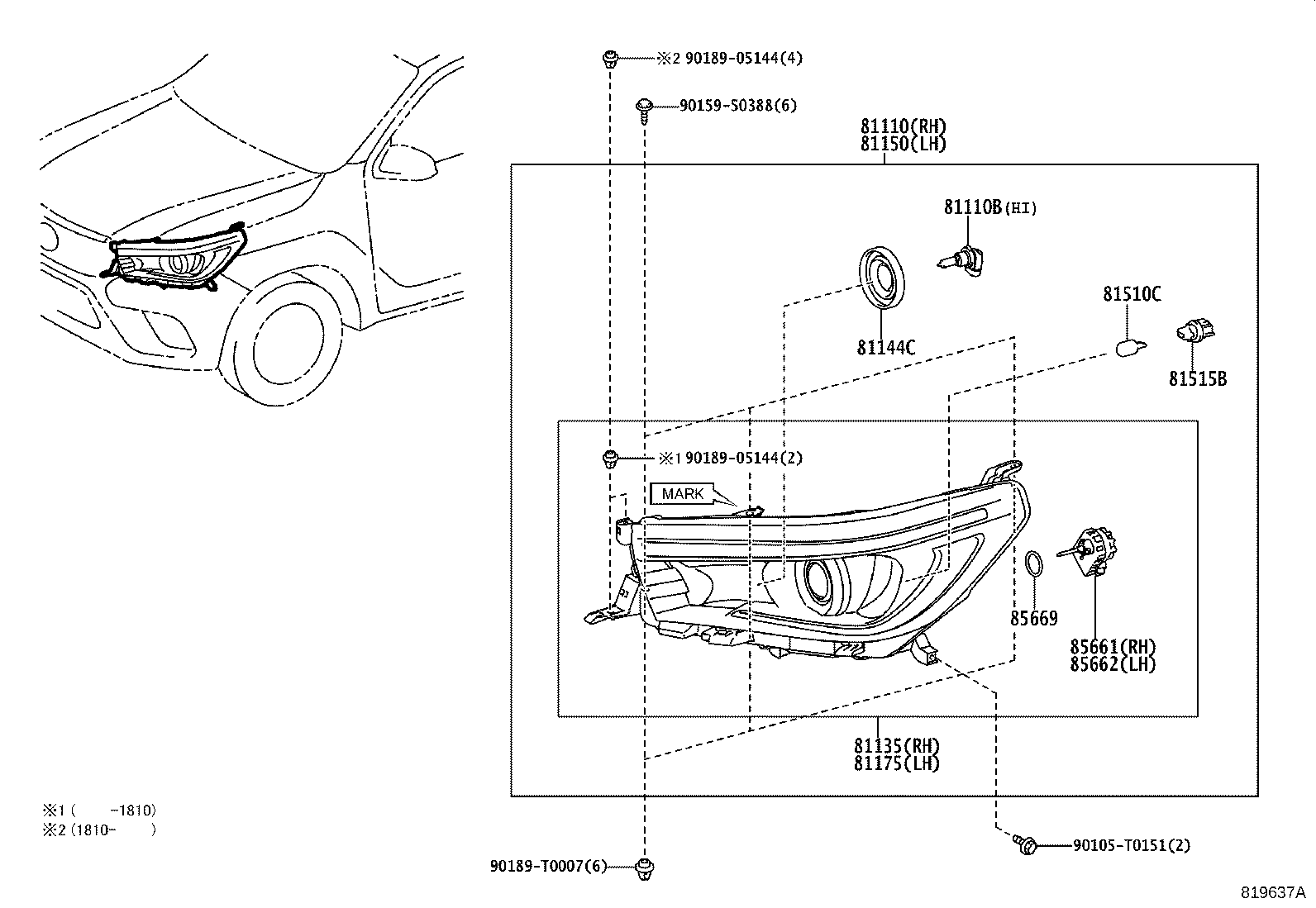

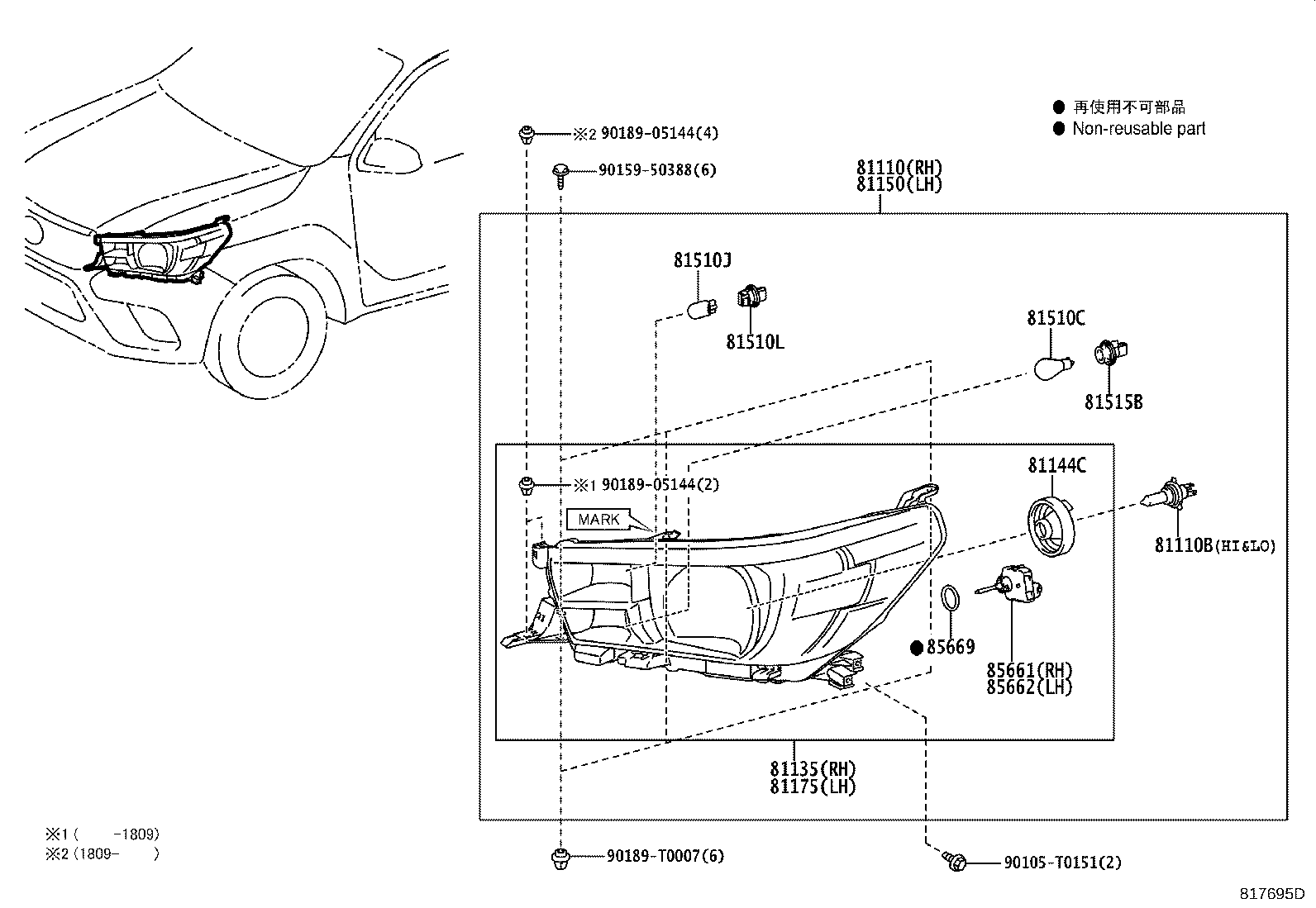

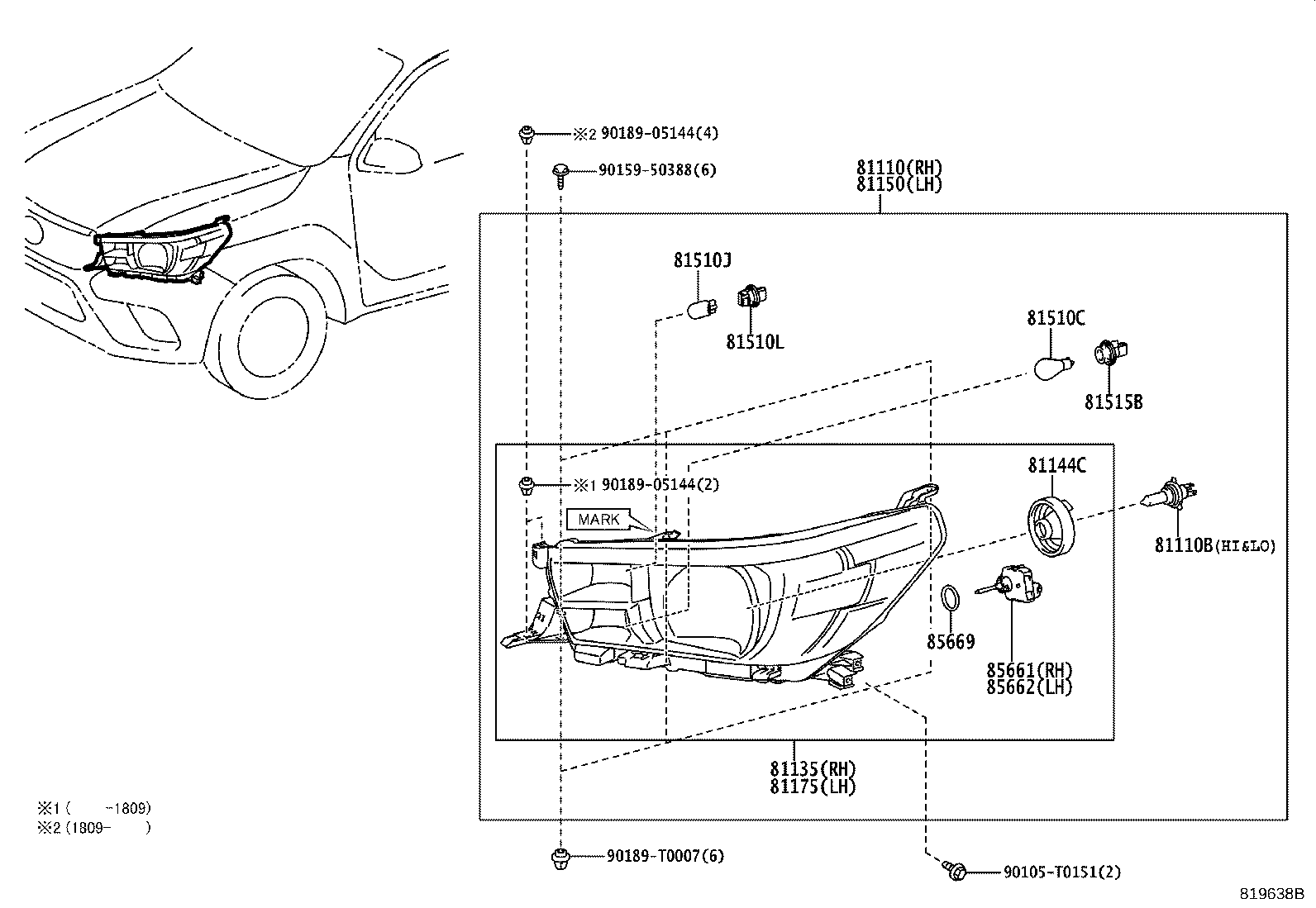

Headlamp
13 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81135 | Unit Assy, Headlamp, RH |
| 81144C | Cover, Headlamp Socket |
| 81150 | Headlamp Assy, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81510J | Bulb(FOR DAYTIME RUNNING LAMP) |
| 81510L | Socket, Daytime Running Lamp |
| 81515B | Socket, Front Turn Signal Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
