Heating & Air Conditioning - Control & Air Duct

32 part groups · 7 illustrations

Illustrations

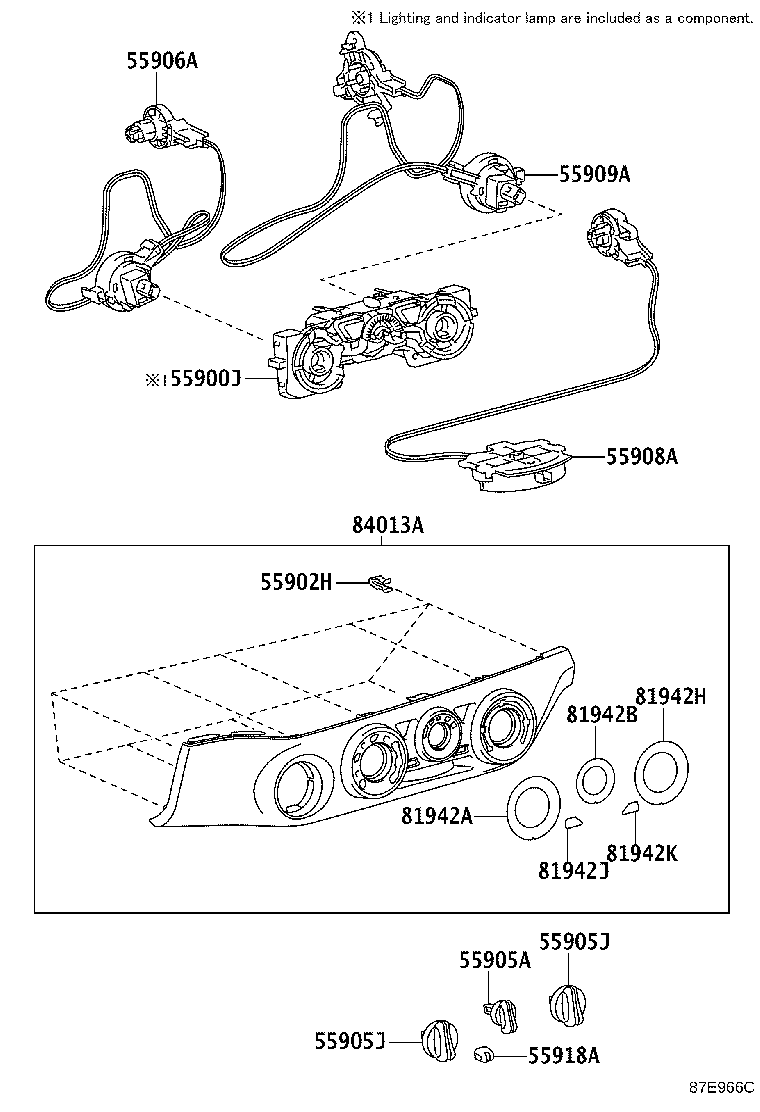

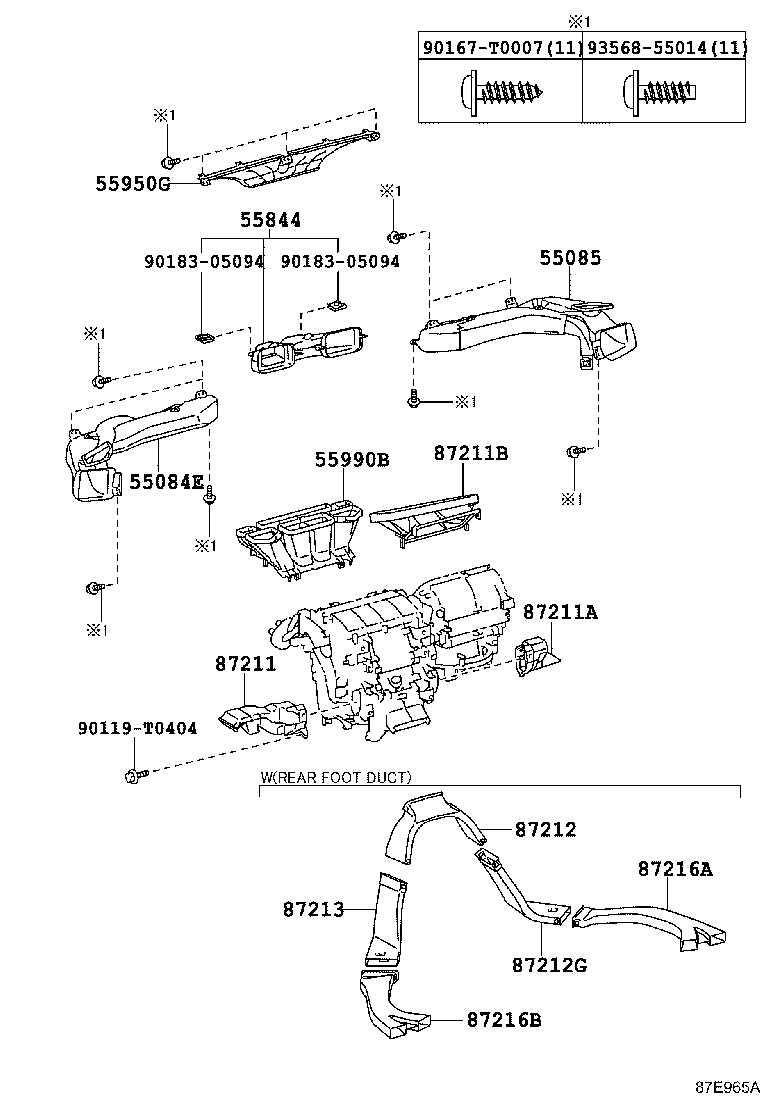

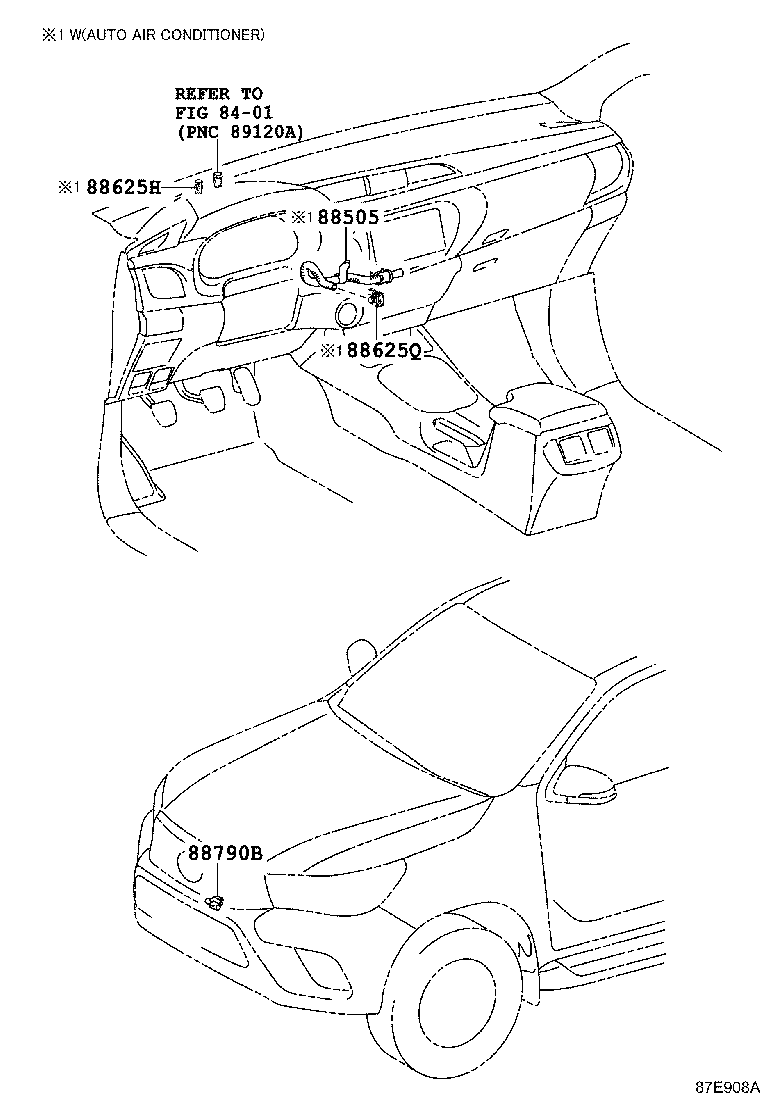

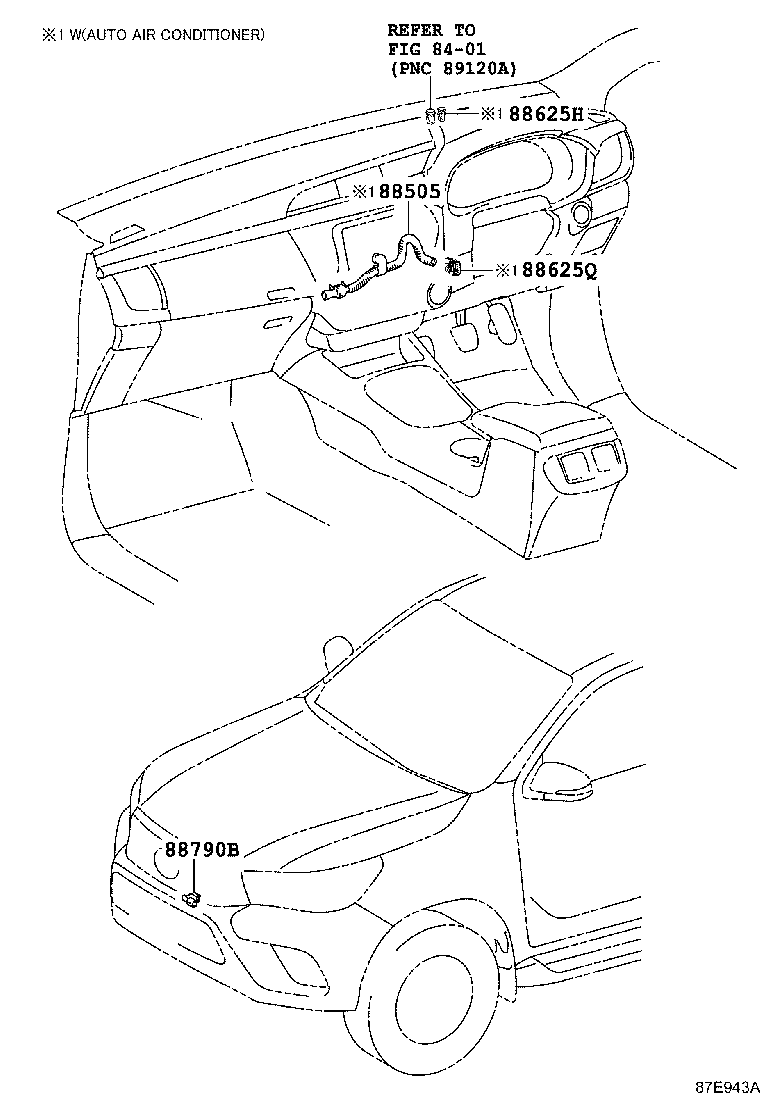

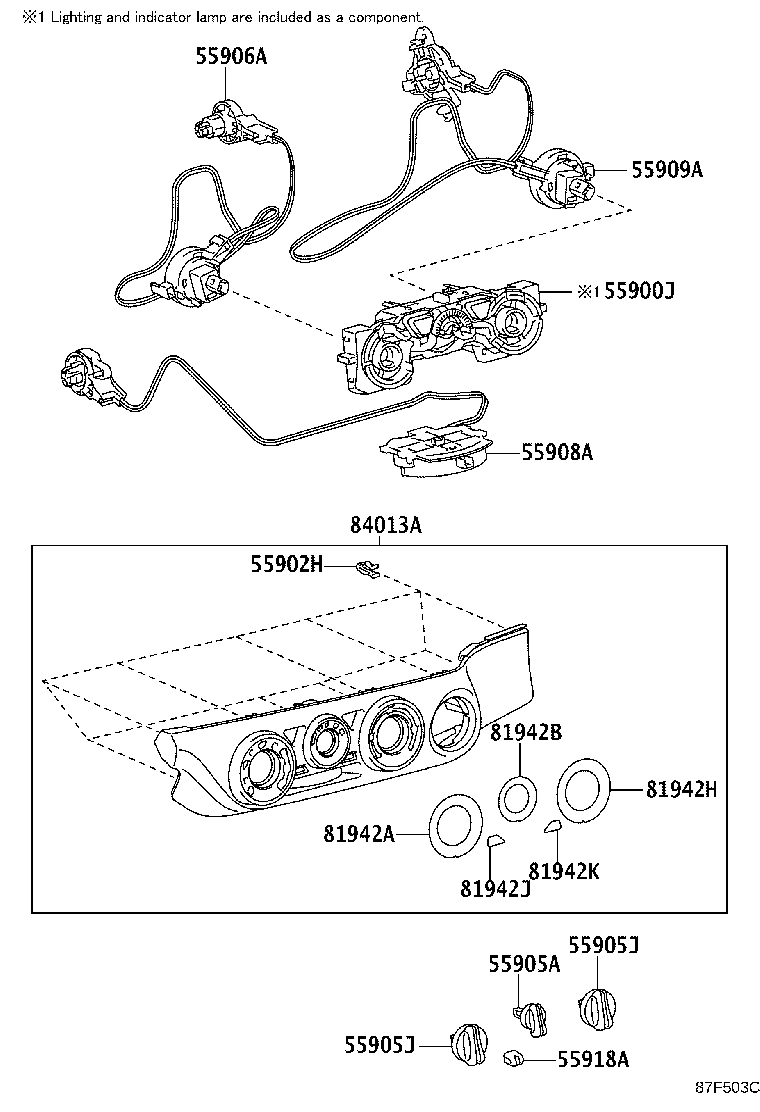

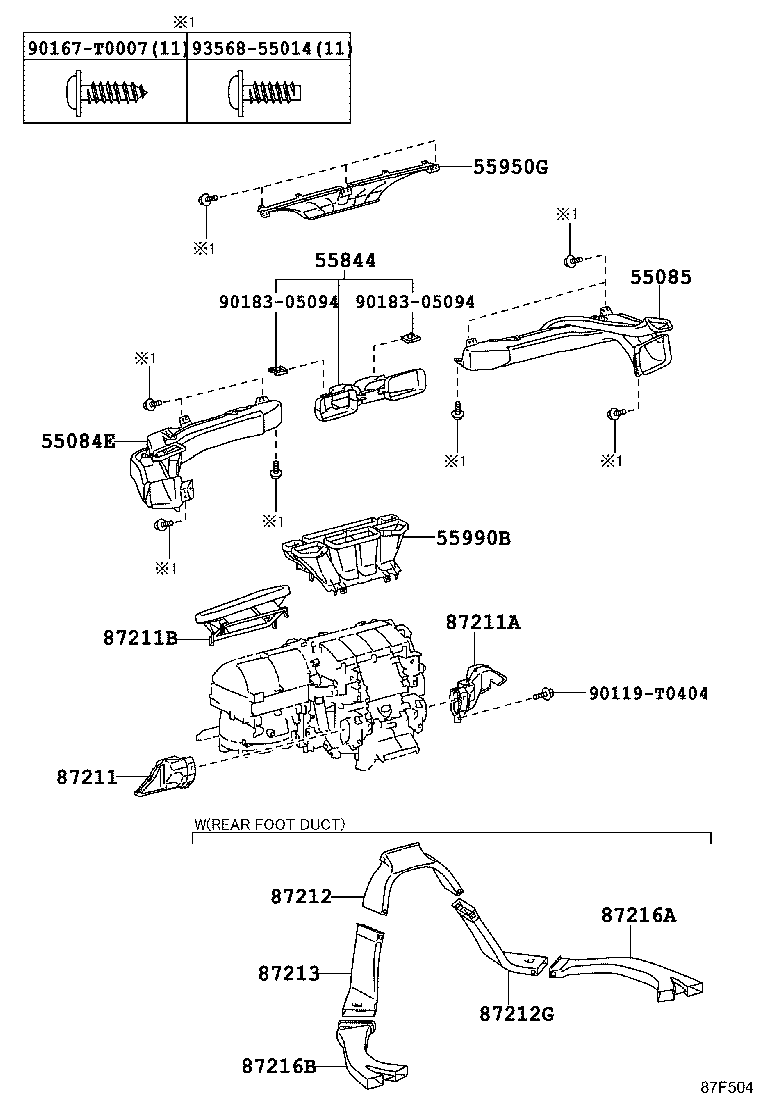

Figure 87E905B 87E905B 2015-06 → — Figure 87E966C 87E966C 2015-06 → — Figure 87F503C 87F503C 2016-04 → — Figure 87E965A 87E965A 2015-06 → — Figure 87F504 87F504 2016-04 → — Figure 87E908A 87E908A 2015-06 → — Figure 87E943A 87E943A 2016-04 → —

Part groups

PNCDescription
55084E Duct Sub-assy, Heater TO Register, NO.1
55085 Duct Sub-assy, Heater TO Register, NO.2
55844 Duct, Heater TO Register, NO.2
55900H Control Assy, Air Conditioner(AUTO)
55900J Control Assy, Air Conditioner(MANUAL)
55902H Clip(FOR AIR CONDITIONER PANEL)
55905A Knob, Heater Control
55905J Knob Sub-assy, Control
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55918A Lever, Air Inlet Damper Control
55950G Nozzle Assy, Defroster
55990B Nozzle Assy, Defroster, Lower
81942A Sheet, Heater Control Name, NO.1
81942B Sheet, Heater Control Name, NO.2
81942H Sheet, Heater Control Name, NO.3
81942J Sheet, Heater Control Name, NO.4
81942K Sheet, Heater Control Name, NO.5
84013A Panel Sub-assy, Integration
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87212G Duct, Air, Rear NO.3
87213 Duct, Air, Rear NO.2
87216A Duct, Air, Rear NO.5
87216B Duct, Air, Rear NO.4
88505 Duct Sub-assy,Air Conditioner
88625H Thermistor, Cooler (SOLAR SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
