Heating & Air Conditioning - Cooler Piping

15 part groups · 3 illustrations

Illustrations

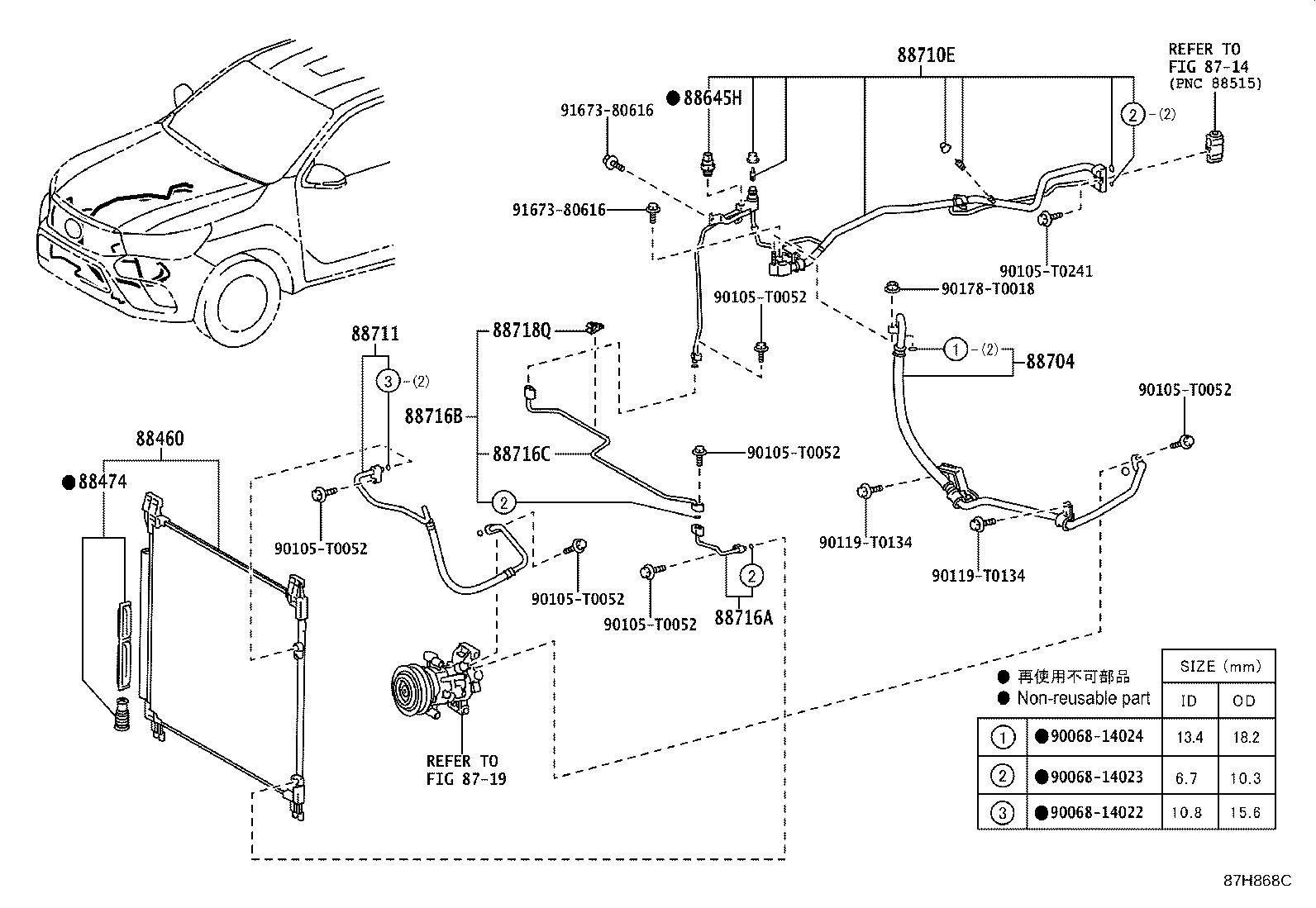

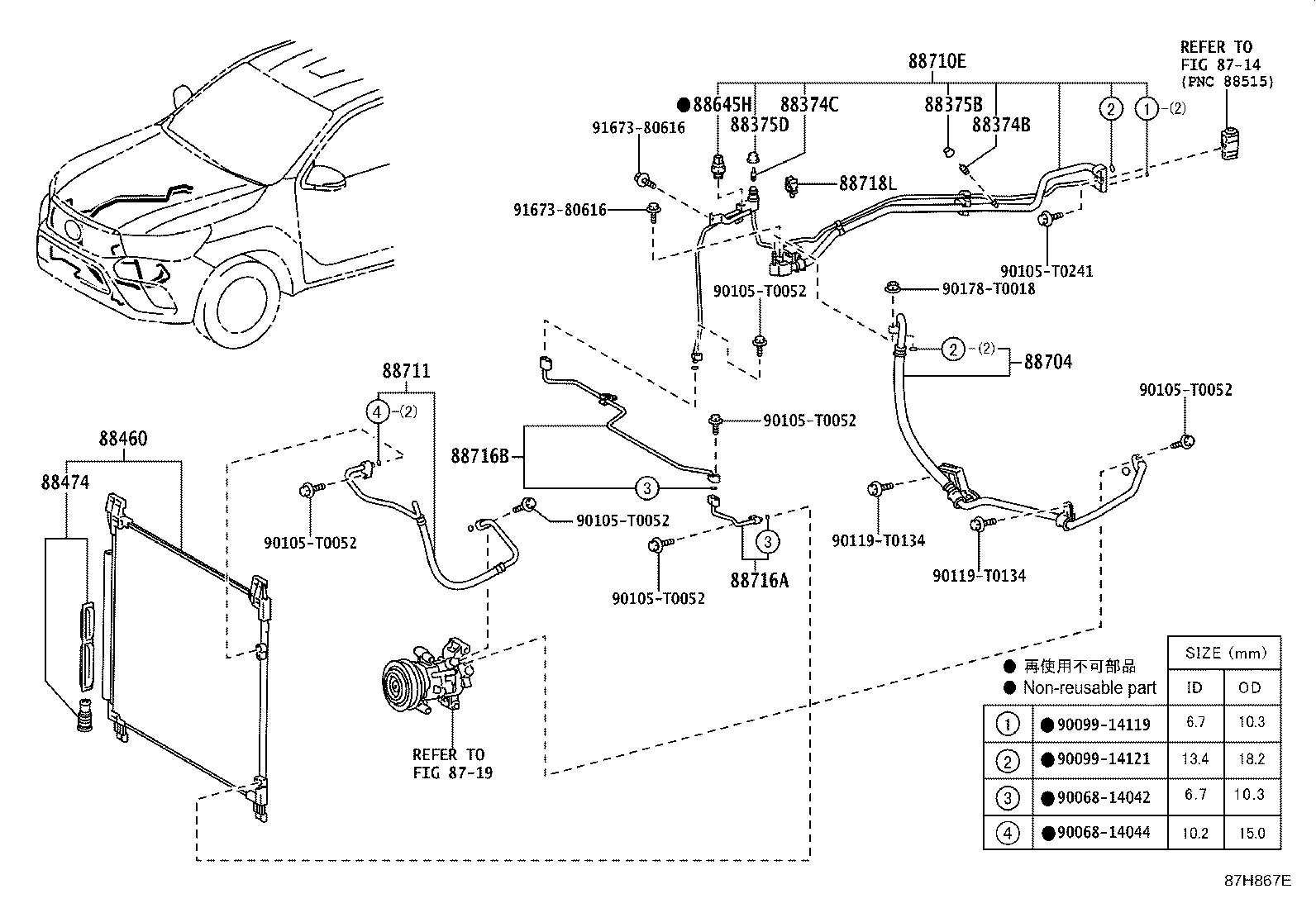

Figure 87E978D 87E978D 2015-06 → — Figure 87H867E 87H867E 2019-05 → — Figure 87H868C 87H868C 2019-06 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88645H Switch, Pressure NO.1
88704 Hose Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88718L Clamp, Piping
88718Q Clamp, Piping
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
