Toyota Hilux
2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe
Supported model
Data version 2020-08

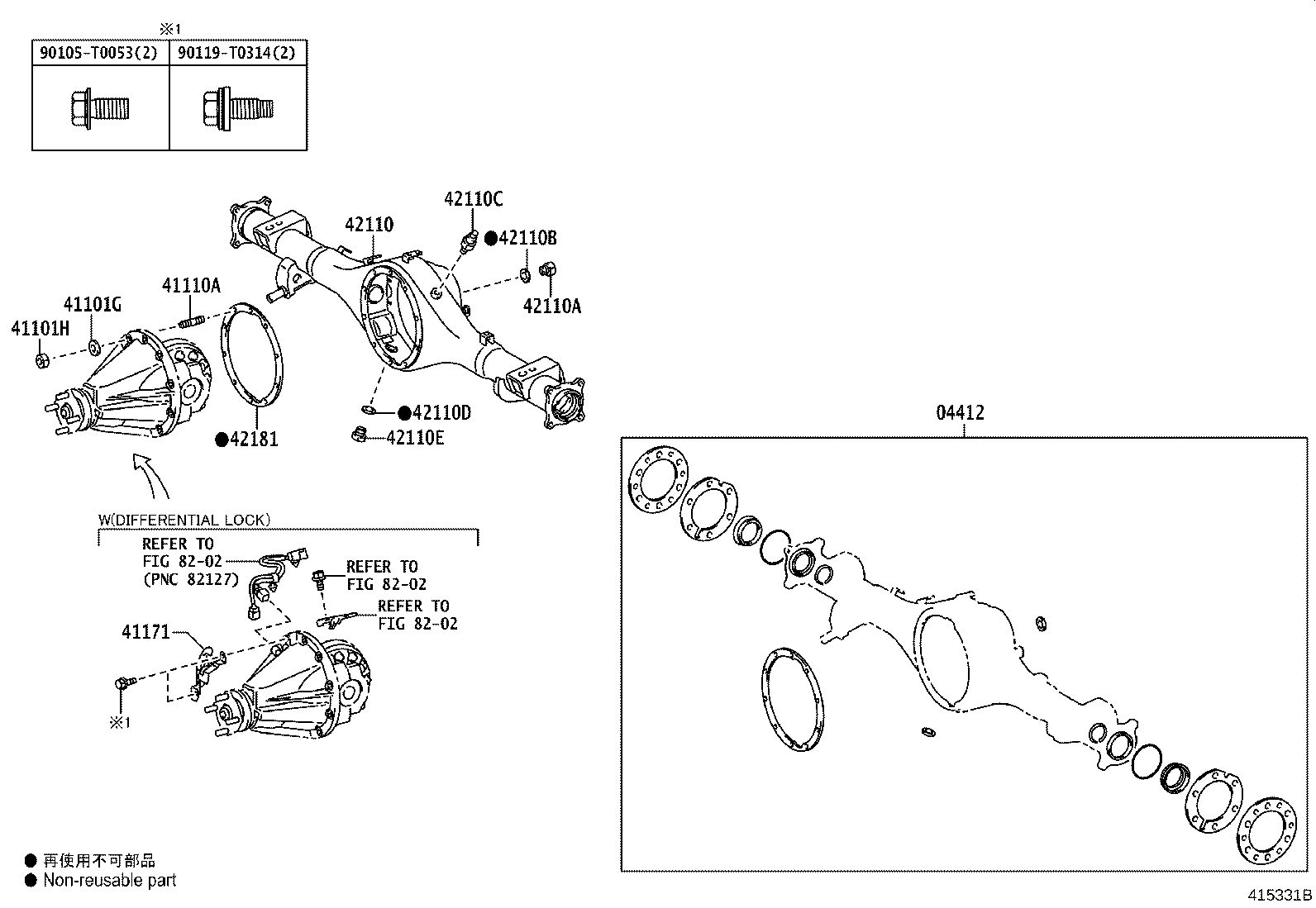

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04412 — Gasket Kit, Rear Differential Carrier | ||||
| 04412-0K540 |
Gasket Kit, Rear Differential Carrier
2020-06 → 2021-09
ended
|
GUN12#,135 | — | |
| 41101G — Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 94621-11000 |
Washer, Spring(FOR REAR DIFFERENTIAL CARRIER SET)
2020-06 → 2021-09
ended
|
GUN12#,135 | — | |
| 41101H — Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90170-T0017 |
Nut, Hexagon(FOR REAR DIFFERENTIAL CARRIER SET)
2020-06 → 2021-09
ended
|
GUN12#,135 | — | |
| 41110A — Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-10074 note |
Bolt, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET)
2020-06 → 2021-09
ended
|
GUN12#,135 | — | |
| 41171 — Protector, Differential, Rear | ||||
| 41171-0K010 note |
Protector, Differential, Rear
2020-06 → 2021-03
ended
|
GUN126 S;GUN125 THDCB;GUN135 THDCB +1 | — | |
| 41171-0K010 |
Protector, Differential, Rear
2020-06 → 2021-08
ended
|
GUN12# THDCB;GUN135 THDCB 6F | — | |
| 41171-0K020 note |
Protector, Differential, Rear
2020-09 → 2021-03
ended
|
GUN12# SADCB H;GUN135 SAXTR +1 | — | |
| 41171-0K020 |
Protector, Differential, Rear
2020-09 → 2021-09
ended
|
GUN12# (SADCB,SAXTR) H;GUN135 (SADCB,SAXTR) +1 | — | |
| 41171-0K020 note |
Protector, Differential, Rear
2020-09 → 2021-09
ended
|
.(L,S) GUN135 SASCB CBU +4 | — | |
| 42110 — Housing Assy, Rear Axle | ||||
| 42110-KK110 note |
Housing Assy, Rear Axle
2020-06 → 2021-08
ended
|
GUN126 S | — | |
| 42110-KK110 |
Housing Assy, Rear Axle
2020-06 → 2021-09
ended
|
GUN125,135;GUN126 SADCB,SAXTR | — | |
| 42110-KK110 note |
Housing Assy, Rear Axle
2020-06 → 2021-08
ended
|
GUN126 THDCB | — | |
| 42110-KK110 note |
Housing Assy, Rear Axle
2020-06 → 2021-08
ended
|
GUN126 S | — | |
| 42110-KK110 note |
Housing Assy, Rear Axle
2020-06 → 2021-08
ended
|
GUN126 THDCB | — | |
| 42110-KK190 |
Housing Assy, Rear Axle
2020-06 → 2021-08
ended
|
GUN126 THDCB | — | |
| 42110-KK190 note |
Housing Assy, Rear Axle
2020-06 → 2021-08
ended
|
GUN125 THDCB 6F | — | |
| 42110-KK190 note |
Housing Assy, Rear Axle
2020-06 → 2021-08
ended
|
GUN125 THDCB 6F | — | |
| 42110-KK190 note |
Housing Assy, Rear Axle
2020-06 → 2021-08
ended
|
GUN125 THDCB | — | |
| 42110-KK190 note |
Housing Assy, Rear Axle
2020-06 → 2021-08
ended
|
GUN125 THDCB | — | |
| 42110A — Plug (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
Plug (FOR REAR AXLE HOUSING FILLER)
2020-06 → 2021-09
ended
|
GUN12#,135 | — | |
| 42110B — Gasket (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING FILLER PLUG)
2020-06 → 2021-09
ended
|
GUN12#,135 | — | |
| 42110C — Plug, Breather (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
Plug, Breather (FOR REAR AXLE HOUSING)
2020-06 → 2021-09
ended
|
GUN12#,135 | — | |
| 42110D — Gasket (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
Gasket (FOR REAR AXLE HOUSING DRAIN PLUG)
2020-06 → 2021-09
ended
|
GUN12#,135 | — | |
| 42110E — Plug (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
Plug (FOR REAR AXLE HOUSING DRAIN)
2020-06 → 2021-09
ended
|
GUN12#,135 | — | |
| 42181 — Gasket, Rear Differential Carrier | ||||
| 42181-KK010 |
Gasket, Rear Differential Carrier
2020-06 → 2021-09
ended
|
GUN12#,135 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
