Toyota Hilux
2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe
Supported model
Data version 2020-08

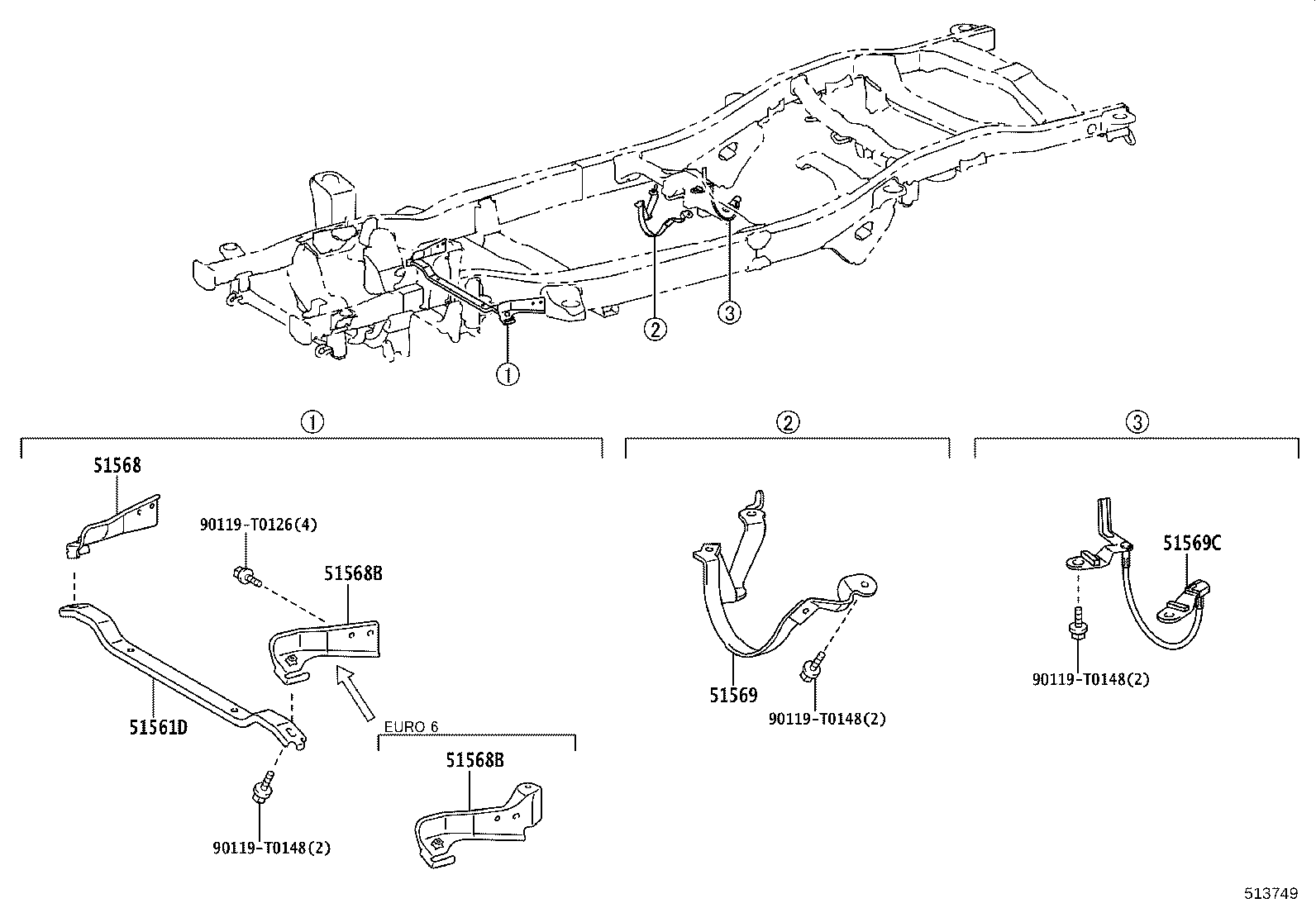

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 51561D — Guard, Propeller Shaft | ||||
| 51569-KK010 |
Guard, Propeller Shaft
2020-06 → 2021-08
ended
|
GUN12# THDCB | — | |
| 51569-KK080 |
Guard, Propeller Shaft
2020-09 → 2021-09
ended
|
GUN12# SADCB,SASCB,SAXTR | — | |
| 51568 — Bracket, Propeller Shaft Guard | ||||
| 51568-KK020 |
Bracket, Propeller Shaft Guard
2020-06 → 2021-09
ended
|
GUN12# | — | |
| 51568B — Bracket, Propeller Shaft Guard | ||||
| 51568-KK030 |
Bracket, Propeller Shaft Guard
2020-06 → 2021-08
ended
|
GUN126 THDCB | — | |
| 51568-KK030 note |
Bracket, Propeller Shaft Guard
2020-06 → 2021-08
ended
|
GUN125 THDCB 6F | — | |
| 51568-KK040 note |
Bracket, Propeller Shaft Guard
2020-06 → 2021-08
ended
|
GUN126 THDCB | — | |
| 51568-KK040 note |
Bracket, Propeller Shaft Guard
2020-06 → 2021-08
ended
|
GUN126 THDCB | — | |
| 51568-KK040 note |
Bracket, Propeller Shaft Guard
2020-06 → 2021-08
ended
|
GUN126 THDCB | — | |
| 51568-KK040 |
Bracket, Propeller Shaft Guard
2020-06 → 2021-09
ended
|
GUN125;GUN126 SADCB,SAXTR | — | |
| 51569 — Guard, Propeller Shaft | ||||
| 51569-KK020 |
Guard, Propeller Shaft
2020-06 → 2021-09
ended
|
GUN12# | — | |
| 51569-KK060 |
Guard, Propeller Shaft
2020-06 → 2021-09
ended
|
GUN135 | — | |
| 51569C — Guard, Propeller Shaft | ||||
| 51569-0K020 |
Guard, Propeller Shaft
2020-06 → 2021-09
ended
|
GUN12# | — | |
| 51569-KK050 |
Guard, Propeller Shaft
2020-06 → 2021-09
ended
|
GUN135 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
