Toyota Hilux

2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

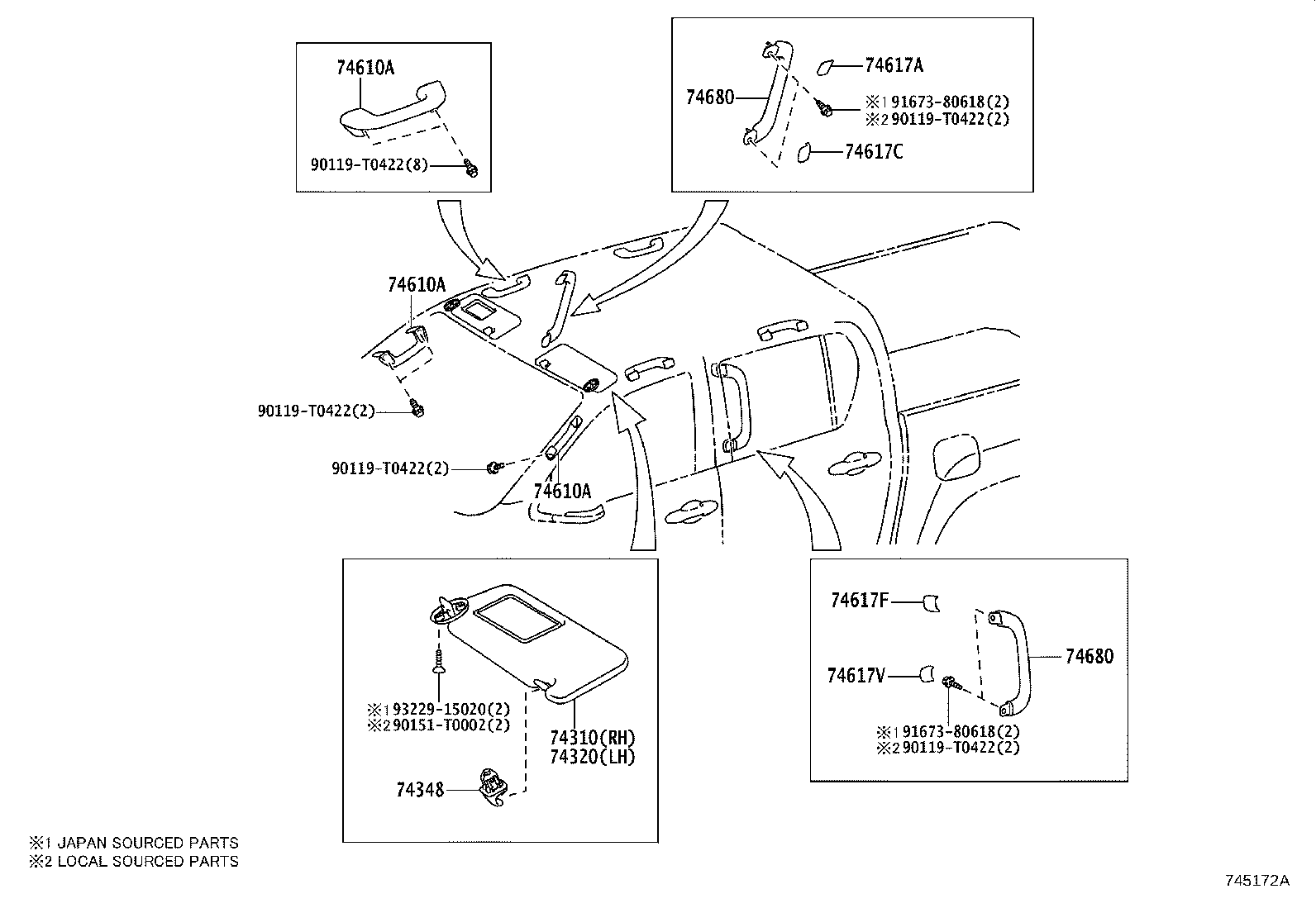

Exploded illustration 745172A 74610A — GRIP SUB-ASSY, ASSIST (9 parts) 74610A — GRIP SUB-ASSY, ASSIST (9 parts) 74610A — GRIP SUB-ASSY, ASSIST (9 parts) 74348 — HOLDER, VISOR (6 parts) 74617V — PLUG, ASSIST GRIP (6 parts) 74617F — PLUG, ASSIST GRIP (6 parts) 74617A — PLUG, ASSIST GRIP (6 parts) 74617C — PLUG, ASSIST GRIP (6 parts) 90119T0422 — not listed in this catalogue 90119T0422 — not listed in this catalogue 90119T0422 — not listed in this catalogue 90119T0422 — not listed in this catalogue 9167380618 — not listed in this catalogue 90119T0422 — not listed in this catalogue 9167380618 — not listed in this catalogue 9322915020 — not listed in this catalogue 90151T0002 — not listed in this catalogue 74320 — VISOR ASSY, LH (6 parts) 74310 — VISOR ASSY, RH (7 parts) 74680 — GRIP ASSY, PILLAR ASSIST (12 parts) 74680 — GRIP ASSY, PILLAR ASSIST (12 parts)
745172A · 12 callouts, 9 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
64 parts on this figure
Part number Description Fitment Price
74310 — Visor Assy, RH
74310-0KC30-B0 note Visor Assy, RH
2020-09 → 2021-09 ended
GUN125 RHD S —
74310-0KC30-B0 note Visor Assy, RH
2020-09 → 2021-09 ended
GUN12# RHD H —
74310-0KC30-C0 note Visor Assy, RH
2020-09 → 2021-09 ended
GUN12# RHD H —
74310-0KF10-B0 note Visor Assy, RH
2020-09 → 2021-09 ended
GUN125,135 LHD (SADCB,SASCB,SAXTR) (L,S) —
74310-0KJ00-B0 note Visor Assy, RH
2020-06 → 2021-09 ended
GUN135 H;GUN12#,135 THDCB S —
74310-0KJ00-B0 note Visor Assy, RH
2020-06 → 2021-09 ended
GUN12# LHD H —
74310-0KJ00-C0 note Visor Assy, RH
2020-06 → 2021-09 ended
GUN12# LHD H —
74320 — Visor Assy, LH
74320-0KA90-B0 note Visor Assy, LH
2020-09 → 2021-09 ended
GUN125 RHD S —
74320-0KB00-B0 note Visor Assy, LH
2020-09 → 2021-09 ended
GUN12# RHD H —
74320-0KB00-C0 note Visor Assy, LH
2020-09 → 2021-09 ended
GUN12# RHD H —
74320-0KF60-B0 note Visor Assy, LH
2020-06 → 2021-09 ended
GUN12# LHD H —
74320-0KF60-B0 note Visor Assy, LH
2020-06 → 2021-09 ended
GUN135;GUN12# LHD (L,S) —
74320-0KF60-C0 note Visor Assy, LH
2020-06 → 2021-09 ended
GUN12# LHD H —
74348 — Holder, Visor
74348-0K070-B0 note Holder, Visor
2020-06 → 2021-08 ended
GUN12# THDCB H —
74348-0K070-B0 note Holder, Visor
2020-06 → 2021-08 ended
GUN12#,135 THDCB S —
74348-0K070-C0 note Holder, Visor
2020-06 → 2021-08 ended
GUN12# THDCB H —
74348-0K080-B0 note Holder, Visor
2020-09 → 2021-09 ended
GUN12# (SADCB,SAXTR) H —
74348-0K080-B0 note Holder, Visor
2020-09 → 2021-09 ended
GUN135 SADCB,SASCB,SAXTR;GUN125 (SADCB,SASCB,SAXTR) (L,S) —
74348-0K080-C0 note Holder, Visor
2020-09 → 2021-09 ended
GUN12# (SADCB,SAXTR) H —
74610A — Grip Sub-assy, Assist
74603-0K070-B0 note Grip Sub-assy, Assist
2020-06 → 2021-08 ended
GUN12# THDCB H —
74603-0K070-B0 note Grip Sub-assy, Assist
2020-06 → 2021-08 ended
GUN12#,135 THDCB S —
74603-0K070-C0 note Grip Sub-assy, Assist
2020-06 → 2021-08 ended
GUN12# THDCB H —
74603-KK010-B0 note Grip Sub-assy, Assist
2020-09 → 2021-09 ended
GUN12# SAXTR H —
74603-KK010-B0 note Grip Sub-assy, Assist
2020-09 → 2021-09 ended
GUN125,135 (SASCB,SAXTR) (L,S) —
74603-KK010-B0 note Grip Sub-assy, Assist
2020-09 → 2021-09 ended
GUN12# SADCB H —
74603-KK010-B0 note Grip Sub-assy, Assist
2020-09 → 2021-09 ended
GUN135 SADCB;GUN125 SADCB (L,S) —
74603-KK010-C0 note Grip Sub-assy, Assist
2020-09 → 2021-09 ended
GUN12# SAXTR H —
74603-KK010-C0 note Grip Sub-assy, Assist
2020-09 → 2021-09 ended
GUN12# SADCB H —
74617A — Plug, Assist Grip
74637-0K010-B0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12# THDCB H —
74637-0K010-B0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12#,135 THDCB S —
74637-0K010-C0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12# THDCB H —
74637-KK010-B0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN135 SADCB;GUN125 SADCB (L,S) —
74637-KK010-B0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN12# SADCB H —
74637-KK010-C0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN12# SADCB H —
74617C — Plug, Assist Grip
74637-0K020-B0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12# THDCB H —
74637-0K020-B0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12#,135 THDCB S —
74637-0K020-C0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12# THDCB H —
74637-KK020-B0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN12# SADCB H —
74637-KK020-B0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN135 SADCB;GUN125 SADCB (L,S) —
74637-KK020-C0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN12# SADCB H —
74617F — Plug, Assist Grip
74638-0K010-B0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12# THDCB H —
74638-0K010-B0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12#,135 THDCB S —
74638-0K010-C0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12# THDCB H —
74638-KK010-B0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN12# SADCB H —
74638-KK010-B0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN135 SADCB;GUN125 SADCB (L,S) —
74638-KK010-C0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN12# SADCB H —
74617V — Plug, Assist Grip
74638-0K020-B0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12# THDCB H —
74638-0K020-B0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12#,135 THDCB S —
74638-0K020-C0 note Plug, Assist Grip
2020-06 → 2021-08 ended
GUN12# THDCB H —
74638-KK020-B0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN12# SADCB H —
74638-KK020-B0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN135 SADCB;GUN125 SADCB (L,S) —
74638-KK020-C0 note Plug, Assist Grip
2020-09 → 2021-09 ended
GUN12# SADCB H —
74680 — Grip Assy, Pillar Assist
74680-0K010-B0 note Grip Assy, Pillar Assist
2020-06 → 2021-08 ended
GUN12# THDCB H —
74680-0K010-B0 note Grip Assy, Pillar Assist
2020-06 → 2021-08 ended
GUN12#,135 THDCB S —
74680-0K010-C0 note Grip Assy, Pillar Assist
2020-06 → 2021-08 ended
GUN12# THDCB H —
74680-0K020-B0 note Grip Assy, Pillar Assist
2020-06 → 2021-08 ended
GUN12# THDCB H —
74680-0K020-B0 note Grip Assy, Pillar Assist
2020-06 → 2021-08 ended
GUN12#,135 THDCB S —
74680-0K020-C0 note Grip Assy, Pillar Assist
2020-06 → 2021-08 ended
GUN12# THDCB H —
74680-KK010-B0 note Grip Assy, Pillar Assist
2020-09 → 2021-09 ended
GUN12# SADCB H —
74680-KK010-B0 note Grip Assy, Pillar Assist
2020-09 → 2021-09 ended
GUN135 SADCB;GUN125 SADCB (L,S) —
74680-KK010-C0 note Grip Assy, Pillar Assist
2020-09 → 2021-09 ended
GUN12# SADCB H —
74680-KK020-B0 note Grip Assy, Pillar Assist
2020-09 → 2021-09 ended
GUN12# SADCB H —
74680-KK020-B0 note Grip Assy, Pillar Assist
2020-09 → 2021-09 ended
GUN135 SADCB;GUN125 SADCB (L,S) —
74680-KK020-C0 note Grip Assy, Pillar Assist
2020-09 → 2021-09 ended
GUN12# SADCB H —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
