Toyota Hilux

2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 2 illustrations

Illustrations

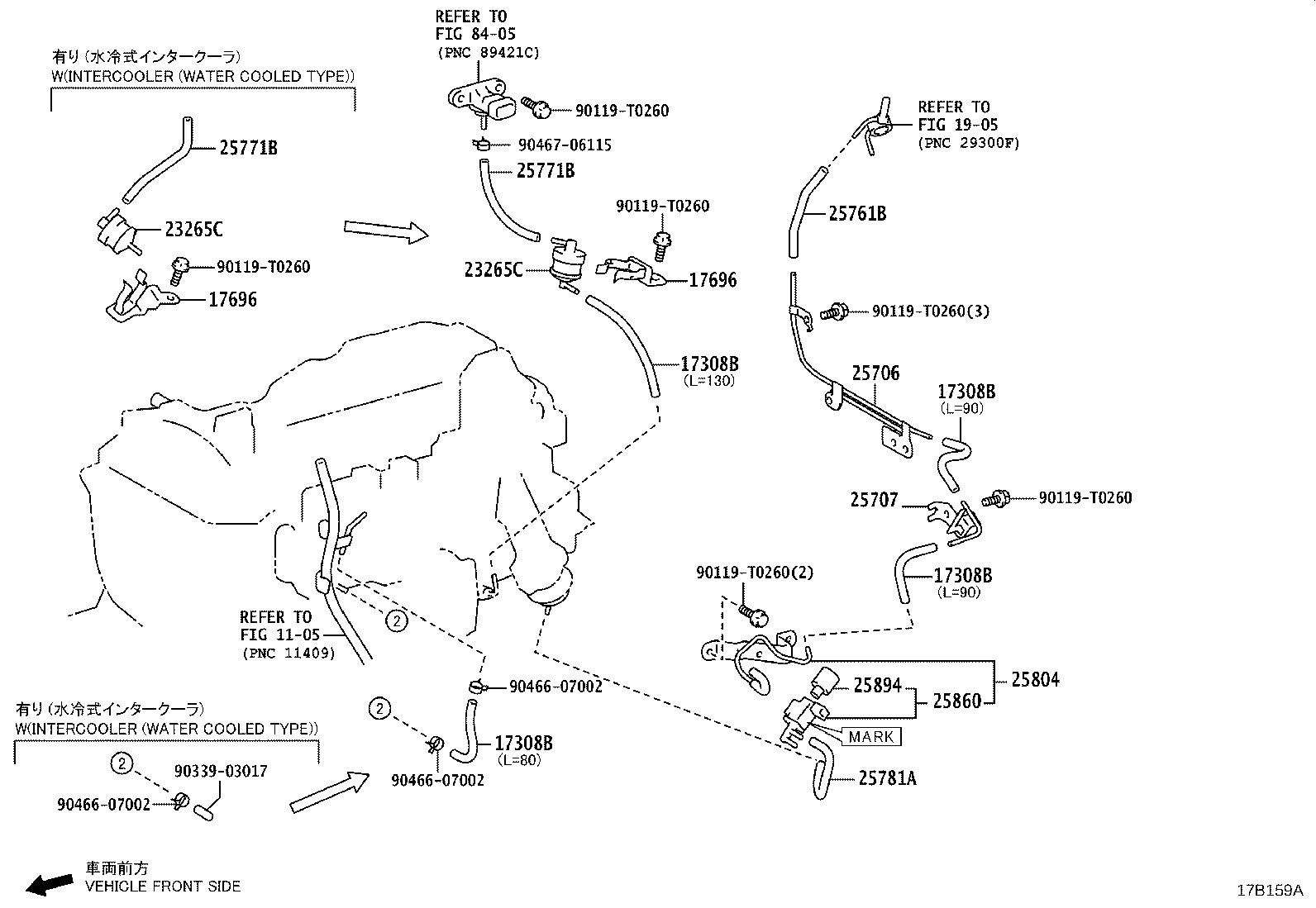

Figure 17B158A 17B158A 2020-06 → — Figure 17B159A 17B159A 2020-06 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17341P Hose, Air
17578B Clamp, Pipe
17696 Bracket, Gas Filter
23265C Filter, Gas
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25761B Hose, Vaccum Transmitting, NO.1
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25894 Filter, NO.1
89639E Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
