Toyota Hilux

2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

7 part groups · 2 illustrations

Illustrations

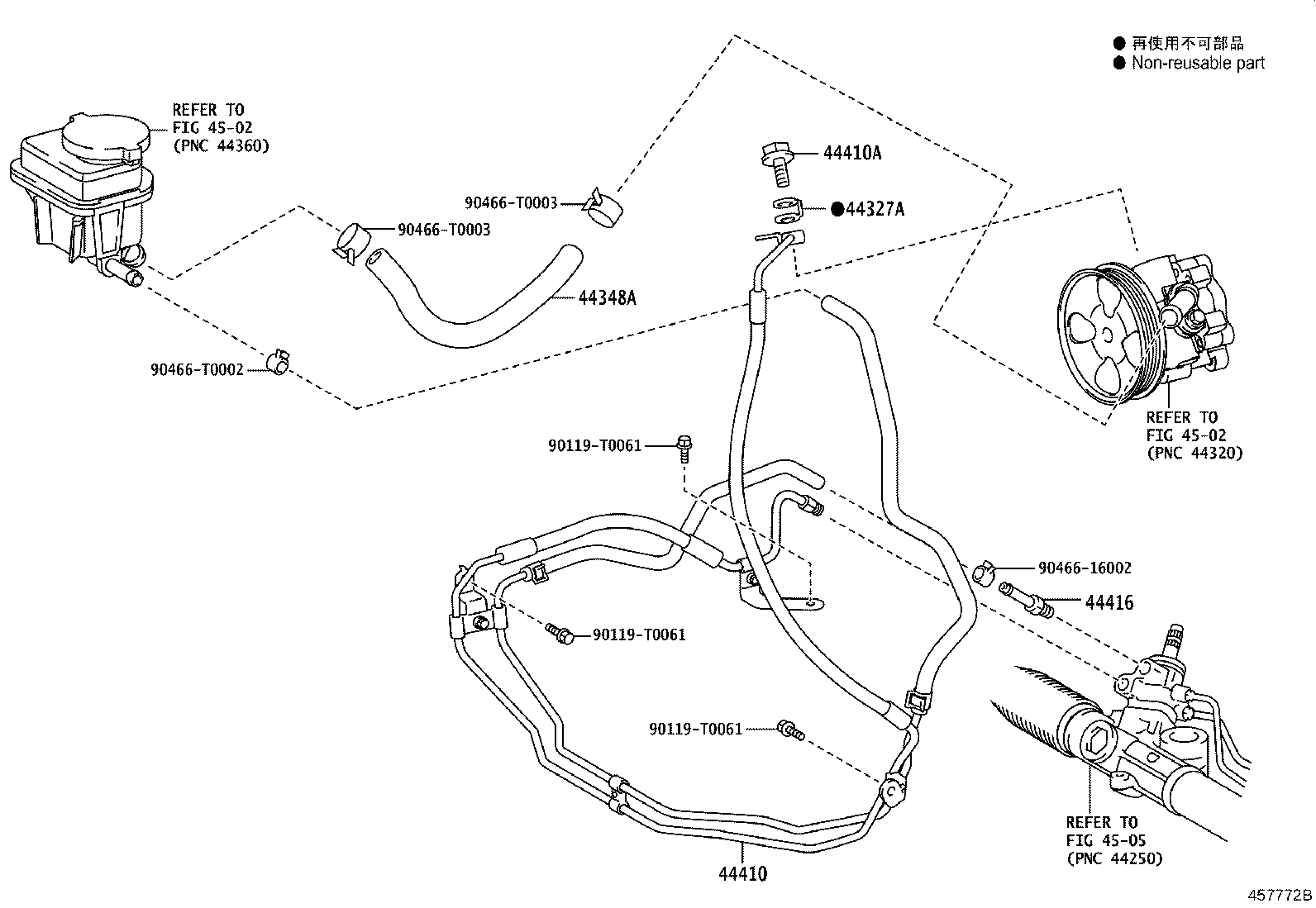

Figure 457771B 457771B 2020-06 → — Figure 457772B 457772B 2020-09 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44410A Bolt, Union(FOR PRESSURE FEED TUBE)
44411 Hose, Pressure Feed
44416 Tube, Return(FOR STEERING GEAR OUTLET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
