Toyota Hilux
2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe
Supported model
Data version 2020-08

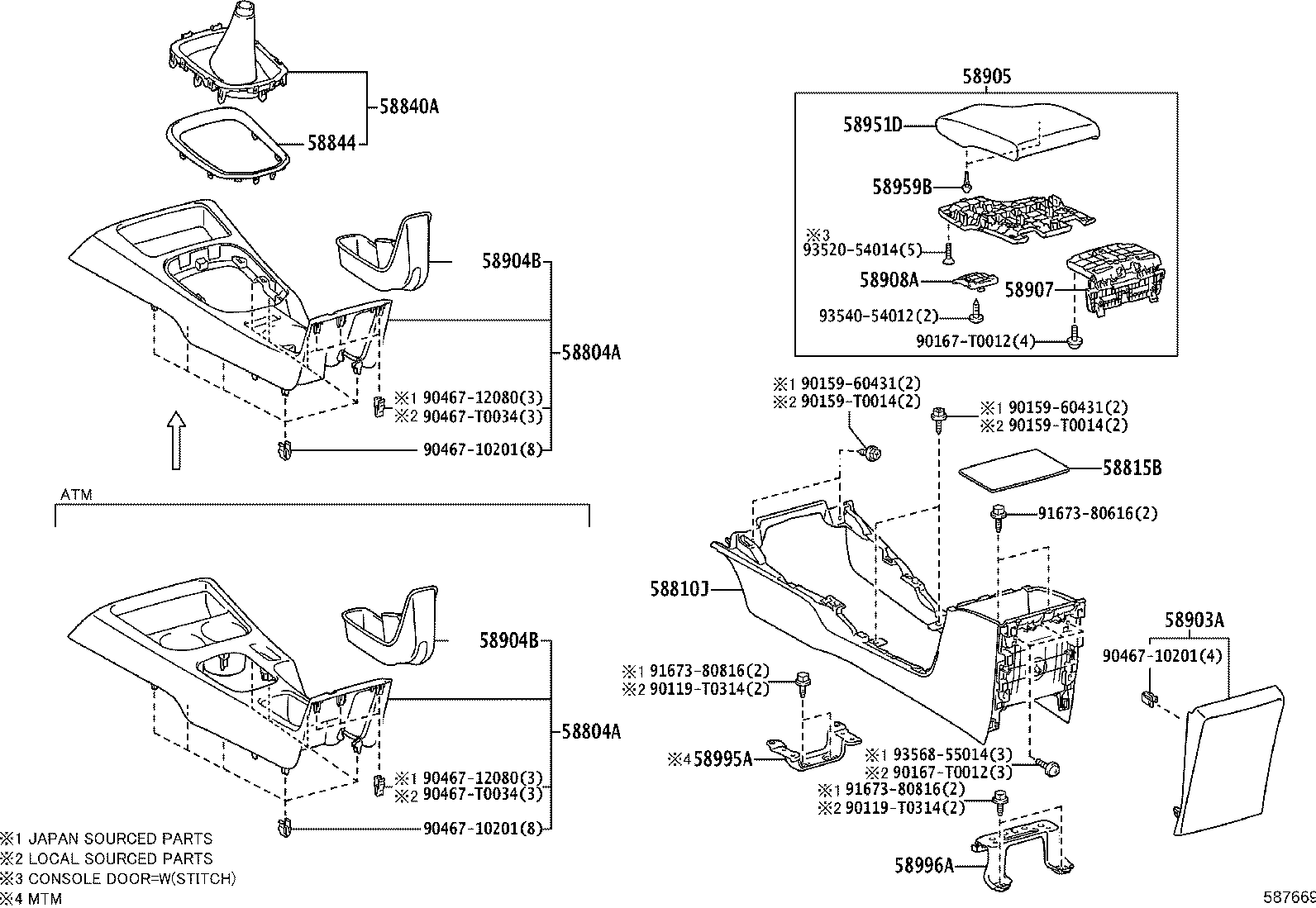

Console Box & Bracket
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58804A | Panel Sub-assy, Console, Upper |
| 58810J | Box Assy, Console |
| 58815B | Carpet, Console Box |
| 58833A | Cover, Console, Upper |
| 58840A | Cover Assy, Shifting Hole |
| 58844 | Bezel, Console Box |
| 58903A | Panel Sub-assy, Console Rear End |
| 58904B | Cover Sub-assy, Parking Brake Hole |
| 58905 | Door Sub-assy, Console Compartment |
| 58907 | Hinge Sub-assy, Console Compartment Door |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58951D | Door, Console Compartment, Outer |
| 58959B | Cushion, Console Compartment Door |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
