Toyota Hilux
2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe
Supported model
Data version 2020-08

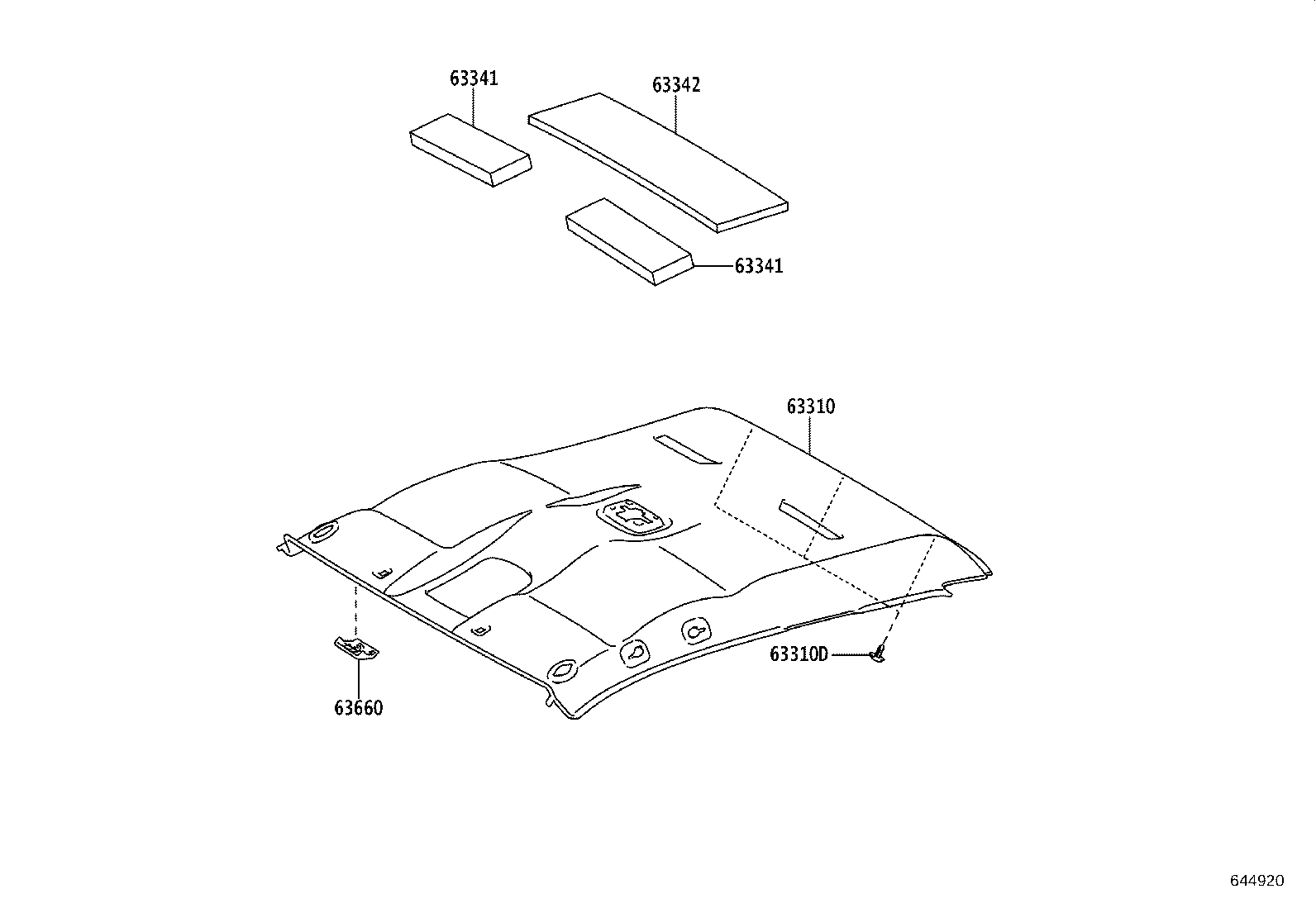

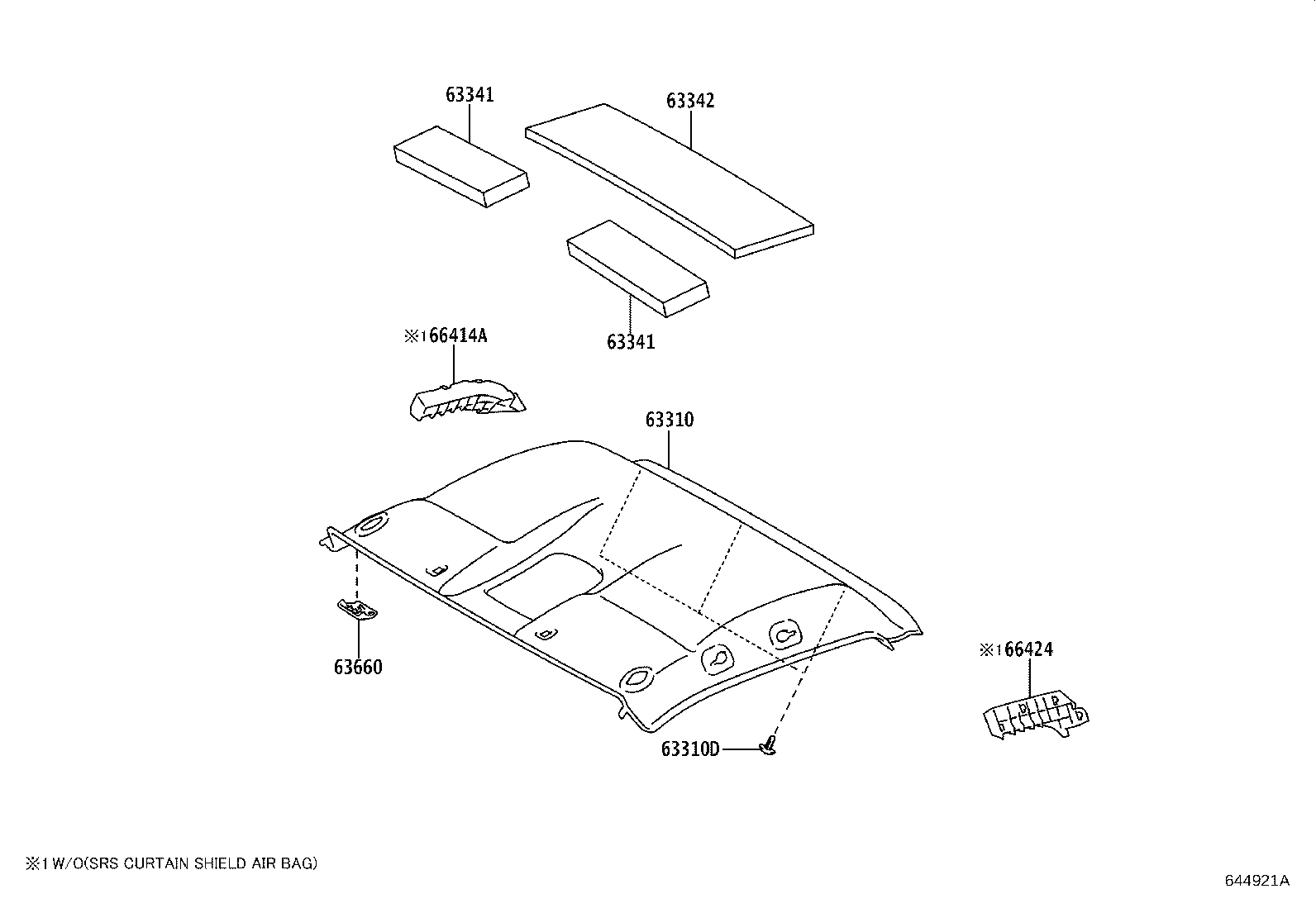

Roof Headlining & Silencer Pad
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63415B | Grille, Roof Speaker, RH |
| 63660 | Cover Assy, Roof Headlining Trim, NO.1 |
| 66414A | Spacer, Side Rail, Rear RH |
| 66424 | Spacer, Side Rail, Rear LH |
| 74605A | Hook Sub-assy, Coat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
