Toyota Hilux
2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe
Supported model
Data version 2020-08

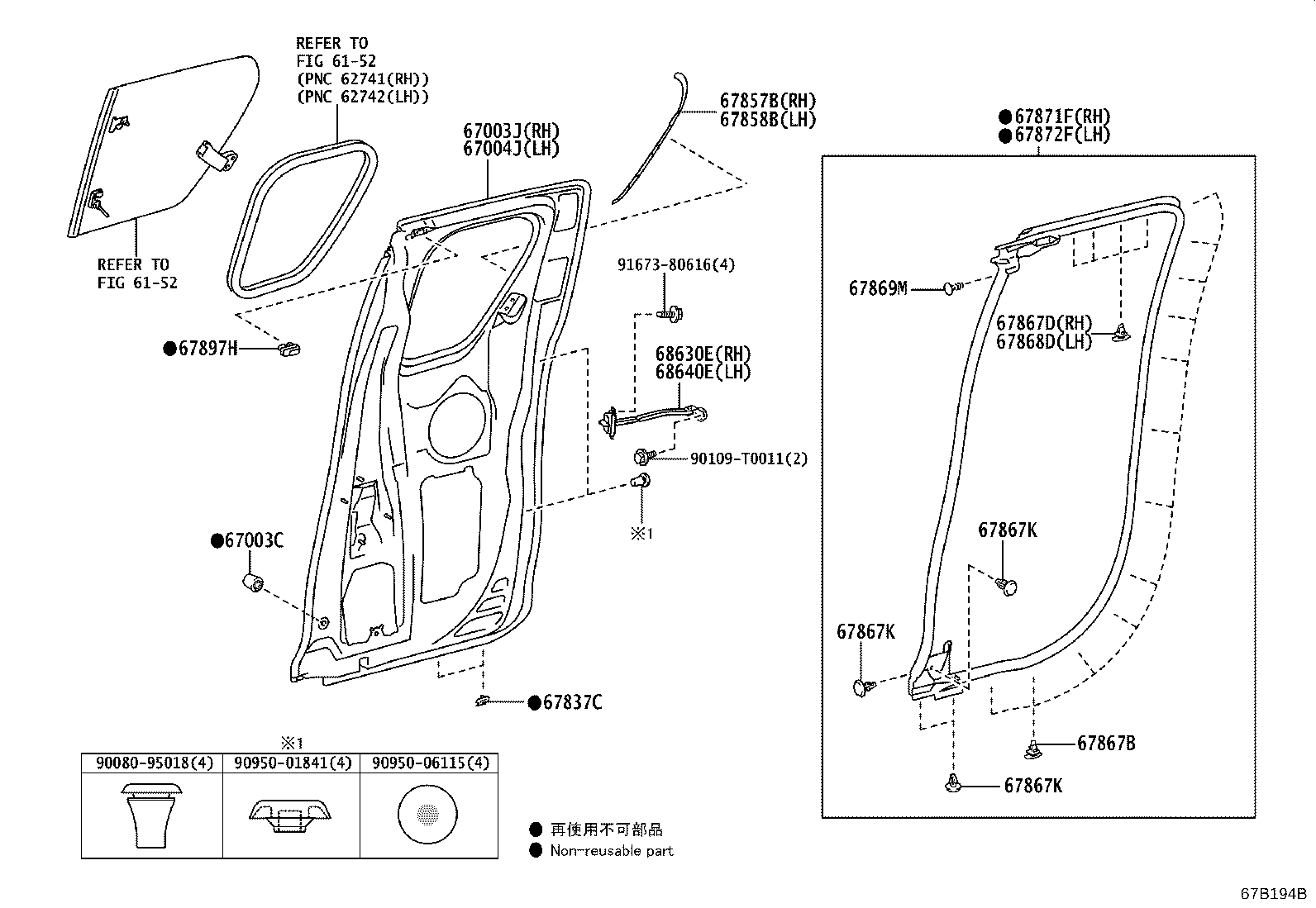

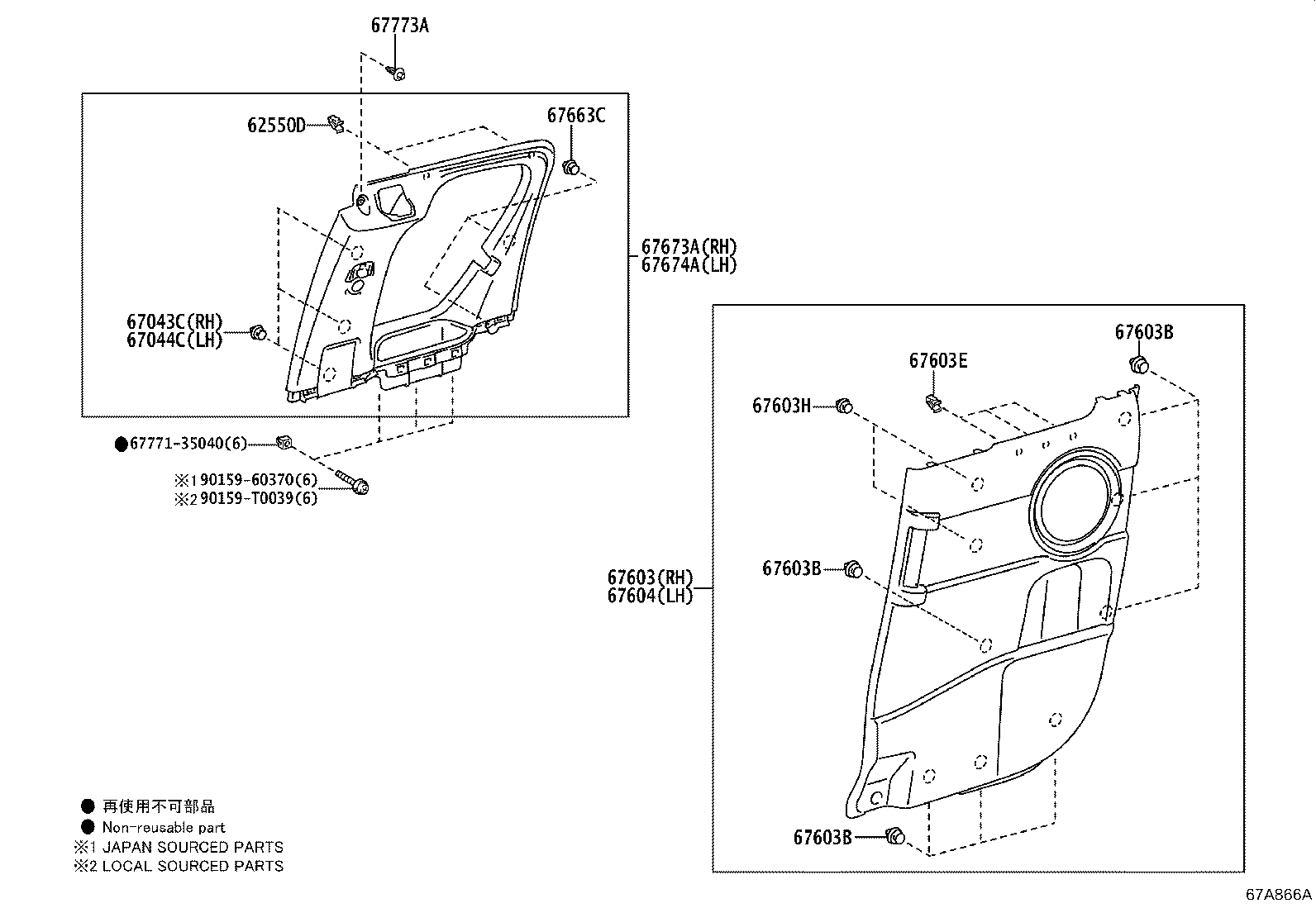

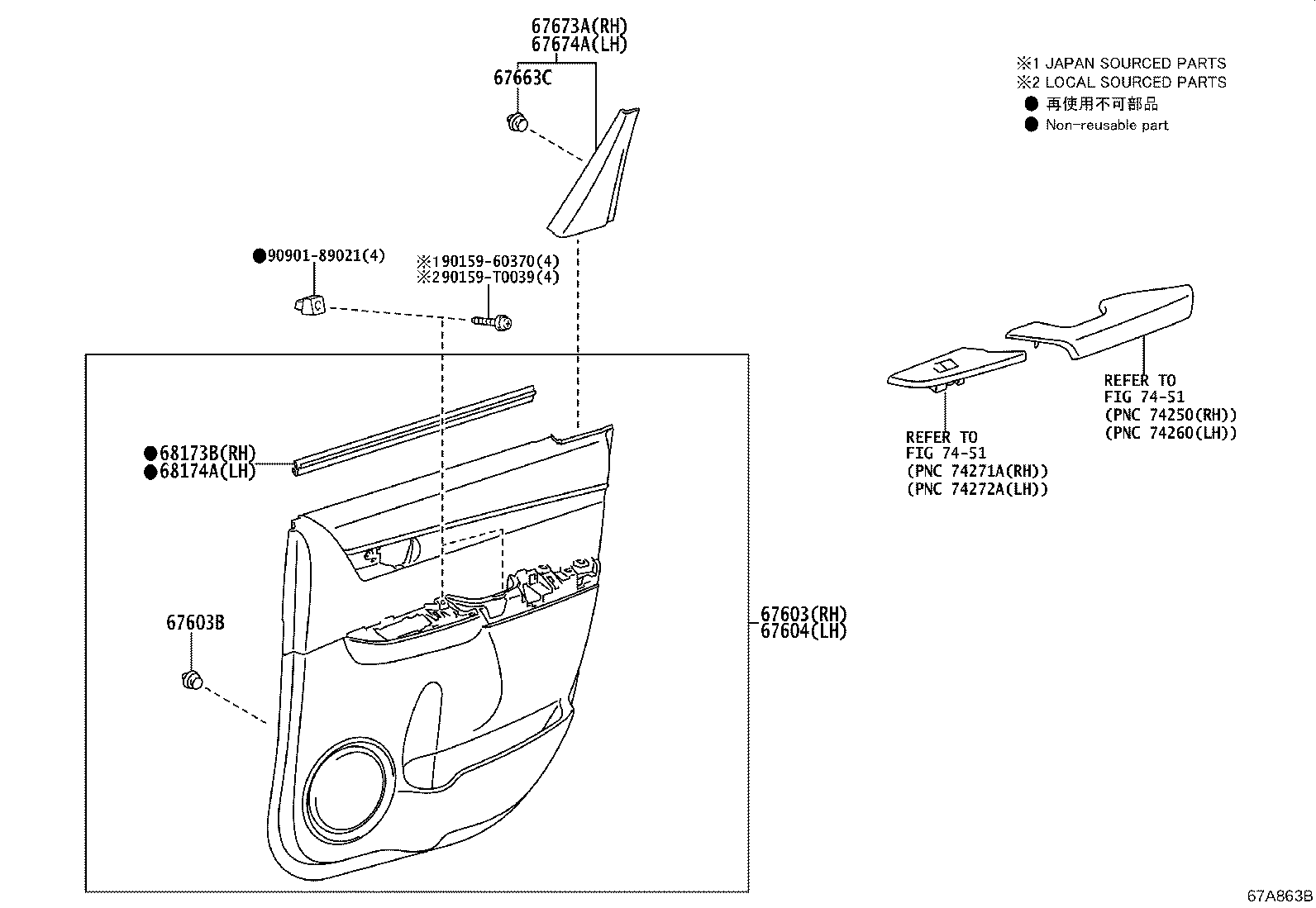

Rear Door Panel & Glass
54 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 62550D | Clip, Rear Window Side Garnish |
| 67003 | Panel Sub-assy, Rear Door, RH |
| 67003C | Cushion, Rear Door Panel |
| 67003J | Panel Sub-assy, Access Panel, RH |
| 67004 | Panel Sub-assy, Rear Door, LH |
| 67004J | Panel Sub-assy, Access Panel, LH |
| 67043C | Clip, Rear Door Window Frame, RH |
| 67044C | Clip, Rear Door Window Frame, LH |
| 67113 | Panel, Rear Door, Outer RH |
| 67114 | Panel, Rear Door, Outer LH |
| 67407E | Bar Sub-assy, Rear Door Window Division, RH |
| 67408E | Bar Sub-assy, Rear Door Window Division, LH |
| 67603 | Board Sub-assy, Rear Door Trim, RH |
| 67603B | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603E | Clip(FOR REAR DOOR TRIM BOARD) |
| 67603H | Clip(FOR REAR DOOR TRIM BOARD) |
| 67604 | Board Sub-assy, Rear Door Trim, LH |
| 67663C | Clip(FOR DOOR FRAME GARNISH) |
| 67673A | Garnish, Rear Door Frame, RH |
| 67674A | Garnish, Rear Door Frame, LH |
| 67773A | Clip, Rear Door Trim Upper Retainer, NO.1 |
| 67812 | Pad, Rear Door Silencer |
| 67837C | Seal, Rear Door Dust Proof |
| 67841E | Cover, Rear Door Service Hole, RH |
| 67842E | Cover, Rear Door Service Hole, LH |
| 67857B | Protector, Rear Door Panel, RH |
| 67858B | Protector, Rear Door Panel, LH |
| 67867B | Clip, Door Weatherstrip(FOR REAR DOOR) |
| 67867D | Retainer, Rear Door Weatherstrip, RH |
| 67867K | Clip, Door Weatherstrip, LH(FOR REAR DOOR) |
| 67868D | Retainer, Rear Door Weatherstrip, LH |
| 67869L | Clip, Rear Door Weatherstrip |
| 67869M | Clip, Door Weatherstrip |
| 67871 | Weatherstrip, Rear Door, RH |
| 67871F | Weatherstrip, Access Panel, RH |
| 67872 | Weatherstrip, Rear Door, LH |
| 67872F | Weatherstrip, Access Panel, LH |
| 67897H | Cushion, Rear Door |
| 68103 | Glass Sub-assy, Rear Door, RH |
| 68104 | Glass Sub-assy, Rear Door, LH |
| 68123B | Glass, Rear Door Quarter Window, RH |
| 68124C | Glass, Rear Door Quarter Window, LH |
| 68142C | Run, Rear Door Glass, RH |
| 68152C | Run, Rear Door Glass, LH |
| 68173B | Weatherstrip, Rear Door Glass, Inner RH |
| 68174A | Weatherstrip, Rear Door Glass, Inner LH |
| 68188 | Weatherstrip, Rear Door Quarter Window, RH |
| 68189 | Weatherstrip, Rear Door Quarter Window, LH |
| 68630D | Check Assy, Rear Door, RH |
| 68630E | Check Assy, Access Panel, RH |
| 68640A | Check Assy, Rear Door, LH |
| 68640E | Check Assy, Access Panel, LH |
| 75923C | Tape, Black Out, NO.2 RH |
| 75924C | Tape, Black Out, NO.2 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
