Toyota Hilux

2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Moulding

23 part groups · 5 illustrations

Illustrations

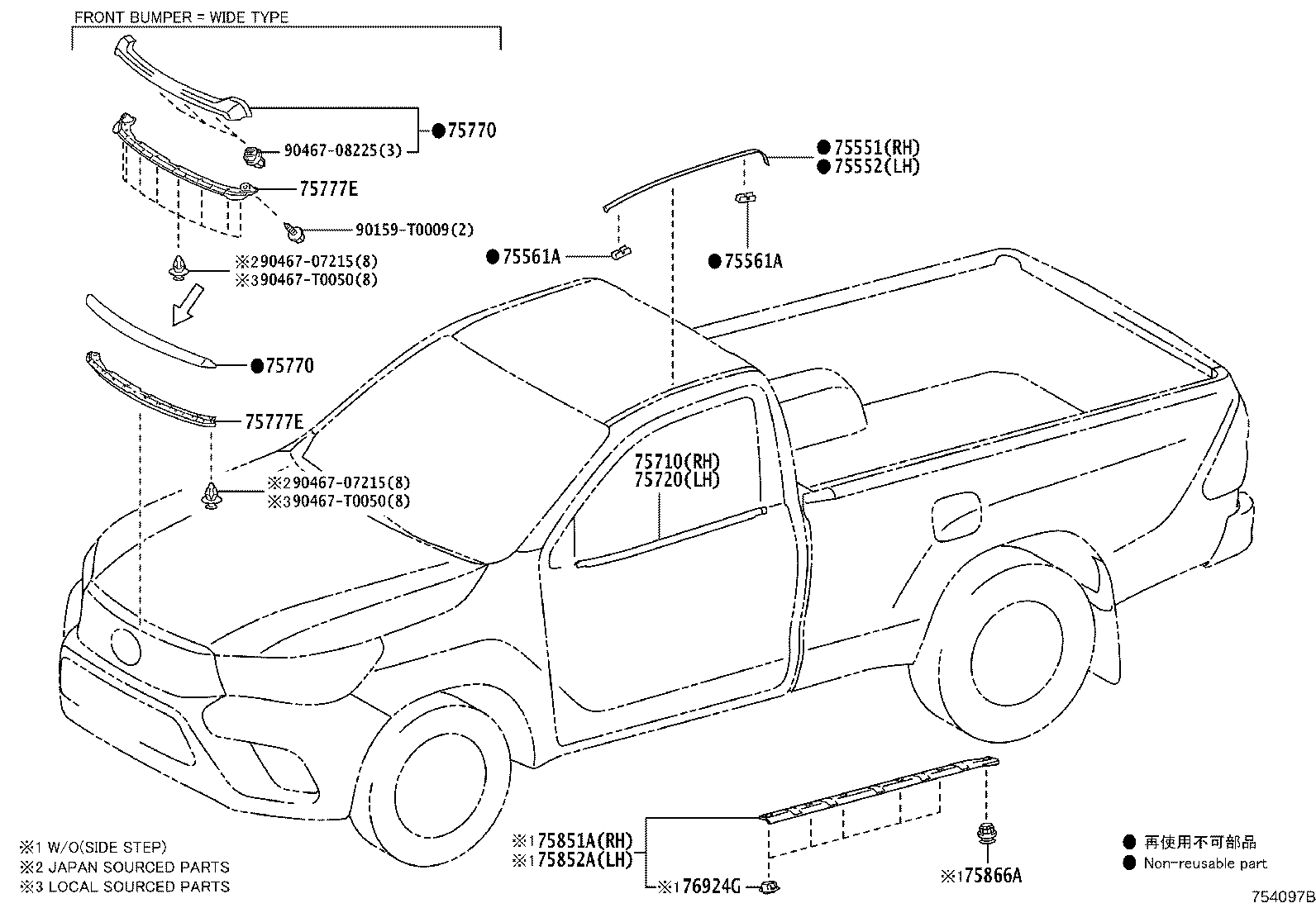

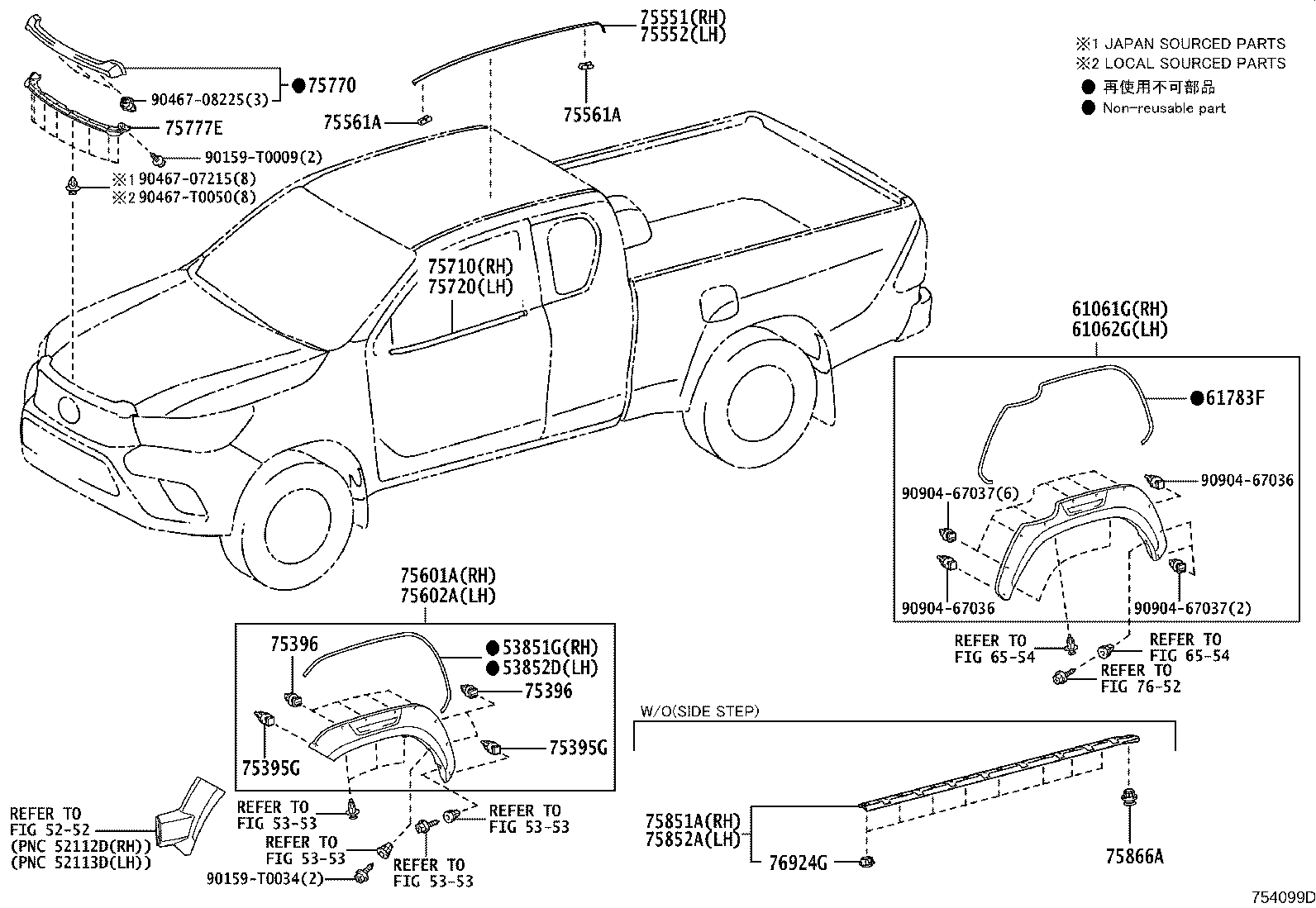

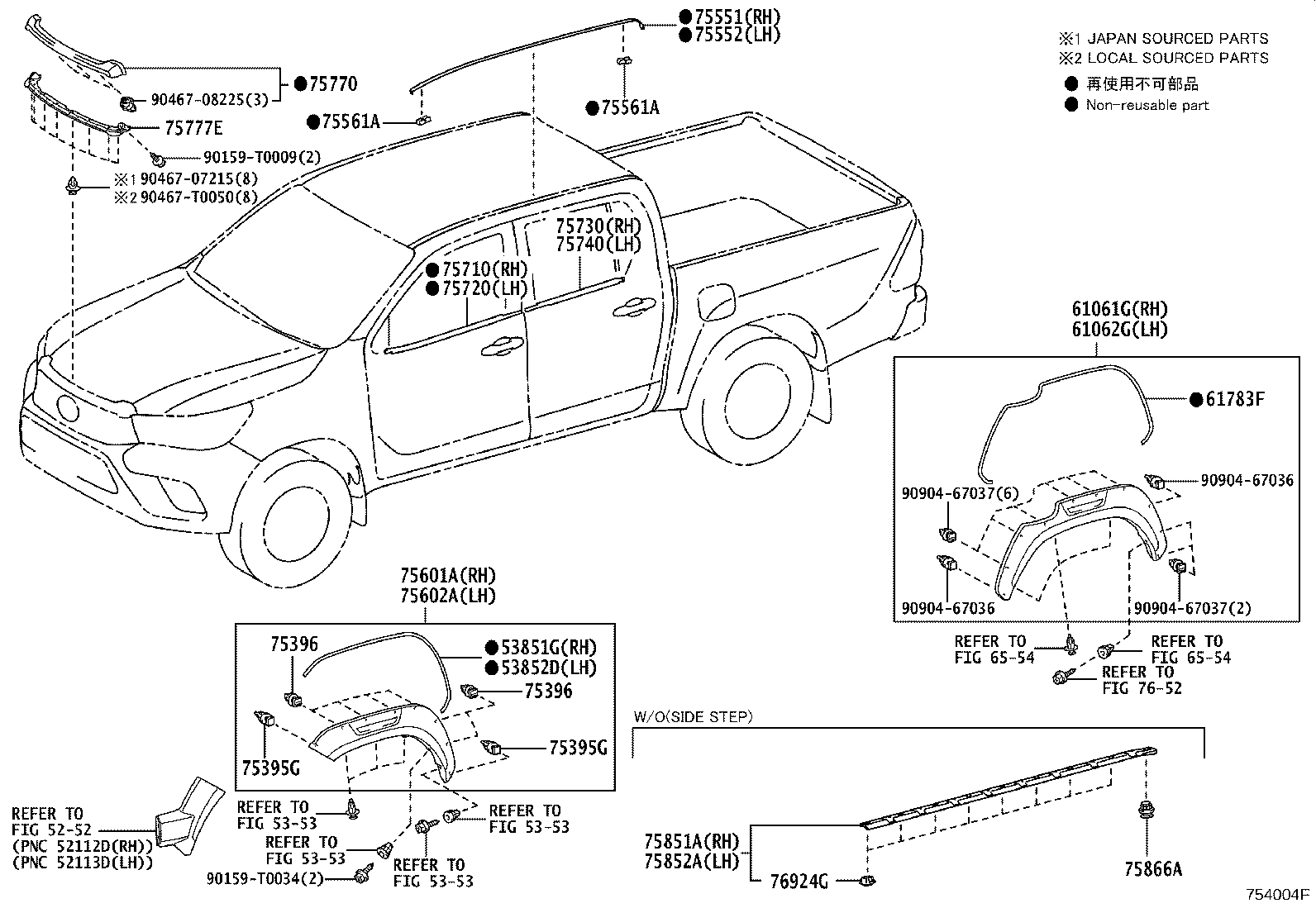

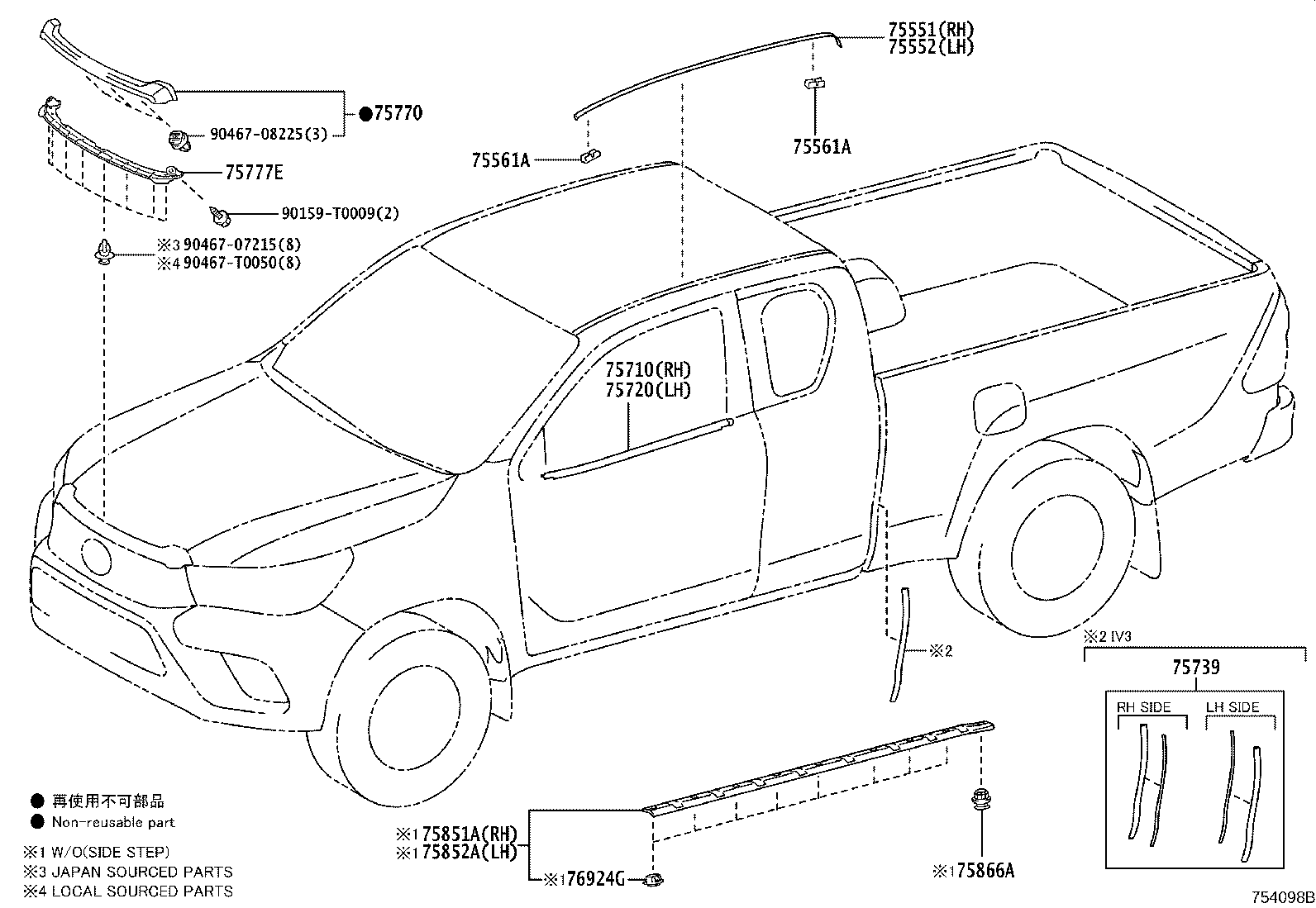

Figure 754096B 754096B 2020-05 → — Figure 754004F 754004F 2020-05 → — Figure 754097B 754097B 2020-09 → — Figure 754098B 754098B 2020-09 → — Figure 754099D 754099D 2020-09 → —

Part groups

PNCDescription
53851G Pad, Front Wheel Opening Extension, RH
53852D Pad, Front Wheel Opening Extension, LH
61061G Extension Sub-assy, Rear Wheel Opening, NO.1 RH
61062G Extension Sub-assy, Rear Wheel Opening, NO.1 LH
61783F Pad, Rear Wheel Opening Extension NO.1
75395G Clip, Outside Moulding, NO.1
75396 Clip, Outside Moulding, NO.2
75551 Moulding, Roof Drip Side Finish, RH
75552 Moulding, Roof Drip Side Finish, LH
75561A Clip, Roof Drip Side Finish Moulding
75601A Moulding Sub-assy, Front Fender, RH
75602A Moulding Sub-assy, Front Fender, LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75739 Moulding, Door Edge Protection
75740 Moulding Assy, Rear Door Belt, LH
75770 Moulding Assy, Hood, Front
75777E Pad, Hood Front Moulding
75851A Moulding, Rocker Panel, Front RH
75852A Moulding, Rocker Panel, Front LH
75866A Retainer, Rocker Panel Moulding
76924G Retainer, Rocker Panel Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
