Toyota Hilux

2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe

Supported model Data version 2020-08

Fuel Tank & Tube

48 part groups · 4 illustrations

PNC	Description
23217D	Filter, Fuel Pump

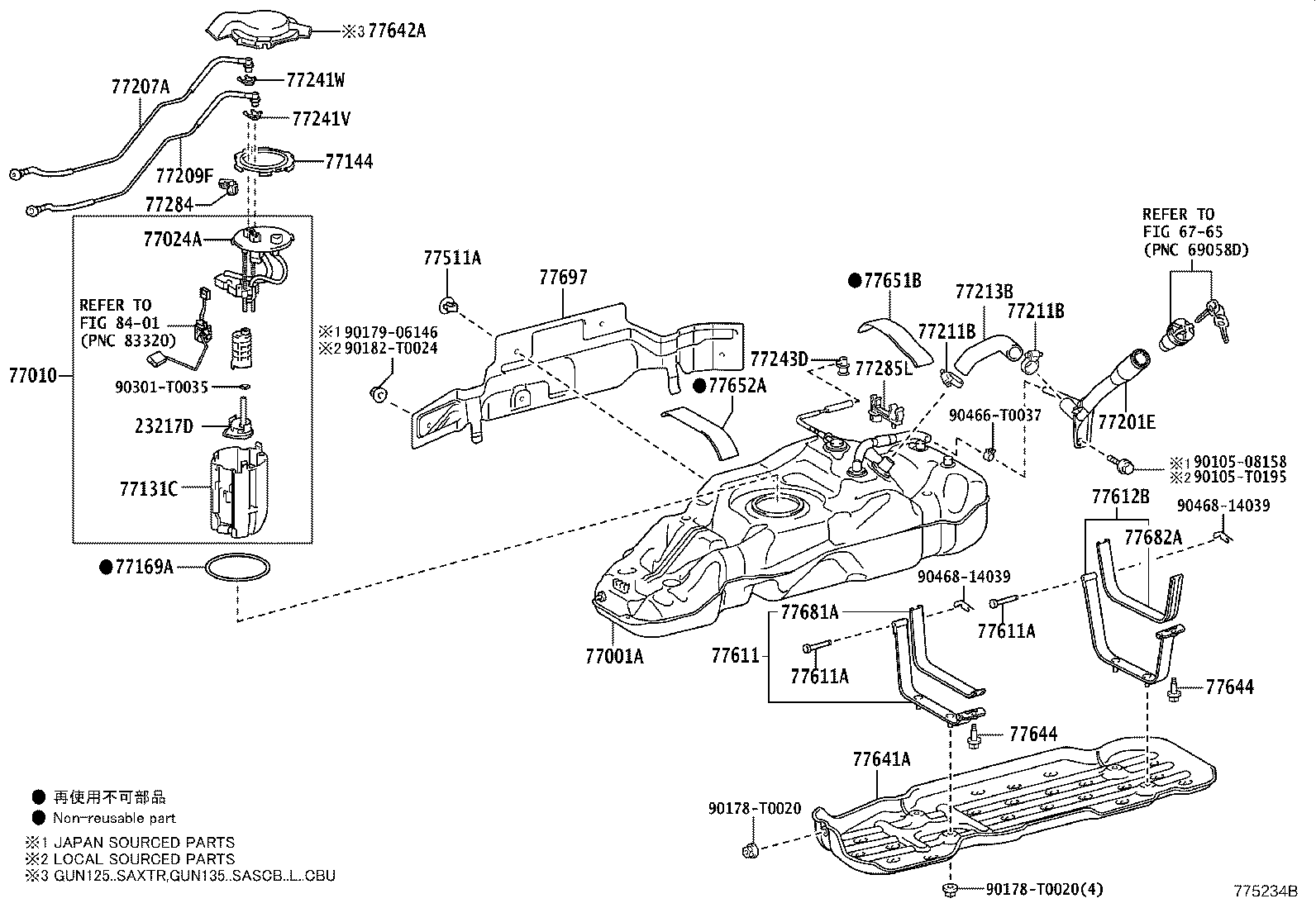

77001A	Tank Sub-assy, Fuel
77010	Tube Assy, Fuel Tank Vent
77024A	Plate Sub-assy, Fuel Suction

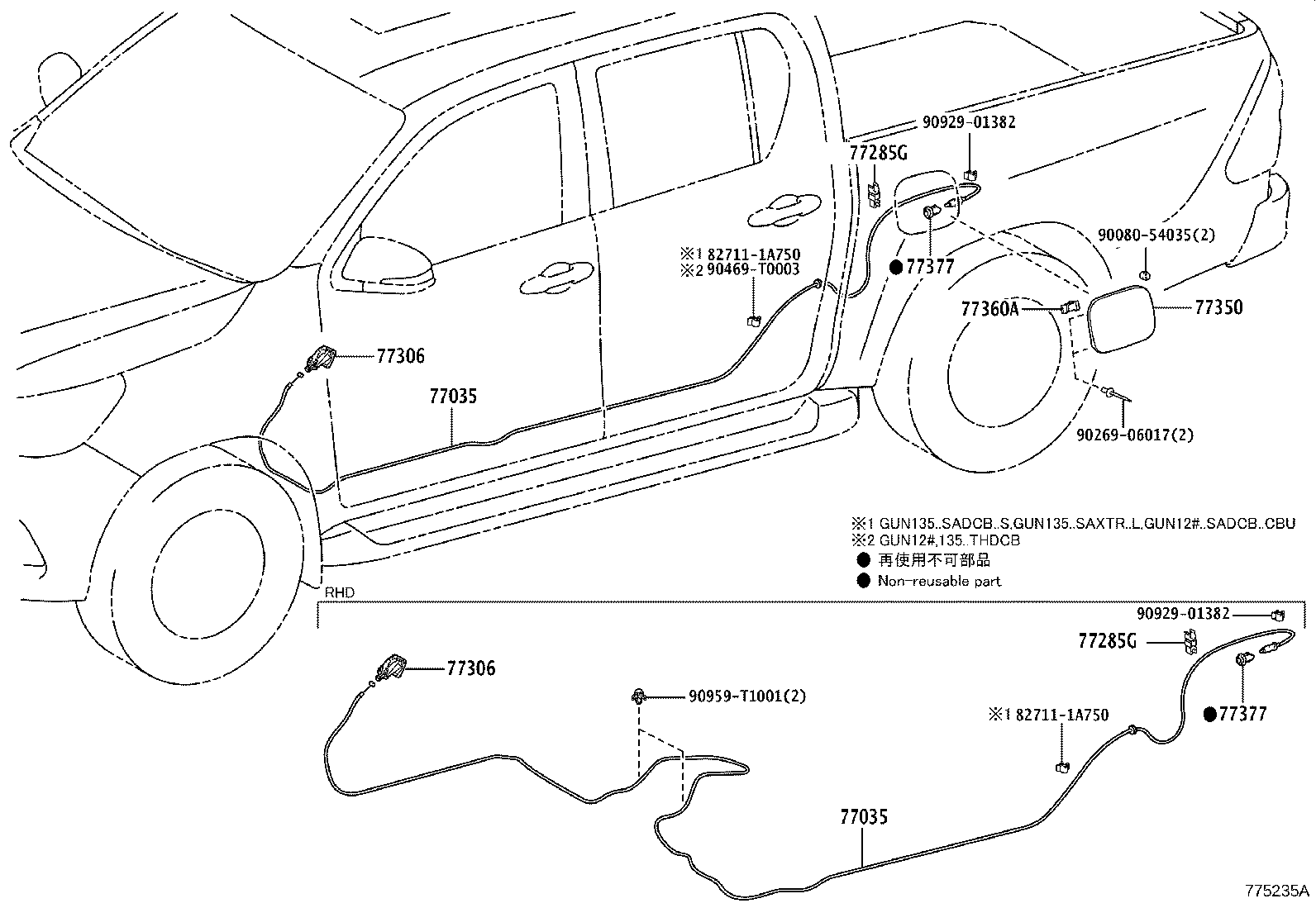

77035	Cable Sub-assy, Fuel Lid Lock Control
77131C	Sub-tank, Fuel, NO.1
77144	Retainer, Fuel Pump Gauge
77169A	Gasket, Fuel Suction Tube Set
77201E	Pipe Sub-assy, Fuel Tank Filler
77207A	Tube Sub-assy, Fuel Return
77209F	Tube Sub-assy, Fuel Tank Main
77211B	Clamp (FOR FUEL FILLER PIPE)
77213B	Hose, Fuel Tank TO Filler Pipe
77241V	Clip, Tube Joint
77241W	Clip, Tube Joint
77243D	Joint, Fuel Tube, NO.1

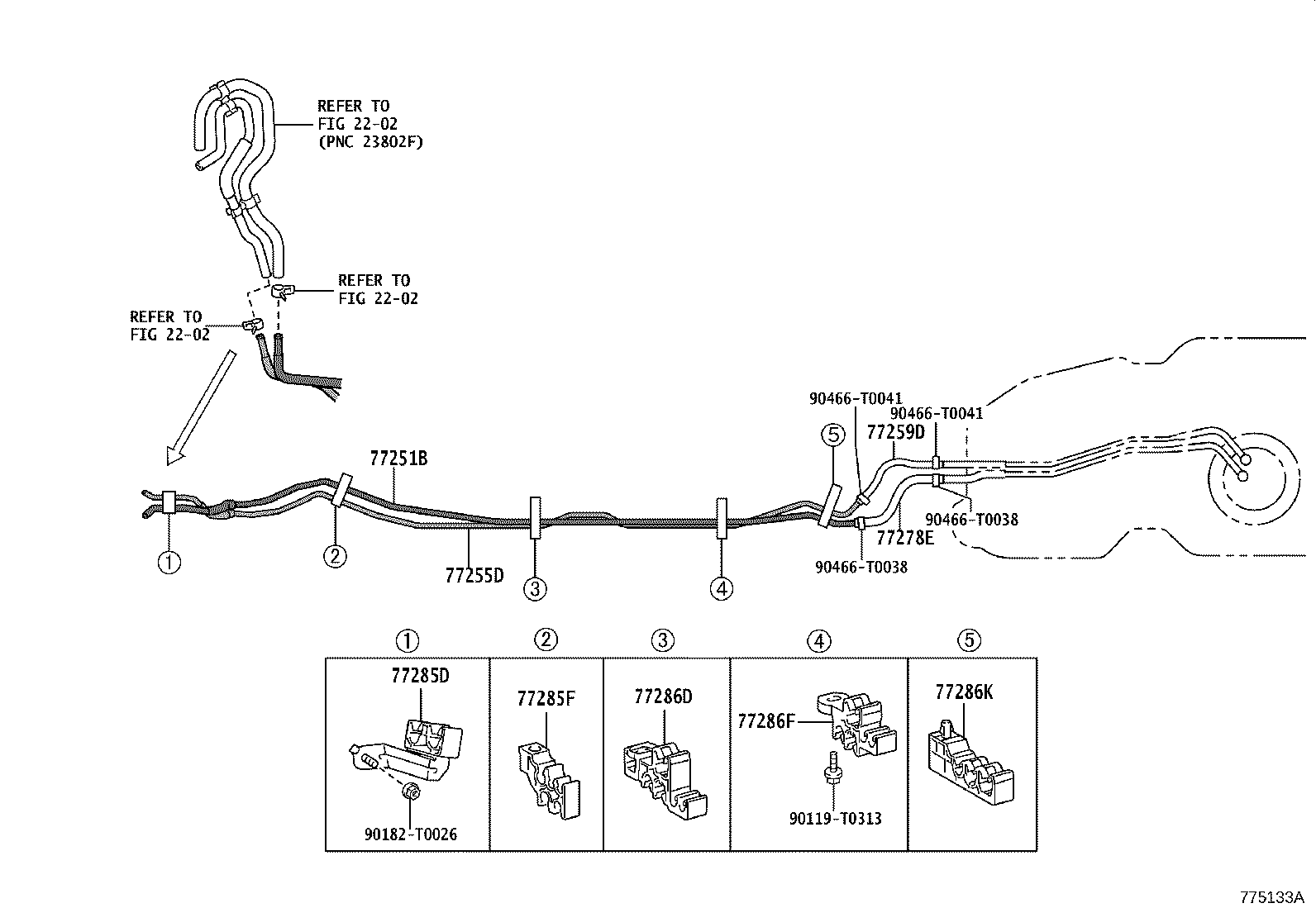

77251B	Tube, Fuel Main
77255D	Tube, Fuel Return
77259D	Hose, Fuel, NO.1
77259E	Hose, Fuel
77278E	Hose, Fuel
77284	Clamp, Fuel Tube
77285D	Clamp, Fuel Tube, NO.1
77285F	Clamp, Fuel Tube, NO.1
77285G	Clamp, Fuel Tube, NO.1
77285L	Clamp, Fuel Tube, NO.1
77286D	Clamp, Fuel Tube, NO.2
77286F	Clamp, Fuel Tube, NO.2
77286K	Clamp, Fuel Tube, NO.2
77290	Shield Assy, Fuel Tank Filler Pipe
77306	Lever Sub-assy, Fuel Lid Lock Open
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77360A	Spring Assy, Fuel Filler Opening Lid
77377	Retainer, Fuel Filler Opening Lid Lock
77511A	Bracket, Fuel Tank
77611	Band, Fuel Tank
77611A	Pin (FOR FUEL TANK BAND)
77612B	Band, Fuel Tank, NO.2
77641A	Protector, Fuel Tank, NO.1
77642A	Protector, Fuel Tank, NO.2
77644	Bolt, Fuel Tank
77651B	Cushion, Fuel Tank
77652A	Cushion, Fuel Tank, NO.2
77681A	Seat, Fuel Tank Band
77682A	Seat, Fuel Tank Band, NO.2
77697	Insulator, Fuel Tank Heat, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
