Toyota Hilux

2020-06 → 2021-09 · chassis GUN12#,135 · catalogue 6725A0 · Europe

Supported model Data version 2020-08
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Controled Diesel (ECD)

8 part groups · 3 illustrations

Illustrations

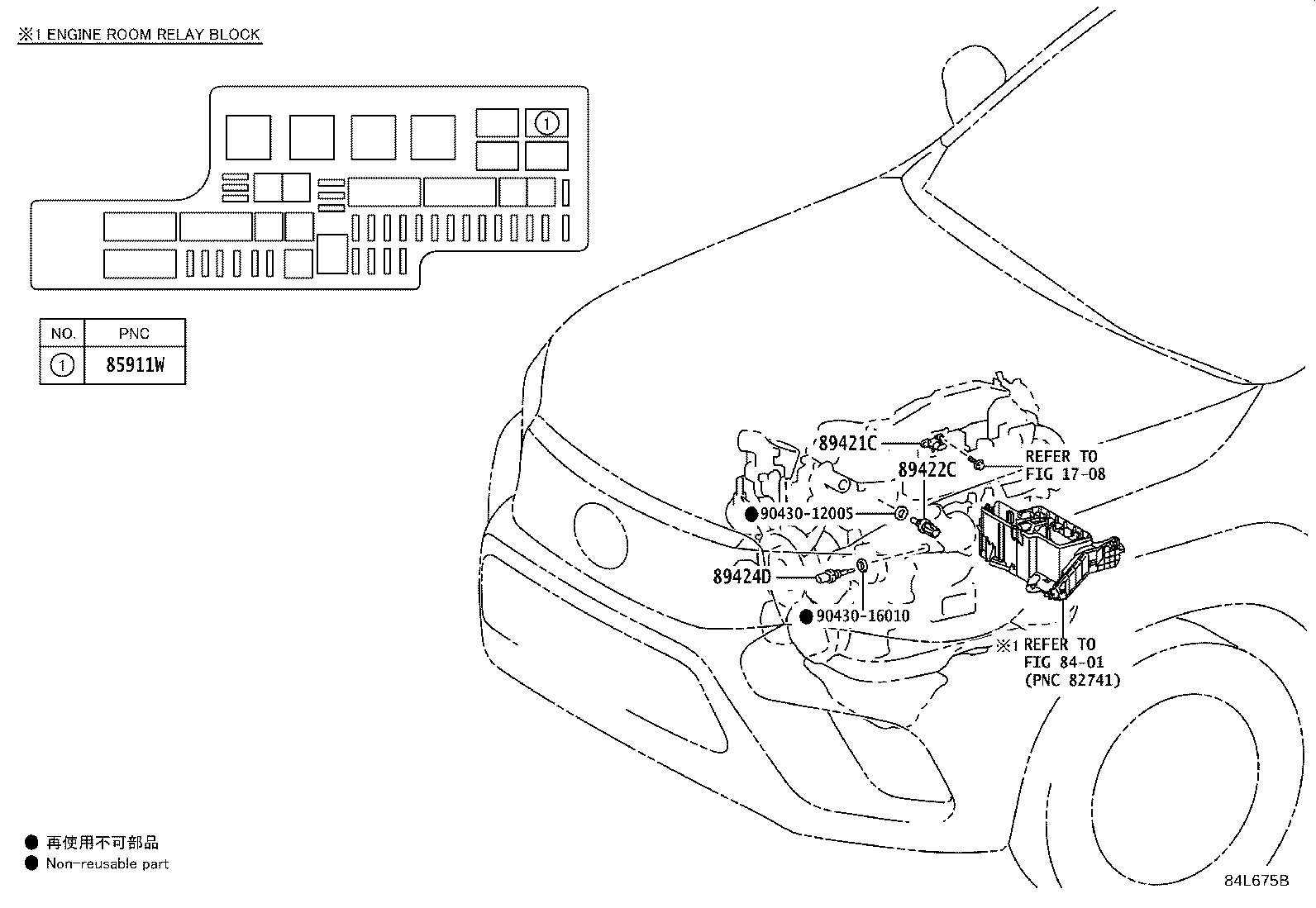

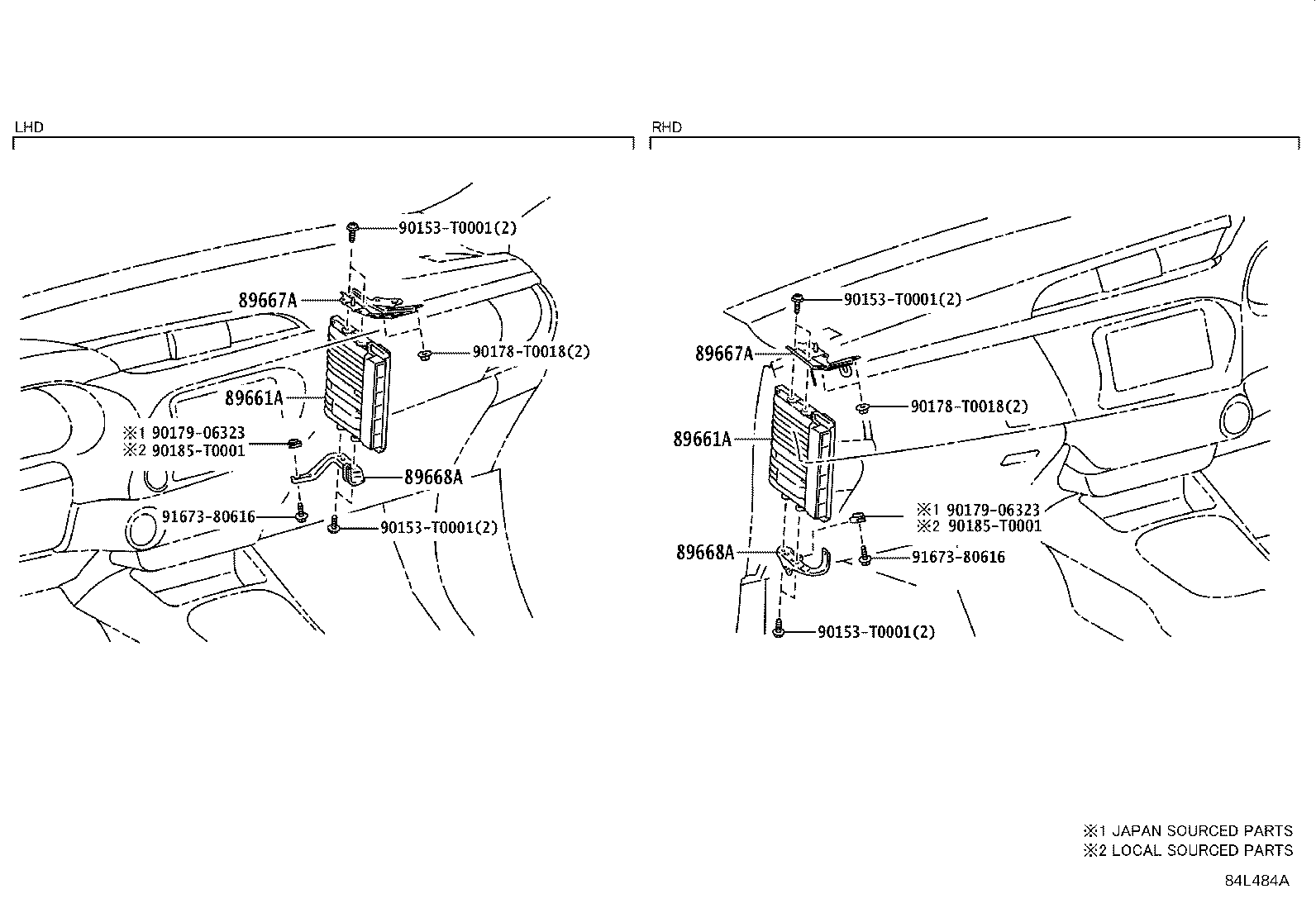

Figure 84L483B 84L483B 2020-06 → — Figure 84L675B 84L675B 2020-06 → — Figure 84L484A 84L484A 2020-06 → —

Part groups

PNCDescription
85911W Relay, Electronic Driver Unit
89421C Sensor, Turbo Pressure (FOR DIESEL TURBO)
89422C Sensor, Diesel Engine Water Temperature
89422P Sensor, Water Temperature
89424D Sensor, Inlet Air Temperature
89661A Computer, Engine Control
89667A Bracket, Engine Control Computer, NO.1
89668A Bracket, Engine Control Computer, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
